24 Phase Power

Industry's First 24 Phase Power VRM Design
The smoothest power delivery from high quality components

GIGABYTE's cutting edge 24 phase power VRM design utilizes the highest caliber components to provide unadulterated, smooth power delivery for the CPU. Like a high performance sports car engine, GIGABYTE's 24 phase power design enables the best delivery of power to supercharge your system, giving extreme users unparalleled overclocking ability and the lowest temperatures to reach maximum performance levels.

The innovative 24 phase power VRM has been designed and engineered to deliver fast transient response times through quick and seamless power delivery during extensive CPU loading variations. In addition, heat from the VRM is effectively reduced by spreading the load between the 24 power phases, resulting in a cooler and more stable platform.

Leading the industry with the highest quality standards, the GIGABYTE 24 phase power VRM design is packed with top notch components that include 50,000hr. Japanese solid capacitors, Driver Mos for cooler operation and highly energy efficient Ferrite core chokes. Optimizing the power design with Intel VRD 11.1 specification, the GIGABYTE 24 phase power VRM offers a significant step- up in efficiency, durability and performance.

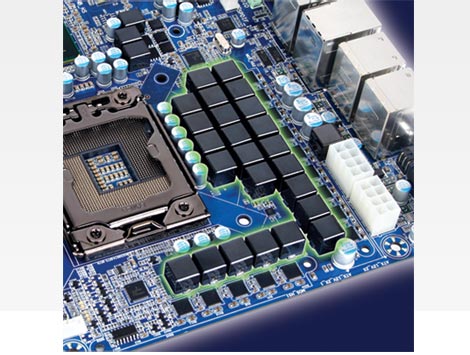

24 Phase Power VRM Design - Enabling optimum power delivery and lowest thermal
Traditional
24 Phase Power VRM
Heat from VRM is effectively reduced

Infra Red CPU VRM Thermal Diagram

24 Phase Power VRM
Traditional VRM Design
Power Delivery Stability
Excellent
Poor
VRM Temperature
Low
High
Efficiency
High
Low
Durability
High
Low

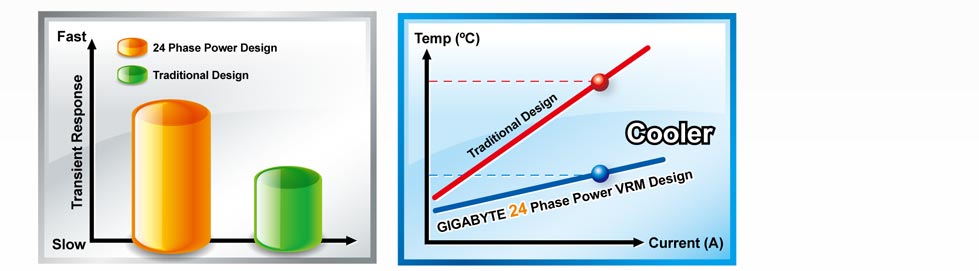

  Fast transient response provides quick and seamless power delivery during extensive CPU loading variations VRM heat is effectively dissipated by sharing loadings among the 24 power phases
