GIGABYTE 2 oz Copper PCB / Ultra Durable 3 Motherboards

Lower
Temperature

Better
Overclocking

Better Power
Efficiency

2X Lower
Impedance

Lower EMI

Better ESD
Protection

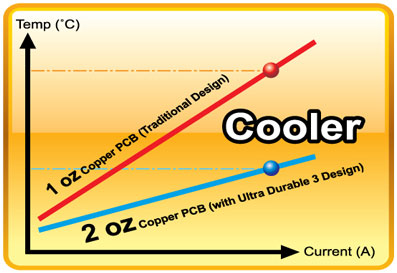

Lower Temperature Doubling the amount of copper provides a more effective thermal cooling solution by delivering a more efficient spreading of heat from critical areas of the motherboard such as the CPU power zone throughout the entire PCB. In fact, GIGABYTE Ultra Durable 3 motherboards are able to deliver twice as cool working temperatures than traditional motherboards.

CPU VRM Temperature measurements under system setup with water-cooler block and CPU running at 100% loading

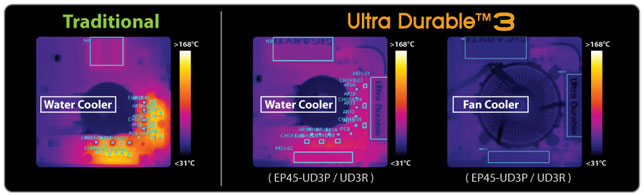

	Infra Red CPU VRM Thermal Diagram

	* CPU VRM Temperature measurements under CPU running at 100% loading.
