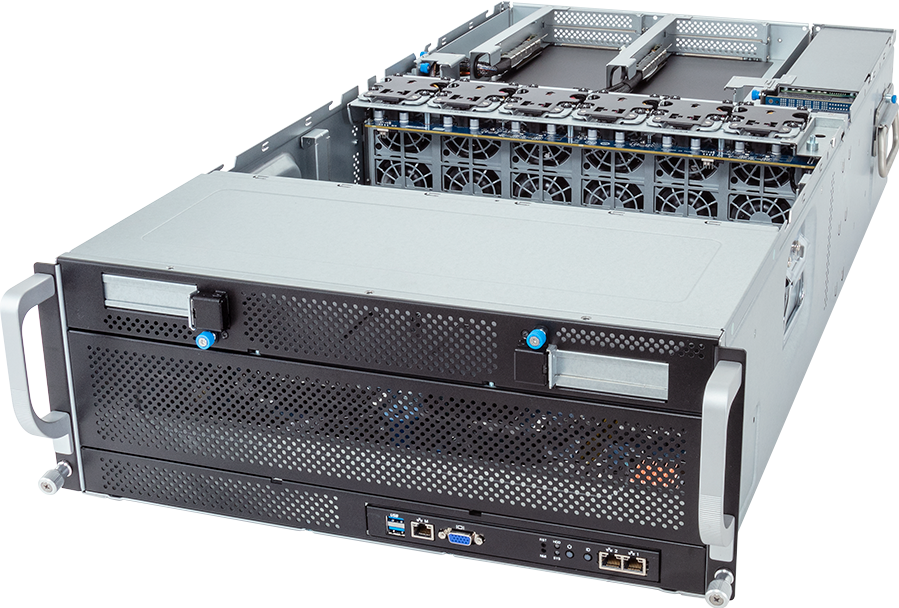

- G493-ZB0-AAP1
- NVIDIA-Certified Systems™ - Data Center Servers
- Supports up to 8 x Dual slot Gen5 GPUs
- Dual AMD EPYC™ 9005/9004 Series Processors
- 12-Channel DDR5 RDIMM, 24 x DIMMs
- Dual ROM Architecture
- 2 x 10Gb/s LAN ports via Intel® X710-AT2
- 2 x M.2 slots with PCIe Gen3 x4 and x1 interface
- 8 x FHFL PCIe Gen5 x16 slots for GPUs
- 2 x FHFL PCIe Gen5 x16 slots
- 3+1 3000W 80 PLUS Titanium redundant power supplies
* The entire materials provided herein are for reference only. GIGABYTE reserves the right to modify or revise the content at anytime without prior notice.
* Advertised performance is based on maximum theoretical interface values from respective Chipset vendors or organization who defined the interface specification. Actual performance may vary by system configuration.
* All trademarks and logos are the properties of their respective holders.
* Due to standard PC architecture, a certain amount of memory is reserved for system usage and therefore the actual memory size is less than the stated amount.
* Advertised performance is based on maximum theoretical interface values from respective Chipset vendors or organization who defined the interface specification. Actual performance may vary by system configuration.
* All trademarks and logos are the properties of their respective holders.
* Due to standard PC architecture, a certain amount of memory is reserved for system usage and therefore the actual memory size is less than the stated amount.
SPECIFICATIONS
Dimensions (WxHxD, mm)
4U
448 x 176 x 880
448 x 176 x 880
Motherboard
MZB3-G43
CPU
AMD EPYC™ 9005 Series Processors
AMD EPYC™ 9004 Series Processors
Dual processor, cTDP up to 400W [1]
- At ambient 25°C, cTDP up to 500W
[1] Please refer to the QVL on the support page or contact our sales representatives for verified CPU SKUs.
[Note] If only 1 CPU is installed, some PCIe or memory functions might be unavailable.
AMD EPYC™ 9004 Series Processors
Dual processor, cTDP up to 400W [1]
- At ambient 25°C, cTDP up to 500W
[1] Please refer to the QVL on the support page or contact our sales representatives for verified CPU SKUs.
[Note] If only 1 CPU is installed, some PCIe or memory functions might be unavailable.
Socket
2 x LGA 6096
Socket SP5
Socket SP5
Chipset
System on Chip
Memory
24 x DIMM slots
DDR5 memory supported
12-Channel memory architecture
AMD EPYC™ 9005:
RDIMM: Up to 6000 MT/s
AMD EPYC™ 9004:
RDIMM: Up to 4800 MT/s
DDR5 memory supported
12-Channel memory architecture
AMD EPYC™ 9005:
RDIMM: Up to 6000 MT/s
AMD EPYC™ 9004:
RDIMM: Up to 4800 MT/s
LAN
Front:
2 x 10Gb/s LAN (1 x Intel® X710-AT2)
- Support NCSI function
1 x 10/100/1000 Mbps Management LAN
2 x 10Gb/s LAN (1 x Intel® X710-AT2)
- Support NCSI function
1 x 10/100/1000 Mbps Management LAN
Video
Integrated in Aspeed® AST2600
- 1 x VGA port
- 1 x VGA port
Storage
Internal M.2:
1 x M.2 (2280/22110), PCIe Gen3 x4, from CPU_1
1 x M.2 (2280/22110), PCIe Gen3 x1, from CPU_0
1 x M.2 (2280/22110), PCIe Gen3 x4, from CPU_1
1 x M.2 (2280/22110), PCIe Gen3 x1, from CPU_0
SAS
N/A
RAID
N/A
PCIe Expansion Slots
4 x FHFL x16 (Gen5 x16), from CPU_0, for GPUs
4 x FHFL x16 (Gen5 x16), from CPU_1, for GPUs
1 x FHFL x16 (Gen5 x16), from CPU_0
1 x FHFL x16 (Gen5 x16), from CPU_1
[Note] The system is validated for use with a single GPU model.
4 x FHFL x16 (Gen5 x16), from CPU_1, for GPUs
1 x FHFL x16 (Gen5 x16), from CPU_0
1 x FHFL x16 (Gen5 x16), from CPU_1
[Note] The system is validated for use with a single GPU model.
Front I/O
2 x USB 3.2 Gen1 ports (Type-A)
1 x VGA port
2 x RJ45 ports
1 x MLAN port
1 x Power button with LED
1 x ID button with LED
1 x NMI button
1 x Reset button
1 x Storage activity LED
1 x System status LED
1 x VGA port
2 x RJ45 ports
1 x MLAN port
1 x Power button with LED
1 x ID button with LED
1 x NMI button
1 x Reset button
1 x Storage activity LED
1 x System status LED
Rear I/O
N/A
Backplane Board
N/A
Security Modules
1 x TPM header with SPI interface
- Optional TPM2.0 kit: CTM010
- Optional TPM2.0 kit: CTM010
Power Supply
3+1 3000W 80 PLUS Titanium redundant power supplies [1]
AC Input:
- 100-127V~/ 14.5A, 50/60Hz
- 200-220V~/ 16A, 50/60Hz
- 220-240V~/ 16A, 50/60Hz
DC Input: (Only for China)
- 240Vdc/ 16A
DC Output:
- Max 1097.4W/ 100-127V~
+12.2V/ 87A
+12Vsb/ 3A
- Max 2598W/ 200-220V~
+12.2V/ 210A
+12Vsb/ 3A
- Max 3037.2W/ 220-240V~ or 240Vdc Input
+12.2V/ 246A
+12Vsb/ 3A
[1] The system power supply requires C19 power cord.
AC Input:
- 100-127V~/ 14.5A, 50/60Hz
- 200-220V~/ 16A, 50/60Hz
- 220-240V~/ 16A, 50/60Hz
DC Input: (Only for China)
- 240Vdc/ 16A
DC Output:
- Max 1097.4W/ 100-127V~
+12.2V/ 87A
+12Vsb/ 3A
- Max 2598W/ 200-220V~
+12.2V/ 210A
+12Vsb/ 3A
- Max 3037.2W/ 220-240V~ or 240Vdc Input
+12.2V/ 246A
+12Vsb/ 3A
[1] The system power supply requires C19 power cord.
System Management
Aspeed® AST2600 Baseboard Management Controller
GIGABYTE Management Console web interface
GIGABYTE Management Console web interface
- Dashboard
- HTML5 KVM
- Sensor Monitor (Voltage, RPM, Temperature, CPU Status …etc.)
- Sensor Reading History Data
- FRU Information
- SEL Log in Linear Storage / Circular Storage Policy
- Hardware Inventory
- Fan Profile
- System Firewall
- Power Consumption
- Power Control
- Advanced power capping
- LDAP / AD / RADIUS Support
- Backup & Restore Configuration
- Remote BIOS/BMC/CPLD Update
- Event Log Filter
- User Management
- Media Redirection Settings
- PAM Order Settings
- SSL Settings
- SMTP Settings
OS Compatibility
Please refer to OS compatibility table in support page
Additional certifications:
Windows Server 2022 (x64)
Additional certifications:
Windows Server 2022 (x64)
System Fans
12 x 60x60x38mm (23,000rpm) [1]
[1] Two fans share a single power connector.
[1] Two fans share a single power connector.
Operating Properties
Operating temperature: 10°C to 35°C
Operating humidity: 8%-80% (non-condensing)
Non-operating temperature: -40°C to 60°C
Non-operating humidity: 20%-95% (non-condensing)
Operating humidity: 8%-80% (non-condensing)
Non-operating temperature: -40°C to 60°C
Non-operating humidity: 20%-95% (non-condensing)
Weight
Net Weight: 62.5 kg
Gross Weight: 65 kg
Gross Weight: 65 kg
Packaging Dimensions
1200 x 800 x 444 mm w/ pallet
Packaging Content
1 x G493-ZB0-AAP1
2 x CPU fansinks
8 x GPU power cables (12VHPWR, 150mm)
1 x L-shape Rail kit
2 x CPU fansinks
8 x GPU power cables (12VHPWR, 150mm)
1 x L-shape Rail kit
Part Numbers
- Barebone package: 6NG493ZB0DR000ACP1*
- Motherboard: 9MZB3G43UR-000-3*
- L-shape Rail kit: 25HB2-A96100-K0R
- CPU fansink: 25ST0-0Z6023-C1R
- Front panel board - CFPG540: 9CFPG540NR-00*
- Fan module: 25ST2-663823-F1R
- PCIe bridge board - CPBGCA0: 9CPBGCA0NR-00*
- GPU power cable (12VHPWR, 150mm): 25CRI-1500B3-Y4R
- Power supply: 25EP0-203K02-D0S
Optional parts:
- C19 power cord 125V/15A (US): 25CP1-018000-Q0R
- C19 power cord 250V/16A (EU): 25CP3-01830H-Q0R
- C19 power cord 125V/15A (JP): 25CPA-01830B-Q0R
- RMA packaging: 6NG493ZB0SR-RMA-A100
- Motherboard: 9MZB3G43UR-000-3*
- L-shape Rail kit: 25HB2-A96100-K0R
- CPU fansink: 25ST0-0Z6023-C1R
- Front panel board - CFPG540: 9CFPG540NR-00*
- Fan module: 25ST2-663823-F1R
- PCIe bridge board - CPBGCA0: 9CPBGCA0NR-00*
- GPU power cable (12VHPWR, 150mm): 25CRI-1500B3-Y4R
- Power supply: 25EP0-203K02-D0S
Optional parts:
- C19 power cord 125V/15A (US): 25CP1-018000-Q0R
- C19 power cord 250V/16A (EU): 25CP3-01830H-Q0R
- C19 power cord 125V/15A (JP): 25CPA-01830B-Q0R
- RMA packaging: 6NG493ZB0SR-RMA-A100
