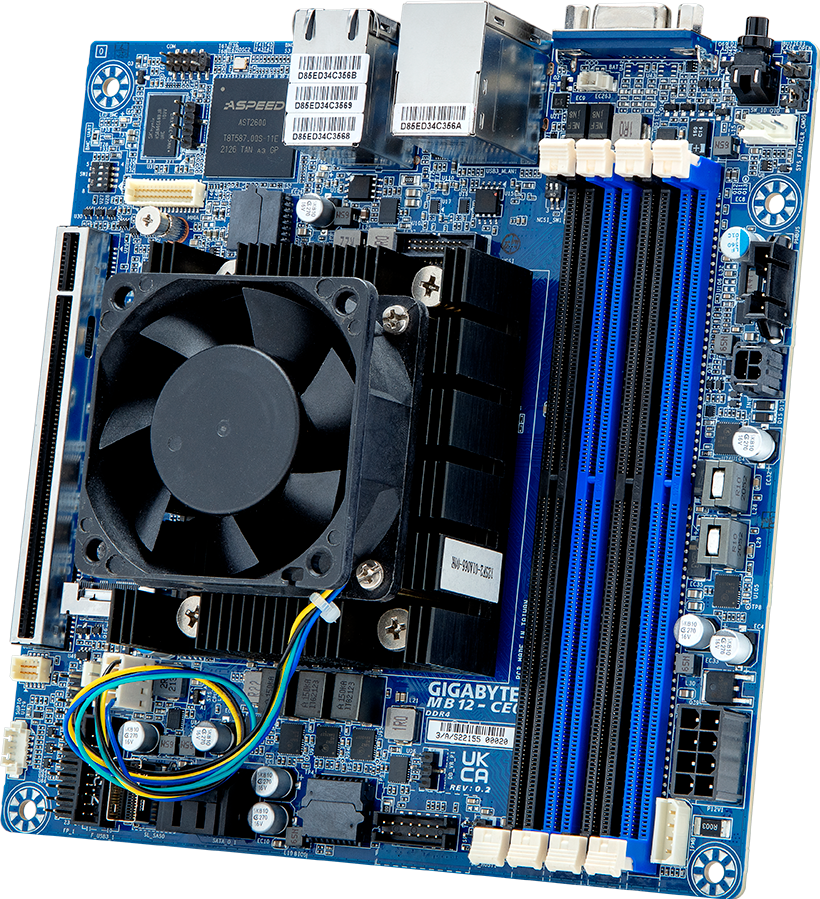

MB12-CE0
- Intel® Xeon® D-1700 processor families
- Single processor, FCBGA 2227
- 2-Channel RDIMM/UDIMM DDR4, 4 x DIMMs
- 2 x 1Gb/s LAN ports (Intel® I210-AT)
- 1 x Dedicated management port
- 1 x SlimSAS with 4 x SATA 6Gb/s ports
- 2 x 7-pin SATA 6Gb/s ports
- 1 x M.2 slot with PCIe Gen3 x4 interface
- 1 x PCIe Gen4 x16 expansion slot
* Todos los materiales aquí provistos son sólo para referencia. GIGABYTE se reserva el derecho de modificar o revisar el contenido a cualquier hora sin aviso alguno.
* Todas las marcas y logos son propiedad de sus propios dueños.
* Debido a la arquitectura estándar de la PC, cierta cantidad de memoria es reservada para uso del sistema y actualmente la memoria disponible es menor a la mencionada.
* Todas las marcas y logos son propiedad de sus propios dueños.
* Debido a la arquitectura estándar de la PC, cierta cantidad de memoria es reservada para uso del sistema y actualmente la memoria disponible es menor a la mencionada.
SPECIFICATIONS
Form Factor
Mini-ITX
170W x 170D (mm)
170W x 170D (mm)
CPU
Intel® Xeon® D-1700 processor families
Default CPU setting: Intel® Xeon® D-1739
Based Frequency 3GHz, max turbo 3.5GHz
8 cores, 15MB LLC Cache
Single processor, TDP 83W
Default CPU setting: Intel® Xeon® D-1739
Based Frequency 3GHz, max turbo 3.5GHz
8 cores, 15MB LLC Cache
Single processor, TDP 83W
Socket
FCBGA 2227
Chipset
System on Chip
Memory
4 x DIMM slots
DDR4 memory supported only
2-channel memory architecture
RDIMM module up to 64GB per DIMM slot
Total 256GB capacity
1.2V modules: 2933 MHz (2DPC)
DDR4 memory supported only
2-channel memory architecture
RDIMM module up to 64GB per DIMM slot
Total 256GB capacity
1.2V modules: 2933 MHz (2DPC)
LAN
2 x 1GbE LAN ports (1 x Intel® I210-AT)
1 x 10/100/1000 management LAN
1 x 10/100/1000 management LAN
Video
Integrated in Aspeed® AST2600
2D Video Graphic Adapter with PCIe bus interface
1920x1200@60Hz 32bpp, DDR4 SDRAM
2D Video Graphic Adapter with PCIe bus interface
1920x1200@60Hz 32bpp, DDR4 SDRAM
Audio
N/A
NVMe
N/A
SAS
N/A
SATA
1 x SlimSAS for 4 x SATA 6Gb/s ports
2 x 7-pin SATA 6Gb/s ports
2 x 7-pin SATA 6Gb/s ports
RAID
Intel® SATA RAID 0/1/10/5
Expansion Slots
1 x PCIe x16 (Gen4 x16 bus) slot
1 x M.2 slot:
- M-key
- PCIe Gen3 x4 per slot
- Supports 2280 cards
1 x M.2 slot:
- M-key
- PCIe Gen3 x4 per slot
- Supports 2280 cards
Internal I/O
1 x 4-pin power connector
1 x 8-pin 12V power connector
1 x M.2 slot
2 x 7-pin SATA 6Gb/s ports
1 x SlimSAS connector
1 x USB 3.2 Gen1 connector
1 x CPU fan header
2 x System fan headers
1 x TPM header
1 x Front panel header
1 x JTAG BMC header
1 x Clear CMOS jumper
1 x IPMB connector
1 x PMBus connector
1 x SGPIO connector
1 x COM (RS-232)
1 x 8-pin 12V power connector
1 x M.2 slot
2 x 7-pin SATA 6Gb/s ports
1 x SlimSAS connector
1 x USB 3.2 Gen1 connector
1 x CPU fan header
2 x System fan headers
1 x TPM header
1 x Front panel header
1 x JTAG BMC header
1 x Clear CMOS jumper
1 x IPMB connector
1 x PMBus connector
1 x SGPIO connector
1 x COM (RS-232)
Rear I/O
2 x USB 3.2 Gen1
1 x VGA
2 x RJ45
1 x MLAN
1 x ID button with LED
1 x VGA
2 x RJ45
1 x MLAN
1 x ID button with LED
TPM
1 x TPM header with SPI interface
Optional TPM2.0 kit: CTM010
Optional TPM2.0 kit: CTM010
OS Supported
Windows 10 (x64)
Windows 11 (x64)
Windows Server 2012 R2 (x64)
Windows Server 2016 (x64)
Windows Server 2019 (x64)
Windows Server 2022 (x64)
Windows 11 (x64)
Windows Server 2012 R2 (x64)
Windows Server 2016 (x64)
Windows Server 2019 (x64)
Windows Server 2022 (x64)
Board Management
Aspeed® AST2600 management controller
GIGABYTE Management Console (AMI MegaRAC SP-X) web interface
GIGABYTE Management Console (AMI MegaRAC SP-X) web interface
- Dashboard
- HTML5 KVM
- Sensor Monitor (Voltage, RPM, Temperature, CPU Status …etc.)
- Sensor Reading History Data
- FRU Information
- SEL Log in Linear Storage / Circular Storage Policy
- Hardware Inventory
- Fan Profile
- System Firewall
- Power Consumption
- Power Control
- LDAP / AD / RADIUS Support
- Backup & Restore Configuration
- Remote BIOS/BMC/CPLD Update
- Event Log Filter
- User Management
- Media Redirection Settings
- PAM Order Settings
- SSL Settings
- SMTP Settings
PSU Connectors
1 x 4-pin power connector
1 x 8-pin 12V power connector
1 x 8-pin 12V power connector
Operating Properties
Operating temperature: 10°C to 35°C
Operating humidity: 8-80% (non-condensing)
Non-operating temperature: -40°C to 60°C
Non-operating humidity: 20%-95% (non-condensing)
Operating humidity: 8-80% (non-condensing)
Non-operating temperature: -40°C to 60°C
Non-operating humidity: 20%-95% (non-condensing)
Retail Packaging Content
1 x MB12-CE0
1 x I/O shield
1 x Quick reference guide
1 x SlimSAS for 4 x SATA 6Gb/s cable
Box dimensions: 233 x 214 x 62 mm
1 x I/O shield
1 x Quick reference guide
1 x SlimSAS for 4 x SATA 6Gb/s cable
Box dimensions: 233 x 214 x 62 mm
Bulk Packaging Content
10 x MB12-CE0
10 x I/O shields
Carton dimensions: 550 x 451 x 330 mm
Reference Numbers
Retail: 9MB12CE0MR-00
Bulk: 9MB12CE0NR-00
