- E163-Z30-AAB1
E163-Z30- AAB1

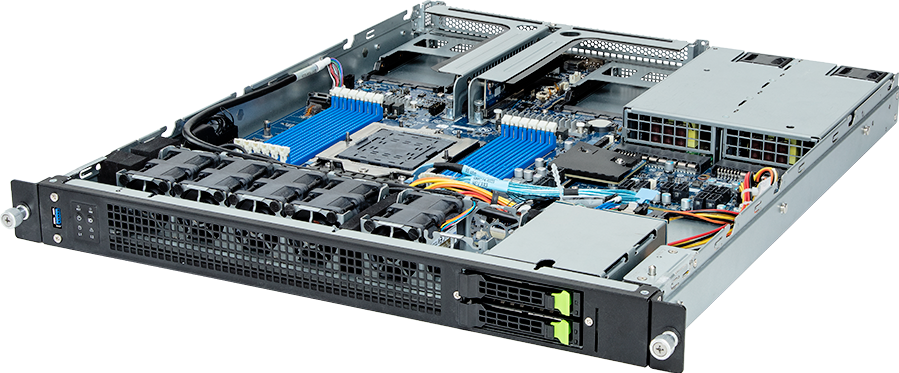

Edge Server - AMD EPYC™ 9004 - 1U UP 2-Bay Gen4 NVMe/SATA/SAS Platinum
- Single AMD EPYC™ 9004 Series Processors
- 12-Channel DDR5 RDIMM, 12 x DIMMs
- Dual ROM Architecture
- 1 x 1Gb/s LAN port via Intel® I210-AT
- 2 x 2.5" Gen4 NVMe/SATA/SAS hot-swap bays
- 1 x M.2 slot with PCIe Gen3 x4 interface
- 2 x FHHL PCIe Gen5 x16 slots
- 2 x OCP NIC 3.0 PCIe Gen5 x16 slots
- 1+1 800W 80 PLUS Platinum redundant power supplies
* Todos los materiales aquí provistos son sólo para referencia. GIGABYTE se reserva el derecho de modificar o revisar el contenido a cualquier hora sin aviso alguno.
* Todas las marcas y logos son propiedad de sus propios dueños.
* Debido a la arquitectura estándar de la PC, cierta cantidad de memoria es reservada para uso del sistema y actualmente la memoria disponible es menor a la mencionada.
* Todas las marcas y logos son propiedad de sus propios dueños.
* Debido a la arquitectura estándar de la PC, cierta cantidad de memoria es reservada para uso del sistema y actualmente la memoria disponible es menor a la mencionada.
SPECIFICATIONS
Dimensions (WxHxD, mm)
1U
438 x 43.5 x 520
438 x 43.5 x 520
Motherboard
MZ33-DC0
CPU
AMD EPYC™ 9005 Series Processors
AMD EPYC™ 9004 Series Processors
Single processor, cTDP up to 300W [1]
- At 30°C ambient, cTDP up to 400W [1]
[1] Please refer to the QVL on the support page or contact our sales representatives for verified CPU SKUs.
AMD EPYC™ 9004 Series Processors
Single processor, cTDP up to 300W [1]
- At 30°C ambient, cTDP up to 400W [1]
[1] Please refer to the QVL on the support page or contact our sales representatives for verified CPU SKUs.
Socket
1 x LGA 6096
Socket SP5
Socket SP5
Chipset
System on Chip
Memory
12 x DIMM slots
DDR5 memory supported
12-Channel memory architecture
RDIMM: Up to 4800 MT/s
DDR5 memory supported
12-Channel memory architecture
RDIMM: Up to 4800 MT/s
LAN
Rear:
1 x 1Gb/s LAN (1 x Intel® I210-AT)
- Supports NCSI function
1 x 10/100/1000 Mbps Management LAN
1 x 1Gb/s LAN (1 x Intel® I210-AT)
- Supports NCSI function
1 x 10/100/1000 Mbps Management LAN
Video
Integrated in Aspeed® AST2600
- 1 x Mini-DP
- 1 x Mini-DP
Storage
Front hot-swap:
2 x 2.5" Gen4 NVMe/SATA/SAS [1]
Internal M.2:
1 x M.2 (2280/22110), PCIe Gen3 x4
[1] SAS card is required to support SAS drives.
2 x 2.5" Gen4 NVMe/SATA/SAS [1]
Internal M.2:
1 x M.2 (2280/22110), PCIe Gen3 x4
[1] SAS card is required to support SAS drives.
SAS
Require SAS add-in cards
RAID
Require RAID add-in cards
PCIe Expansion Slots
Riser Card CRS101V:
- 1 x FHHL x16 (Gen5 x16)
Riser Card CRS101W:
- 1 x FHHL x16 (Gen5 x16)
2 x OCP NIC 3.0 (Gen5 x16)
- Support NCSI function
- 1 x FHHL x16 (Gen5 x16)
Riser Card CRS101W:
- 1 x FHHL x16 (Gen5 x16)
2 x OCP NIC 3.0 (Gen5 x16)
- Support NCSI function
Front I/O
1 x USB 3.2 Gen1 port (Type-A)
1 x Power button with LED
1 x ID button with LED
1 x NMI button
1 x Reset button
1 x LAN activity LED
1 x Storage activity LED
1 x System status LED
1 x Power button with LED
1 x ID button with LED
1 x NMI button
1 x Reset button
1 x LAN activity LED
1 x Storage activity LED
1 x System status LED
Rear I/O
2 x USB 3.2 Gen1 ports (Type-A)
1 x Mini-DP
1 x RJ45 port
1 x MLAN port
1 x ID button with LED
1 x Mini-DP
1 x RJ45 port
1 x MLAN port
1 x ID button with LED
Backplane Board
Speed and bandwidth:
PCIe Gen4 x4 or SATA 6Gb/s or SAS 12Gb/s
PCIe Gen4 x4 or SATA 6Gb/s or SAS 12Gb/s
Security Modules
1 x TPM header with SPI interface
- Optional TPM2.0 kit: CTM010
- Optional TPM2.0 kit: CTM010
Power Supply
1+1 800W 80 PLUS Platinum redundant power supplies
AC Input:
- 100-240V~/ 10-4A, 50/60Hz
DC Input: (Only for China)
- 240Vdc/ 4.5A
DC Output:
- Max 800W
+12V/ 66A
+12Vsb/ 2.5A
[Note] GIGABYTE offers PSUs with various efficiency ratings and power outputs. Full redundancy may depend on your server configuration, and alternative PSU options may be needed. Please contact our sales representatives for the best power solution.
AC Input:
- 100-240V~/ 10-4A, 50/60Hz
DC Input: (Only for China)
- 240Vdc/ 4.5A
DC Output:
- Max 800W
+12V/ 66A
+12Vsb/ 2.5A
[Note] GIGABYTE offers PSUs with various efficiency ratings and power outputs. Full redundancy may depend on your server configuration, and alternative PSU options may be needed. Please contact our sales representatives for the best power solution.
System Management
Aspeed® AST2600 Baseboard Management Controller
GIGABYTE Management Console web interface
GIGABYTE Management Console web interface
- Dashboard
- HTML5 KVM
- Sensor Monitor (Voltage, RPM, Temperature, CPU Status …etc.)
- Sensor Reading History Data
- FRU Information
- SEL Log in Linear Storage/Circular Storage Policy
- Hardware Inventory
- Fan Profile
- System Firewall
- Power Consumption
- Power Control
- Advanced power capping
- LDAP/AD/RADIUS Support
- Backup & Restore Configuration
- Remote BIOS/BMC/CPLD Update
- Event Log Filter
- User Management
- Media Redirection Settings
- PAM Order Settings
- SSL Settings
- SMTP Settings
OS Compatibility
Please refer to OS compatibility table in support page
System Fans
5 x 40x40x56mm (30,000rpm)
Operating Properties
Operating temperature: 10°C to 35°C
Operating humidity: 8%-80% (non-condensing)
Non-operating temperature: -40°C to 60°C
Non-operating humidity: 20%-95% (non-condensing)
Operating humidity: 8%-80% (non-condensing)
Non-operating temperature: -40°C to 60°C
Non-operating humidity: 20%-95% (non-condensing)
Weight
Net Weight: 13 kg
Gross Weight: 15 kg
Gross Weight: 15 kg
Packaging Dimensions
782 x 588 x 212 mm
Packaging Content
1 x E163-Z30-AAB1
1 x CPU heatsink
1 x Mini-DP to D-Sub cable
[Note] Rail kit not included. Please refer to optional parts for compatible rail kit.
1 x CPU heatsink
1 x Mini-DP to D-Sub cable
[Note] Rail kit not included. Please refer to optional parts for compatible rail kit.
Part Numbers
- Barebone package (EPYC 9005/9004): 6NE163Z30DR000ABB1*
- Barebone package (EPYC 9004): 6NE163Z30DR000AAB1*
- Motherboard: 9MZ33DC0UR-000*
- CPU heatsink: 25ST1-553201-M1R
- M.2 heatsink: 12SP2-11000E-00R
- Front panel board - CFP1000: 9CFP1000NR-00*
- Backplane board - CBP2023: 9CBP2023NR-00*
- Fan module: 25ST2-40562E-A0R
- Riser card - CRS101V: 9CRS101VNR-00*
- Riser card - CRS101W: 9CRS101WNR-00*
- Mini-DP to D-Sub cable: 25CRN-200801-K1R
- Power supply: 25EP0-208004-L0S
Optional parts:
- 2-Section Rail kit (385-480mm): 25HB2-3A0204-K0R (MOQ: 500)
- 2-Section Rail kit (660-840mm): 25HB2-3A0203-K0R
- Barebone package (EPYC 9004): 6NE163Z30DR000AAB1*
- Motherboard: 9MZ33DC0UR-000*
- CPU heatsink: 25ST1-553201-M1R
- M.2 heatsink: 12SP2-11000E-00R
- Front panel board - CFP1000: 9CFP1000NR-00*
