R28N-F2O
Discontinued

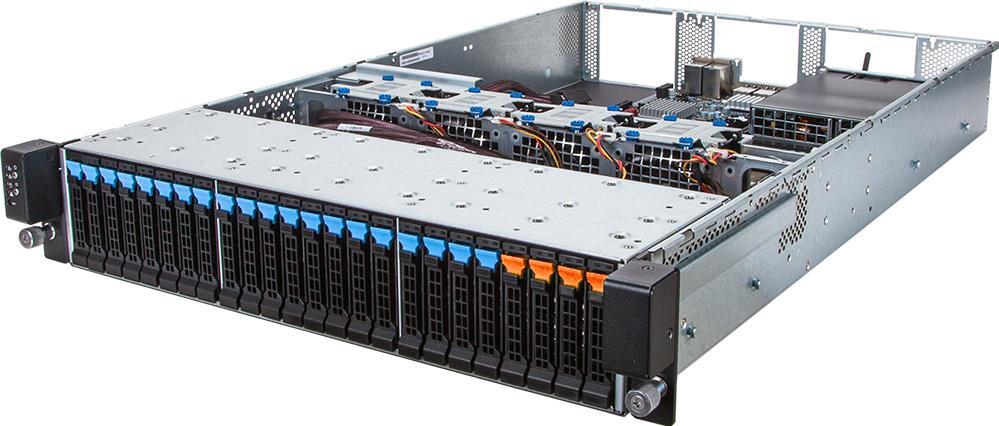

Dual Socket 2U NVMe Rackmount Server
Standard Rackmount Server
- Intel® Xeon® processor E5-2600 V3 / V4 product family
- 24 x RDIMM/LRDIMM ECC DIMM slots
- 4 x 2.5" hot-swappable NVMe bays
- 20 x 2.5" hot-swappable SAS/SATA bays
- 2 x GbE LAN ports (Intel® I350-BT2)
- 2 x 1200W 80 PLUS Platinum redundant power supply
* Veškeré zde uvedené materiály jsou pouze orientační. GIGABYTE si vyhrazuje právo kdykoliv měnit nebo revidovat obsah a to bez předchozího upozornění.
* Zmiňovaný výkon je založený na maximálních teoretických hodnotách z rozhraní jednotlivých čipsetů dodavatelů nebo organizace, která definovala specifikaci jednotlivých rozhraní. Skutečný výkon se může lišit v závislosti na konfiguraci systému.
* Všechny ochranné známky a loga jsou vlastnictvím jejich příslušných vlastníků.
* Díky standardní architektuře PC je určité množství paměti vyhrazeno pro systém, proto může být skutečná velikost dostupné paměti nižší než uvedené množství.
* Zmiňovaný výkon je založený na maximálních teoretických hodnotách z rozhraní jednotlivých čipsetů dodavatelů nebo organizace, která definovala specifikaci jednotlivých rozhraní. Skutečný výkon se může lišit v závislosti na konfiguraci systému.
* Všechny ochranné známky a loga jsou vlastnictvím jejich příslušných vlastníků.
* Díky standardní architektuře PC je určité množství paměti vyhrazeno pro systém, proto může být skutečná velikost dostupné paměti nižší než uvedené množství.
SPECIFICATIONS
Dimensions (WxHxD, mm)
2U
430 x 87 x 712.4
430 x 87 x 712.4
Motherboard
CPU
Intel® Xeon® E5-2600 V3 processors
Intel® Xeon® E5-2600 V4 processors
NOTE: If only 1 CPU is installed, some PCIe, memory, network or I/O functions might be unavailable.
Intel® Xeon® E5-2600 V4 processors
NOTE: If only 1 CPU is installed, some PCIe, memory, network or I/O functions might be unavailable.
Socket
2 x LGA 2011-3
Mounting pitch: square ILM (80x80mm)
Max. length of M4 screw threads: 3.7mm
Screws longer than 3.7mm might damage the motherboard
Mounting pitch: square ILM (80x80mm)
Max. length of M4 screw threads: 3.7mm
Screws longer than 3.7mm might damage the motherboard
Chipset
Intel® C612
Memory
24 x DIMM slots
DDR4 memory supported only
Quad channel memory architecture
RDIMM modules up to 32GB supported
LRDIMM modules up to 64GB supported
3DS LRDIMM modules up to 128GB supported
1.2V modules: 1600/1866/2133/2400 MHz
DDR4 memory supported only
Quad channel memory architecture
RDIMM modules up to 32GB supported
LRDIMM modules up to 64GB supported
3DS LRDIMM modules up to 128GB supported
1.2V modules: 1600/1866/2133/2400 MHz
LAN
2 x GbE LAN ports (Intel® I350-BT2)
1 x 10/100/1000 management LAN
1 x 10/100/1000 management LAN
Video
Integrated in Aspeed® AST2400
2D Video Graphic Adapter with PCIe bus interface
1920x1200@60Hz 32bpp
2D Video Graphic Adapter with PCIe bus interface
1920x1200@60Hz 32bpp
Audio
-
Storage
4 x 2.5" hot-swappable NVMe bays
20 x 2.5" hot-swappable SAS/SATA bays
Default configuration supports:
- 4 x NVMe drives (from CNV3114)
- 8 x SATA 6Gb/s drives (from Intel® C612 chipset)
SAS or SATA card required to enable the remaining drive bays
20 x 2.5" hot-swappable SAS/SATA bays
Default configuration supports:
- 4 x NVMe drives (from CNV3114)
- 8 x SATA 6Gb/s drives (from Intel® C612 chipset)
SAS or SATA card required to enable the remaining drive bays
SATA
2 x Mini-SAS (for 8 x SATA III 6Gb/s ports)
2 x SATA III 6Gb/s ports
2 x SATA III 6Gb/s ports
SAS
-
RAID
-
Peripheral Drives
-
Expansion Slots
3 x Riser cards:

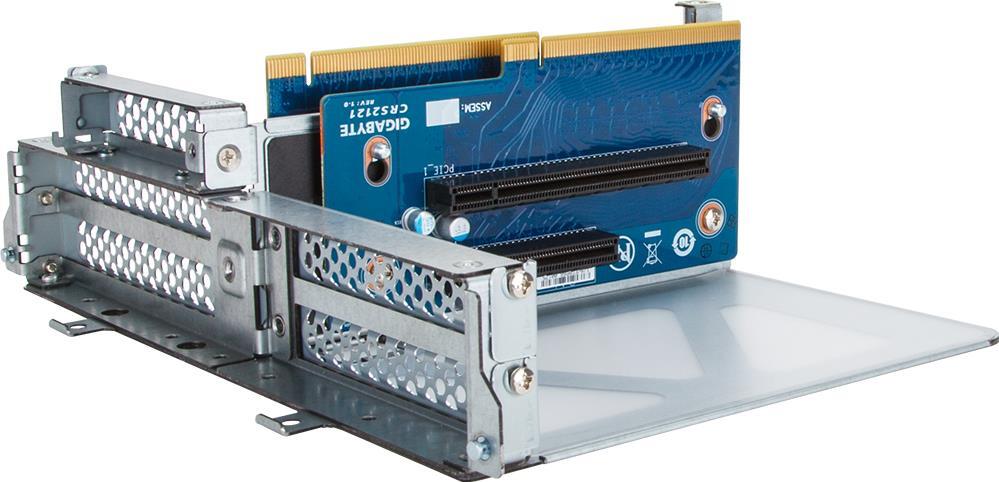

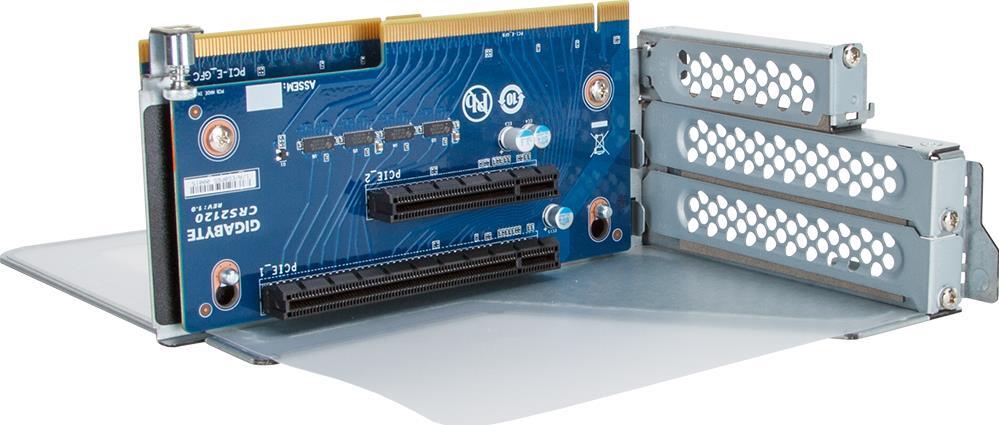

- 1 x CRS2120
* 1 x PCI-e x16 slot (Gen3 x16 or x8)
* 1 x PCI-e x8 slot (Gen3 x0 or x8)
- 1 x CRS2121
* 1 x PCI-e x8 slot (Gen3 x0 or x8)
* 1 x PCI-e x16 slot (Gen3 x16 or x8)

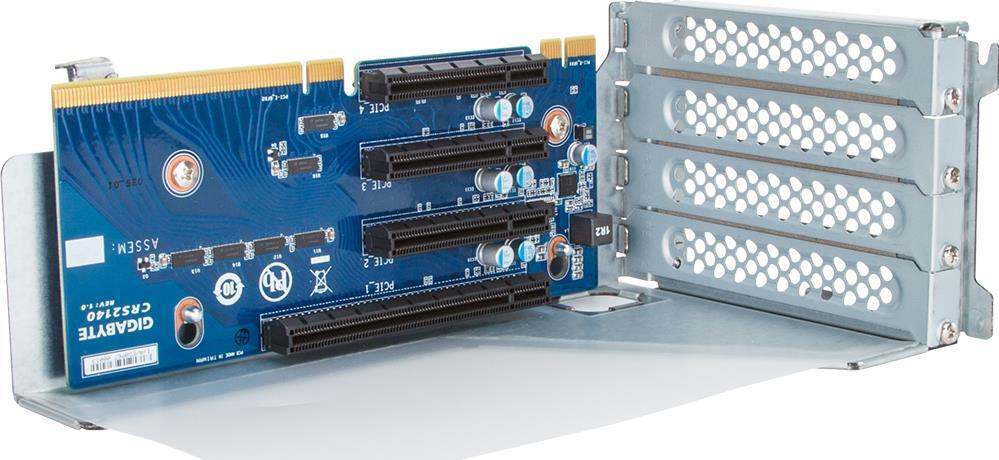

- 1 x CRS2140
* 1 x PCI-e x16 slot (Gen3 x16 or x8)
* 1 x PCI-e x8 slot (Gen3 x0 or x8)
* 1 x PCI-e x8 slot (Gen3 x8 or x4)
* 1 x PCIe x8 slot (Gen3 x0 or x4)
1 x PCIe mezzanine type T (Gen3 x8 bus) slot
- 1 x CRS2120
* 1 x PCI-e x16 slot (Gen3 x16 or x8)
* 1 x PCI-e x8 slot (Gen3 x0 or x8)
- 1 x CRS2121
* 1 x PCI-e x8 slot (Gen3 x0 or x8)
* 1 x PCI-e x16 slot (Gen3 x16 or x8)
- 1 x CRS2140
* 1 x PCI-e x16 slot (Gen3 x16 or x8)
* 1 x PCI-e x8 slot (Gen3 x0 or x8)
* 1 x PCI-e x8 slot (Gen3 x8 or x4)
* 1 x PCIe x8 slot (Gen3 x0 or x4)
1 x PCIe mezzanine type T (Gen3 x8 bus) slot
Internal I/O
1 x 14-pin ATX main power connector
3 x 8-pin ATX 12V power connectors
3 x 4-pin ATX 12V power connectors
2 x Mini-SAS ports
2 x SATA III 6Gb/s ports
2 x CPU fan headers
5 x System fan headers
1 x USB 3.0 header
1 x Front panel header
1 x HDD back plane board header
1 x Chassis intrusion header
1 x PLD header
1 x TPM header
1 x JTAG header
1 x ME update jumper
1 x ME recovery jumper
1 x Clear CMOS jumper
1 x S3 mask jumper
1 x BMC RFB jumper
1 x IPMB connector
3 x 8-pin ATX 12V power connectors
3 x 4-pin ATX 12V power connectors
2 x Mini-SAS ports
2 x SATA III 6Gb/s ports
2 x CPU fan headers
5 x System fan headers
1 x USB 3.0 header
1 x Front panel header
1 x HDD back plane board header
1 x Chassis intrusion header
1 x PLD header
1 x TPM header
1 x JTAG header
1 x ME update jumper
1 x ME recovery jumper
1 x Clear CMOS jumper
1 x S3 mask jumper
1 x BMC RFB jumper
1 x IPMB connector

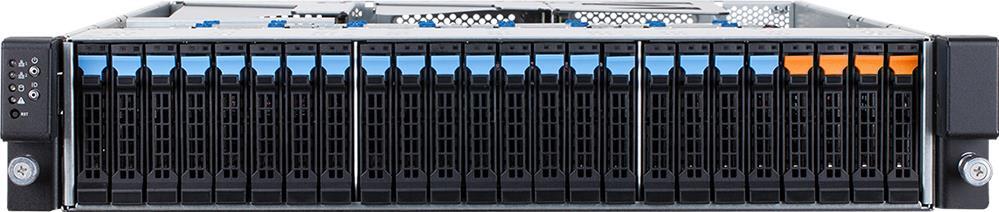

Front I/O
1 x Power button with LED
1 x ID button with LED
2 x LAN activity LEDs
1 x HDD activity LED
1 x System status LED
1 x Reset button
1 x ID button with LED
2 x LAN activity LEDs
1 x HDD activity LED
1 x System status LED
1 x Reset button

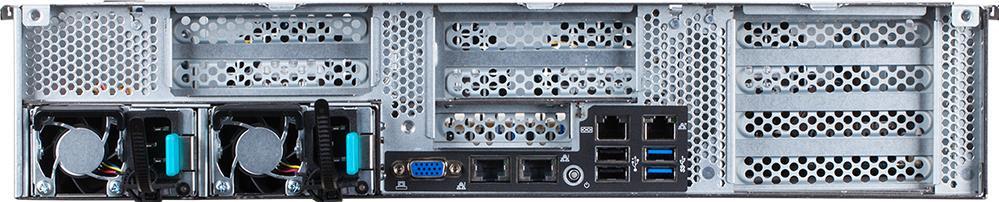

Rear I/O
2 x USB 3.0
2 x USB 2.0
3 x RJ45
1 x VGA
1 x Serial
1 x ID button with LED
2 x USB 2.0
3 x RJ45
1 x VGA
1 x Serial
1 x ID button with LED
Backplane Board
24 x SAS/SATA ports
Default configuration supports:
- 4 x NVMe drives (from CNV3114)
- 4 x SATA/SAS drives (from Intel® C612 chipset)
HBA card required to enable the remaining drive bays
Default configuration supports:
- 4 x NVMe drives (from CNV3114)
- 4 x SATA/SAS drives (from Intel® C612 chipset)
HBA card required to enable the remaining drive bays
TPM
1 x TPM header
Power Supply
2 x 1200W redundant PSUs
80 PLUS Platinum
AC input:
- 100-127V/ 12.47A, 47-63Hz
- 200-240V/ 7.08A, 47-63Hz
DC output:
Max 1000W@100-127V
+12V/ 82A
+12Vsb/ 2A
Max 1600W@200-240V
+12V/ 98A
+12Vsb/ 2A
System Management
Aspeed® AST2400 management controller
Avocent® MergePoint IPMI 2.0 web interface:
- Network settings
- Network security settings
- Users control
- Services settings
- IPMI settings
- Sessions control
- LDAP settings
- Power control
-Voltages, fans and temperatures monitoring
- System event log
- Events management (platform events, trap settings, email settings)
- Serial Over LAN
- vKVM & vMedia (launch, configuration)
OS Compatibility
Windows Server 2008 R2 (x64)
Windows Server 2012 (x64)
Windows Server 2012 R2 (x64)
Windows Server 2016
Red Hat Enterprise Linux 6.7 (x86/x64)
Red Hat Enterprise Linux 7.2 (x64)
SUSE Linux Enterprise Server 11.4 (x86/x64)
SUSE Linux Enterprise Server 12 (x64)
Ubuntu 12.04 LTS (x86/x64)
Ubuntu 14.04 LTS (x86/x64)
VMware ESXi 5.1 U2
VMware ESXi 5.5 U2
VMware ESXi 6.0 U1
Windows Server 2012 (x64)
Windows Server 2012 R2 (x64)
Windows Server 2016
Red Hat Enterprise Linux 6.7 (x86/x64)
Red Hat Enterprise Linux 7.2 (x64)
SUSE Linux Enterprise Server 11.4 (x86/x64)
SUSE Linux Enterprise Server 12 (x64)
Ubuntu 12.04 LTS (x86/x64)
Ubuntu 14.04 LTS (x86/x64)
VMware ESXi 5.1 U2
VMware ESXi 5.5 U2
VMware ESXi 6.0 U1
System Fans
4 x 80x80x38mm (14'900rpm)
Operating Properties
Operating temperature: 10°C to 35°C
Operating humidity: 8%-80% (non-condensing)
Non-operating temperature: -40°C to 60°C
Non-operating humidity: 20%-95% (non-condensing)
Operating humidity: 8%-80% (non-condensing)
Non-operating temperature: -40°C to 60°C
Non-operating humidity: 20%-95% (non-condensing)
Weight
18 kg
Packaging Dimensions
982 x 588 x 268 mm
Packaging Content
1 x R28N-F2O
2 x CPU heatsinks
1 x Rail kit
2 x CPU heatsinks
1 x Rail kit
Part Numbers
Barebone package: 6NR28NF2OMR-00
Spare parts:
- Rail kit: 25HB2-3A6803-I0R
- CPU heatsink: 25ST1-353200-T4R
- Back plane board: 9CBP20O1NR-00
- Power supply: 25EP0-208000-D0S
- NVMe card: 9CNV3114NR-00 - Riser card - CRS2140: 9CRS2140NR-00
- Riser card - CRS2120: 9CRS2120NR-00
- Riser card - CRS2121: 9CRS2121NR-00
Spare parts:
- Rail kit: 25HB2-3A6803-I0R
- CPU heatsink: 25ST1-353200-T4R
- Back plane board: 9CBP20O1NR-00
- Power supply: 25EP0-208000-D0S
- NVMe card: 9CNV3114NR-00 - Riser card - CRS2140: 9CRS2140NR-00
- Riser card - CRS2120: 9CRS2120NR-00
- Riser card - CRS2121: 9CRS2121NR-00
* Veškeré zde uvedené materiály jsou pouze orientační. GIGABYTE si vyhrazuje právo kdykoliv měnit nebo revidovat obsah a to bez předchozího upozornění.
* Zmiňovaný výkon je založený na maximálních teoretických hodnotách z rozhraní jednotlivých čipsetů dodavatelů nebo organizace, která definovala specifikaci jednotlivých rozhraní. Skutečný výkon se může lišit v závislosti na konfiguraci systému.
* Všechny ochranné známky a loga jsou vlastnictvím jejich příslušných vlastníků.
* Díky standardní architektuře PC je určité množství paměti vyhrazeno pro systém, proto může být skutečná velikost dostupné paměti nižší než uvedené množství.
* Zmiňovaný výkon je založený na maximálních teoretických hodnotách z rozhraní jednotlivých čipsetů dodavatelů nebo organizace, která definovala specifikaci jednotlivých rozhraní. Skutečný výkon se může lišit v závislosti na konfiguraci systému.
* Všechny ochranné známky a loga jsou vlastnictvím jejich příslušných vlastníků.
* Díky standardní architektuře PC je určité množství paměti vyhrazeno pro systém, proto může být skutečná velikost dostupné paměti nižší než uvedené množství.
