R184-A92-AAJ1

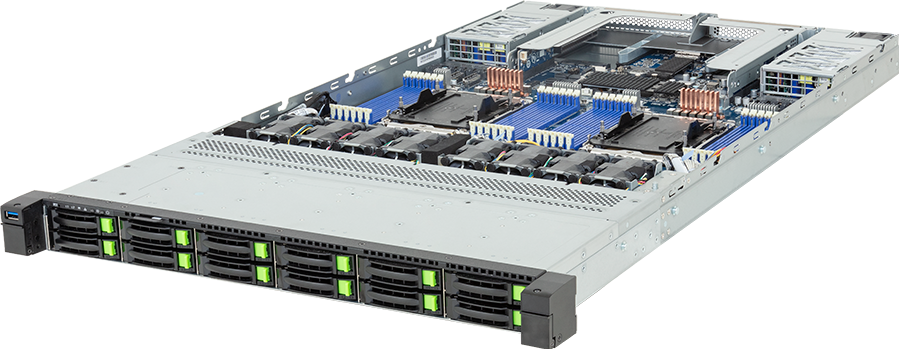

Rack Server - Intel^® Xeon^® 6 Processors - 1U DP 12-Bay Gen5 NVMe/SATA/SAS-4

# Networking # Hybrid/Private Cloud Server

Dual Intel^® Xeon^® 6 Processors, LGA 7529
12-Channel DDR5 RDIMM / MRDIMM, 24 x DIMMs
Dual ROM Architecture
2 x 1Gb/s LAN ports via Intel^® I350-AM2
12 x 2.5" Gen5 NVMe/SATA/SAS-4 hot-swap bays
3 x M.2 slots with PCIe Gen5 x4 and x2 interface
2 x FHHL PCIe Gen5 x16 slots
2 x OCP NIC 3.0 PCIe Gen5 x16 slots
2 x 2000W 80 PLUS Titanium redundant power supply

Get a Quote

Compare

Get a Quote

* Veškeré zde uvedené materiály jsou pouze orientační. GIGABYTE si vyhrazuje právo kdykoliv měnit nebo revidovat obsah a to bez předchozího upozornění.
* Zmiňovaný výkon je založený na maximálních teoretických hodnotách z rozhraní jednotlivých čipsetů dodavatelů nebo organizace, která definovala specifikaci jednotlivých rozhraní. Skutečný výkon se může lišit v závislosti na konfiguraci systému.
* Všechny ochranné známky a loga jsou vlastnictvím jejich příslušných vlastníků.
* Díky standardní architektuře PC je určité množství paměti vyhrazeno pro systém, proto může být skutečná velikost dostupné paměti nižší než uvedené množství.

SPECIFICATIONS

Dimensions (WxHxD, mm)

1U
438 x 43.5 x 815

Motherboard

MA94-FS0

CPU

Intel^® Xeon^® 6 Processors
- Intel^® Xeon^® 6900-Series Processors

Dual processor, TDP up to 500W

^[Note]If only 1 CPU is installed, some PCIe or memory functions might be unavailable.

Socket

2 x LGA 7529
Socket BR

Chipset

System on Chip

Memory

24 x DIMM slots
DDR5 memory supported
12-Channel memory per processor
MRDIMM supported^[1]
RDIMM: Up to 6400 MT/s
MRDIMM: Up to 8800 MT/s

^[1]MRDIMMs are only supported with Intel^® Xeon^® 6 Processors with P-cores.

LAN

Rear (I/O board - CDCR010):
2 x 1Gb/s LAN (1 x Intel^® I350-AM2)
- Support NCSI function

1 x 10/100/1000 Mbps Management LAN

Video

Integrated in Aspeed^® AST2600
- 1 x Mini-DP

Storage

Front hot-swap:
12 x 2.5" Gen5 NVMe/SATA/SAS-4^[1]
- (6 x NVMe from CPU_0, 6 x NVMe from CPU_1)

Internal M.2:
2 x M.2 (2280/22110), PCIe Gen5 x4, from CPU_0

Internal M.2 (I/O board - CDCR010):
1 x M.2 (2280), PCIe Gen5 x2, from CPU_0

^[1]Storage card is required to support SATA and SAS drives.

SAS

Require SAS add-in cards

RAID

Require RAID add-in cards
Onboard VROC key header

PCIe Expansion Slots

Riser Card CRS101J:
- 1 x FHHL x16 (Gen5 x16), from CPU_0

Riser Card CRS101K:
- 1 x FHHL x16 (Gen5 x16), from CPU_1

1 x OCP NIC 3.0 (Gen5 x16), from CPU_0
- Supports NCSI function

1 x OCP NIC 3.0 (Gen5 x16), from CPU_1
- Supports NCSI function

Front I/O

1 x USB 3.2 Gen1 port (Type-A)
1 x Power button with LED
1 x ID button with LED
1 x Reset button
2 x LAN activity LEDs
1 x Storage activity LED
1 x System status LED

Rear I/O

I/O board - CDCR010:
2 x USB 3.2 Gen1 ports (Type-A)
1 x Mini-DP
2 x RJ45 ports
1 x MLAN port
1 x ID LED

Backplane Board

Speed and bandwidth:
PCIe Gen5 x4 or SATA 6Gb/s or SAS-4 24Gb/s

Security Modules

1 x TPM header with SPI interface
- Optional TPM2.0 kit: CTM012

1 x PRoT connector (only enabled on RoT SKU)

Power Supply

2 x 2000W 80 PLUS Titanium redundant power supply

AC Input:
- 100-127V~/ 13A, 50-60Hz
- 200-220V~/ 10A, 50-60Hz
- 220-240V~/ 10A, 50-60Hz

DC Input: (Only for China)
- 240Vdc/ 10A

DC Output:
- Max 1000W/ 100-127V~
+12.2V/ 82A
+12.2Vsb/ 3A
- Max 1800W/ 200-220V~
+12.2V/ 148A
+12.2Vsb/ 3A
- Max 2000W/ 220-240V~ or 240Vdc Input
+12.2V/ 164A
+12.2Vsb/ 3A

^[Note]GIGABYTE offers PSUs with various efficiency ratings and power outputs. Full redundancy may depend on your server configuration, and alternative PSU options may be needed. Please contact our sales representatives for the best power solution.

System Management

Aspeed^® AST2600 Baseboard Management Controller
GIGABYTE Management Console web interface

Dashboard
HTML5 KVM
Sensor Monitor (Voltage, RPM, Temperature, CPU Status …etc.)
Sensor Reading History Data
FRU Information
SEL Log in Linear Storage / Circular Storage Policy
Hardware Inventory
Fan Profile
System Firewall
Power Consumption
Power Control
Advanced power capping
LDAP / AD / RADIUS Support
Backup & Restore Configuration
Remote BIOS/BMC/CPLD Update
Event Log Filter
User Management
Media Redirection Settings
PAM Order Settings
SSL Settings
SMTP Settings

OS Compatibility

Please refer to OS compatibility table in support page

Additional certifications:
Ubuntu 24.04 LTS

System Fans

8 x 40x40x56mm (38,000rpm)

Operating Properties

Operating temperature: 10°C to 35°C
Operating humidity: 8%-80% (non-condensing)
Non-operating temperature: -40°C to 60°C
Non-operating humidity: 20%-95% (non-condensing)

Packaging Dimensions

1045 x 595 x 249 mm

Packaging Content

1 x R184-A92-AAJ1
2 x CPU heatsinks
1 x Mini-DP to D-Sub cable
2 x Carriers (TBD)
1 x 2-Section Rail kit

Part Numbers

- Barebone package: 6NR184A92DR000AAJ1*
- Motherboard: 9MA94FS0UR-000*
- 2-Section Rail kit (CMA not supported): 25HB2-3A0206-K0R
- CPU heatsink: 25ST1-45320G-M1R
- M.2 heatsink (2280): 12SP2-080027-00R
- M.2 heatsink (22110): 12SP2-11000E-00R
- Front panel board - CFP1030: 9CFP1030NR-00*
- Backplane board - CBP10C2: 9CBP10C2NR-00*
- Fan module: 25ST2-40562O-D0R
- Riser card - CRS101J: 9CRS101JNR-00*
- Riser card - CRS101K: 9CRS101KNR-00*
- I/O board with M.2 slot - CDCR010: 9CDCR010NR-00*
- Mini-DP to D-Sub cable: 25CRN-200801-K1R
- Power supply: 25EP0-22000Q-G1S

Optional parts:

- 3-Section Rail kit (Supports CMA): 25HB2-A56121-K0R
- Cable Management Arm: 25HB1-R18300-K0R
- RMA packaging: 6NR184A92SR-RMA-A100
