E283-Z91- AAD1

Rev. 3.x Rev. 1.x

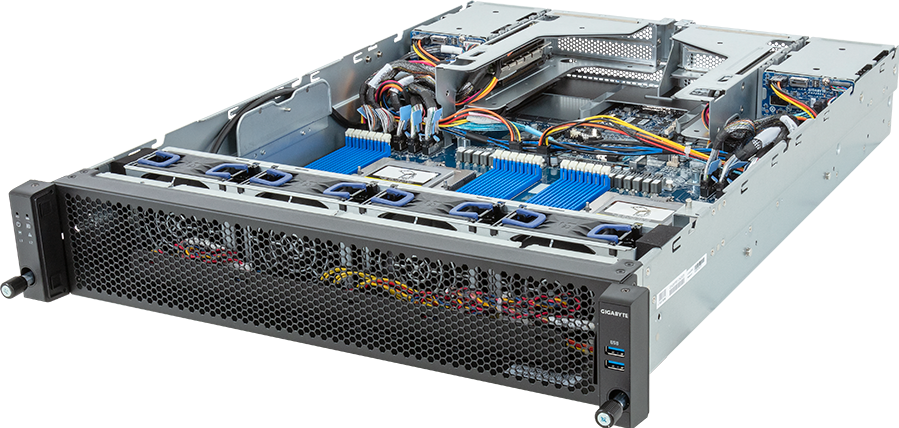

Edge Server - AMD EPYC™ 9005/9004 - 2U DP 4-Bay SATA/SAS-4 Platinum

# Networking # Edge # Hybrid/Private Cloud Server

Dual AMD EPYC™ 9005/9004 Series Processors
12-Channel DDR5 RDIMM, 24 x DIMMs
Dual ROM Architecture
2 x 1Gb/s LAN ports via Intel^® I350-AM2
4 x 2.5" SATA/SAS-4 hot-swap bays on the rear side
2 x M.2 slots with PCIe Gen3 x4 and x2 interface
6 x FHHL PCIe Gen5 x16 slots
2 x OCP NIC 3.0 PCIe Gen5 x16 slots
Dual 1600W 80 PLUS Platinum redundant power supply

Get a Quote

Compare

Get a Quote

* Veškeré zde uvedené materiály jsou pouze orientační. GIGABYTE si vyhrazuje právo kdykoliv měnit nebo revidovat obsah a to bez předchozího upozornění.
* Zmiňovaný výkon je založený na maximálních teoretických hodnotách z rozhraní jednotlivých čipsetů dodavatelů nebo organizace, která definovala specifikaci jednotlivých rozhraní. Skutečný výkon se může lišit v závislosti na konfiguraci systému.
* Všechny ochranné známky a loga jsou vlastnictvím jejich příslušných vlastníků.
* Díky standardní architektuře PC je určité množství paměti vyhrazeno pro systém, proto může být skutečná velikost dostupné paměti nižší než uvedené množství.

SPECIFICATIONS

Dimensions (WxHxD, mm)

2U
438 x 87.5 x 625

Motherboard

MZ93-FS1

CPU

AMD EPYC™ 9005 Series Processors
AMD EPYC™ 9004 Series Processors

Dual processor, cTDP up to 400W^[1]
- cTDP up to 500W with optional heatsink^[1]

^[1]Please refer to the QVL on the support page or contact our sales representatives for verified CPU SKUs.

^[Note]If only 1 CPU is installed, some PCIe or memory functions might be unavailable.

Socket

2 x LGA 6096
Socket SP5

Chipset

System on Chip

Memory

24 x DIMM slots
DDR5 memory supported
12-Channel memory architecture

AMD EPYC™ 9005:
RDIMM: Up to 6000 MT/s

AMD EPYC™ 9004:
RDIMM: Up to 4800 MT/s

LAN

Rear (G-SCM board - CDCR114):
2 x 1Gb/s LAN (1 x Intel^® I350-AM2)
- Support NCSI function

1 x 10/100/1000 Mbps Management LAN

Video

Integrated in Aspeed^® AST2600
- 1 x Mini-DP

Storage

Rear hot-swap:
4 x 2.5" SATA/SAS-4^[1]
- (SATA via CRS2810 from CPU_1)

Internal M.2:
1 x M.2 (2280/22110), PCIe Gen3 x4, from CPU_0
1 x M.2 (2280/22110), PCIe Gen3 x4, from CPU_1, occupied for SATA
1 x M.2 (2280/22110), PCIe Gen3 x2, from CPU_1

^[1]SAS card is required to support SAS drives.

^[Note]SATA hotplug utility can be downloaded on support page.

SAS

Require SAS add-in cards

RAID

Require RAID add-in cards

PCIe Expansion Slots

PCIe Cable x 6:
- 3 x FHHL x16 (Gen5 x16), from CPU_0
- 3 x FHHL x16 (Gen5 x16), from CPU_1

1 x OCP NIC 3.0 (Gen5 x16), from CPU_0
- Supports NCSI function

1 x OCP NIC 3.0 (Gen5 x16), from CPU_1
- Supports NCSI function

Front I/O

2 x USB 3.2 Gen1 ports (Type-A)
1 x Power button with LED
1 x ID button with LED
1 x NMI button
1 x Reset button
2 x LAN activity LEDs
1 x Storage activity LED
1 x System status LED

Rear I/O

G-SCM board - CDCR114:
2 x USB 3.2 Gen1 ports (Type-A)
1 x Mini-DP
2 x RJ45 ports
1 x MLAN port
1 x ID LED

Backplane Board

Speed and bandwidth:
SATA 6Gb/s or SAS-4 24Gb/s

Security Modules

1 x TPM header with SPI interface
- Optional TPM2.0 kit: CTM010

Power Supply

Dual 1600W 80 PLUS Platinum redundant power supply

AC Input:
- 100-120V~/ 12A, 50/60Hz
- 200-240V~/ 10A, 50/60Hz

DC Input: (Only for China)
- 240Vdc/ 10A

DC Output:
- Max 1000W/ 100-120V~
+12V/ 81.5A
+12Vsb/ 2.5A
- Max 1600W/ 200-240V~ or 240Vdc Input
+12V/ 133A
+12Vsb/ 2.5A

^[Note]GIGABYTE offers PSUs with various efficiency ratings and power outputs. Full redundancy may depend on your server configuration, and alternative PSU options may be needed. Please contact our sales representatives for the best power solution.

System Management

Aspeed^® AST2600 Baseboard Management Controller
GIGABYTE Management Console web interface

Dashboard
HTML5 KVM
Sensor Monitor (Voltage, RPM, Temperature, CPU Status …etc.)
Sensor Reading History Data
FRU Information
SEL Log in Linear Storage / Circular Storage Policy
Hardware Inventory
Fan Profile
System Firewall
Power Consumption
Power Control
Advanced power capping
LDAP / AD / RADIUS Support
Backup & Restore Configuration
Remote BIOS/BMC/CPLD Update
Event Log Filter
User Management
Media Redirection Settings
PAM Order Settings
SSL Settings
SMTP Settings

OS Compatibility

Please refer to OS compatibility table in support page

System Fans

4 x 80x80x38mm (18,300rpm)

Operating Properties

Operating temperature: 10°C to 35°C
Operating humidity: 8%-80% (non-condensing)
Non-operating temperature: -40°C to 60°C
Non-operating humidity: 20%-95% (non-condensing)

Packaging Dimensions

982 x 588 x 268 mm

Packaging Content

1 x E283-Z91-AAD1
2 x CPU heatsinks
1 x Mini-DP to D-Sub cable

^[Note]Rail kit not included. Please refer to optional parts for compatible rail kit.

Part Numbers

- Barebone package: 6NE283Z91DR000ACD1*
- Motherboard: 9MZ93FS1UR-000-3*
- CPU heatsink: 25ST1-15320G-A0R
- Front panel board - CFP2001: 9CFP2001NR-00*
- Backplane board - CBP2025: 9CBP2025NR-00*
- Fan module: 25ST2-88382T-S1R
- M.2 type SATA card - CRS2810: 9CRS2810NR-00*
- G-SCM board - CDCR114: 9CDCR114NR-00*
- Mini-DP to D-Sub cable: 25CRN-200801-K1R
- Power supply: 25EP0-216008-L0S

Optional parts:

- 2-Section Rail kit (385-480mm): 25HB2-3A0204-K0R (MOQ: 500)
- 2-Section Rail kit (660-840mm): 25HB2-3A0203-K0R
- CPU heatsink (500W): 25ST1-563400-C1R
- RMA packaging: 6NE283Z91SR-RMA-A100
