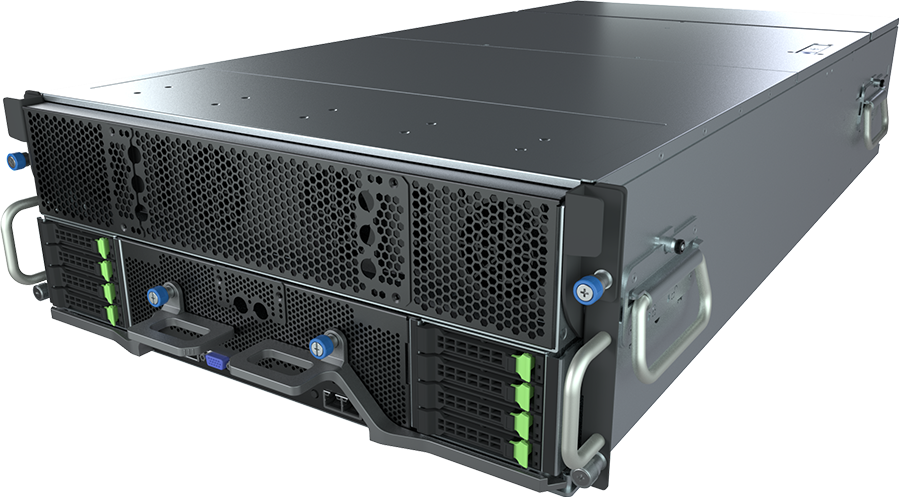

G4L3-ZX1- LAX1

To be released

HPC/AI Server - AMD EPYC™ 9005/9004 - 4U DP AMD Instinct™ MI300X 8-GPU DLC

# AI # AI Training # AI Inference # HPC

Liquid-cooled 8 x AMD Instinct™ MI300X OAM GPUs
CPU+GPU direct liquid cooling solution with leak detection
Dual AMD EPYC™ 9005/9004 Series Processors
12-Channel DDR5 RDIMM, 24 x DIMMs
Dual ROM Architecture
2 x 10Gb/s LAN ports via Intel^® X710-AT2
2 x M.2 slots with PCIe Gen3 x4 and x1 interface
8 x 2.5" Gen5 NVMe hot-swap bays
4 x FHHL dual-slot PCIe Gen5 x16 slots
8 x FHHL single-slot PCIe Gen5 x16 slots
4+4 3000W 80 PLUS Titanium redundant power supplies

Get a Quote

Compare

Get a Quote

* Veškeré zde uvedené materiály jsou pouze orientační. GIGABYTE si vyhrazuje právo kdykoliv měnit nebo revidovat obsah a to bez předchozího upozornění.
* Zmiňovaný výkon je založený na maximálních teoretických hodnotách z rozhraní jednotlivých čipsetů dodavatelů nebo organizace, která definovala specifikaci jednotlivých rozhraní. Skutečný výkon se může lišit v závislosti na konfiguraci systému.
* Všechny ochranné známky a loga jsou vlastnictvím jejich příslušných vlastníků.
* Díky standardní architektuře PC je určité množství paměti vyhrazeno pro systém, proto může být skutečná velikost dostupné paměti nižší než uvedené množství.

SPECIFICATIONS

Dimensions (WxHxD, mm)

4U
447 x 175.3 x 920

Motherboard

MZB3-PE0

CPU

AMD EPYC™ 9005 Series Processors
AMD EPYC™ 9004 Series Processors

Dual processor, cTDP up to 500W^[1]

^[1]The ambient temperature is limited to 30°C when NVIDIA BlueField^®-3 DPUs are installed.

^[Note]If only 1 CPU is installed, some PCIe or memory functions might be unavailable.

Socket

2 x LGA 6096
Socket SP5

Chipset

System on Chip

Memory

24 x DIMM slots
DDR5 memory supported
12-Channel memory per processor

AMD EPYC™ 9005:
RDIMM: Up to 6000 MT/s

AMD EPYC™ 9004:
RDIMM: Up to 4800 MT/s

LAN

Front (I/O board - CFPG540):
2 x 10Gb/s LAN (1 x Intel^® X710-AT2)
- Support NCSI function

1 x 10/100/1000 Mbps Management LAN

Rear (MLAN board - CDB66):
1 x 10/100/1000 Mbps Management LAN

^[Note]When both MLAN ports are connected with cables, the front MLAN port will be set as the default.

Video

Integrated in ASPEED^® AST2600
- 1 x VGA port

Storage

Front hot-swap:
8 x 2.5" Gen5 NVMe
- (NVMe from PEX89104)

Internal M.2:
1 x M.2 (2280/22110), PCIe Gen3 x4, from CPU_1
1 x M.2 (2280/22110), PCIe Gen3 x1, from CPU_0

SAS

N/A

RAID

N/A

Modular GPU

Liquid-cooled 8 x AMD Instinct™ MI300X OAM GPUs

PCIe Expansion Slots

PCIe Bridge Board - CBG76:
- 8 x FHHL x16 (Gen5 x16), from PEX89104

PCIe Bridge Board - CPBG045 x 2:
- 4 x FHHL x16 (Gen5 x16), from PEX89048

Front I/O

I/O board - CFPG540:
2 x USB 3.2 Gen1 ports (Type-A)
1 x VGA port
2 x RJ45 ports
1 x MLAN port (default)
1 x Power button with LED
1 x ID button with LED
1 x NMI button
1 x Reset button
1 x Storage activity LED
1 x System status LED

Rear I/O

MLAN board - CDB66:
1 x MLAN port

Backplane Board

Speed and bandwidth:
PCIe Gen5 x4

Security Modules

1 x TPM header with SPI interface
- Optional TPM2.0 kit: CTM010

Power Supply

4+4 3000W 80 PLUS Titanium redundant power supplies^[1]

AC Input:
- 115-127V~/ 14.2A, 50-60Hz
- 200-220V~/ 15.8A, 50-60Hz
- 220-240V~/ 14.9A, 50-60Hz

DC Input: (Only for China)
- 240Vdc/ 14A

DC Output:
- Max 1450W/ 115-127V~
+54V/ 26.6A
+12Vsb/ 3A
- Max 2900W/ 200-220V~
+54V/ 53.4A
+12Vsb/ 3A
- Max 3002.4W/ 220-240V~ or 240Vdc Input
+54V/ 55.6A
+12Vsb/ 3A

^[1]The system power supply requires C19 power cord.

System Management

ASPEED^® AST2600 Baseboard Management Controller
GIGABYTE Management Console web interface

Dashboard
HTML5 KVM
Sensor Monitor (Voltage, RPM, Temperature, CPU Status …etc.)
Sensor Reading History Data
FRU Information
SEL Log in Linear Storage / Circular Storage Policy
Hardware Inventory
Fan Profile
System Firewall
Power Consumption
Power Control
Advanced power capping
LDAP / AD / RADIUS Support
Backup & Restore Configuration
Remote BIOS/BMC/CPLD Update
Event Log Filter
User Management
Media Redirection Settings
PAM Order Settings
SSL Settings
SMTP Settings

OS Compatibility

Please refer to OS compatibility table in support page

System Fans

Motherboard:
2 x 60x60x56mm
2 x 60x60x76mm

PCIe slots:
4 x 80x80x56mm (15,500rpm)

GPU tray:
4 x 60x60x38mm (24,000rpm)

Operating Properties

Operating temperature: 10°C to 35°C
Operating humidity: 8%-80% (non-condensing)
Non-operating temperature: -40°C to 60°C
Non-operating humidity: 20%-95% (non-condensing)

^[Note]To ensure system stability and prevent condensation, when the relative humidity exceeds 50%, the coolant inlet temperature must be higher than the dry-bulb temperature and it should not exceed 40°C.

Packaging Content

1 x G4L3-ZX1-LAX1
1 x L-shape Rail kit
