R133-X13-AAB1

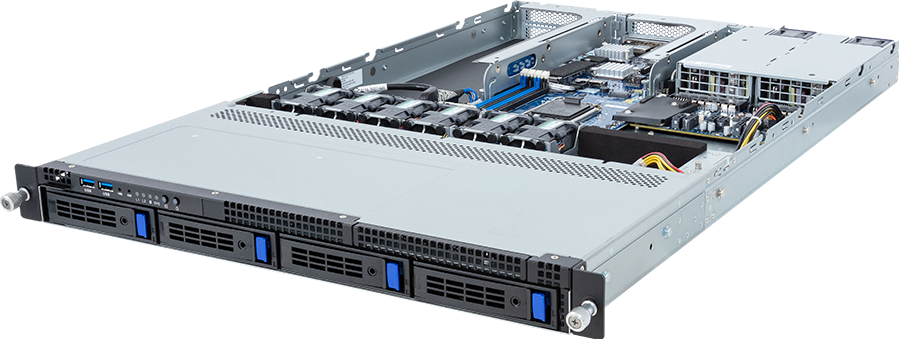

Rack Server - Intel® Xeon® E-2400 - 1U UP 1 x PCIe Gen5 GPU
- Supports 1 x Dual slot Gen5 GPU
- Single Intel® Xeon® E-2400 Processors
- Single Intel® Pentium® Gold G7400 / G7400T Processor
- Dual Channel DDR5 ECC UDIMM, 4 x DIMMs
- 2 x 1Gb/s LAN ports via Intel® I210-AT
- 4 x 3.5"/2.5" SATA hot-swappable bays
- 1 x M.2 slot with PCIe Gen4 x4 interface
- 1 x FHFL PCIe Gen5 x16 or 2 x FHFL PCIe Gen5 x8 slots for GPUs
- 1 x FHHL PCIe Gen4 x4 slot
- 1+1 800W 80 PLUS Platinum redundant power supplies
* Todos los materiales aquí provistos son sólo para referencia. GIGABYTE se reserva el derecho de modificar o revisar el contenido a cualquier hora sin aviso alguno.
* Todas las marcas y logos son propiedad de sus propios dueños.
* Debido a la arquitectura estándar de la PC, cierta cantidad de memoria es reservada para uso del sistema y actualmente la memoria disponible es menor a la mencionada.
* Todas las marcas y logos son propiedad de sus propios dueños.
* Debido a la arquitectura estándar de la PC, cierta cantidad de memoria es reservada para uso del sistema y actualmente la memoria disponible es menor a la mencionada.
SPECIFICATIONS
Dimensions (WxHxD, mm)
1U
438 x 43.5 x 710
438 x 43.5 x 710
Motherboard
MX14-BL1
CPU
Intel® Xeon® E-2400 Processors
Intel® Pentium® Gold G7400 / G7400T Processor
Single processor, TDP up to 95W
Intel® Pentium® Gold G7400 / G7400T Processor
Single processor, TDP up to 95W
Socket
1 x LGA 1700
Chipset
Intel® C262
Memory
4 x DIMM slots
DDR5 memory supported only
Dual Channel memory architecture
DIMM up to 32GB supported
ECC UDIMM supported only
Memory speed: Up to 4400 MT/s (1DPC), 4000 MT/s (2DPC/1R), 3600 MT/s (2DPC/2R)
DDR5 memory supported only
Dual Channel memory architecture
DIMM up to 32GB supported
ECC UDIMM supported only
Memory speed: Up to 4400 MT/s (1DPC), 4000 MT/s (2DPC/1R), 3600 MT/s (2DPC/2R)
LAN
Rear side:
2 x 1Gb/s LAN ports (2 x Intel® I210-AT)
Support NCSI function
1 x 10/100/1000 Mbps Management LAN
2 x 1Gb/s LAN ports (2 x Intel® I210-AT)
Support NCSI function
1 x 10/100/1000 Mbps Management LAN
Video
Integrated in Aspeed® AST2600
2D Video Graphic Adapter with PCIe bus interface
1920x1200@60Hz 32bpp
2D Video Graphic Adapter with PCIe bus interface
1920x1200@60Hz 32bpp
Storage
Front side:
4 x 3.5"/2.5" SATA hot-swappable bays
SATA supported only
4 x 3.5"/2.5" SATA hot-swappable bays
SATA supported only
SAS
N/A
RAID
Intel® SATA RAID 0/1/10/5
Expansion Slots
Riser Card CRCE021:
- 1 x PCIe x16 (Gen5 x16) FHFL slot or 2 x PCIe x16 (Gen5 x8) FHFL slots, from CPU, for GPUs*
Riser Card CRSE016:
- 1 x PCIe x4 (Gen4 x4) FHHL slot, from PCH
1 x M.2 slot:
- M-key
- PCIe Gen4 x4, from CPU
- Supports 2280/22110 cards
*Only supports GPUs up to 300W.
- 1 x PCIe x16 (Gen5 x16) FHFL slot or 2 x PCIe x16 (Gen5 x8) FHFL slots, from CPU, for GPUs*
Riser Card CRSE016:
- 1 x PCIe x4 (Gen4 x4) FHHL slot, from PCH
1 x M.2 slot:
- M-key
- PCIe Gen4 x4, from CPU
- Supports 2280/22110 cards
*Only supports GPUs up to 300W.
Internal I/O
1 x TPM header
Front I/O
2 x USB 3.2 Gen1
1 x Power button with LED
1 x ID button with LED
1 x NMI button
1 x Reset button
2 x LAN activity LEDs
1 x Storage activity LED
1 x System status LED
1 x Power button with LED
1 x ID button with LED
1 x NMI button
1 x Reset button
2 x LAN activity LEDs
1 x Storage activity LED
1 x System status LED
Rear I/O
2 x USB 3.2 Gen1
1 x Mini-DP
2 x RJ45
1 x MLAN
1 x ID button with LED
1 x Mini-DP
2 x RJ45
1 x MLAN
1 x ID button with LED
Backplane Board
Speed and bandwidth:
SATA 6Gb/s
SATA 6Gb/s
TPM
1 x TPM header with SPI interface
- Optional TPM2.0 kit: CTM010
- Optional TPM2.0 kit: CTM010
Power Supply
1+1 800W 80 PLUS Platinum redundant power supplies
AC Input:
- 100-240V~/ 10-5A, 50-60Hz
DC Input: (Only for China)
- 240Vdc/ 4A
DC Output:
- Max 800W
+12V/ 65A
+12Vsb/ 2.1A
AC Input:
- 100-240V~/ 10-5A, 50-60Hz
DC Input: (Only for China)
- 240Vdc/ 4A
DC Output:
- Max 800W
+12V/ 65A
+12Vsb/ 2.1A
System Management
Aspeed® AST2600 management controller
GIGABYTE Management Console (AMI MegaRAC SP-X) web interface
GIGABYTE Management Console (AMI MegaRAC SP-X) web interface
- Dashboard
- HTML5 KVM
- Sensor Monitor (Voltage, RPM, Temperature, CPU Status …etc.)
- Sensor Reading History Data
- FRU Information
- SEL Log in Linear Storage / Circular Storage Policy
- Hardware Inventory
- Fan Profile
- System Firewall
- Power Consumption
- Power Control
- Advanced Power Capping
- LDAP / AD / RADIUS Support
- Backup & Restore Configuration
- Remote BIOS/BMC/CPLD Update
- Event Log Filter
- User Management
- Media Redirection Settings
- PAM Order Settings
- SSL Settings
- SMTP Settings
OS Compatibility
Please refer to OS compatibility table in support page
System Fans
4 x 40x40x56mm (29,700rpm)
2 x 40x40x56mm (32,000rpm)
2 x 40x40x56mm (32,000rpm)
Operating Properties
Operating temperature: 10°C to 35°C
Operating humidity: 8%-80% (non-condensing)
Non-operating temperature: -40°C to 60°C
Non-operating humidity: 20%-95% (non-condensing)
Operating humidity: 8%-80% (non-condensing)
Non-operating temperature: -40°C to 60°C
Non-operating humidity: 20%-95% (non-condensing)
Packaging Dimensions
977 x 588 x 236 mm
Packaging Content
1 x R133-X13-AAB1
1 x CPU heatsink
1 x Mini-DP to D-Sub cable
1 x GPU power cable (2x PCIe 8pin, 700mm)
1 x 2-Section Rail kit
1 x CPU heatsink
1 x Mini-DP to D-Sub cable
1 x GPU power cable (2x PCIe 8pin, 700mm)
1 x 2-Section Rail kit
Part Numbers
- Barebone package: 6NR133X13MR000AAB1*
- Motherboard: 9MX14BL1NR-000
- 2-Section Rail kit (CMA not supported): 25HB2-3A0203-K0R
- CPU heatsink: 25ST1-12311H-A7R
- M.2 heatsink: 12SP2-11000E-00R
- Front panel board - CFP1010: 9CFP1010NR-00
- Backplane board - CBP1047: 9CBP1047NR-00
- Fan module: 25ST2-405622-A0R
- Fan module: 25ST2-40562H-A0R
- Riser card - CRCE021: 9CRCE021NR-00
- Riser card - CRSE016: 9CRSE016NR-00
- Mini-DP to D-Sub cable: 25CRN-200801-K1R
- GPU power cable (2x PCIe 8pin, 700mm): 25CRI-700004-G5R
- Power supply: 25EP0-208009-F3S
Optional parts:
- 3-Section Rail kit (Supports CMA): 25HB2-A56120-K0R
- Cable Management Arm: 25HBZ-R18100-K0R
- Motherboard: 9MX14BL1NR-000
- 2-Section Rail kit (CMA not supported): 25HB2-3A0203-K0R
- CPU heatsink: 25ST1-12311H-A7R
- M.2 heatsink: 12SP2-11000E-00R
- Front panel board - CFP1010: 9CFP1010NR-00
- Backplane board - CBP1047: 9CBP1047NR-00
- Fan module: 25ST2-405622-A0R
- Fan module: 25ST2-40562H-A0R
- Riser card - CRCE021: 9CRCE021NR-00
- Riser card - CRSE016: 9CRSE016NR-00
- Mini-DP to D-Sub cable: 25CRN-200801-K1R
- GPU power cable (2x PCIe 8pin, 700mm): 25CRI-700004-G5R
- Power supply: 25EP0-208009-F3S
Optional parts:
- 3-Section Rail kit (Supports CMA): 25HB2-A56120-K0R
- Cable Management Arm: 25HBZ-R18100-K0R
