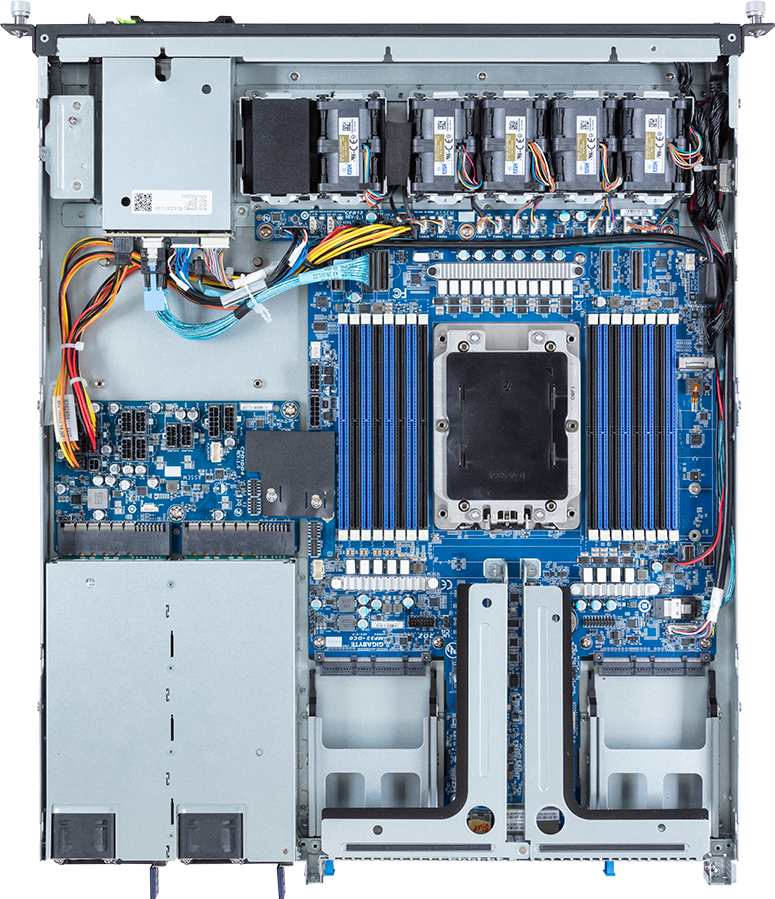

E163-P30-AAG1
Edge Arm Server - AmpereOne® Family - 1U UP 2-Bay Gen5 NVMe/SATA/SAS-4 Titanium
- Single AmpereOne® Family Processors
- 8-Channel DDR5 RDIMM, 16 x DIMMs
- Dual ROM Architecture
- 1 x 1Gb/s LAN port via Intel® I210-AT
- 2 x 2.5" Gen5 NVMe/SATA/SAS-4 hot-swap bays
- 1 x M.2 slot with PCIe Gen5 x4 interface
- 2 x FHHL PCIe Gen5 x16 slots
- 2 x OCP NIC 3.0 PCIe Gen5 x16 slots
- 2 x 800W 80 PLUS Titanium redundant power supply
* Todos los materiales aquí provistos son sólo para referencia. GIGABYTE se reserva el derecho de modificar o revisar el contenido a cualquier hora sin aviso alguno.
* Todas las marcas y logos son propiedad de sus propios dueños.
* Debido a la arquitectura estándar de la PC, cierta cantidad de memoria es reservada para uso del sistema y actualmente la memoria disponible es menor a la mencionada.
* Todas las marcas y logos son propiedad de sus propios dueños.
* Debido a la arquitectura estándar de la PC, cierta cantidad de memoria es reservada para uso del sistema y actualmente la memoria disponible es menor a la mencionada.
SPECIFICATIONS
Dimensions (WxHxD, mm)
1U
438 x 43.5 x 520
438 x 43.5 x 520
Motherboard
MP33-DC0
CPU
AmpereOne® Family Processors
Up to 192 custom cores
Single processor, TDP up to 400W
Up to 192 custom cores
Single processor, TDP up to 400W
Socket
1 x LGA 5964
Chipset
System on Chip
Memory
16 x DIMM slots
DDR5 memory supported only
8-Channel memory architecture
RDIMM: Up to 5200 MT/s, 4400 MT/s (2R 2DPC)
DDR5 memory supported only
8-Channel memory architecture
RDIMM: Up to 5200 MT/s, 4400 MT/s (2R 2DPC)
LAN
Rear:
1 x 1Gb/s LAN (1 x Intel® I210-AT)
- Supports NCSI function
1 x 10/100/1000 Mbps Management LAN
1 x 1Gb/s LAN (1 x Intel® I210-AT)
- Supports NCSI function
1 x 10/100/1000 Mbps Management LAN
Video
Integrated in Aspeed® AST2600
- 1 x Mini-DP
- 1 x Mini-DP
Storage
Front hot-swap:
2 x 2.5" Gen5 NVMe/SATA/SAS-4 [1]
Internal M.2:
1 x M.2 (2280/22110), PCIe Gen5 x4
[1] SAS card is required to support SAS drives.
2 x 2.5" Gen5 NVMe/SATA/SAS-4 [1]
Internal M.2:
1 x M.2 (2280/22110), PCIe Gen5 x4
[1] SAS card is required to support SAS drives.
SAS
Require SAS add-in cards
RAID
Require RAID add-in cards
PCIe Expansion Slots
Riser Card CRS101O:
- 1 x FHHL x16 (Gen5 x16)
Riser Card CRS101P:
- 1 x FHHL x16 (Gen5 x16)
2 x OCP NIC 3.0 (Gen5 x16)
- Support NCSI function
- 1 x FHHL x16 (Gen5 x16)
Riser Card CRS101P:
- 1 x FHHL x16 (Gen5 x16)
2 x OCP NIC 3.0 (Gen5 x16)
- Support NCSI function

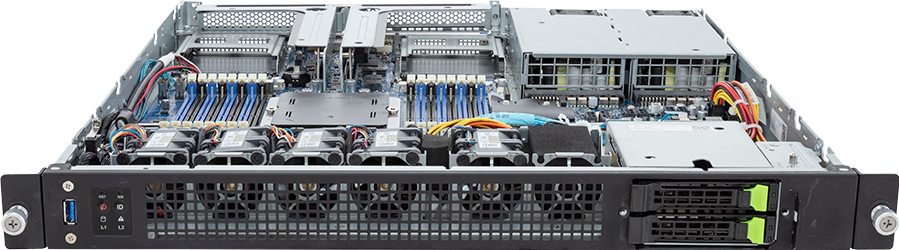

Front I/O
1 x USB 3.2 Gen1 port (Type-A)
1 x Power button with LED
1 x ID button with LED
1 x NMI button
1 x Reset button
2 x LAN activity LEDs (1 x LED disabled)
1 x Storage activity LED
1 x System status LED
1 x Power button with LED
1 x ID button with LED
1 x NMI button
1 x Reset button
2 x LAN activity LEDs (1 x LED disabled)
1 x Storage activity LED
1 x System status LED

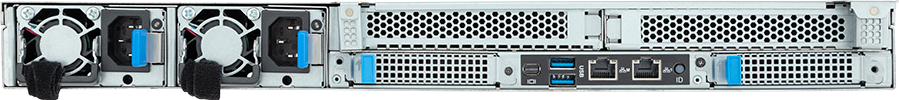

Rear I/O
2 x USB 3.2 Gen1 ports (Type-A)
1 x Mini-DP
1 x RJ45 port
1 x MLAN port
1 x ID button with LED
1 x Mini-DP
1 x RJ45 port
1 x MLAN port
1 x ID button with LED
Backplane Board
Speed and bandwidth:
PCIe Gen5 x4 or SATA 6Gb/s or SAS-4 24Gb/s
PCIe Gen5 x4 or SATA 6Gb/s or SAS-4 24Gb/s
Security Modules
1 x TPM header with SPI interface
- Optional TPM2.0 kit: CTM010
- Optional TPM2.0 kit: CTM010
Power Supply
2 x 800W 80 PLUS Titanium redundant power supply
AC Input:
- 100-127V ~/ 10A, 50-60Hz
- 200-240V~/ 5A, 50-60Hz
DC Input: (Only for China)
- 240Vdc/ 5A
DC Output:
- Max 800W
+12.2V/ 65A
+12.2Vsb/ 3A
[Note] GIGABYTE offers PSUs with various efficiency ratings and power outputs. Full redundancy may depend on your server configuration, and alternative PSU options may be needed. Please contact our sales representatives for the best power solution.
AC Input:
- 100-127V ~/ 10A, 50-60Hz
- 200-240V~/ 5A, 50-60Hz
DC Input: (Only for China)
- 240Vdc/ 5A
DC Output:
- Max 800W
+12.2V/ 65A
+12.2Vsb/ 3A
[Note] GIGABYTE offers PSUs with various efficiency ratings and power outputs. Full redundancy may depend on your server configuration, and alternative PSU options may be needed. Please contact our sales representatives for the best power solution.
System Management
Aspeed® AST2600 Baseboard Management Controller
GIGABYTE Management Console web interface
GIGABYTE Management Console web interface
- Dashboard
- HTML5 KVM
- Sensor Monitor (Voltage, RPM, Temperature, CPU Status …etc.)
- Sensor Reading History Data
- FRU Information
- SEL Log in Linear Storage / Circular Storage Policy
- Hardware Inventory
- Fan Profile
- System Firewall
- Power Consumption
- Power Control
- Advanced power capping
- LDAP / AD / RADIUS Support
- Backup & Restore Configuration
- Remote BIOS/BMC/CPLD Update
- Event Log Filter
- User Management
- Media Redirection Settings
- PAM Order Settings
- SSL Settings
- SMTP Settings
OS Compatibility
Please refer to OS compatibility table in support page
System Fans
5 x 40x40x56mm (30,000rpm)
Operating Properties
Operating temperature: 10°C to 35°C
Operating humidity: 8%-80% (non-condensing)
Non-operating temperature: -40°C to 60°C
Non-operating humidity: 20%-95% (non-condensing)
Operating humidity: 8%-80% (non-condensing)
Non-operating temperature: -40°C to 60°C
Non-operating humidity: 20%-95% (non-condensing)
Packaging Dimensions
782 x 588 x 212 mm
Packaging Content
1 x E163-P30-AAG1
1 x CPU heatsink
1 x Mini-DP to D-Sub cable
1 x Carrier
[Note] Rail kit not included. Please refer to optional parts for compatible rail kit.
1 x CPU heatsink
1 x Mini-DP to D-Sub cable
1 x Carrier
[Note] Rail kit not included. Please refer to optional parts for compatible rail kit.
Part Numbers
- Barebone package: 6NE163P30DR000ABG1*
- Motherboard: 9MP33DC0UR-000*
- CPU heatsink: 25ST1-453102-C1R
- M.2 heatsink: 12SP2-11000E-00R
- Front panel board - CFP1000: 9CFP1000NR-00*
- Backplane board - CBP2025: 9CBP2025NR-00*
- Fan module: 25ST2-40562E-A0R
- Riser card - CRS101O: 9CRS101ONR-00*
- Riser card - CRS101P: 9CRS101PNR-00*
- Mini-DP to D-Sub cable: 25CRN-200801-K1R
- Power supply: 25EP0-20800C-G1S
Optional parts:
- 2-Section Rail kit (385-480mm): 25HB2-3A0204-K0R (MOQ: 500)
- 2-Section Rail kit (660-840mm): 25HB2-3A0203-K0R
- Motherboard: 9MP33DC0UR-000*
- CPU heatsink: 25ST1-453102-C1R
- M.2 heatsink: 12SP2-11000E-00R
- Front panel board - CFP1000: 9CFP1000NR-00*
- Backplane board - CBP2025: 9CBP2025NR-00*
- Fan module: 25ST2-40562E-A0R
- Riser card - CRS101O: 9CRS101ONR-00*
- Riser card - CRS101P: 9CRS101PNR-00*
- Mini-DP to D-Sub cable: 25CRN-200801-K1R
- Power supply: 25EP0-20800C-G1S
Optional parts:
- 2-Section Rail kit (385-480mm): 25HB2-3A0204-K0R (MOQ: 500)
- 2-Section Rail kit (660-840mm): 25HB2-3A0203-K0R
