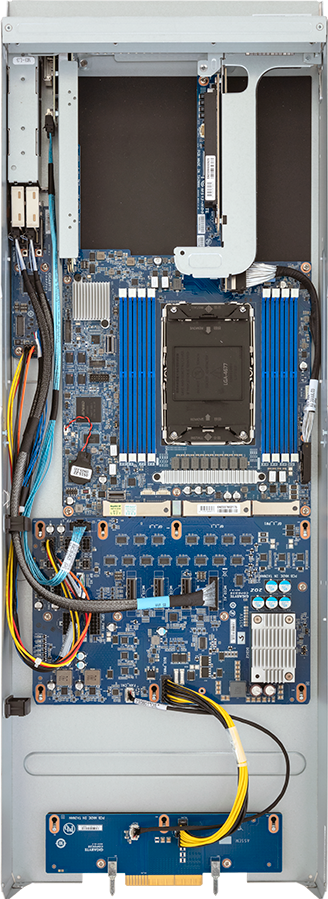

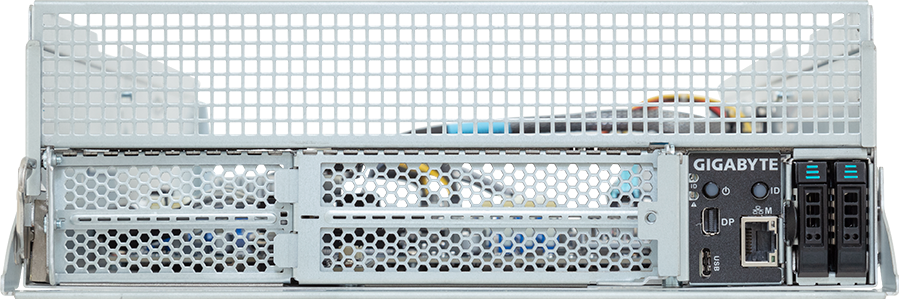

ORv3 Compute Node - 5th/4th Gen Intel® Xeon® Scalable - 2OU 2-Node UP 2-Bay E1.S Gen4 NVMe
- Single 5th/4th Gen Intel® Xeon® Scalable Processors
- Single Intel® Xeon® CPU Max Series
- 8-Channel DDR5 RDIMM, 8 x DIMMs
- Dual ROM Architecture
- 2 x E1.S Gen4 NVMe hot-swap bays
- 1 x M.2 slot with SATA interface
- 2 x FHHL PCIe Gen5 x16 slots
- 1 x LP PCIe Gen5 x16 slot
- 1 x LP PCIe Gen5 x8 slot
- 48V DC Bus Bar power solution
