XH23-VG0-AAJ1

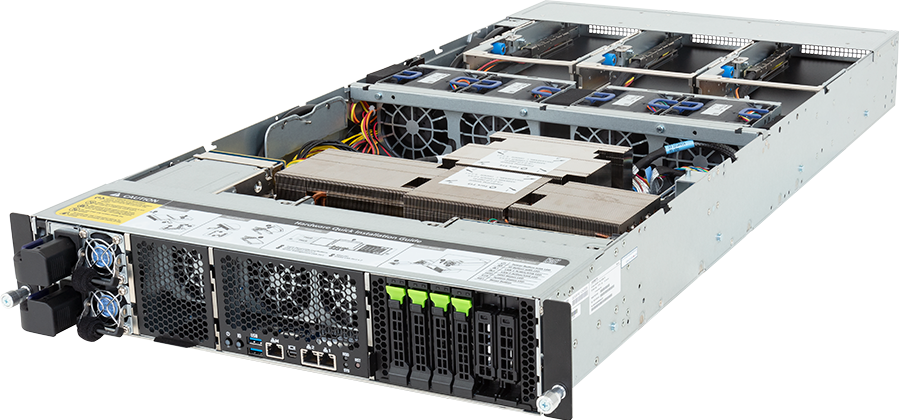

NVIDIA MGX™ Arm Server - NVIDIA GH200 Grace Hopper Superchip - 2U UP 4-Bay Gen5 NVMe
- NVIDIA-Certified Systems™ - NVIDIA ARM CPU Systems
- CPU+GPU design for giant-scale AI and HPC
- NVIDIA MGX™ modular server design
- Single NVIDIA GH200 Grace Hopper Superchip
- 900GB/s NVIDIA® NVLink®-C2C Interconnect
- Up to 480GB CPU LPDDR5X ECC memory
- Up to 96GB GPU HBM3
- Compatible with NVIDIA BlueField®-3 DPUs
- 2 x 10Gb/s LAN ports via Intel® X550-AT2
- 4 x 2.5" Gen5 NVMe bays
- 2 x M.2 slots with PCIe Gen5 x4 interface
- 3 x FHFL PCIe Gen5 x16 slots
- Dual 2000W 80 PLUS Titanium redundant power supply
* The entire materials provided herein are for reference only. GIGABYTE reserves the right to modify or revise the content at anytime without prior notice.
* Advertised performance is based on maximum theoretical interface values from respective Chipset vendors or organization who defined the interface specification. Actual performance may vary by system configuration.
* All trademarks and logos are the properties of their respective holders.
* Due to standard PC architecture, a certain amount of memory is reserved for system usage and therefore the actual memory size is less than the stated amount.
* Advertised performance is based on maximum theoretical interface values from respective Chipset vendors or organization who defined the interface specification. Actual performance may vary by system configuration.
* All trademarks and logos are the properties of their respective holders.
* Due to standard PC architecture, a certain amount of memory is reserved for system usage and therefore the actual memory size is less than the stated amount.
SPECIFICATIONS
Dimensions (WxHxD, mm)
2U
438 x 87 x 900
438 x 87 x 900
Motherboard
MVG3-MG0
Superchip
NVIDIA GH200 Grace Hopper Superchip:
- 1 x NVIDIA Grace™ CPU
- 1 x NVIDIA Hopper™ GPU
- Connected with NVIDIA® NVLink®-C2C
- TDP up to 1000W (CPU + GPU + memory)
- 1 x NVIDIA Grace™ CPU
- 1 x NVIDIA Hopper™ GPU
- Connected with NVIDIA® NVLink®-C2C
- TDP up to 1000W (CPU + GPU + memory)
Memory
NVIDIA Grace CPU:
- Up to 480GB of LPDDR5X memory with ECC
- Memory bandwidth up to 512GB/s
NVIDIA Hopper GPU:
- Up to 96GB HBM3
- Memory bandwidth up to 4TB/s
- Up to 480GB of LPDDR5X memory with ECC
- Memory bandwidth up to 512GB/s
NVIDIA Hopper GPU:
- Up to 96GB HBM3
- Memory bandwidth up to 4TB/s
LAN
Front side:
2 x 10Gb/s LAN ports (1 x Intel® X550-AT2)
Support NCSI function
1 x 10/100/1000 Mbps Management LAN
2 x 10Gb/s LAN ports (1 x Intel® X550-AT2)
Support NCSI function
1 x 10/100/1000 Mbps Management LAN
Video
Integrated in Aspeed® AST2600
2D Video Graphic Adapter with PCIe bus interface
1920x1200@60Hz 32bpp
2D Video Graphic Adapter with PCIe bus interface
1920x1200@60Hz 32bpp
Storage
Front side:
4 x 2.5" Gen5 NVMe bays, from PEX89048
4 x 2.5" Gen5 NVMe bays, from PEX89048
SAS
N/A
RAID
N/A
Expansion Slots
PCIe Cable x 3:
- 3 x PCIe x16 (Gen5 x16) FHFL slots, from CPU
2 x M.2 slots (CMTP0A3):
- M-key
- PCIe Gen5 x4, from PEX89048
- Supports 2242/2260/2280/22110 cards
- 3 x PCIe x16 (Gen5 x16) FHFL slots, from CPU
2 x M.2 slots (CMTP0A3):
- M-key
- PCIe Gen5 x4, from PEX89048
- Supports 2242/2260/2280/22110 cards
Internal I/O
1 x TPM header
Front I/O
2 x USB 3.2 Gen1
1 x Mini-DP
2 x RJ45
1 x MLAN
1 x Power button with LED
1 x ID button with LED
1 x Reset button
1 x Storage activity LED
1 x System status LED
1 x Mini-DP
2 x RJ45
1 x MLAN
1 x Power button with LED
1 x ID button with LED
1 x Reset button
1 x Storage activity LED
1 x System status LED
Rear I/O
N/A
Backplane Board
Speed and bandwidth:
PCIe Gen5 x4
PCIe Gen5 x4
TPM
1 x TPM header with SPI interface
- Optional TPM2.0 kit: CTM012
- Optional TPM2.0 kit: CTM012
Power Supply
Dual 2000W 80 PLUS Titanium redundant power supply
AC Input:
- 100-127V~/ 13A, 50-60Hz
- 200-220V~/ 10A, 50-60Hz
- 220-240V~/ 10A, 50-60Hz
DC Input: (Only for China)
- 240Vdc/ 10A
DC Output:
- Max 1000W/ 100-127V~
+12.2V/ 82A
+12.2Vsb/ 3A
- Max 1800W/ 200-220V~
+12.2V/ 148A
+12.2Vsb/ 3A
- Max 2000W/ 220-240V~ or 240Vdc Input
+12.2V/ 164A
+12.2Vsb/ 3A
AC Input:
- 100-127V~/ 13A, 50-60Hz
- 200-220V~/ 10A, 50-60Hz
- 220-240V~/ 10A, 50-60Hz
DC Input: (Only for China)
- 240Vdc/ 10A
DC Output:
- Max 1000W/ 100-127V~
+12.2V/ 82A
+12.2Vsb/ 3A
- Max 1800W/ 200-220V~
+12.2V/ 148A
+12.2Vsb/ 3A
- Max 2000W/ 220-240V~ or 240Vdc Input
+12.2V/ 164A
+12.2Vsb/ 3A
System Management
Aspeed® AST2600 management controller
GIGABYTE Management Console (AMI MegaRAC SP-X) web interface
GIGABYTE Management Console (AMI MegaRAC SP-X) web interface
- Dashboard
- HTML5 KVM
- Sensor Monitor (Voltage, RPM, Temperature, CPU Status …etc.)
- Sensor Reading History Data
- FRU Information
- SEL Log in Linear Storage / Circular Storage Policy
- Hardware Inventory
- Fan Profile
- System Firewall
- Power Consumption
- Power Control
- Advanced power capping
- LDAP / AD / RADIUS Support
- Backup & Restore Configuration
- Remote BIOS/BMC/CPLD Update
- Event Log Filter
- User Management
- Media Redirection Settings
- PAM Order Settings
- SSL Settings
- SMTP Settings
OS Compatibility
Please refer to OS compatibility table in support page
System Fans
3 x 60x60x56mm
4 x 80x80x80mm
4 x 80x80x80mm
Operating Properties
Operating temperature: 10°C to 35°C
Operating humidity: 8-80% (non-condensing)
Non-operating temperature: -40°C to 60°C
Non-operating humidity: 20%-95% (non-condensing)
Operating humidity: 8-80% (non-condensing)
Non-operating temperature: -40°C to 60°C
Non-operating humidity: 20%-95% (non-condensing)
Packaging Dimensions
1195 x 740 x 455 mm
Packaging Content
1 x XH23-VG0-AAJ1
1 x 3-Section Rail kit
1 x 3-Section Rail kit
Part Numbers
- Barebone package: 6NXH23VG0MR000AAJ1*
- Motherboard: 9MVG3MG0NR-000
- 3-Section Rail kit: 25HB2-T76100-K0R
- Front panel board - CFPX140: 9CFPX140NR-00
- Backplane board - CBPX060: 9CBPX060NR-00
- Fan module 60x60x56mm: 25ST2-665620-S1R
- Fan module 80x80x80mm: 25ST2-888024-D0R
- M.2 riser card - CMTP0A3: 9CMTP0A3NR-00
- Power supply: 25EP0-22000P-G1S
Optional parts:
- Cable Management Arm: 25HB2-2AA700-K0R
- Motherboard: 9MVG3MG0NR-000
- 3-Section Rail kit: 25HB2-T76100-K0R
- Front panel board - CFPX140: 9CFPX140NR-00
- Backplane board - CBPX060: 9CBPX060NR-00
- Fan module 60x60x56mm: 25ST2-665620-S1R
- Fan module 80x80x80mm: 25ST2-888024-D0R
- M.2 riser card - CMTP0A3: 9CMTP0A3NR-00
- Power supply: 25EP0-22000P-G1S
Optional parts:
- Cable Management Arm: 25HB2-2AA700-K0R
* The entire materials provided herein are for reference only. GIGABYTE reserves the right to modify or revise the content at anytime without prior notice.
* Advertised performance is based on maximum theoretical interface values from respective Chipset vendors or organization who defined the interface specification. Actual performance may vary by system configuration.
* All trademarks and logos are the properties of their respective holders.
* Due to standard PC architecture, a certain amount of memory is reserved for system usage and therefore the actual memory size is less than the stated amount.
* Advertised performance is based on maximum theoretical interface values from respective Chipset vendors or organization who defined the interface specification. Actual performance may vary by system configuration.
* All trademarks and logos are the properties of their respective holders.
* Due to standard PC architecture, a certain amount of memory is reserved for system usage and therefore the actual memory size is less than the stated amount.
