G294-S42-AAP1

To be released

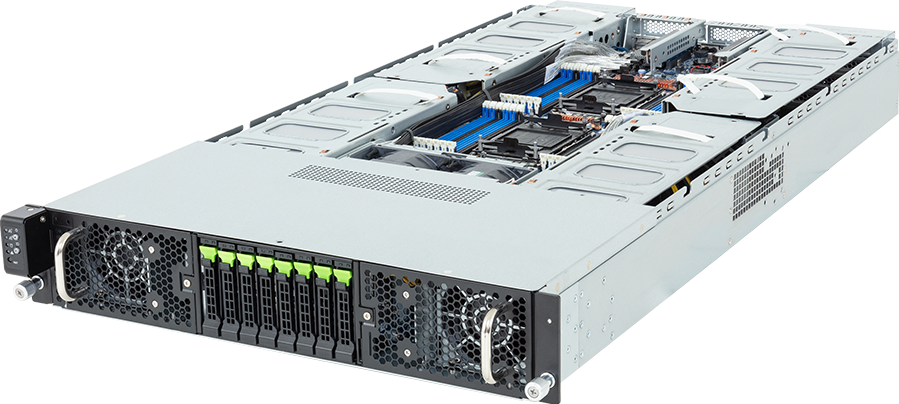

HPC/AI Server - Intel® Xeon® 6 Processors - 2U DP 8 x PCIe Gen5 GPUs (with PCIe switches)
  • Supports up to 8 x Dual slot Gen5 GPUs
  • Dual Intel® Xeon® 6 Processors, LGA 4710
  • 8-Channel DDR5 RDIMM / MCR DIMM, 24 x DIMMs
  • Dual ROM Architecture
  • 2 x 10Gb/s LAN ports via Intel® X710-AT2
  • 8 x 2.5" Gen5 NVMe/SATA/SAS-4 hot-swappable bays
  • 8 x FHFL PCIe Gen5 x16 slots for GPUs
  • 2 x LP PCIe Gen5 x16 slots
  • Dual 3000W 80 PLUS Titanium redundant power supply
Get a Quote
* The entire materials provided herein are for reference only. GIGABYTE reserves the right to modify or revise the content at anytime without prior notice.
* Advertised performance is based on maximum theoretical interface values from respective Chipset vendors or organization who defined the interface specification. Actual performance may vary by system configuration.
* All trademarks and logos are the properties of their respective holders.
* Due to standard PC architecture, a certain amount of memory is reserved for system usage and therefore the actual memory size is less than the stated amount.

SPECIFICATIONS

Dimensions (WxHxD, mm)
2U
448 x 87.5 x 850
Motherboard
MS44-G20
CPU
Intel® Xeon® 6 Processors
- Intel® Xeon® 6700E-Series Processors
- Intel® Xeon® 6700P-Series Processors (available Q1'25)
- Intel® Xeon® 6500P-Series Processors (available Q1'25)

Dual processor, TDP up to 225W (TBD)

[Note] If only 1 CPU is installed, some PCIe or memory functions might be unavailable.
Socket
2 x LGA 4710
Socket E2
Chipset
System on Chip
Memory
24 x DIMM slots [1]
DDR5 memory supported
8-Channel memory architecture
MCR DIMM supported [2]
RDIMM: Up to 6400 MT/s (1DPC), 5200 MT/s (2DPC)
MCR DIMM: Up to 8000 MT/s

[1] Intel® Xeon® 6700E-Series Processors only support up to 16 x DIMM slots.
[2] MCR DIMMs are only supported with Intel® Xeon® 6 Processors with P-cores and in a 1DPC configuration.
LAN
Rear:
2 x 10Gb/s LAN (1 x Intel® X710-AT2)
- Support NCSI function

1 x 10/100/1000 Mbps Management LAN
Video
Integrated in Aspeed® AST2600
- 1 x VGA port
Storage
Front hot-swap:
8 x 2.5" Gen5 NVMe/SATA/SAS-4 [1]
- (4 x NVMe from CPU_0, 4 x NVMe from CPU_1)
- (SATA from CPU_0)

[1] SAS card is required to support SAS drives.
SAS
Require SAS add-in cards
RAID
Require RAID add-in cards
Onboard VROC key headers
PCIe Expansion Slots
Riser Card CRCG620 x 2:
- 4 x FHFL x16 (Gen5 x16), from PEX89048, for GPUs

Riser Card CRCG621 x 2:
- 4 x FHFL x16 (Gen5 x16), from PEX89048, for GPUs

Riser Card CRSG01F x 2:
- 1 x LP x16 (Gen5 x16), from CPU_0
- 1 x LP x16 (Gen5 x16), from CPU_1

[Note] Maximum GPU dimensions (LxWxH): 285 x 111.5 x 39.5mm.
[Note] The system is only validated with a uniform GPU model.
Front I/O
1 x Power button with LED
1 x ID button with LED
1 x Reset button
2 x LAN activity LEDs
1 x Storage activity LED
1 x System status LED
Rear I/O
2 x USB 3.2 Gen1 ports (Type-A)
1 x VGA port
2 x RJ45 ports
1 x MLAN port
1 x Power button with LED
1 x ID button with LED
1 x NMI button
1 x Reset button
1 x System status LED
Backplane Board
Speed and bandwidth:
PCIe Gen5 x4 or SATA 6Gb/s or SAS-4 24Gb/s
Security Modules
1 x TPM header with SPI interface
- Optional TPM2.0 kit: CTM012

1 x PRoT connector (only enabled on RoT SKU)
Power Supply
Dual 3000W 80 PLUS Titanium redundant power supply [1]

AC Input:
- 100-127V~/ 15.5A, 50-60Hz
- 200-220V~/ 15.5A, 50-60Hz
- 220-240V~/ 15.5A, 50-60Hz

DC Input: (Only for China)
- 240Vdc/ 15.5A

DC Output:
- Max 1000W/ 100-127V~
+12.2V/ 81A
+12Vsb/ 3A
- Max 2600W/ 200-220V~
+12.2V/ 213A
+12Vsb/ 3A
- Max 3000W/ 220-240V~ or 240Vdc Input
+12.2V/ 245A
+12Vsb/ 3A

[1] The system power supply requires C19 power cord.
System Management
Aspeed® AST2600 Baseboard Management Controller
GIGABYTE Management Console web interface

  • Dashboard
  • HTML5 KVM
  • Sensor Monitor (Voltage, RPM, Temperature, CPU Status …etc.)
  • Sensor Reading History Data
  • FRU Information
  • SEL Log in Linear Storage / Circular Storage Policy
  • Hardware Inventory
  • Fan Profile
  • System Firewall
  • Power Consumption
  • Power Control
  • Advanced power capping
  • LDAP / AD / RADIUS Support
  • Backup & Restore Configuration
  • Remote BIOS/BMC/CPLD Update
  • Event Log Filter
  • User Management
  • Media Redirection Settings
  • PAM Order Settings
  • SSL Settings
  • SMTP Settings
OS Compatibility
Please refer to OS compatibility table in support page
System Fans
2 x 80x80x38mm (18,300rpm)
6 x 80x80x80mm (16,500rpm)
Operating Properties
Operating temperature: 10°C to 35°C
Operating humidity: 8%-80% (non-condensing)
Non-operating temperature: -40°C to 60°C
Non-operating humidity: 20%-95% (non-condensing)
Packaging Dimensions
1133 x 724 x 261 mm
Packaging Content
1 x G294-S42-AAP1
2 x CPU heatsinks
4 x Carriers
1 x L-shape Rail kit
Part Numbers
- Barebone package: 6NG294S42DR000AAP1*
- Motherboard: 9MS44G20UR-000*
- L-shape Rail kit: 25HB2-A86102-K0R
- CPU heatsink: TBD
- Backplane board - CBPG086: 9CBPG086NR-00*
- Fan module 80x80x38mm: 25ST2-88382R-S1R
- Fan module 80x80x80mm: 25ST2-888023-S1R
- M.2 type SATA card - CRS2810: 9CRS2810NR-00*
- M.2 expansion card - CMTP1A0: 9CMTP1A0NR-00*
- Riser card - CRCG620: 9CRCG620NR-00*
- Riser card - CRCG621: 9CRCG621NR-00*
- Riser card - CRSG01F: 9CRSG01FNR-00*
- Power supply: 25EP0-230005-G1S

Optional parts:

- C19 power cord 125V/15A (US): 25CP1-018000-Q0R
- C19 power cord 250V/16A (EU): 25CP3-01830H-Q0R
- C19 power cord 125V/15A (JP): 25CPA-01830B-Q0R
* The entire materials provided herein are for reference only. GIGABYTE reserves the right to modify or revise the content at anytime without prior notice.
* Advertised performance is based on maximum theoretical interface values from respective Chipset vendors or organization who defined the interface specification. Actual performance may vary by system configuration.
* All trademarks and logos are the properties of their respective holders.
* Due to standard PC architecture, a certain amount of memory is reserved for system usage and therefore the actual memory size is less than the stated amount.
