MZ72-HB0

Rev. 3.x/4.x Rev. 1.x

Motherboard - AMD EPYC™ 7003/7002 - E-ATX DP AST2500 BMC

Dual AMD EPYC™ 7003/7002 Series Processors (with AMD 3D V-Cache™ Technology)
8-Channel DDR4 RDIMM/LRDIMM, 16 x DIMMs
2 x 10Gb/s LAN ports via Broadcom^® BCM57416
3 x SlimSAS connectors with PCIe Gen4 x4 or SATA interface
2 x SlimSAS connectors with PCIe Gen4 x4 interface
4 x SATA 6Gb/s ports
1 x M.2 slot with PCIe Gen4 x4 interface
5 x PCIe Gen4 x16 and x8 expansion slots

Get a Quote

Lista de Comparativos

Get a Quote

* Todos os materiais disponíveis são para simples referência. A GIGABYTE reserva o direito de modificar ou revisar o conteúdo a qualquer momento sem aviso prévio.
* Todas as marcas e logotipos são de propriedade de suas respectivas proprietárias.
* Devido a arquitetura padrão PC, uma quantia de memória é reservada para uso do sistema, portanto o tamanho da memória é menor do que a quantia exibida.

SPECIFICATIONS

Form Factor

E-ATX
305W x 330D mm

CPU

AMD EPYC™ 7003 Series Processors
AMD EPYC™ 7003 Series Processors with AMD 3D V-Cache™ Technology
AMD EPYC™ 7002 Series Processors
Dual processor, 7nm technology
Up to 64 cores, 128 threads per processor
TDP up to 280W

Socket

2 x LGA 4094
Socket SP3

Chipset

System on Chip

Memory

16 x DIMM slots
DDR4 memory supported only
8-Channel memory architecture
RDIMM up to 128GB supported
LRDIMM up to 128GB supported
3DS RDIMM/LRDIMM up to 256GB supported
Memory speed: Up to 3200 MT/s

LAN

2 x 10Gb/s LAN ports (1 x Broadcom^® BCM57416)
Support NCSI function

1 x 10/100/1000 Mbps Management LAN

Video

Integrated in Aspeed^® AST2500
- 1 x VGA port

Audio

N/A

Storage Interface

CPU_0:
- 2 x SlimSAS connectors for 2 x Gen4 NVMe
- 4 x SATA 6Gb/s ports

CPU_1:
- *3 x SlimSAS connectors for 3 x Gen4 NVMe or 12 x SATA 6Gb/s

*To enable NVMe support, please navigate to the BIOS Setup section, then proceed to Advances > PCI Subsystem settings.

RAID

N/A

Expansion Slots

Slot_6: PCIe x16 (Gen4 x16) slot, from CPU_0
Slot_4: PCIe x16 (Gen4 x16) slot, from CPU_0
Slot_3: PCIe x16 (Gen4 x16) slot, from CPU_1
Slot_2: PCIe x16 (Gen4 x8) slot, from CPU_0
Slot_1: PCIe x16 (Gen4 x8) slot, from CPU_1

1 x M.2 slot:
- M-key
- PCIe Gen4 x4, from CPU_0
- Supports 2280/22110 cards

Internal I/O

1 x 24-pin ATX main power connector
2 x 8-pin ATX 12V power connectors
2 x CPU fan headers
4 x System fan headers
1 x USB 3.0 header
1 x USB 2.0 header
1 x M.2 slot
5 x SlimSAS connectors
4 x SATA connectors
1 x Front panel header
1 x Backplane board header
1 x COM_2 header
1 x PMBus connector
1 x IPMB connector
1 x TPM header

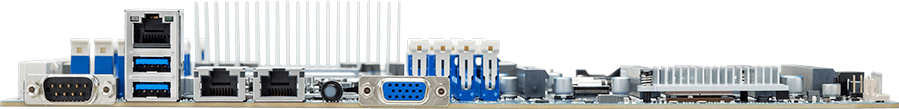

Rear I/O

2 x USB 3.0
1 x VGA
1 x COM_1
2 x RJ45
1 x MLAN
1 x ID button with LED

TPM

1 x TPM header with SPI interface
- Optional TPM2.0 kit: CTM010

OS Supported

Citrix Hypervisor 8.2.0 or later

Red Hat Enterprise Linux 8.3 or later
Red Hat Enterprise Linux 9.0 or later

SUSE Linux Enterprise Server 12 SP5 or later
SUSE Linux Enterprise Server 15 SP2 or later

Ubuntu 18.04.5 LTS or later
Ubuntu 20.04 LTS or later
Ubuntu 22.04 LTS or later

VMware ESXi 6.7 Update3 P03 or later
VMware ESXi 7.0 Update1 or later
VMware ESXi 8.0 or later

Windows Server 2016 (X2APIC/256T not supported)
Windows Server 2019
Windows Server 2022

Board Management

Aspeed^® AST2500 Baseboard Management Controller
GIGABYTE Management Console web interface

Dashboard
HTML5 KVM
Sensor Monitor (Voltage, RPM, Temperature, CPU Status …etc.)
Sensor Reading History Data
FRU Information
SEL Log in Linear Storage / Circular Storage Policy
Hardware Inventory
Fan Profile
System Firewall
Power Consumption
Power Control
LDAP / AD / RADIUS Support
Backup & Restore Configuration
Remote BIOS/BMC/CPLD Update
Event Log Filter
User Management
Media Redirection Settings
PAM Order Settings
SSL Settings
SMTP Settings

PSU Connectors

1 x 24-pin ATX main power connector
2 x 8-pin ATX 12V power connectors

Operating Properties

Operating temperature: 10°C to 40°C
Operating humidity: 8-80% (non-condensing)
Non-operating temperature: -40°C to 60°C
Non-operating humidity: 20%-95% (non-condensing)

Retail Packaging Content

1 x MZ72-HB0
1 x I/O shield
1 x Quick start guide
2 x SATA 6Gb/s cables (500mm)

Single Box dimensions: 409 x 355 x 78 mm
Carton dimensions: 729 x 415 x 432 mm
Quantity: 10 x single boxes in one carton

Bulk Packaging Content

10 x MZ72-HB0
10 x I/O shields

Carton dimensions: 600 x 473 x 495 mm

Reference Numbers

Retail: 9MZ72HB0MR-00-3*/4*
Bulk: 9MZ72HB0NR-00-3*/4*

Part Numbers:

- I/O shield: 12AIO-MZ72H0-00R
- SATA cable (500mm)(2 in 1 package): 25CF4-500541-K1R

Optional parts:

- CPU fansink (A)+(B)+(C):
  (A) Heatsink: 25ST1-243103-A0R
  (B) Fan (9,000rpm): 25ST2-88382C-D0R
  (C) Fan extension power cable: 25CRI-350B02-A4R
