R282-Z9G
AMD EPYC™ 7003 DP Server System - 2U 20-Bay Gen4 NVMe with GRAID solution
- Hardware-level root of trust
- Equipped with GRAID SupremeRAID NVMe/NVMe-oF RAID Card
- AMD EPYC™ 7003 series processors
- Dual processor, 7nm technology
- 8-Channel RDIMM/LRDIMM DDR4 per processor, 32 x DIMMs
- 2 x 1Gb/s LAN ports (Intel® I350-AM2)
- 1 x Dedicated management port
- 20 x 2.5" Gen4 NVMe hot-swappable bays
- 2 x 2.5" SATA/SAS hot-swappable bays on rear side
- 1 x M.2 slot with PCIe Gen4 x4 interface
- 1 x FHHL PCIe Gen4 x16 slot
- 1600W (240V) 80 PLUS Platinum redundant power supply
* Todos os materiais disponíveis são para simples referência. A GIGABYTE reserva o direito de modificar ou revisar o conteúdo a qualquer momento sem aviso prévio.
* Todas as marcas e logotipos são de propriedade de suas respectivas proprietárias.
* Devido a arquitetura padrão PC, uma quantia de memória é reservada para uso do sistema, portanto o tamanho da memória é menor do que a quantia exibida.
* Todas as marcas e logotipos são de propriedade de suas respectivas proprietárias.
* Devido a arquitetura padrão PC, uma quantia de memória é reservada para uso do sistema, portanto o tamanho da memória é menor do que a quantia exibida.
SPECIFICATIONS
Dimensions (WxHxD, mm)
2U
438 x 87 x 730
Motherboard
MZ92-FS1 Rev. 3.0
CPU
AMD EPYC™ 7003 series processors
Dual processor, 7nm technology
Up to 64-core, 128 threads per processor
TDP up to 225W, cTDP up to 240W
Fully support 280W
NOTE: If only 1 CPU is installed, some PCIe or memory functions might be unavailable
Compatible with AMD EPYC™ 7002 series processors
Dual processor, 7nm technology
Up to 64-core, 128 threads per processor
TDP up to 225W, cTDP up to 240W
Fully support 280W
NOTE: If only 1 CPU is installed, some PCIe or memory functions might be unavailable
Compatible with AMD EPYC™ 7002 series processors
Socket
2 x LGA 4094
Socket SP3
Socket SP3
Chipset
System on Chip
Memory
32 x DIMM slots
DDR4 memory supported only
8-Channel memory per processor architecture
RDIMM modules up to 128GB supported
LRDIMM modules up to 128GB supported
3DS RDIMM/LRDIMM modules up to 256GB supported
Memory speed: Up to 3200*/2933 MHz
Note: Follow BIOS setting and memory QVL list if running 3200 Mhz with 2DPC
DDR4 memory supported only
8-Channel memory per processor architecture
RDIMM modules up to 128GB supported
LRDIMM modules up to 128GB supported
3DS RDIMM/LRDIMM modules up to 256GB supported
Memory speed: Up to 3200*/2933 MHz
Note: Follow BIOS setting and memory QVL list if running 3200 Mhz with 2DPC
LAN
Rear side:
2 x 1GbE LAN ports (1 x Intel® I350-AM2)
1 x 10/100/1000 management LAN
2 x 1GbE LAN ports (1 x Intel® I350-AM2)
1 x 10/100/1000 management LAN
Video
Integrated in Aspeed® AST2500
2D Video Graphic Adapter with PCIe bus interface
1920x1200@60Hz 32bpp
2D Video Graphic Adapter with PCIe bus interface
1920x1200@60Hz 32bpp
Storage
Front side:
20 x 2.5" Gen4 NVMe hot-swappable bays
- (12 x from CPU_0, 8 x from CPU_1)
Rear side:
2 x 2.5" SATA/SAS hot-swappable bays, from CPU_0
SAS card is required for SAS devices support
20 x 2.5" Gen4 NVMe hot-swappable bays
- (12 x from CPU_0, 8 x from CPU_1)
Rear side:
2 x 2.5" SATA/SAS hot-swappable bays, from CPU_0
SAS card is required for SAS devices support
SAS
Depends on SAS Add-on card
RAID
Equipped with GRAID SupremeRAID NVMe/NVMe-oF RAID Card
RAID Card models: SR1010, SR1000
Support RAID 0/1/10/5/6
Maximum 20 physical drives
Support NVMe/SAS/SATA SSD and SAS/SATA HDD
RAID Card models: SR1010, SR1000
Support RAID 0/1/10/5/6
Maximum 20 physical drives
Support NVMe/SAS/SATA SSD and SAS/SATA HDD
Expansion Slots
Riser Card CRS2033:
- 1 x PCIe x16 (Gen4 x16) FHHL slot, from CPU_0, occupied by CNV3134 - 4 x NVMe HBA
- 1 x PCIe x8 (Gen4 x8) FHHL slot, from CPU_0, occupied by CNV3132 - 2 x NVMe HBA
- 1 x PCIe x8 (Gen4 x8) FHHL slot, form CPU_0, occupied by CNV3132 - 2 x NVMe HBA
Riser Card CRS2015:
- 1 x PCIe x16 (Gen4 x16) HHHL slot, from CPU_1, occupied by CNV3134 - 4 x NVMe HBA
Riser Card CRS2026:
- 1 x PCIe x16 (Gen4 x16) FHHL slot, from CPU_1, occupied by GRAID SupremeRAID SR-1000 NVMe/NVMe-oF RAID Card
- 1 x PCIe x16 (Gen4 x16) FHHL slot, from CPU_1
1 x OCP 3.0 slot with PCIe Gen4 x16 bandwidth, from CPU_0
Supports NCSI function, occupied by CNV9134 - 4 x NVMe HBA
1 x OCP 2.0 mezzanine slot with PCIe Gen3 x8 bandwidth (Type1, P1, P2), from CPU_1
Supports NCSI function, occupied by CNVO132 - 2 x NVMe HBA
1 x M.2 slot:
- M-key
- PCIe Gen4 x4, from CPU_0
- Supports 2242/2260/2280/22110 cards
- CPU TDP is limited to 225W if using M.2 device
- 1 x PCIe x16 (Gen4 x16) FHHL slot, from CPU_0, occupied by CNV3134 - 4 x NVMe HBA
- 1 x PCIe x8 (Gen4 x8) FHHL slot, from CPU_0, occupied by CNV3132 - 2 x NVMe HBA
- 1 x PCIe x8 (Gen4 x8) FHHL slot, form CPU_0, occupied by CNV3132 - 2 x NVMe HBA
Riser Card CRS2015:
- 1 x PCIe x16 (Gen4 x16) HHHL slot, from CPU_1, occupied by CNV3134 - 4 x NVMe HBA
Riser Card CRS2026:
- 1 x PCIe x16 (Gen4 x16) FHHL slot, from CPU_1, occupied by GRAID SupremeRAID SR-1000 NVMe/NVMe-oF RAID Card
- 1 x PCIe x16 (Gen4 x16) FHHL slot, from CPU_1
1 x OCP 3.0 slot with PCIe Gen4 x16 bandwidth, from CPU_0
Supports NCSI function, occupied by CNV9134 - 4 x NVMe HBA
1 x OCP 2.0 mezzanine slot with PCIe Gen3 x8 bandwidth (Type1, P1, P2), from CPU_1
Supports NCSI function, occupied by CNVO132 - 2 x NVMe HBA
1 x M.2 slot:
- M-key
- PCIe Gen4 x4, from CPU_0
- Supports 2242/2260/2280/22110 cards
- CPU TDP is limited to 225W if using M.2 device
Internal I/O
1 x M.2 slot
1 x USB 3.0 header
1 x COM header
1 x TPM header
1 x Front panel header
1 x HDD backplane board header
1 x PMBus connector
1 x IPMB connector
1 x Clear CMOS jumper
1 x BIOS recovery jumper
1 x USB 3.0 header
1 x COM header
1 x TPM header
1 x Front panel header
1 x HDD backplane board header
1 x PMBus connector
1 x IPMB connector
1 x Clear CMOS jumper
1 x BIOS recovery jumper
Front I/O
2 x USB 3.0
1 x Power button with LED
1 x ID button with LED
1 x Reset button
1 x NMI button
1 x System status LED
1 x HDD activity LED
2 x LAN activity LEDs
1 x Power button with LED
1 x ID button with LED
1 x Reset button
1 x NMI button
1 x System status LED
1 x HDD activity LED
2 x LAN activity LEDs

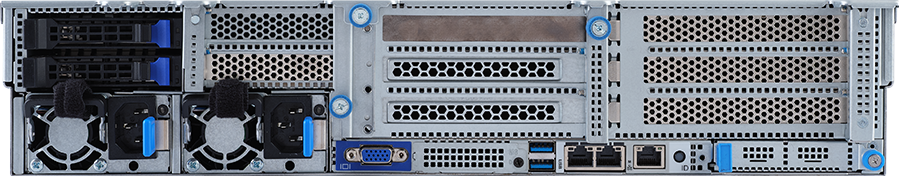

Rear I/O
2 x USB 3.0
1 x VGA
2 x RJ45
1 x MLAN
1 x ID button with LED
1 x VGA
2 x RJ45
1 x MLAN
1 x ID button with LED
Backplane Board
Speed and bandwidth:
Front side - CBP20O8: PCIe Gen4 x4
Rear side - CBP2022: SATA 6Gb/s or SAS 12Gb/s
Front side - CBP20O8: PCIe Gen4 x4
Rear side - CBP2022: SATA 6Gb/s or SAS 12Gb/s
TPM
1 x TPM header with SPI interface
Optional TPM2.0 kit: CTM010
Optional TPM2.0 kit: CTM010
Power Supply
2 x 1600W 80 PLUS Platinum redundant power supplies
AC Input:
- 100-120V~/ 12A, 50-60Hz
- 200-240V~/ 10.0A, 50-60Hz
DC Input:
- 240Vdc/ 10A
DC Output:
- Max 1000W/ 100-120V~ + 12V/ 81.5A + 12Vsb/ 2.5A - Max 1600W/ 200-240V~ or 240Vdc Input + 12V/ 133A + 12Vsb/ 2.5A
AC Input:
- 100-120V~/ 12A, 50-60Hz
- 200-240V~/ 10.0A, 50-60Hz
DC Input:
- 240Vdc/ 10A
DC Output:
- Max 1000W/ 100-120V~ + 12V/ 81.5A + 12Vsb/ 2.5A - Max 1600W/ 200-240V~ or 240Vdc Input + 12V/ 133A + 12Vsb/ 2.5A
System Management
Aspeed® AST2500 management controller
GIGABYTE Management Console (AMI MegaRAC SP-X) web interface
GIGABYTE Management Console (AMI MegaRAC SP-X) web interface
- Dashboard
- HTML5 KVM
- Sensor Monitor (Voltage, RPM, Temperature, CPU Status …etc.)
- Sensor Reading History Data
- FRU Information
- SEL Log in Linear Storage / Circular Storage Policy
- Hardware Inventory
- Fan Profile
- System Firewall
- Power Consumption
- Power Control
- LDAP / AD / RADIUS Support
- Backup & Restore Configuration
- Remote BIOS/BMC/CPLD Update
- Event Log Filter
- User Management
- Media Redirection Settings
- PAM Order Settings
- SSL Settings
- SMTP Settings
OS Compatibility
Windows Server 2019
Red Hat Enterprise Linux 8.3, 8.4, 8.5 (x64)
CentOSLinux 8.3, 8.4, 8.5 (x64)
SUSE Linux Enterprise Server 15 SP2, SP3 (x64)
openSUSE Leap Server 15.2, 15.3 (x64)
Ubuntu 20.04 LTS (x64)
Red Hat Enterprise Linux 8.3, 8.4, 8.5 (x64)
CentOSLinux 8.3, 8.4, 8.5 (x64)
SUSE Linux Enterprise Server 15 SP2, SP3 (x64)
openSUSE Leap Server 15.2, 15.3 (x64)
Ubuntu 20.04 LTS (x64)
System Fans
4 x 80x80x38mm (16,300rpm)
Operating Properties
Operating temperature: 10°C to 35°C
Operating humidity: 8%-80% (non-condensing)
Non-operating temperature: -40°C to 60°C
Non-operating humidity: 20%-95% (non-condensing)
Packaging Dimensions
982 x 588 x 268 mm
Packaging Content
1 x R282-Z9G
2 x CPU heatsinks
1 x Rail kit
2 x CPU heatsinks
1 x Rail kit
Part Numbers
- Barebone with SR-1000 package: 6NR282Z9GMR-00-A*
- Barebone with SR-1010 package: 6NR282Z9GMR-00-B*
- Motherboard: 9MZ92FS1NR-00
- Rail kit: 25HB2-3A0202-K0R
- CPU heatsink: 25ST1-44320G-A0R
- Front panel board - CFP2001: 9CFP2001NR-00
- Backplane board - CBP20O8: 9CBP20O8NR-00
- Backplane board - CBP2022: 9CBP2022NR-00
- Fan module: 25ST2-883829-D0R
- Power supply: 25EP0-216008-L0S
- Barebone with SR-1010 package: 6NR282Z9GMR-00-B*
- Motherboard: 9MZ92FS1NR-00
- Rail kit: 25HB2-3A0202-K0R
- CPU heatsink: 25ST1-44320G-A0R
- Front panel board - CFP2001: 9CFP2001NR-00
- Backplane board - CBP20O8: 9CBP20O8NR-00
- Backplane board - CBP2022: 9CBP2022NR-00
- Fan module: 25ST2-883829-D0R
- Power supply: 25EP0-216008-L0S
* Todos os materiais disponíveis são para simples referência. A GIGABYTE reserva o direito de modificar ou revisar o conteúdo a qualquer momento sem aviso prévio.
* Todas as marcas e logotipos são de propriedade de suas respectivas proprietárias.
* Devido a arquitetura padrão PC, uma quantia de memória é reservada para uso do sistema, portanto o tamanho da memória é menor do que a quantia exibida
* Todas as marcas e logotipos são de propriedade de suas respectivas proprietárias.
* Devido a arquitetura padrão PC, uma quantia de memória é reservada para uso do sistema, portanto o tamanho da memória é menor do que a quantia exibida
SUPPORT
Driver
BIOS
Utilidade
Firmware
QVL
- All
- All
- Windows Server 2019
- Windows Server 2016 64bit
- Linux
Chipset
Chipset
Versão
Tamanho
Data
AMD Chipset Driver
For AMD EPYC 7002/ 7003
For AMD EPYC 7002/ 7003
Version : 2.10.09.156
17.22 MB
Mar 05, 2021
Sistema Operacional: Windows Server 2016 64bit,Windows Server 2019
LAN
LAN
Versão
Tamanho
Data
Intel® LAN Driver and Utility
Version : 24.0
542.58 MB
Aug 06, 2019
Sistema Operacional: Windows Server 2016 64bit,Windows Server 2019
RAID
RAID
Versão
Tamanho
Data
SupremeRAID SR-1000 Driver
Version : 470.63.01
258.91 MB
Nov 09, 2021
Sistema Operacional: Linux
VGA
VGA
Versão
Tamanho
Data
ASPEED Graphic Driver
Version : 1.06
1.78 MB
Aug 06, 2019
Sistema Operacional: Windows Server 2016 64bit,Windows Server 2019
BIOS
Descrição
Versão
Tamanho
Data
1) Updated to AGESA RomePI 1.0.0.J.
2) Updated to AGESA MilanPI 1.0.0.D.
3) Included multiple security updates.
2) Updated to AGESA MilanPI 1.0.0.D.
3) Included multiple security updates.
Version : M21_R36
35.36 MB
Nov 04, 2024
1) Fixed PKfail Vulnerability.
2) Optimized BcpPro tool compatibility.
2) Optimized BcpPro tool compatibility.
Version : M20_R35
35.36 MB
Aug 26, 2024
Windows and UEFI mode flash BIOS SOP
Please download BIOS update tool from AMI Website
Please download BIOS update tool from AMI Website
-
0.31 MB
Jan 29, 2021
Aviso:
Por haver pontencial de risco na atualização do BIOS, se não houver problemas com a BIOS atual, é recomendado não atualizá-la. Para atualizar, execute com cuidado. Atualização incorreta da BIOS pode tornar o sistema inoperante.
O que é BETA?
BETA descreve uma nova versão que é estável, mas pode não incluir todos recursos do produto final. Durante esta fase executamos testes dos novos recursos e recolhemos informações de usuários para certificarmos que nossos produtos forneçam o melhor desempenho possível.
Por haver pontencial de risco na atualização do BIOS, se não houver problemas com a BIOS atual, é recomendado não atualizá-la. Para atualizar, execute com cuidado. Atualização incorreta da BIOS pode tornar o sistema inoperante.
O que é BETA?
BETA descreve uma nova versão que é estável, mas pode não incluir todos recursos do produto final. Durante esta fase executamos testes dos novos recursos e recolhemos informações de usuários para certificarmos que nossos produtos forneçam o melhor desempenho possível.
- All
- All
- Windows Server 2022
- Windows Server 2019
- Windows Server 2016 R2 64bit
- Windows Server 2016 64bit
- Windows Server 2012 R2 64bit
- Windows Server 2012 64bit
- Windows 10 64bit
- VMware
- Ubuntu
- Linux CentOS
- Linux
Utilidade
Descrição
Versão
Tamanho
Data
GSM CLI
Version : 2.1.78
147.79 MB
Dec 12, 2024
Sistema Operacional: Windows Server 2012 64bit,Windows Server 2012 R2 64bit,Linux CentOS,Windows 10 64bit,Ubuntu,Windows Server 2016 R2 64bit,Windows Server 2019,Windows Server 2022
GSM Server
Version : 2.12
926.33 MB
Jan 18, 2023
Sistema Operacional: Linux,Windows Server 2016 64bit,Windows Server 2019
GSM Agent
Version : 2.5
720.29 MB
Dec 27, 2021
Sistema Operacional: Linux,Windows Server 2016 64bit,Windows Server 2019
GRAID SupremeRAID System Setup Helper
Version : 1.0.0-31
258.9 MB
Nov 15, 2021
Sistema Operacional: Linux
SupremeRAID SR-1000 Utility - RedHat/CentOS 8.3/8.4
Version : 1.0.6-126
9.67 MB
Nov 09, 2021
Sistema Operacional: Linux
SupremeRAID SR-1000 Utility - Ubuntu 20.04
Version : 1.0.6-126
16.25 MB
Nov 09, 2021
Sistema Operacional: Linux
SupremeRAID SR-1000 Utility - SLES15 SP2/SP3 & openSUSE Leap 15.2/15.3
Version : 1.0.6-126
13.44 MB
Nov 09, 2021
Sistema Operacional: Linux
BMC Restore Default Setting utility
Version : 1.0
0.15 MB
Mar 17, 2020
Sistema Operacional: Ubuntu
Firmware
Descrição
Versão
Tamanho
Data
BMC Firmware with embedded GIGABYTE Management Console
(AST2500 AMI)
(AST2500 AMI)
Version : 12.61.21
105.38 MB
Apr 11, 2024
Inglês
Manual
Descrição
Versão
Tamanho
Data
Descrição
Versão
Tamanho
Data
RESOURCES
Success Case
Articles
News
Others
Back to R282-Z9G
