CRA4961

Rev. 1.x

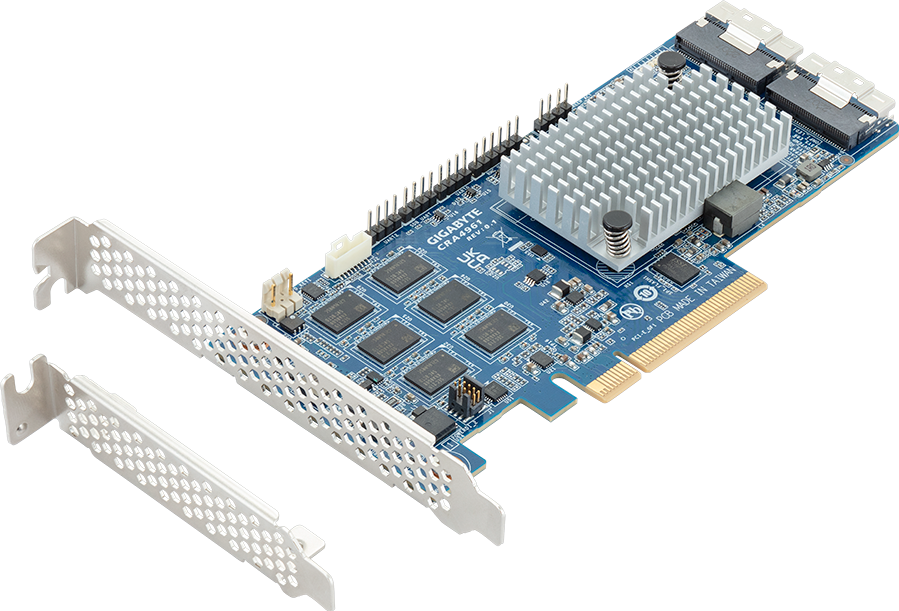

Broadcom^® SAS3916 16-port 12Gb/s PCIe 4.0 x8 RAID Card

Broadcom^® SAS3916 controller
2 x Slimline SAS 8i connectors
Supports up to 16 x SAS 12Gb/s or SATA 6Gb/s physical devices
Supports up to 4 x PCIe x4 NVMe physical devices
Max. 240 x SAS/SATA physical devices with SAS expander
Hardware RAID 0/1/5/6/10/50/60
8GB DDR4 cache memory
(Optional) CacheVault Flash Cache Protection Module
PCIe x8 (Gen4 x8 bus)
Card dimensions: 68.9 x 167 mm

Get a Quote

SPECIFICATIONS

Ports

2 x Slimline SAS 8i connectors

Supports up to 16 x SAS 12Gb/s or SATA 6Gb/s physical devices
Supports up to 4 x PCIe x4 NVMe physical devices
Max. 240 x SAS/SATA physical devices with SAS expander

NOTE: Please select enterprise SATA devices

Controller

Broadcom^® SAS3916

RAID

Hardware RAID 0/1/5/6/10/50/60
8GB 2666 MHz DDR4 cache memory
Compatible with Broadcom® CacheVault Flash Cache Protection Module PN: 25FC2-500390-B3R

Interface

PCIe x8 (Gen4 x8 bus)

Dimension

68.9 x 167 mm

Format

Low-profile card
Available with full-height or low-profile brackets

Includes

1 x Full-height bracket
1 x Low-profile bracket

Remark

California Proposition 65:
WARNING: This product contains a chemical, including lead,
know to the state of California to cause birth defects or other reproductive harm.
http://www.p65warnings.ca.gov/

Ordering Information

9CRA4961MR-00-1*
- Individual packaging, 6 PCS per carton
- Packaging dimensions: 305 x 251 x 270 mm

9CRA4961NR-00-1*
- Bulk packaging, 10 PCS per carton
- Packaging dimensions: 305 x 251 x 270 mm

NOTE: This card is only compatible with GIGABYTE servers
