Form Factor (WxD, mm)
microATX
244 x 244
CPU
AMD EPYC™ 4004 Series Processors
AMD Ryzen™ 9000 Series Processors
AMD Ryzen™ 7000 Series Processors
Single processor, TDP up to 170W
[Note] Recommend to install 170W CPU with a liquid cooling kit.
[Note] When installing liquid cooling kits for CPU or GPU, please keep proper airflow for ventilation to prevent heat accumulation.
Memory
4 x DIMM slots
DDR5 memory supported
Dual channel memory per processor
AMD Ryzen™ 9000:
UDIMM: Up to 5600 MT/s (1DPC), 3600 MT/s (2DPC)
AMD EPYC™ 4004 / Ryzen™ 7000:
UDIMM: Up to 5200 MT/s (1DPC), 3600 MT/s (2DPC)
LAN
2 x 1Gb/s LAN (2 x Intel® I210-AT)
- Support NCSI function
1 x 10/100/1000 Mbps Management LAN
Video
Integrated in ASPEED® AST2600
- 1 x VGA port
Storage Interface
MCIO:
1 x MCIO 8i for 2 x Gen5 NVMe, from CPU, shared with Slot_3
SATA 7-pin:
4 x SATA, from FCH
M.2:
1 x M.2 (2242/2280), PCIe Gen5 x4, from CPU
PCIe Expansion Slots
Slot_3: PCIe x16 (Gen5 x16), from CPU, shared with MCIO
Slot_1: PCIe x4 (Gen4 x4), from FCH
1 x MCIO 8i (PCIe Gen5 x8) [1]
[1] Please contact our sales representatives for qualified cables to ensure Gen5 signal quality.
Internal I/O
1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x CPU fan header
5 x System fan headers
1 x USB 3.2 Gen1 x2 header
1 x USB 2.0 x2 header
1 x M.2 slot
1 x MCIO 8i connector
4 x SATA connectors
1 x Front panel header
1 x Backplane board header
1 x PMBUS connector
1 x IPMB connector
1 x TPM header
Rear I/O
2 x USB 3.2 Gen1 ports (Type-A)
1 x VGA port
1 x COM port
2 x RJ45 ports
1 x MLAN port
1 x ID button with LED
Security Modules
1 x TPM header with SPI interface
-
Optional TPM2.0 kit:
CTM010
OS Supported
EPYC 4004 Series:
Ubuntu 22.04
Ubuntu 24.04
Windows Server 2022
Ryzen 9000/7000 Series:
Windows 10 21H2
Windows 11
Board Management
ASPEED
® AST2600 Baseboard Management Controller
GIGABYTE Management Console web interface
- Dashboard
- HTML5 KVM
- Sensor Monitor (Voltage, RPM, Temperature, CPU Status …etc.)
- Sensor Reading History Data
- FRU Information
- SEL Log in Linear Storage / Circular Storage Policy
- Hardware Inventory
- Fan Profile
- System Firewall
- Power Consumption
- Power Control
- Advanced power capping
- LDAP / AD / RADIUS Support
- Backup & Restore Configuration
- Remote BIOS/BMC/CPLD Update
- Event Log Filter
- User Management
- Media Redirection Settings
- PAM Order Settings
- SSL Settings
- SMTP Settings
PSU Connectors
1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
Operating Properties
Operating temperature: 10°C to 40°C
Operating humidity: 8%-80% (non-condensing)
Non-operating temperature: -40°C to 60°C
Non-operating humidity: 20%-95% (non-condensing)
Retail Packaging Content

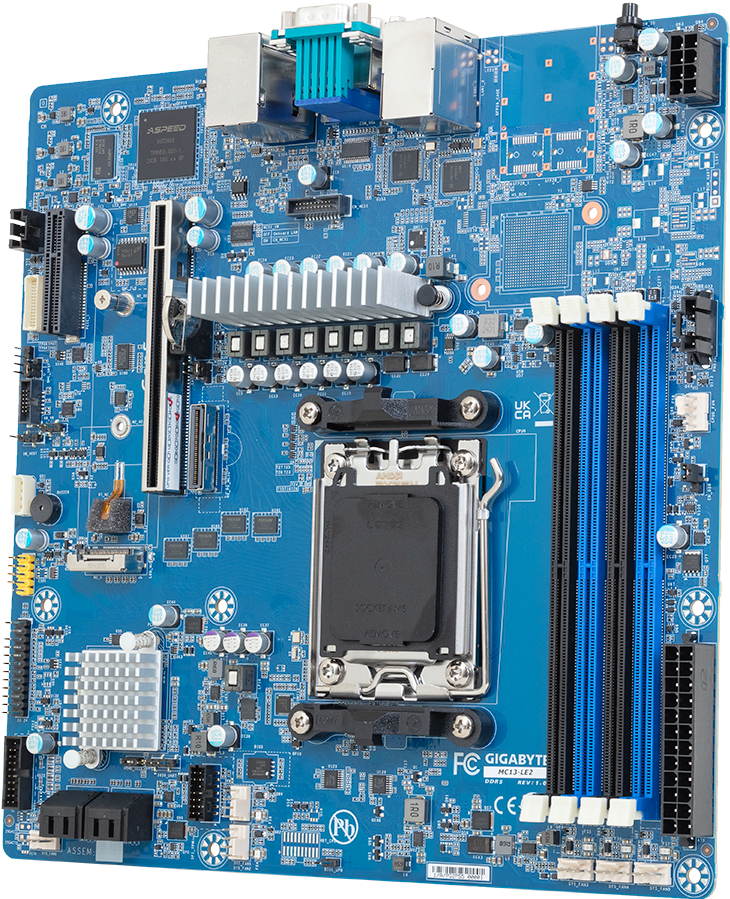

1 x MC13-LE2
1 x I/O shield
1 x Quick start guide
4 x SATA 6Gb/s cables (500mm)
Single Box dimensions: 321 x 308.5 x 78.5 mm
Carton dimensions: 630 x 420 x 345 mm
Quantity: 10 x single boxes in one carton
Bulk Packaging Content
20 x MC13-LE2
20 x I/O shields
Carton dimensions: 609 x 581 x 362 mm
Reference Numbers
Retail: 9MC13LE2MR-000-1*
Bulk: 9MC13LE2NR-000-1*
Part Numbers:
- I/O shield: 12AIO-MC13LE-20R
- SATA cable (500mm)(2 in 1 package): 12CF1-2SAT1B-01R
