G294-S45-AAP2

To be released

HPC/AI Server - Intel^® Xeon^® 6 Processors - 2U DP 8 x PCIe Gen5 GPUs

# AI # AI Training # AI Inference # Visual Computing # HPC

Supports up to 8 x Dual slot Gen5 GPUs
Supports NVIDIA H200 NVL
Dual Intel^® Xeon^® 6 Processors, LGA 4710
8-Channel DDR5 RDIMM / MRDIMM, 16 x DIMMs
Dual ROM Architecture
2 x 10Gb/s LAN ports via Intel^® X710-AT2
8 x 2.5" SATA/SAS-4 hot-swap bays
8 x FHFL PCIe Gen5 x16 slots for GPUs
2 x LP PCIe Gen5 x16 slots
Dual 3000W 80 PLUS Titanium redundant power supply

Get a Quote

Vergleichsliste

Get a Quote

* Das vorliegende Material dient nur zur Referenz. GIGABYTE behalt sich das Recht vor, ohne Vorwarnung Inhalte zu verandern oder zu entfernen.
* Die beworbene Leistung basiert auf den maximal theoretischen Werten der Chipsatzhersteller oder von Organisationen, die die Interface-Spezifikationen erstellt haben. Die aktuelle Performance kann je nach Systemkonfiguration variieren.
* Alle Trademarks und Logos sind Eigentum der Markeninhaber.
* Aufgrund der Standard-PC-Architektur ist ein Teil des Speichers fur die Nutzung des Systems reserviert und daher kann die aktuelle Speichergrose von der Speicherangabe abweichen.

SPECIFICATIONS

Dimensions (WxHxD, mm)

2U
448 x 87.5 x 850

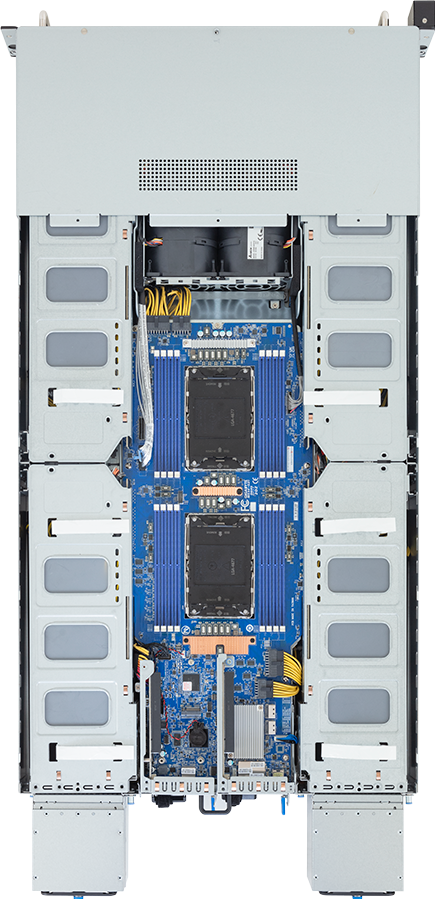

Motherboard

MS44-G21

CPU

Intel^® Xeon^® 6 Processors
- Intel^® Xeon^® 6700E-Series Processors
- Intel^® Xeon^® 6700P-Series Processors (available Q1'25)
- Intel^® Xeon^® 6500P-Series Processors (available Q1'25)

Dual processor, TDP up to 225W (TBD)

^[Note]If only 1 CPU is installed, some PCIe or memory functions might be unavailable.

Socket

2 x LGA 4710
Socket E2

Chipset

System on Chip

Memory

16 x DIMM slots
DDR5 memory supported
8-Channel memory architecture
MRDIMM supported^[1]
RDIMM: Up to 6400 MT/s
MRDIMM: Up to 8000 MT/s

^[1]MRDIMMs are only supported with Intel^® Xeon^® 6 Processors with P-cores.

LAN

Rear:
2 x 10Gb/s LAN (1 x Intel^® X710-AT2)
- Support NCSI function

1 x 10/100/1000 Mbps Management LAN

Video

Integrated in Aspeed^® AST2600
- 1 x VGA port

Storage

Front hot-swap:
4 x 2.5" Gen5 NVMe/SATA/SAS-4^[1]
4 x 2.5" SATA/SAS-4^[1]
- (SATA from CPU_0)

^[1]SAS card is required to support SAS drives.

^[Note]NVMe support requires additional NVMe cables and occupies PCIe slots. Please refer to optional parts for qualified NVMe cables.

SAS

Require SAS add-in cards

RAID

Require RAID add-in cards
Onboard VROC key headers

PCIe Expansion Slots

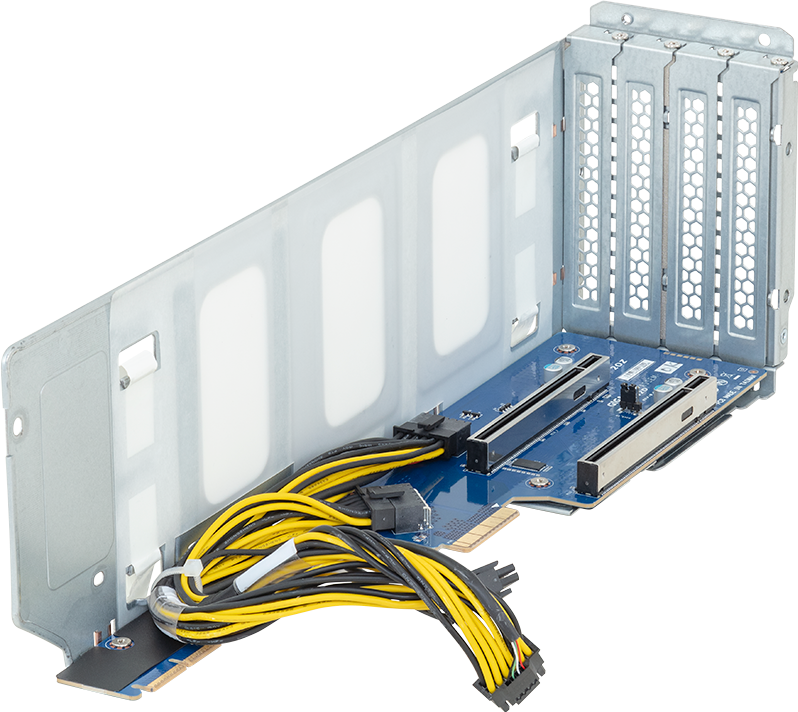

Riser Card CRCG02C x 2:
- 2 x FHFL x16 (Gen5 x16), from CPU_0, for GPUs
- 2 x FHFL x16 (Gen5 x16), from CPU_1, for GPUs

Riser Card CRCG02D x 2:
- 2 x FHFL x16 (Gen5 x16), from CPU_0, for GPUs
- 2 x FHFL x16 (Gen5 x16), from CPU_1, for GPUs

Riser Card CRSG01F x 2:
- 1 x LP x16 (Gen5 x16), from CPU_0
- 1 x LP x16 (Gen5 x16), from CPU_1

^[Note]The system supports 4 x NVIDIA H200 NVL GPUs at 25°C ambient, arranged as two sets of 2 GPUs with a 2-way NVLink bridge. Please contact our sales representatives for more details.

^[Note]Maximum GPU dimensions (LxWxH): 285 x 111.5 x 39.5mm.

^[Note]The system is only validated with a uniform GPU model.

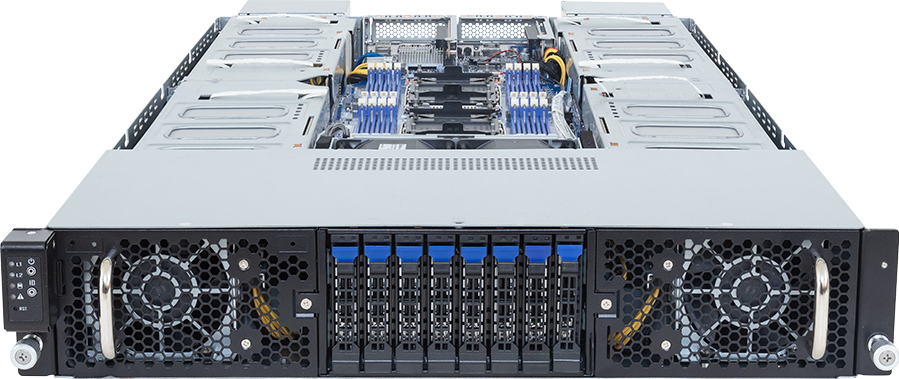

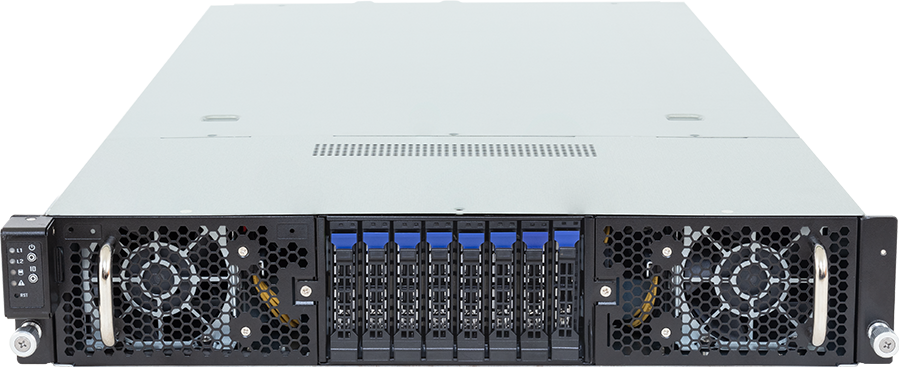

Front I/O

1 x Power button with LED
1 x ID button with LED
1 x Reset button
2 x LAN activity LEDs
1 x Storage activity LED
1 x System status LED

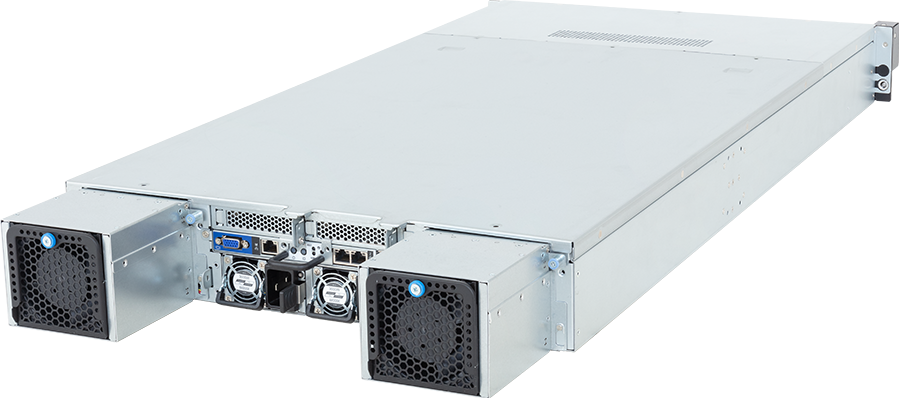

Rear I/O

2 x USB 3.2 Gen1 ports (Type-A)
1 x VGA port
2 x RJ45 ports
1 x MLAN port
1 x Power button with LED
1 x ID button with LED
1 x NMI button
1 x Reset button
1 x System status LED

Backplane Board

Speed and bandwidth:
PCIe Gen5 x4 or SATA 6Gb/s or SAS-4 24Gb/s

Security Modules

1 x TPM header with SPI interface
- Optional TPM2.0 kit: CTM012

1 x PRoT connector (only enabled on RoT SKU)

Power Supply

Dual 3000W 80 PLUS Titanium redundant power supply^[1]

^[1]The system power supply requires C19 power cord.

System Management

Aspeed^® AST2600 Baseboard Management Controller
GIGABYTE Management Console web interface

Dashboard
HTML5 KVM
Sensor Monitor (Voltage, RPM, Temperature, CPU Status …etc.)
Sensor Reading History Data
FRU Information
SEL Log in Linear Storage / Circular Storage Policy
Hardware Inventory
Fan Profile
System Firewall
Power Consumption
Power Control
Advanced power capping
LDAP / AD / RADIUS Support
Backup & Restore Configuration
Remote BIOS/BMC/CPLD Update
Event Log Filter
User Management
Media Redirection Settings
PAM Order Settings
SSL Settings
SMTP Settings

OS Compatibility

Please refer to OS compatibility table in support page

System Fans

8 x 80x80x80mm (16,500rpm)

Operating Properties

Operating temperature: 10°C to 35°C
Operating humidity: 8%-80% (non-condensing)
Non-operating temperature: -40°C to 60°C
Non-operating humidity: 20%-95% (non-condensing)

Packaging Dimensions

1133 x 724 x 261 mm

Packaging Content

1 x G294-S45-AAP2
2 x CPU heatsinks
4 x GPU power cables (12VHPWR, 250mm)
4 x GPU power cables (12VHPWR, 280mm)
4 x Carriers
1 x L-shape Rail kit

Part Numbers

- Barebone package: 6NG294S45DR000AAP2*
- Motherboard: 9MS44G21UR-000*
- L-shape Rail kit: 25HB2-A86102-K0R

Optional parts:

- C19 power cord 125V/15A (US): 25CP1-018000-Q0R
- C19 power cord 250V/16A (EU): 25CP3-01830H-Q0R
- C19 power cord 125V/15A (JP): 25CPA-01830B-Q0R
- NVMe cable (MCIO 8i to 2 x MCIO 4i): 25CF9-350705-A4R (TBD)
- NVMe cable (MCIO 4i to MCIO 4i): 25CF9-700050-A4R (TBD)
