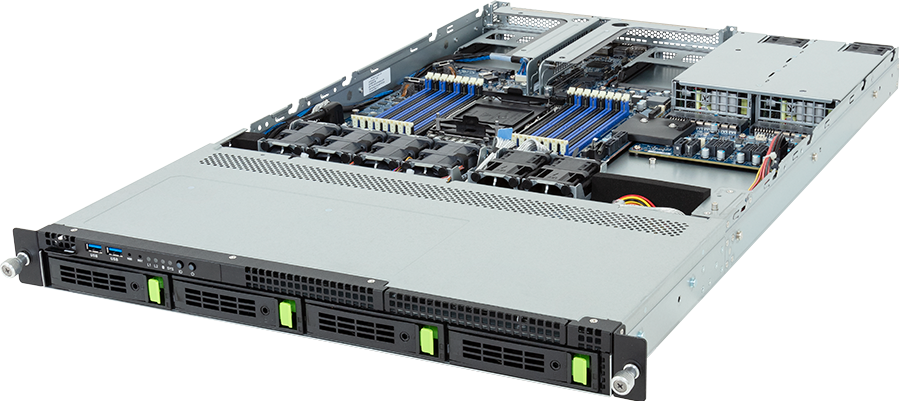

R164-S30-AAG1

1U
438 x 43.5 x 710

MS34-DC0

Intel^® Xeon^® 6 Processors
- Intel^® Xeon^® 6700-Series Processors
- Intel^® Xeon^® 6500-Series Processors

Single processor, TDP up to 350W

1 x LGA 4710
Socket E2

System on Chip

16 x DIMM slots
DDR5 memory supported
8-Channel memory per processor
MRDIMM supported ^[1]
RDIMM: Up to 6400 MT/s (1DPC), 5200 MT/s (2DPC)
MRDIMM: Up to 8000 MT/s

^[1] MRDIMMs are only supported with Intel^® Xeon^® 6 Processors with P-cores and in a 1DPC configuration.

Rear:
1 x 1Gb/s LAN (1 x Intel^® I210-AT)
- Supports NCSI function

1 x 10/100/1000 Mbps Management LAN

Integrated in ASPEED^® AST2600
- 1 x Mini-DP

Front hot-swap:
4 x 3.5"/2.5" Gen5 NVMe/SATA/SAS-4 ^[1]

Internal M.2:
1 x M.2 (2280/22110), PCIe Gen5 x2
1 x M.2 (2280/22110), PCIe Gen5 x2, shared with SATA <sup>[2]

[1]</sup> SAS card is required to support SAS drives.

^[2] To enable the M.2 slot, please adjust the switch according to the manual.

Require SAS add-in cards

Require RAID add-in cards
Onboard VROC key header

Riser Card CRS101O:
- 1 x FHHL x16 (Gen5 x16)

Riser Card CRS101P:
- 1 x FHHL x16 (Gen5 x16)

2 x OCP NIC 3.0 (Gen5 x16)
- Support NCSI function

2 x USB 3.2 Gen1 ports (Type-A)
1 x Power button with LED
1 x ID button with LED
1 x NMI button
1 x Reset button
2 x LAN activity LEDs (1 x LED disabled)
1 x Storage activity LED
1 x System status LED

2 x USB 3.2 Gen1 ports (Type-A)
1 x Mini-DP
1 x RJ45 port
1 x MLAN port
1 x ID button with LED

Speed and bandwidth:
PCIe Gen5 x4 or SATA 6Gb/s or SAS-4 24Gb/s

1 x TPM header with SPI interface
- Optional TPM2.0 kit: CTM012

1 x PRoT connector (only enabled on RoT SKU)

Dual 800W 80 PLUS Titanium redundant power supply

AC Input:
- 100-127V ~/ 10A, 50-60Hz
- 200-240V~/ 5A, 50-60Hz

DC Input: (Only for China)
- 240Vdc/ 5A

DC Output:
- Max 800W
+12.2V/ 65A
+12.2Vsb/ 3A

^[Note] GIGABYTE offers PSUs with various efficiency ratings and power outputs. Full redundancy may depend on your server configuration, and alternative PSU options may be needed. Please contact our sales representatives for the best power solution.

ASPEED^® AST2600 Baseboard Management Controller
GIGABYTE Management Console web interface

• Dashboard
• HTML5 KVM
• Sensor Monitor (Voltage, RPM, Temperature, CPU Status …etc.)
• Sensor Reading History Data
• FRU Information
• SEL Log in Linear Storage / Circular Storage Policy
• Hardware Inventory
• Fan Profile
• System Firewall
• Power Consumption
• Power Control
• Advanced power capping
• LDAP / AD / RADIUS Support
• Backup & Restore Configuration
• Remote BIOS/BMC/CPLD Update
• Event Log Filter
• User Management
• Media Redirection Settings
• PAM Order Settings
• SSL Settings
• SMTP Settings

Please refer to OS compatibility table in support page

2 x 40x40x28mm (25,000rpm)
4 x 40x40x56mm (32,000rpm)

Operating temperature: 10°C to 35°C
Operating humidity: 8%-80% (non-condensing)
Non-operating temperature: -40°C to 60°C
Non-operating humidity: 20%-95% (non-condensing)

977 x 588 x 236 mm

1 x R164-S30-AAG1
1 x CPU heatsink
1 x Mini-DP to D-Sub cable
2 x Carriers
1 x 2-Section Rail kit

- Barebone package: 6NR164S30DR000AAG1*
- Motherboard: 9MS34DC0UR-000*
- 2-Section Rail kit (CMA not supported): 25HB2-3A0203-K0R
- CPU heatsink: 25ST1-4Z3200-S7R
- M.2 heatsink: 12SP2-11000E-00R
- Front panel board - CFP1010: 9CFP1010NR-00*
- Backplane board - CBP1048: 9CBP1048NR-00*
- Fan module 40x40x28mm: 25ST2-442828-D0R
- Fan module 40x40x56mm: 25ST2-40562H-A0R
- Riser card - CRS101O: 9CRS101ONR-00*
- Riser card - CRS101P: 9CRS101PNR-00*
- Mini-DP to D-Sub cable: 25CRN-200801-K1R
- Power supply: 25EP0-20800A-G1S

Optional parts:

- 3-Section Rail kit (Supports CMA): 25HB2-A56120-K0R
- Cable Management Arm: 25HBZ-R18100-K0R
