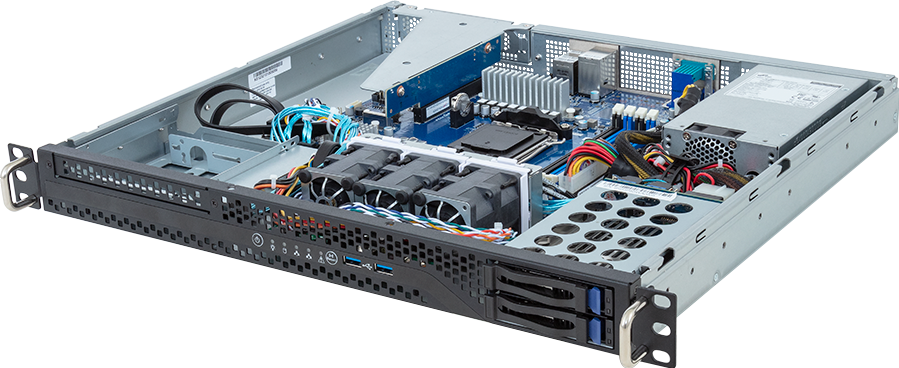

R113-C10- AA02
Rack Server - AMD EPYC™ 4004 / Ryzen™ 9000 / Ryzen™ 7000 - 1U UP 4-Bay SATA 400W
- Single AMD EPYC™ 4004 / Ryzen™ 9000 / Ryzen™ 7000 Series Processors
- Dual Channel DDR5 ECC/Non-ECC UDIMM, 4 x DIMMs
- 2 x 1Gb/s LAN ports via Intel® I210-AT
- 2 x 2.5" SATA hot-swap bays
- 2 x 2.5" SATA internal bays
- 1 x M.2 slot with PCIe Gen5 x4 interface
- 1 x FHHL PCIe Gen5 x16 slot
- Single 400W 80 PLUS Gold power supply
* Todos los materiales aquí provistos son sólo para referencia. GIGABYTE se reserva el derecho de modificar o revisar el contenido a cualquier hora sin aviso alguno.
* Todas las marcas y logos son propiedad de sus propios dueños.
* Debido a la arquitectura estándar de la PC, cierta cantidad de memoria es reservada para uso del sistema y actualmente la memoria disponible es menor a la mencionada.
* Todas las marcas y logos son propiedad de sus propios dueños.
* Debido a la arquitectura estándar de la PC, cierta cantidad de memoria es reservada para uso del sistema y actualmente la memoria disponible es menor a la mencionada.
SPECIFICATIONS
Dimensions (WxHxD, mm)
1U
430 x 43.5 x 393.2
430 x 43.5 x 393.2
Motherboard
CPU
AMD EPYC™ 4004 Series Processors
AMD Ryzen™ 9000 Series Processors
AMD Ryzen™ 7000 Series Processors
Single processor, TDP up to 105W
[Note] Overclocking is not supported due to thermal limitations.
AMD Ryzen™ 9000 Series Processors
AMD Ryzen™ 7000 Series Processors
Single processor, TDP up to 105W
[Note] Overclocking is not supported due to thermal limitations.
Socket
1 x AM5
Chipset
AMD B650E
Memory
4 x DIMM slots
DDR5 memory supported
Dual Channel memory architecture
AMD Ryzen™ 9000:
UDIMM: Up to 5600 MT/s (1DPC), 3600 MT/s (2DPC)
AMD EPYC™ 4004 / Ryzen™ 7000:
UDIMM: Up to 5200 MT/s (1DPC), 3600 MT/s (2DPC)
DDR5 memory supported
Dual Channel memory architecture
AMD Ryzen™ 9000:
UDIMM: Up to 5600 MT/s (1DPC), 3600 MT/s (2DPC)
AMD EPYC™ 4004 / Ryzen™ 7000:
UDIMM: Up to 5200 MT/s (1DPC), 3600 MT/s (2DPC)
LAN
Rear:
2 x 1Gb/s LAN (2 x Intel® I210-AT)
- Support NCSI function
1 x 10/100/1000 Mbps Management LAN
2 x 1Gb/s LAN (2 x Intel® I210-AT)
- Support NCSI function
1 x 10/100/1000 Mbps Management LAN
Video
Integrated in Aspeed® AST2600
- 1 x VGA port
- 1 x VGA port
Storage
Front hot-swap:
2 x 2.5" SATA [1]
Internal:
2 x 2.5" SATA [1]
Internal M.2:
1 x M.2 (2242/2280), PCIe Gen5 x4, from CPU
[1] SATA supported only.
2 x 2.5" SATA [1]
Internal:
2 x 2.5" SATA [1]
Internal M.2:
1 x M.2 (2242/2280), PCIe Gen5 x4, from CPU
[1] SATA supported only.
SAS
N/A
RAID
RAID 0/1/10
PCIe Expansion Slots
Riser Card CRS101R:
- 1 x FHHL x16 (Gen5 x16), from CPU
- 1 x FHHL x16 (Gen5 x16), from CPU
Front I/O
2 x USB 3.2 Gen1 ports (Type-A)
1 x Power button
1 x Reset button
1 x Power LED
2 x LAN activity LEDs
1 x Storage activity LED
1 x System status LED
1 x Power button
1 x Reset button
1 x Power LED
2 x LAN activity LEDs
1 x Storage activity LED
1 x System status LED
Rear I/O
2 x USB 3.2 Gen1 ports (Type-A)
1 x VGA port
1 x COM port
2 x RJ45 ports
1 x MLAN port
1 x ID button with LED
1 x VGA port
1 x COM port
2 x RJ45 ports
1 x MLAN port
1 x ID button with LED
Backplane Board
N/A
Security Modules
1 x TPM header with SPI interface
- Optional TPM2.0 kit: CTM010
- Optional TPM2.0 kit: CTM010
Power Supply
Single 400W 80 PLUS Gold power supply
AC Input:
- 100-240V~/ 6-3A, 60-50Hz
DC Output:
- Max 400W/ 100-240V~
+12V/ 33A
+5V/ 16A
+3.3V/ 14A
+5Vsb/ 3A
AC Input:
- 100-240V~/ 6-3A, 60-50Hz
DC Output:
- Max 400W/ 100-240V~
+12V/ 33A
+5V/ 16A
+3.3V/ 14A
+5Vsb/ 3A
System Management
Aspeed® AST2600 Baseboard Management Controller
GIGABYTE Management Console web interface
GIGABYTE Management Console web interface
- Dashboard
- HTML5 KVM
- Sensor Monitor (Voltage, RPM, Temperature, CPU Status …etc.)
- Sensor Reading History Data
- FRU Information
- SEL Log in Linear Storage / Circular Storage Policy
- Hardware Inventory
- Fan Profile
- System Firewall
- Power Consumption
- Power Control
- Advanced power capping
- LDAP / AD / RADIUS Support
- Backup & Restore Configuration
- Remote BIOS/BMC/CPLD Update
- Event Log Filter
- User Management
- Media Redirection Settings
- PAM Order Settings
- SSL Settings
- SMTP Settings
OS Compatibility
EPYC 4004 Series:
Ubuntu 22.04
Ubuntu 24.04
Windows Server 2022
Ryzen 9000/7000 Series:
Windows 10 21H2
Windows 11
Ubuntu 22.04
Ubuntu 24.04
Windows Server 2022
Ryzen 9000/7000 Series:
Windows 10 21H2
Windows 11
System Fans
3 x 40x40x56mm (29,700rpm)
Operating Properties
Operating temperature: 10°C to 35°C
Operating humidity: 8%-80% (non-condensing)
Non-operating temperature: -40°C to 60°C
Non-operating humidity: 20%-95% (non-condensing)
Operating humidity: 8%-80% (non-condensing)
Non-operating temperature: -40°C to 60°C
Non-operating humidity: 20%-95% (non-condensing)
Packaging Dimensions
592 x 518 x 155 mm
Packaging Content
1 x R113-C10-AA02
1 x CPU heatsink
[Note] Rail kit not included. Please refer to optional parts for compatible rail kit.
1 x CPU heatsink
[Note] Rail kit not included. Please refer to optional parts for compatible rail kit.
Part Numbers
- Barebone package (EPYC/Ryzen 9000): 6NR113C10MR000AC02*
- Barebone package (EPYC/Ryzen 7000): 6NR113C10MR000AB02*
- Barebone package (Ryzen 7000): 6NR113C10MR000AA02*
- Motherboard: 9MC13LE0NR-000*
- CPU heatsink: 25ST1-121101-A7R
- Fan module: 25ST2-405623-A0R
- Riser card - CRS101R: 9CRS101RNR-00*
- Power supply: 25EP0-2400W3-F3S
Optional parts:
- Rail kit: 25HB2-130000-I0R
- Barebone package (EPYC/Ryzen 7000): 6NR113C10MR000AB02*
- Barebone package (Ryzen 7000): 6NR113C10MR000AA02*
- Motherboard: 9MC13LE0NR-000*
- CPU heatsink: 25ST1-121101-A7R
- Fan module: 25ST2-405623-A0R
- Riser card - CRS101R: 9CRS101RNR-00*
- Power supply: 25EP0-2400W3-F3S
Optional parts:
- Rail kit: 25HB2-130000-I0R
* Todos los materiales aquí provistos son solo para referencia. GIGABYTE se reserva el derecho de modificar o revisar el contenido a cualquier hora sin aviso alguno.
* Todas las marcas y logos son propiedad de sus propios dueños.
* Debido a la arquitectura estándar de la PC, cierta cantidad de memoria es reservada para uso del sistema y actualmente la memoria disponible es menor a la mencionada.
* Todas las marcas y logos son propiedad de sus propios dueños.
* Debido a la arquitectura estándar de la PC, cierta cantidad de memoria es reservada para uso del sistema y actualmente la memoria disponible es menor a la mencionada.
SUPPORT
Controlador
BIOS
Utilidad
Firmware
- All
- All
- Windows Server 2022
- Windows 11 64bit
- Windows 10 64bit
Chipset
LAN
LAN
Versión
Tamaño
Fecha
Intel® LAN Driver and Utility
Version : 27.4
755.19 MB
May 10, 2023
S.O.: Windows Server 2022
SATA RAID
BIOS
Descripción
Versión
Tamaño
Fecha
Updates to AGESA 1.2.0.1 to support AMD Ryzen 9000 Series processors.
Version : R04
22.96 MB
Dec 02, 2024
Update AGESA-V9 ComboAm5 1.1.0.2b to support AMD EPYC 4004 Processors.
Version : R01
19.58 MB
May 21, 2024
Windows and UEFI mode flash BIOS SOP
Please download BIOS update tool from AMI Website
Please download BIOS update tool from AMI Website
-
0.31 MB
Jan 29, 2021
Warning:
Because BIOS flashing is potentially risky, if you do not encounter problems using the current version of BIOS, it is recommended that you not flash the BIOS. To flash the BIOS, do it with caution. Inadequate BIOS flashing may result in system malfunction.
What is a BETA?
BETA describes a new version that is reliable yet may not include all the features of the final product. During this phase we are previewing new features and gathering customer input to insure our product provides the best experience possible.
Because BIOS flashing is potentially risky, if you do not encounter problems using the current version of BIOS, it is recommended that you not flash the BIOS. To flash the BIOS, do it with caution. Inadequate BIOS flashing may result in system malfunction.
What is a BETA?
BETA describes a new version that is reliable yet may not include all the features of the final product. During this phase we are previewing new features and gathering customer input to insure our product provides the best experience possible.
- All
- All
- Windows Server 2022
- Windows Server 2019
- Windows Server 2016 R2 64bit
- Windows Server 2016 64bit
- Windows Server 2012 R2 64bit
- Windows Server 2012 64bit
- Windows 10 64bit
- VMware
- Ubuntu
- Linux CentOS
- Linux
Utilidad
Descripción
Versión
Tamaño
Fecha
GSM CLI
Version : 2.1.78
147.79 MB
Dec 12, 2024
S.O.: Windows Server 2012 64bit,Windows Server 2012 R2 64bit,Linux CentOS,Windows 10 64bit,Ubuntu,Windows Server 2016 R2 64bit,Windows Server 2019,Windows Server 2022
GSM Server
Version : 2.12
926.33 MB
Jan 18, 2023
S.O.: Linux,Windows Server 2016 64bit,Windows Server 2019
GSM Agent
Version : 2.5
720.29 MB
Dec 27, 2021
S.O.: Linux,Windows Server 2016 64bit,Windows Server 2019
Manual
Descripción
Versión
Tamaño
Fecha
User Guide - GIGABYTE Management Console (AMI AST2600)
Version : 1.0
11.72 MB
Aug 12, 2024
English
