Dimensions (WxHxD, mm)

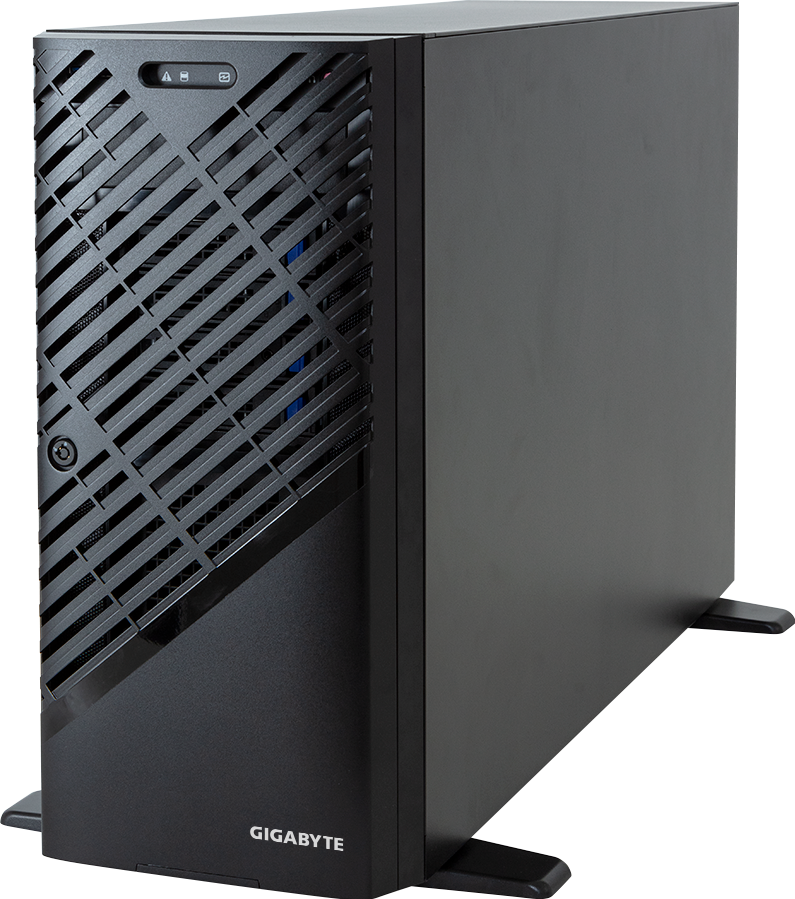

Pedestal
218 x 455 x 726.3
CPU
Intel® Xeon® W-2500 Processors
Intel® Xeon® W-2400 Processors
Single processor, TDP up to 250W
Socket
1 x LGA 4677
Socket E
Memory
8 x DIMM slots
DDR5 memory supported only
4-channel memory architecture
RDIMM up to 64GB supported
3DS RDIMM up to 256GB supported
Memory speed: Up to 4800 MT/s (1DPC), 4400 MT/s (2DPC)
Note: When installing memory modules, make sure to begin with the first socket of each channel, such as DIMM_P0_A0, DIMM_P0_B0, DIMM_P0_C0, DIMM_P0_D0.
LAN
2 x 2.5Gb/s LAN ports (2 x Intel® I226-LM)
1 x 10/100/1000 Mbps Management LAN
Video
Integrated in Aspeed® AST2600
- 1 x VGA port
Audio
Realtek® ALC897 HD Audio Codec
Supports 2/4/5.1/7.1 channel configurations
Rear 3 x Audio jacks (Audio in/Audio out/Mic)
Front 2 x Audio jacks (Audio out/Mic)
Storage
4 x 3.5"/2.5" SATA bays
Optional 4 x 3.5"/2.5" SATA bays
Note: Storage card is required to support NVMe and SAS drives.
RAID
Intel® SATA RAID 0/1/10/5
Peripheral Drives
5.25" space reserved for ODD device
Expansion Slots
Slot_7: PCIe x16 (Gen5 x16) slot, from CPU
Slot_6: PCIe x16 (Gen5 x16) slot, from CPU
Slot_5: PCIe x16 (Gen5 x16) slot, from CPU
Slot_4: PCIe x16 (Gen5 x16) slot, from CPU
Slot_2: PCIe x16 (Gen3 x4) slot, from PCH
3 x M.2 slots for storage:
- M-key
- PCIe Gen4 x4, from PCH
- Support 2280 cards
Internal I/O
1 x TPM header
1 x VROC connector
Front I/O
2 x USB 3.2 Gen1 (Type-A)
2 x Audio jacks (Audio out/Mic)
1 x Power button with LED
1 x Reset button
1 x Power LED
1 x Storage activity LED
1 x System status LED
Rear I/O
1 x USB 3.2 Gen2x2 (Type-C)
5 x USB 3.2 Gen2x1 (Type-A)
1 x VGA
1 x COM
2 x RJ45
1 x MLAN
3 x Audio jacks
1 x ID button with LED
TPM
1 x TPM header with SPI interface
-
Optional TPM2.0 kit:
CTM010
Power Supply
Single 1200W ATX 80 PLUS Platinum power supply
AC Input:
- 110-240V~/ 14-9A, 50-60Hz
- 200-240V~/ 9A, 50-60Hz (Only for China and Korea)
DC Output:
- Max 1200W
+12V/ 100A
+5V/ 20A
+3.3V/ 20A
+5Vsb/ 2.5A
System Management
ASPEED
® AST2600 Baseboard Management Controller
GIGABYTE Management Console web interface
- Dashboard
- HTML5 KVM
- Sensor Monitor (Voltage, RPM, Temperature, CPU Status …etc.)
- Sensor Reading History Data
- FRU Information
- SEL Log in Linear Storage / Circular Storage Policy
- Hardware Inventory
- Fan Profile
- System Firewall
- Power Consumption
- Power Control
- Advanced power capping
- LDAP / AD / RADIUS Support
- Backup & Restore Configuration
- Remote BIOS/BMC/CPLD Update
- Event Log Filter
- User Management
- Media Redirection Settings
- PAM Order Settings
- SSL Settings
- SMTP Settings
OS Compatibility
CentOS Stream 9 (x64)
Debian 11.5.0
Red Hat Enterprise Linux 9.0 (x64)
Ubuntu 22.04 LTS (x64)
Windows 11 Enterprise (x64)
System Fans
Middle fan: 3 x 120x120x38mm (4,000rpm)
Rear fan: 1 x 120x120x25mm (2,800rpm)
Operating Properties
Operating temperature: 10°C to 35°C
Operating humidity: 8-80% (non-condensing)
Non-operating temperature: -40°C to 60°C
Non-operating humidity: 20%-95% (non-condensing)
Packaging Dimensions
1045 x 588 x 403 mm
Packaging Content
1 x W753-W50-AA01
1 x CPU fansink
1 x Carrier
1 x Quick installation guide
Part Numbers
- Barebone package (Refresh): 6NW753W50MR000AB01*
- Barebone package: 6NW753W50MR000AA01*
- Motherboard: 9MW53HP0NR-000
- I/O shield: 12AIO-MW53HP-10R
- CPU fansink: 25ST0-0Z9221-A3R
- Carrier: 12KRC-0I4677-10R
- M.2 heatsink: 12SP2-080027-00R
- Middle fan: 25ST2-113824-S1R
- Rear fan: 25ST2-112522-S1R
- Power supply: 25EP0-21200C-F3S
Optional parts:
- Rail kit for W7x3 series ((A)+(B)+(C)+(D)):
(A) 25HB2-A66126-K0R (Slide Rail), Q'ty: 1 set
(B) 25HB4-W77304-C0R (Rack Ear Right), Q'ty: 1 set
(C) 25HB4-W77305-C0R (Rack Ear Left), Q'ty: 1 set
(D) 25HB7-W77300-C0R (Top Cover for Assembly), Q'ty: 1 set
