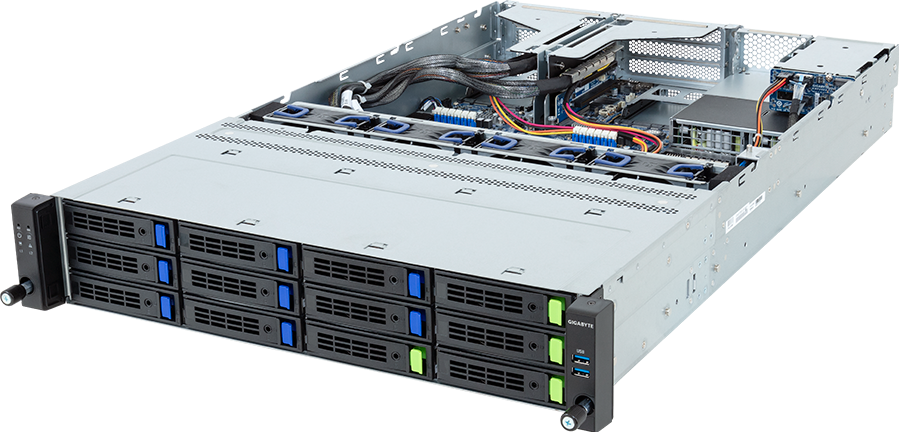

R263-Z37- AAC1

2U
438 x 87.5 x 710

MZ33-DC1

AMD EPYC™ 9005 Series Processors
AMD EPYC™ 9004 Series Processors

Single processor, cTDP up to 400W ^[1]
- At 25°C ambient, cTDP up to 500W
- At 30°C ambient, cTDP up to 500W with optional heatsink

^[1] Please refer to the QVL on the support page or contact our sales representatives for verified CPU SKUs.

1 x LGA 6096
Socket SP5

System on Chip

12 x DIMM slots
DDR5 memory supported
12-Channel memory architecture

AMD EPYC™ 9005:
RDIMM: Up to 6000 MT/s

AMD EPYC™ 9004:
RDIMM: Up to 4800 MT/s

Rear:
1 x 1Gb/s LAN (1 x Intel^® I210-AT)
- Supports NCSI function

1 x 10/100/1000 Mbps Management LAN

Integrated in Aspeed^® AST2600
- 1 x Mini-DP

Front hot-swap:
4 x 3.5"/2.5" Gen5 NVMe/SATA/SAS-4 ^[1]
8 x 3.5"/2.5" SATA/SAS-4 ^[2]

Rear hot-swap:
2 x 2.5" Gen5 NVMe ^[3]

Internal M.2:
1 x M.2 (2280/22110), PCIe Gen3 x4

^[1] Storage card is required to support SATA and SAS drives.
^[2] SAS card is required to support SAS drives.
^[3] NVMe supported only.

Require SAS add-in cards

Require RAID add-in cards

Riser Card CRC1012:
- 1 x FHHL x16 (Gen5 x16)

Riser Card CRC1013:
- 1 x FHHL x16 (Gen5 x16)

PCIe Cable x 2:
- 2 x FHHL x16 (Gen5 x16)

2 x OCP NIC 3.0 (Gen5 x16)
- Support NCSI function

2 x USB 3.2 Gen1 ports (Type-A)
1 x Power button with LED
1 x ID button with LED
1 x NMI button
1 x Reset button
2 x LAN activity LEDs (1 x LED disabled)
1 x Storage activity LED
1 x System status LED

2 x USB 3.2 Gen1 ports (Type-A)
1 x Mini-DP
1 x RJ45 port
1 x MLAN port
1 x ID button with LED

Speed and bandwidth:
Front side - CBP20C7: PCIe Gen5 x4 or SATA 6Gb/s or SAS-4 24Gb/s
Rear side - CBP2025: PCIe Gen5 x4

1 x TPM header with SPI interface
- Optional TPM2.0 kit: CTM012

1+1 1300W 80 PLUS Platinum redundant power supplies

AC Input:
- 100-240V~/ 12-7A, 50-60Hz
- 200-240V~/ 8A, 50-60Hz

DC Input: (Only for China)
- 240Vdc/ 6.5A

DC Output:
- Max 1000W/ 100-240V~
+12V/ 80.5A
+12Vsb/ 3A
- Max 1300W/ 200-240V~ or 240Vdc Input
+12V/ 105.4A
+12Vsb/ 3A

^[Note] GIGABYTE offers PSUs with various efficiency ratings and power outputs. Full redundancy may depend on your server configuration, and alternative PSU options may be needed. Please contact our sales representatives for the best power solution.

Aspeed^® AST2600 Baseboard Management Controller
GIGABYTE Management Console web interface

• Dashboard
• HTML5 KVM
• Sensor Monitor (Voltage, RPM, Temperature, CPU Status …etc.)
• Sensor Reading History Data
• FRU Information
• SEL Log in Linear Storage / Circular Storage Policy
• Hardware Inventory
• Fan Profile
• System Firewall
• Power Consumption
• Power Control
• Advanced power capping
• LDAP / AD / RADIUS Support
• Backup & Restore Configuration
• Remote BIOS/BMC/CPLD Update
• Event Log Filter
• User Management
• Media Redirection Settings
• PAM Order Settings
• SSL Settings
• SMTP Settings

Please refer to OS compatibility table in support page

4 x 80x80x38mm (18,300rpm)

Operating temperature: 10°C to 30°C
Operating humidity: 8%-80% (non-condensing)
Non-operating temperature: -40°C to 60°C
Non-operating humidity: 20%-95% (non-condensing)

989 x 594 x 279 mm

1 x R263-Z37-AAC1
1 x CPU heatsink
1 x Mini-DP to D-Sub cable
1 x 2-Section Rail kit

- Barebone package: 6NR263Z37DR000ACC1*
- Motherboard: 9MZ33DC1UR-000-3*
- 2-Section Rail kit (CMA not supported): 25HB2-3A0203-K0R
- CPU heatsink: 25ST1-143100-A0R
- M.2 heatsink: 12SP2-11000E-00R
- Front panel board - CFP2001: 9CFP2001NR-00*
- Backplane board - CBP2025: 9CBP2025NR-00*
- Backplane board - CBP20C7: 9CBP20C7NR-00*
- Fan module: 25ST2-88382T-S1R
- Riser card - CRC1012: 9CRC1012NR-00*
- Riser card - CRC1013: 9CRC1013NR-00*
- Mini-DP to D-Sub cable: 25CRN-200801-K1R
- Power supply: 25EP0-213004-F3S

Optional parts:

- 3-Section Rail kit (Supports CMA): 25HB2-A56121-K0R
- Cable Management Arm: 25HB1-R18300-K0R
- CPU heatsink (500W, 30°C ambient): 25ST1-563400-C1R
