All-New Workstation Design

Guarding Your Professional Work Needs

  • Smooth edge design bold diagonal grid
  • Radiating a dominant yet stable style
  • Achieving a balance of functionality and aesthetics
  • Large perforations enhance heat dissipation
  • Iron meshes reinforcement prevents foreign objects
  • Lock holes ensure information security

AMD Ryzen™ Threadripper™ PRO 7000 WX-Series Processors

AMD Ryzen™ Threadripper™ PRO 7000 WX-Series processors expand on the prior generation’s unrivaled performance and superior platform features. Built on the leading 5nm ‘Zen 4’ architecture, these processors deliver power, performance, expandability, and efficiency to your fingertips. Common lightly threaded applications used by artists, architects, and engineers benefit from enhanced max boost frequencies and IPC improvement across the entire stack, delivering outstanding performance.

For multithreaded workloads, Threadripper™ PRO continues to offer the most cores of any workstation processor for complex simulation, generative design, rendering, and software compilation tasks where users can see significant performance gains in applications. Additionally, these processors offer up to 1.5 times the L3 cache directly accessible per core compared to the previous generation for an effective reduction in memory latency, along with high memory bandwidth for applications that are sensitive to memory speed.

Zen 4
architecture

AMD WRX90
chipset

Up to 96
CPU cores

8-channel
DDR5 memory

Up to 128
PCIe 5.0 lanes

AST2600
BMC

W773-H5D Block Diagram

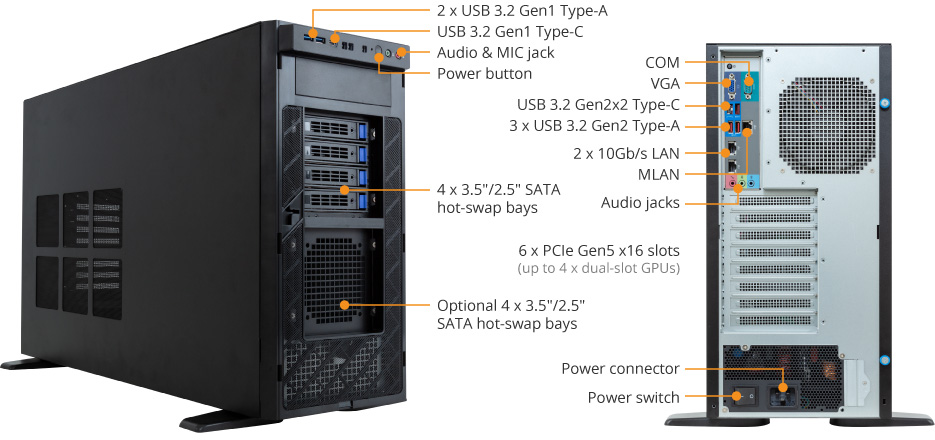

W773-H5D Product Overview

High Performance

Supports Multiple Multi-slot Accelerators

GIGABYTE Workstations have been tested and validated across a range of workloads with various computing accelerators designed to deliver high levels of performance for 3D rendering, deep learning and high-performance computing. Supporting up to 4 x Dual-slot cards or 2 x Triple-slot accelerators, the design enables content creators, data scientists, researchers, and engineers to tackle challenges that were once impossible.

NVIDIA RTX 6000 Ada
AMD Radeon PRO W7900
GIGABYTE GeForce RTX 4090 GAMING OC

AI / DL

SMB
Virtual Machine

Government
Science / Medical

DME

CAD

Creation

PC Scalable Display

Storage Support

Mix Drives

Plentiful NVMe and SATA Storage interface can fulfill your hot and cold data processing requirement at once.

  • Onboard 4 x M.2 2280/22110 slots (PCIe 5.0 x4)
  • 4 x 3.5” / 2.5” SATA hot-swap HDD/SSD bays
  • Optional 4 x 3.5” / 2.5” SATA hot-swap HDD/SSD bays

Connectivity

Dual 10GbE LAN

The Broadcom® BCM57416 controller supports 2 x 10GbE configuration which is the foundation for workstation connectivity, providing broad interoperability, critical performance optimizations, and increased agility for Communications, Cloud, and Enterprise IT network solutions.

Hardware Security

Optional TPM 2.0 Module

For hardware-based authentication, the passwords, encryption keys, and digital certificates are stored in a TPM module to prevent unwanted users from gaining access to your data. GIGABYTE TPM modules come in either a Serial Peripheral Interface or Low Pin Count bus.

Professional Thermal Solution

With internal airflow diversion and smart fan solution. ALL NEW W7 series ensure the balance between performance and heat dissipation.

  • GIGABYTE Selected FAN module
  • Large perforations enhance heat dissipation
  • Airduct to diverse CPU and GPU airflow
  • GSM Smart FAN Speed Control

Value-added Management

GIGABYTE offers free-of-charge management applications via a specialized small processor built on the server.

GIGABYTE Management Console

For management and maintenance of a server or a small cluster, users can use the GIGABYTE Management Console, which is pre-installed on each server. Once the servers are running, IT staff can perform real-time health monitoring and management on each server through the browser-based graphical user interface. In addition, the GIGABYTE Management Console also provides:

  • Support for standard IPMI specifications that allows users to integrate services into a single platform through an open interface
  • Automatic event recording, which can record system behavior 30 seconds before an event occurs, making it easier to determine subsequent actions
  • Integrate SAS/SATA/NVMe devices and RAID controller firmware into GIGABYTE Management Console to monitor and control Broadcom® MegaRAID adapters.

GIGABYTE Server Management (GSM)

GSM is a software suite that can manage clusters of servers simultaneously over the internet. GSM can be run on all GIGABYTE servers and has support for Windows and Linux. GSM can be downloaded from GIGABYTE website and complies with IPMI and Redfish standards. GSM includes a complete range of system management functions that includes the following utilities:

  • GSM Server: A software program that provides real-time, remote control using a graphical user interface through an administrator’s computer or through a server in the cluster. The software allows ease of maintenance for large clusters of servers.
  • GSM CLI: A command-line interface for monitoring and managing remotely.
  • GSM Agent: A software program installed on each GIGABYTE server node that retrieves information from each system and devices through the OS, and this software integrates with GSM Server or GSM CLI.
  • GSM Mobile: A mobile app for both Android and iOS that provides admins with real-time system information.
  • GSM Plugin: An application program interface that allows users to use VMware vCenter for real-time monitoring and management of server clusters.
