All-New Workstation Design

Guarding Your Professional Work Needs

  • Smooth edge design bold diagonal grid
  • Radiating a dominant yet stable style
  • Achieving a balance of functionality and aesthetics
  • Large perforations enhance heat dissipation
  • Iron meshes reinforcement prevents foreign objects
  • Lock holes ensure information security

Insistence of Low Noise
To Ensure Office Cozy Space

Installed A6000 and RTX4080 with full stress loading
under 50dB

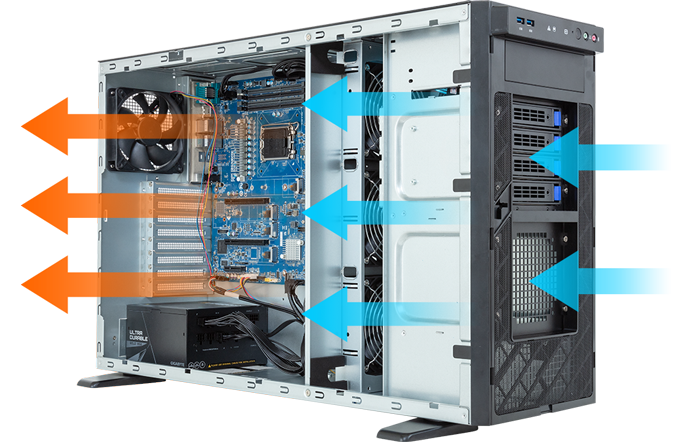

Professional Thermal Solution

With internal airflow diversion and smart fan solution. ALL NEW W7 series ensure the balance between performance and heat dissipation.

  • GIGABYTE Selected FAN module
  • Large perforations enhance heat dissipation
  • Airduct to diverse CPU and GPU airflow
  • GSM Smart FAN Speed Control

14th Gen Intel® Core™ Desktop Processors

  • W733-W30 supports all 14th Gen Intel® Core™ Desktop Processors, featuring the latest platform innovations such as PCIe 5.0 readiness, performance hybrid architecture, and Intel Thread Director.
  • With integrated Intel® UHD graphics driven by Xe Architecture, you can leverage rich media and intelligent graphics capabilities to enhance visual complexity, 3D performance, and image processing speed.
  • The 14th Gen Intel Core Desktop Processors offer a wide range of options for maximum flexibility, allowing you to choose the performance and thermal characteristics you need for unprecedented productivity and creativity.

W733-W30 Block Diagram

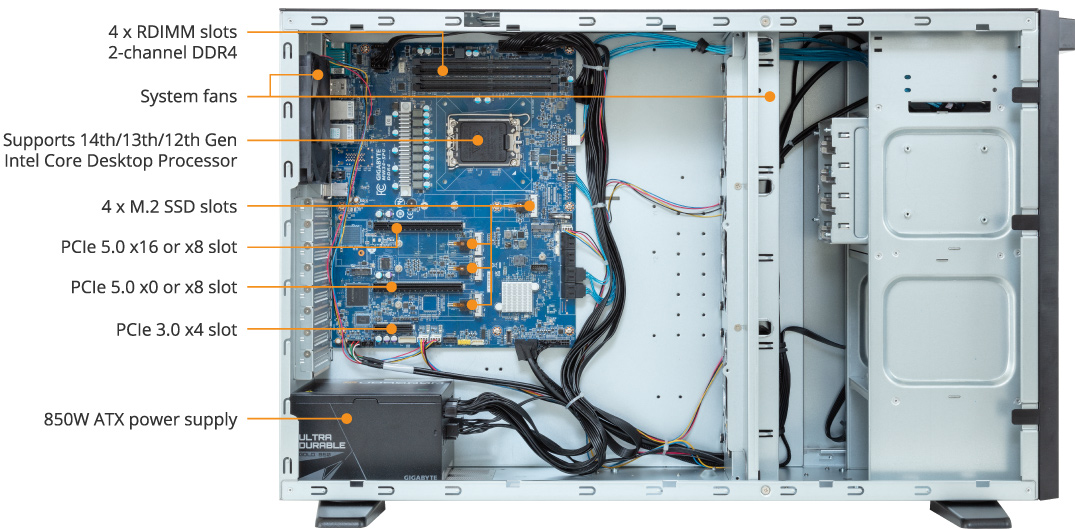

W733-W30 Product Overview

High Performance

Supports Multi-slot Accelerators

GIGABYTE Workstations have been tested and validated across a range of workloads with various computing accelerators designed to deliver high levels of performance for 3D rendering, deep learning and high performance computing, which enables content creators, data scientists, researchers, and engineers to tackle challenges that were once impossible.

NVIDIA RTX A6000
AMD Radeon PRO W7900

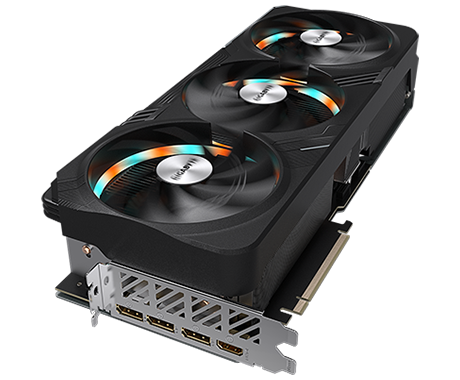

GIGABYTE GeForce RTX 4080 GAMING OC

Government
Science / Medical

DME

CAD

Creation

PC Scalable Display

Storage Support

Mix Drives

Plentiful NVMe and SATA Storage interface can fulfill your hot and cold data processing requirement at once.

  • 1 x M.2 22110 slot (PCIe 4.0 x4) from CPU
  • 3 x M.2 2280 slots (PCIe 4.0 x4) from chipset
  • 4 x 3.5” / 2.5” SATA fixed HDD/SSD bays
  • Optional 4 x 3.5” / 2.5” SATA fixed HDD/SSD bays

Hardware Security

Optional TPM 2.0 Module

For hardware-based authentication, the passwords, encryption keys, and digital certificates are stored in a TPM module to prevent unwanted users from gaining access to your data. GIGABYTE TPM modules come in either a Serial Peripheral Interface or Low Pin Count bus.

Value-added Management

GIGABYTE offers free-of-charge management applications via a specialized small processor built on the server.

GIGABYTE Management Console

For management and maintenance of a server or a small cluster, users can use the GIGABYTE Management Console, which is pre-installed on each server. Once the servers are running, IT staff can perform real-time health monitoring and management on each server through the browser-based graphical user interface. In addition, the GIGABYTE Management Console also provides:

  • Support for standard IPMI specifications that allows users to integrate services into a single platform through an open interface
  • Automatic event recording, which can record system behavior 30 seconds before an event occurs, making it easier to determine subsequent actions
  • Integrate SAS/SATA/NVMe devices and RAID controller firmware into GIGABYTE Management Console to monitor and control Broadcom® MegaRAID adapters.

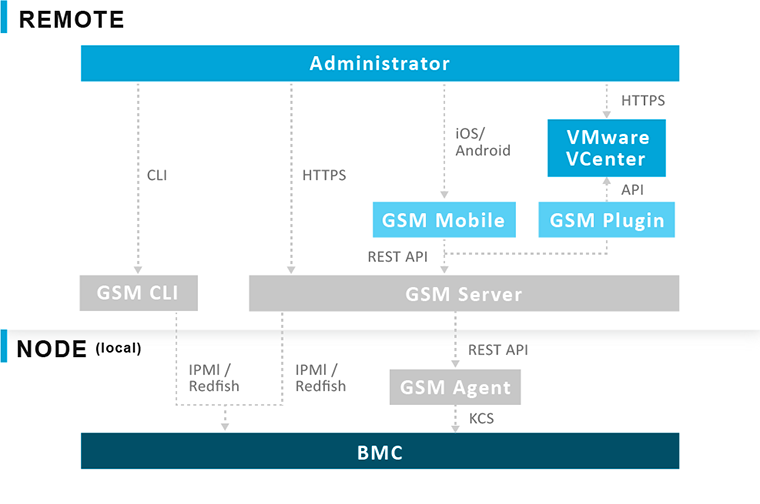

GIGABYTE Server Management (GSM)

GSM is a software suite that can manage clusters of servers simultaneously over the internet. GSM can be run on all GIGABYTE servers and has support for Windows and Linux. GSM can be downloaded from GIGABYTE website and complies with IPMI and Redfish standards. GSM includes a complete range of system management functions that includes the following utilities:

  • GSM Server: A software program that provides real-time, remote control using a graphical user interface through an administrator’s computer or through a server in the cluster. The software allows ease of maintenance for large clusters of servers.
  • GSM CLI: A command-line interface for monitoring and managing remotely.
  • GSM Agent: A software program installed on each GIGABYTE server node that retrieves information from each system and devices through the OS, and this software integrates with GSM Server or GSM CLI.
  • GSM Mobile: A mobile app for both Android and iOS that provides admins with real-time system information.
  • GSM Plugin: An application program interface that allows users to use VMware vCenter for real-time monitoring and management of server clusters.
