Intel® Xeon® E-2300 Processors

The Intel Xeon E-2300 processors offer 10 new processor varieties, including options with 4, 6, or 8 cores, and thermal design points (TDPs) ranging from 65W up to 95W. With Intel® Turbo Boost Technology frequencies as high as 5.1 GHz, and memory speeds up to 23 percent faster than the prior generation, these new processors outperform the prior Intel Xeon E processor by up to 17 percent. And when coupled with Intel® C250 Series Chipsets, this platform offers more I/O bandwidth and speed across options including new PCIe 4.0, more lanes of PCIe 3.0, USB 3.2 with new 2x2 (20 Gb), and SATA 3.0 support.

MX33-BS0 Product Overview

MX33-BS0 Block Diagram

Hardware Security

Optional TPM 2.0 Module

For hardware-based authentication, the passwords, encryption keys, and digital certificates are stored in a TPM module to prevent unwanted users from gaining access to your data. GIGABYTE TPM modules come in either a Serial Peripheral Interface or Low Pin Count bus.

Value-added Management

GIGABYTE offers free-of-charge management applications via a specialized small processor built on the server.

GIGABYTE Management Console

For management and maintenance of a server or a small cluster, users can use the GIGABYTE Management Console, which is pre-installed on each server. Once the servers are running, IT staff can perform real-time health monitoring and management on each server through the browser-based graphical user interface. In addition, the GIGABYTE Management Console also provides:

  • Support for standard IPMI specifications that allows users to integrate services into a single platform through an open interface
  • Automatic event recording, which can record system behavior 30 seconds before an event occurs, making it easier to determine subsequent actions
  • Integrate SAS/SATA/NVMe devices and RAID controller firmware into GIGABYTE Management Console to monitor and control Broadcom® MegaRAID adapters.

GIGABYTE Server Management (GSM)

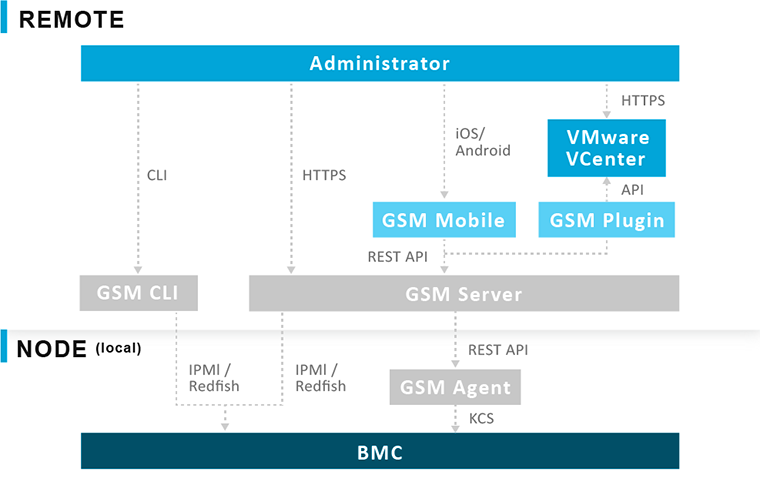

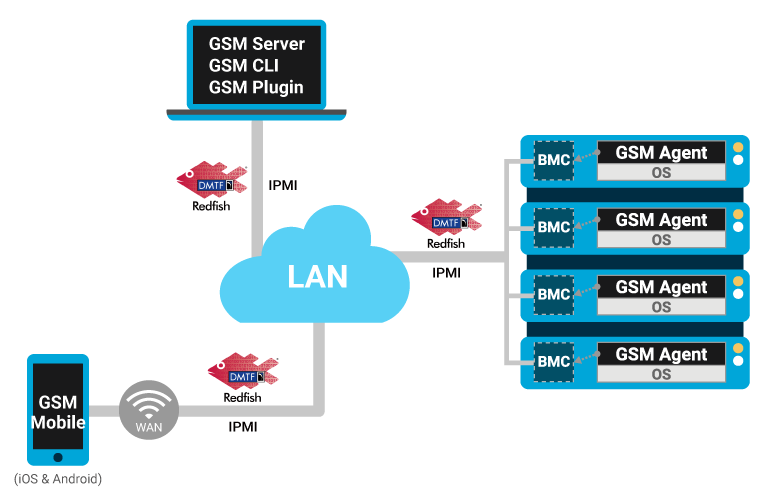

GSM is a software suite that can manage clusters of servers simultaneously over the internet. GSM can be run on all GIGABYTE servers and has support for Windows and Linux. GSM can be downloaded from GIGABYTE website and complies with IPMI and Redfish standards. GSM includes a complete range of system management functions that includes the following utilities:

  • GSM Server: A software program that provides real-time, remote control using a graphical user interface through an administrator’s computer or through a server in the cluster. The software allows ease of maintenance for large clusters of servers.
  • GSM CLI: A command-line interface for monitoring and managing remotely.
  • GSM Agent: A software program installed on each GIGABYTE server node that retrieves information from each system and devices through the OS, and this software integrates with GSM Server or GSM CLI.
  • GSM Mobile: A mobile app for both Android and iOS that provides admins with real-time system information.
  • GSM Plugin: An application program interface that allows users to use VMware vCenter for real-time monitoring and management of server clusters.
