Nothing Stacks Up To EPYC™

AMD EPYC™ 7003 Processors with AMD 3D V-Cache™

AMD EPYC 7003 Series Processors with AMD 3D V-Cache™ technology are raising the bar once more for breakthrough performance on targeted technical computing workloads like Electronic Design Automation, Computational Fluid Dynamics, and Finite Element Analysis software and solutions. Delivering breakthrough performance per core and performance per watt, the Zen 3 architecture maintains leadership in number of cores – up to 64, amount of L3 cache – 768MB, and 128 PCIe 4.0 lanes, while maintaining socket compatibility with existing 3rd Gen AMD EPYC platforms.

Zen 3Architecture

768MBL3 Cache Per Socket

Up To 64“ZEN 3” Cores

128PCIe 4.0 Lanes

Architecture for Modern Data Centers

AMD EPYC™ 7003 Series Processors

GIGABYTE servers and AMD EPYC 7003 Series Processors deliver the highest possible I/O throughput to pave the way for fast communication between CPU and accelerator in HPC and data analytics.

  • Up to 64 Cores
  • 8 Channels of DDR4-3200
  • Up to 4TB Memory Capacity
  • 128 lanes PCIe 4.0
  • 2-way SMT & Turbo Boost
  • 4,6,8-channel Memory Interleave
  • Synchronized Fabric and Memory Clock Speeds
  • Secure Memory Encryption
  • Secure Encrypted Virtualization

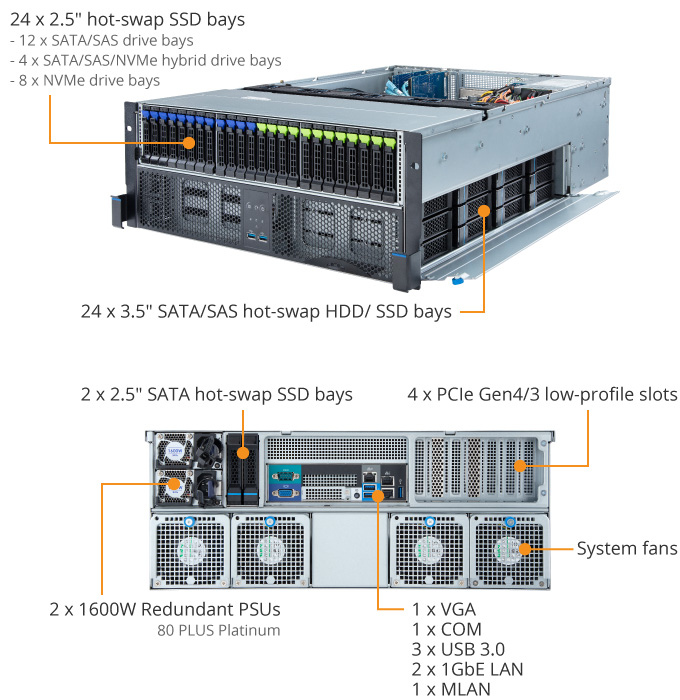

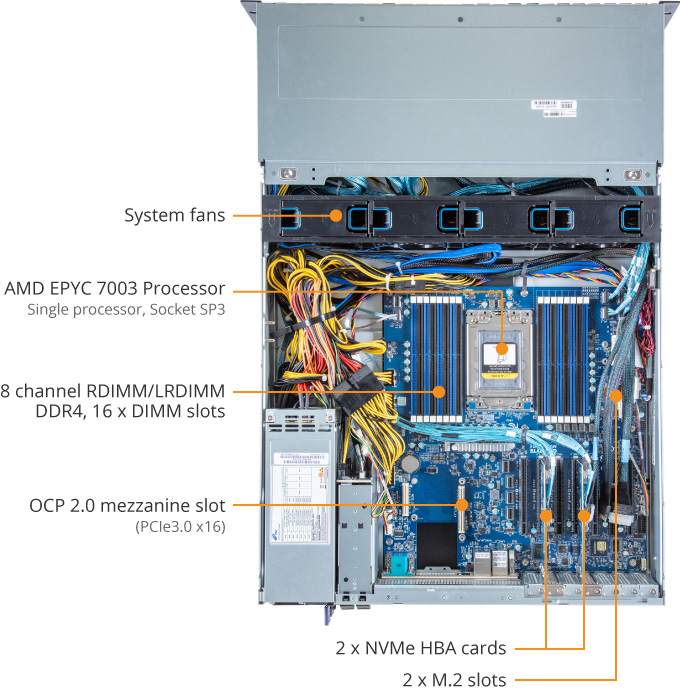

S472-Z30 Product Overview

S472-Z30 Block Diagram

Easy, Flexible & Powerful Storage Deployment

The S472-Z30 offers the following advantages to your storage deployment:

  • x86 architecture means compatibility with a large variety of SDS (Software Defined Storage) platforms & applications
  • 24 x 3.5” SATA/SAS, 12 x 2.5” SATA/SAS, 4 x 2.5” SATA/SAS/NVMe hybrid and 8 x 2.5” NVMe drive bays for large scale out capacity, over 900TB raw capacity per server
  • Rear 2 x 2.5” SATA drive bays for OS disks

GIGABYTE has also validated and created reference architectures for our products with various open source software defined storage systems to help make your deployment even faster and easier.

Max Memory Speed Even at 2 DPC

With GIGABYTE unique solution, maximum memory speed is now supported, even when using 2 DIMMS per channel*. GIGABYTE’s server platforms give you the performance edge, with more memory capacity at faster speeds.

* Enabled via BIOS setting (“UMC Common Options” “DDR4 Common Options” Configure “Enforce POR” setting). Please follow product QVL. Please consult your GIGABYTE sales or technical representative for more information.

Hardware Security

Hardware-level Root of Trust *

Protection is built in the silicon to ensure systems will not be vulnerable to security attacks or cyber threats. This hardware-level root of trust (ROT) helps isolate the system as the boot process starts to make sure a verified code is used.

Provides:

  • Integrity of cryptographic keys and secure key generation
  • Boot process protected and verified
  • Secure application environment and protection at runtime

* Available on select models

Optional TPM 2.0 Module

For hardware-based authentication, the passwords, encryption keys, and digital certificates are stored in a TPM module to prevent unwanted users from gaining access to your data. GIGABYTE TPM modules come in either a Serial Peripheral Interface (SPI) or low pin count (LPC) interface.

Power Efficiency

Automatic Fan Speed Control

GIGABYTE servers are enabled with Automatic Fan Speed Control to achieve the best cooling and power efficiency. Individual fan speeds will be automatically adjusted according to temperature sensors strategically placed in the servers.

Cold Redundancy

To take advantage of the fact that a PSU will run at greater power efficiency with a higher load, GIGABYTE has introduced a power management feature called Cold Redundancy for servers with N+1 power supplies. When the total system load falls lower than 40%, the system will automatically place one PSU into standby mode, resulting in a 10% improvement in efficiency.

High Availability

Smart Crises Management and Protection (SCMP)

SCMP is a GIGABYTE patented feature which is deployed in servers with non-fully redundant PSU design. With SCMP, in the event of faulty PSU or overheated system, the system will force the CPU into an ultra-low power mode that reduces the power load, which prevents the system from unexpected shutdown and avoids component damage or data loss.

User Friendly

Certified Ready with Software Partners

Being a member of key software alliance partner programs enables GIGABYTE to rapidly develop and validate joint solutions, enabling our customers to modernize their data centers and implement IT infrastructure and application services with speed, agility, and cost optimization.

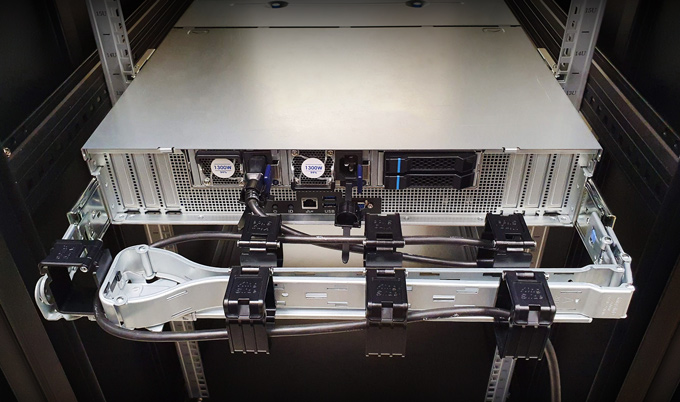

Cable Arm

GIGABYTE servers can be equipped with cable arms, which is a friendly design attached to rail kits. The tool helps users with cable routing on the rear side of servers, keeping cables well organized to prevent tangled cables causing accidental damage to systems when pulling out servers from the rack.

Value-added Management

GIGABYTE offers free-of-charge management applications via a specialized small processor built on the server.

GIGABYTE Management Console

For management and maintenance of a server or a small cluster, users can use the GIGABYTE Management Console, which is pre-installed on each server. Once the servers are running, IT staff can perform real-time health monitoring and management on each server through the browser-based graphical user interface. In addition, the GIGABYTE Management Console also provides:

  • Support for standard IPMI specifications that allows users to integrate services into a single platform through an open interface
  • Automatic event recording, which can record system behavior 30 seconds before an event occurs, making it easier to determine subsequent actions
  • Integrate SAS/SATA/NVMe devices and RAID controller firmware into GIGABYTE Management Console to monitor and control Broadcom® MegaRAID adapters.

GIGABYTE Server Management (GSM)

GSM is a software suite that can manage clusters of servers simultaneously over the internet. GSM can be run on all GIGABYTE servers and has support for Windows and Linux. GSM can be downloaded from GIGABYTE website and complies with IPMI and Redfish standards. GSM includes a complete range of system management functions that includes the following utilities:

  • GSM Server: A software program that provides real-time, remote control using a graphical user interface through an administrator’s computer or through a server in the cluster. The software allows ease of maintenance for large clusters of servers.
  • GSM CLI: A command-line interface for monitoring and managing remotely.
  • GSM Agent: A software program installed on each GIGABYTE server node that retrieves information from each system and devices through the OS, and this software integrates with GSM Server or GSM CLI.
  • GSM Mobile: A mobile app for both Android and iOS that provides admins with real-time system information.
  • GSM Plugin: An application program interface that allows users to use VMware vCenter for real-time monitoring and management of server clusters.
