AORUS Z390 Design for All Cores 5GHz

12 Phase Digital Power Design

(Z390 AORUS MASTER)

40A IR 3553 for each vCore Phase

High current capacity MOSFET

Lower temperature

Server level reliability

Z390 AORUS MASTER motherboard uses an all IR digital CPU power design which includes both digital PWM Controller and PowlRstage MOSFET, and is capable of providing at least 40A of power from each phase, for a total of 480A. These 100% digital controller and additional 8+8 Solid-pin CPU Power Connectors offer incredible precision in delivering power to the motherboard's most power-hungry and energy-sensitive components, allowing enthusiasts to get the absolute maximum performance from the new 8-core 9th Gen Intel^® Core™ processors.

1. 8+8 Solid Pin CPU Power Connector with Metal Shielding

2. 12 Phase Digital Power Design

3. IR PowIRstage

4. IR Digital PWM Controller

True 12 Phase Power Design

Enlarged Power Plane

2x Copper PCB

■

Completely new VRM design for 8-core 9th Gen Intel^® Core™ processors

■

Enlarged power plane and multiple true power phases ensure a stable gaming experience

* Features may vary by models.

Optimized CPU Power Delivery Plane with 2x Copper PCB

(Z390 AORUS MASTER)

* Features may vary by models.

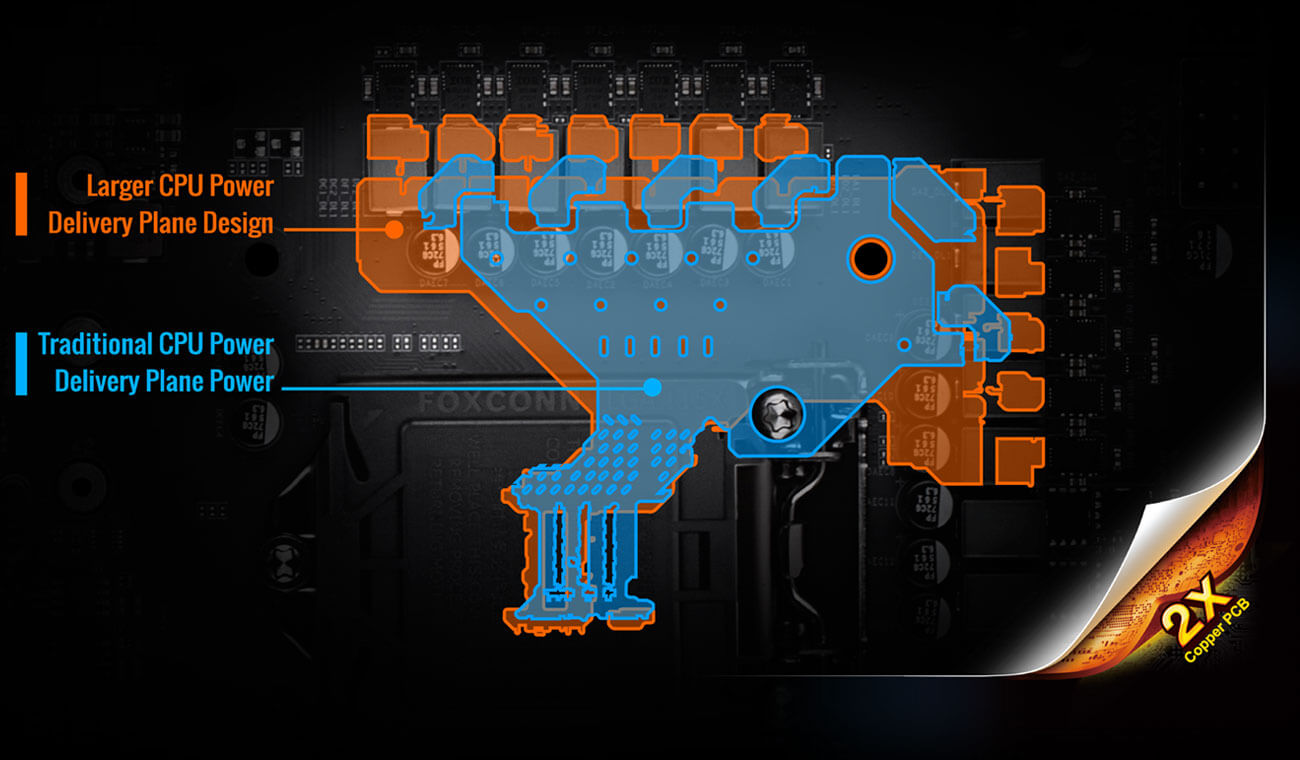

GIGABYTE's exclusive 2X Copper PCBs design provides sufficient power trace paths between components to handle greater than normal power loads and to remove heat from the critical CPU power delivery area. This is essential to ensure the motherboard is able to handle the increased power loading that is necessary when overclocking.

* Features may vary by models.

Advanced Thermal Design

(Z390 AORUS MASTER)

Z390 AORUS MASTER reaches a perfect balance between style and performance by combining the media acclaimed Fins-Array heatsink, a heatpipe, and a thermal baseplate, to provide 30% lower MOSFET temperatures for enthusiasts, overclockers and professional gamers.

* Features may vary by models.
