AMD EPYC™ 7002 Series Processor (Rome)

The next generation of AMD EPYC has arrived, providing incredible compute, IO and bandwidth capability – designed to meet the huge demand for more compute in big data analytics, HPC and cloud computing.

  • Built on 7nm advanced process technology, allowing for denser compute capabilities with lower power consumption
  • Up to 64 core per CPU, built using Zen 2 high performance cores and AMD’s innovative chiplet architecture
  • Supporting PCIe Gen 4.0 with a bandwidth of up to 64GB/s, twice of PCIe Gen 3.0
  • Embedded security protection to help defend your CPU, applications, and data
Up to

2X Performance Per Socket & IO Bandwidth

vs AMD EPYC Naples
Up to

4X Floating Point Per Socket

vs AMD EPYC Naples

Higher Memory Speed

AMD EPYC’s Rome 7002 Series processors feature faster 8 channel DDR4 memory lanes, supporting RDIMM or LRDIMM memory modules with a speed of up to 3200MHz (1 DIMM per channel)

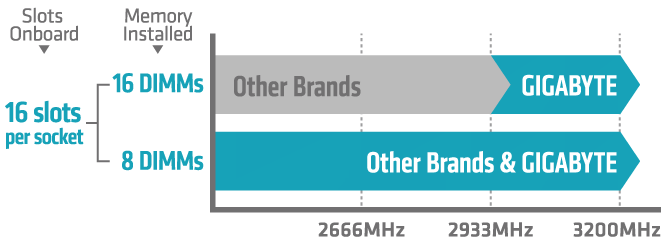

Get the Memory Performance Edge

3200Mhz Even at 2 DIMMS Per Channel

On previous AMD server platforms, memory speed has been automatically downgraded by design when a user installed two DIMMs per channel. GIGABYTE has now developed a unique solution to overcome this performance downgrade headache: with our new 2nd Generation AMD EPYC 7002 Series server platforms, maximum memory speed (3200Mhz) is now supported even when using 2 DIMMS per channel*. GIGABYTE’s server platforms give you the performance edge, with more memory capacity at faster speeds than competing solutions!

* Enabled via BIOS setting (“UMC Common Options” -> “DDR4 Common Options” -> Configure “Enforce POR” setting). Please follow product QVL. Please consult your GIGABYTE sales or technical representative for more information.

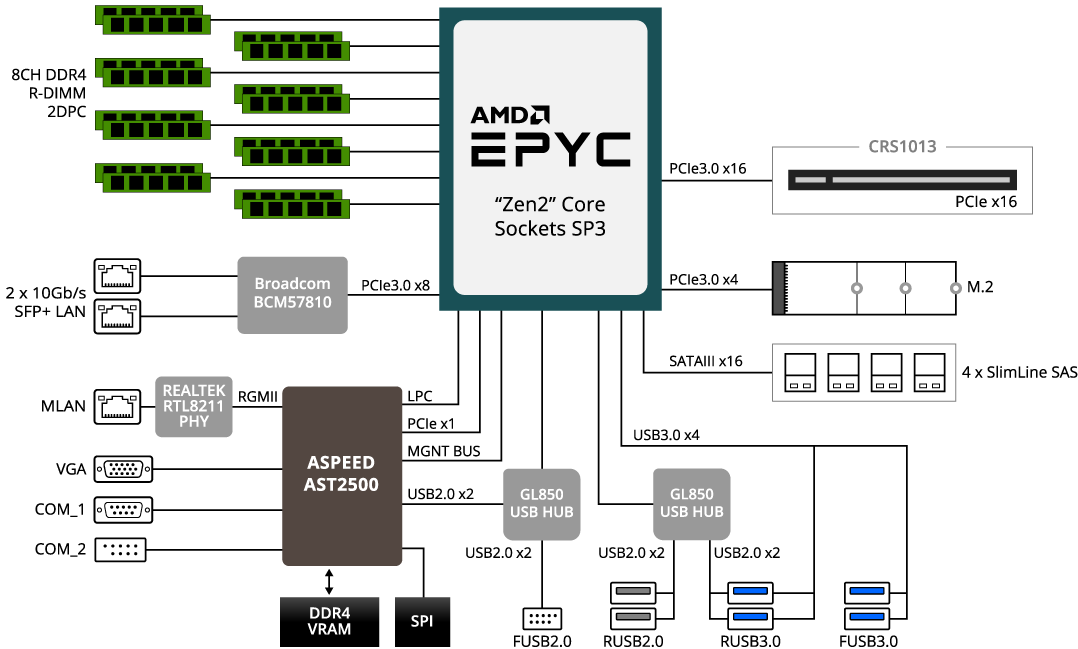

R151-Z30 Block Diagram

R151-Z30 Product Overview

High-Speed Networking

GIGABYTE offers 10Gb across dual ports on-board, ensuring that users can get the most out of their system and are well equipped for today’s traffic demands. The server’s network performance is boosted with full-line rate throughput and CPU overhead is reduced, leaving the EPYC to focus on the real compute tasks.

Dense, High Speed Storage Support

Onboard M.2

GIGABYTE AMD EPYC™ platforms are designed to support on-board ‘M.2’ storage devices for time-sensitive operations and leaves room on the standard storage for compute tasks. Delivering up to 32 Gb/s data transfer speeds, M.2 offers users considerably faster storage performance than current mSATA devices.

Data Security

TPM 2.0 Module*

GIGABYTE’s EPYC™ platform is designed to support Trusted Platform Modules (TPM - discrete cryptographic on-board processors).

(*Available from GIGABYTE as P/N: 9CTM000NR-00)

Carefully Selected Components

GIGABYTE’s passive components are carefully selected to guarantee a stable operating environment and allow the processors and the memory to deliver their maximum performance. GIGABYTE’s server motherboards are built with long lasting components for a high degree of reliability and durability.

Ease of Deployment and Management

GIGABYTE continues to be responsive to market needs and to create user-friendly solutions, including:

  • Tool-less rail kit included as a default across all new server models
  • Supplying multiple connector options and tools where appropriate

Efficient, Reliable Power Supply

GIGABYTE SERVER AMD EPYC™ servers are designed to guarantee high conversion efficiency regardless of load. Redundant 80 Plus ‘Titanium’ or ‘Platinum’ PSUs, combined with GIGABYTE’s precision engineering, translates to super efficient power usage which maximizes the system’s power : performance ratio and reduces OPEX for the user.

GIGABYTE Server Management (GSM)

GIGABYTE Server Management (GSM) is GIGABYTE’s proprietary multiple server remote management software platform, available as a free download from each GIGABYTE server product page. GSM is compatible with either IPMI or Redfish (RESTful API) connection interfaces, and comprises the following sub-programs:

  • GSM Server, a software program with an easy to use browser-based GUI to enable global remote monitoring and management of multiple GIGABYTE servers via each server node’s BMC.
  • GSM CLI, a command-line interface program to enable global remote monitoring and management of multiple GIGABYTE servers via each server node’s BMC.
  • GSM Agent, a software program installed locally on each GIGABYTE server node that retrieves additional node information (CPU/Mem/HDD/PCI/…) from the OS and passes it to the BMC. This information can then be utilized by GSM Server or GSM CLI.
  • GSM Mobile, a remote server management mobile APP, available for both Android and iOS.
  • GSM Plugin, a plugin that allows the user to manage and monitor GIGABYTE server nodes within VMware’s vCenter.

Intuitive & Informative User Interface

Starting from the GSM Server dashboard, the user can clearly understand the status of each node in the IT environment, including:

  • Node connection status (system is online/offline)
  • Node hardware sensor status (to detect hardware anomalies). Sensors measure voltage, fan speed and temperature
  • Node usage rate status (allowing you to timely allocate more resources when they are needed), including:
    • Power consumption
    • Disk/RAID usage information
    • Memory usage rate
    • CPU usage rate
    • Network card / PCI information

The user can also perform various management functions, including:

  • Node remote access
    • Power on / off / reset
    • Launch iKVM
    • Reboot BMC / BMC Account Configuration
  • Network Configuration
    • IPv4/IPv6 setting
  • Alert Management
    • SNMP trap setting
    • Platform events filters
    • Forwarding alerts by email
  • BMC / BIOS / CPLD Update
  • Power Consumption Limit Setting
  • Group Management
    • Create groups of nodes for BMC / BIOS update or manage power consumption settings

GSM Mobile for iOS and Android

A GSM Mobile app is available for download for both iOS and Android mobile phones for remote server management on the go.

Download GSM APP for iOS
(iOS Store) Download GSM APP for Android
(Google Play Store)

Management through VMware vCenter

A GSM Plugin is available for VMware’s vCenter, allowing the user to perform remote monitoring and management of GIGABYTE server nodes without having to switch to a separate software platform.

GIGABYTE Management Console

GIGABYTE server utilizes the AMI MegaRAC SP-X solution for BMC server management, has a browser-based graphical user interface, and is feature-rich and easy to use.

  • RESTful API support includes the latest DMTF standard of Redfish. Allows integration with 3rd party applications for server management
  • Including HTML5 based iKVM remote management client, no need to purchase other additional licenses
  • Detailed FRU information from SMBIOS
  • 10 to 30 seconds pre-event automatic recording function
  • SAS / RAID controller monitoring function

Easy BIOS Refresh

GIGABYTE has also developed this integrated function (requiring no additional software) that allows users to update the BIOS of motherboards through the BMC controller:

  • No need to install core components such as CPUs, memory, drives and OS
  • No need to power on the system (NB. PSU must be connected)
  • Update individual (IPMI 2.0) or multiple boards simultaneously (Command Line)

Dynamic Fan Speed Control

GIGABYTE servers are enabled with dynamic fan speed adjustment. Individual fan speed will be automatically adjusted according to the system’s current temperature (according to CPU, DIMM, M.2, HDD, GPU temperature sensors), to achieve the best cooling and power efficiency. When the BMC detects a temperature change, fan speed will be automatically adjusted accordingly. Fan speed profiles may also be manually created and edited* when necessary according to the user’s custom requirements.

* Enabled on selected models & performed through BMC console management GUI

VMware Ready

The R151-Z30 is validated for and fully compatible with VMware ESXi Hypervisor.

GIGABYTE Servers – Optimized for AMD EPYC™

GIGABYTE has demonstrated that our server design is perfectly optimized for AMD EPYC by achieving one of the top scores* of the SPEC CPU 2017 Benchmark for AMD EPYC single socket & dual socket systems.

*For single & dual socket AMD Naples platform vs other vendors as of September 2018

Environmental Compliance

GIGABYTE maintains its commitment to green products, and adheres to the latest RoHS regulations (in effect July 2017).

VMware Technology Alliance Partner

Being a member of VMware's Technology Alliance Partner (TAP) program enables GIGABYTE to rapidly develop and certify joint solutions or go-to-market products that leverage VMware virtualization and cloud solutions, enabling our customers to modernize their data centers and implement IT infrastructure and application services with speed, agility, and cost optimization.

Enquire with your GIGABYTE sales representative for more information about combining or integrating this server product with VMware solutions.
