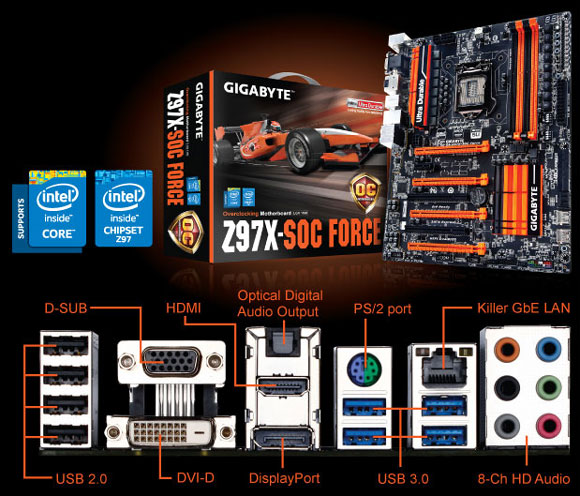

GA-Z97X-SOC Force Specifications
CPU support

4th Gen & 5th Gen Intel® Core™ processors
CPU socket

LGA 1150
Chipset

Intel Z97 Chipset
Graphics Interface

1*PCI-E 3.0 x16 + 1*PCI-E 3.0 x8 + 2*PCI-E x4*
Display Interface

HDMI, DisplayPort, DVI-D, D-SUB
Memory Type

2 Channel DDR3
Memory DIMM

4*DDR3
Expansion slots

1*PCI-E x1, 2*PCI
SATA connectors

6*SATA3**, 1*SATA EXPRESS
SATA RAID

RAID 0,1,5,10
USB

6*USB 3.0 + 8*USB 2.0
Audio / LAN

8-channel HD / Killer GbE LAN
Form Factor(mm)

ATX (305x244)
* PCI-E x4 slot shares bandwidth with PCI-E x8 slot.
** Only 4 SATA3 connectors are available when SATA EXPRESS is enabled .

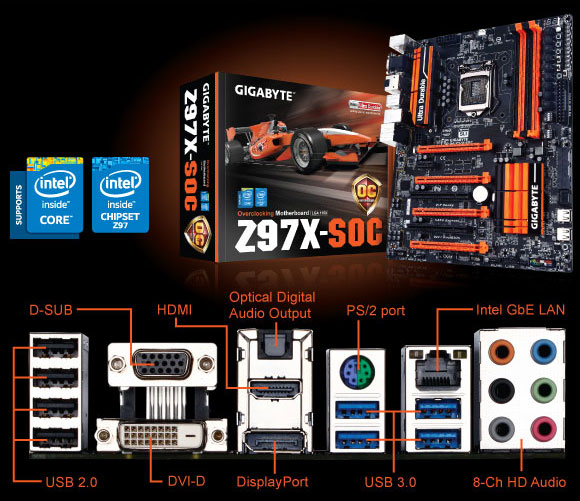

GA-Z97X-SOC Specifications
CPU support

4th Gen & 5th Gen Intel® Core™ processors
CPU socket

LGA 1150
Chipset

Intel Z97 Chipset
Graphics Interface

1*PCI-E 3.0 x16 + 1*PCI-E 3.0 x8 + 2*PCI-E x4*
Display Interface

HDMI, DisplayPort, DVI-D, D-SUB
Memory Type

2 Channel DDR3
Memory DIMM

4*DDR3
Expansion slots

1*PCI-E x1, 2*PCI
SATA connectors

6*SATA3**, 1*SATA EXPRESS
SATA RAID

RAID 0,1,5,10
USB

6*USB 3.0 + 8*USB 2.0
Audio / LAN

8-channel HD / Intel GbE LAN
Form Factor(mm)

ATX (305x244)
* PCI-E x4 slot shares bandwidth with PCI-E x8 slot.
** Only 4 SATA3 connectors are available when SATA EXPRESS is enabled .

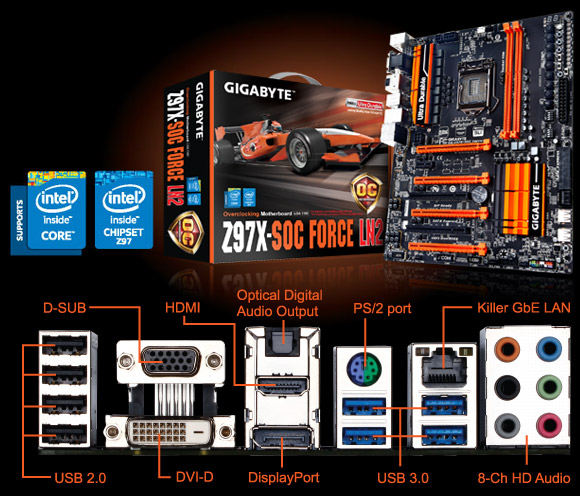

GA-Z97X-SOC Force LN2 Specifications
CPU support

4th Gen & 5th Gen Intel® Core™ processors
CPU socket

LGA 1150
Chipset

Intel Z97 Chipset
Graphics Interface

1*PCI-E 3.0 x16 + 1*PCI-E 3.0 x8 + 2*PCI-E x4*
Display Interface

HDMI, DisplayPort, DVI-D, D-SUB
Memory Type

2 Channel DDR3
Memory DIMM

2*DDR3
Expansion slots

1*PCI-E x1, 2*PCI
SATA connectors

6*SATA3**, 1*SATA EXPRESS
SATA RAID

RAID 0,1,5,10
USB

6*USB 3.0 + 8*USB 2.0
Audio / LAN

8-channel HD / 1*GbE LAN
Form Factor(mm)

ATX (305x244)
* PCI-E x4 slot shares bandwidth with PCI-E x8 slot.
** Only 4 SATA3 connectors are available when SATA EXPRESS is enabled .





* Features may vary by model.
