G1.Sniper 5 Specifications         CPU support   4th Generation Intel® Core™ processors CPU socket   LGA 1150 Chipset   Intel Z87 chipset Graphics Interface   2*PCIE 3.0 x16 + 2*PCIE 3.0 x8 (2 x16 / 4 x8 Bandwidth) Display Interface   2*HDMI, DisplayPort Memory Type   2 Channel DDR3 Memory DIMM   4*DDR3 Expansion slots   3*PCIE x1 SATA connectors   10*SATA3 SATA RAID   RAID 0,1,5,10 USB   10*USB 3.0 + 6*USB 2.0 Audio / LAN   6-Channel HD / 2*GbE LAN Form Factor(mm)   EATX (305x264)

OP-AMP Upgrade kiti included

USB 2.0 USB 3.0 Gold Plated DisplayPort Dual LAN (Including Intel GbE LAN)   Gold Plated Audio Jacks   PS/2 port Gold Plated Coaxial SPDIF Out Dual Gold Plated HDMI Ports USB 3.0   OP-AMP Audio Output       Optical Digital Audio Output

G1.Sniper M5 Specifications         CPU support   4th Generation Intel® Core™ processors CPU socket   LGA 1150 Chipset   Intel Z87 chipset Graphics Interface   1*PCIE 3.0 x16 + 1*PCIE 3.0 x8 (1 x16 / 2 x8 Bandwidth) Display Interface   2*HDMI, DVI, DisplayPort Memory Type   2 Channel DDR3 Memory DIMM   4*DDR3 Expansion slots   1*PCIE x4 + 1*PCIE x1 SATA connectors   6*SATA3 SATA RAID   RAID 0,1,5,10 USB   6*USB 3.0 + 6*USB 2.0 Audio / LAN   6-Channel HD / 2*GbE LAN Form Factor(mm)   mATX (244x244)

OP-AMP Upgrade kiti included

USB 2.0 DVI Gold Plated DisplayPort GbE LAN   Gold Plated Audio Jacks   PS/2 port   Dual Gold Plated HDMI Ports USB 3.0   OP-AMP Audio Output       Optical Digital Audio Output

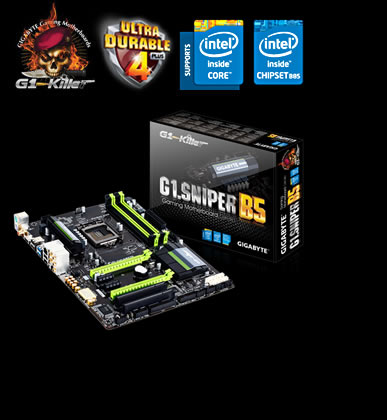

G1.Sniper B5 Specifications         CPU support   4th Generation Intel® Core™ processors CPU socket   LGA 1150 Chipset   Intel B85 chipset Graphics Interface   1*PCIE 3.0 x16 Display Interface   HDMI Memory Type   2 Channel DDR3 Memory DIMM   4*DDR3 Expansion slots   1*PCIE 2.0 x4 + 2*PCIEx1+2*PCI SATA connectors   4*SATA3 + 2*SATA2 USB   4*USB 3.0 + 8*USB 2.0 Audio / LAN   8-Channel HD / GbE LAN Form Factor(mm)   ATX (305x225)

Mouse Port HDMI   USB 2.0 USB 3.0 GbE LAN   Gold Plated Audio Jacks   Keyboard Port Gold Plated Coaxial SPDIF Out   USB 2.0   OP-AMP Audio Output       Optical Digital Audio Output

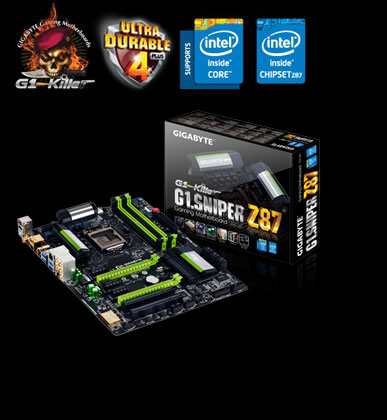

G1.Sniper Z87 Specifications         CPU support   4th Generation Intel® Core™ processors CPU socket   LGA 1150 Chipset   Intel Z87 chipset Graphics Interface   1*PCIE 3.0 x16 + 1*PCIE 3.0 x8 (1 x16 / 2 x8 Bandwidth) Display Interface   HDMI, DisplayPort Memory Type   2 Channel DDR3 Memory DIMM   4*DDR3 Expansion slots   3*PCIE x1 + 2*PCI SATA connectors   6*SATA3 USB   6*USB 3.0 + 7*USB 2.0 Audio / LAN   6-Channel HD / GbE LAN Form Factor(mm)   ATX (305x233)

USB 2.0 Gold Plated DisplayPort Gold Plated USB DAC-UP GbE LAN   Gold Plated Audio Jacks   PS/2 port Gold Plated Coaxial Gold Plated HDMI   USB 3.0   OP-AMP Audio Output       Optical Digital Audio Output

G1.Sniper A88X Specifications         CPU support   AMD FM2+/FM2 A-series processors CPU socket   FM2+ socket Chipset   AMD A88X chipset Graphics Interface   1*PCIE 3.0* / 2.0 x16 slot Display Interface   HDMI, Dual-link DVI, D-Sub Memory Type   2 Channel DDR3 Memory DIMM   4*DDR3 Expansion slots   1*PCIE x4 + 3*PCIE x1 + 2*PCI slots SATA connectors   8*SATA3 USB   4*USB 3.0 + 9*USB 2.0 Audio / LAN   8-Channel HD / GbE LAN Form Factor(mm)   ATX (305x225)       * Only FM2+ APU supports PCI-E 3.0

USB 2.0 D-Sub USB 3.0   GbE LAN Gold Plated Audio Jacks   PS/2 port Dual-link DVI HDMI Gold Plated USB DAC-UP USB 2.0   OP-AMP Audio Output       Optical Digital Audio Output

GIGABYTE OP-AMP Premium Upgrade Kit * Sold Seperately	3 Different Op-AMPs Included
	OP-AMP A Burr-Brown - OPA2111KP OP-AMP B Linear Technology - LT1358CN8     OP-AMP C Analog Devices - AD827JNZ IC Extractor

▲ Top

Memory support is dependent on memory module compatibility and system OS.

For further product information, please visit our website: www.gigabyte.com

Specifications and images are subject to change without notice.

All trademarks and logos are the properties of their respective holders.

Features and Actual component specifications may vary by model.
