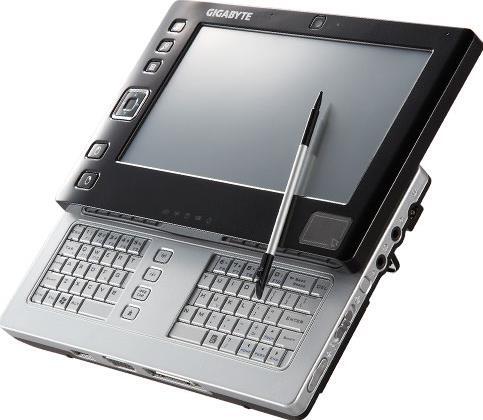

U60
Specifications
- OS
- CPU
- VIA Esther Mobile Technology
VIA Esther ULV C7-M (1.0GHz~1.2GHz, 400/800MHz, 128KB/128KB L2)
Nano BGA2 90nm, 3.5W~7.5W TDP
- Display
- 6.5'' TFT-LCD WVGA, 800x480, with LCD
- System Memory
- DDR2-533 768MB on board and No memory sockets for upgrade
- Chipset
- VIA VX-700 UniChrome Pro II Graphics Integrated Integrated in VIA VX-700 graphics controller UniChrome Pro Core
- Storage
- One 1.8'' 5mm IDE HDD 4200 rpm support Supported capacities of 30/40 GB
- Optical Disk Drive
- External ODD by USB connection External 8/4/8X DVD+/-RW (optional) External 8/4/8/5X Super Multi DVD RW (optional)
- I/O Port
- Media Card Slot (SD/SD-IO) * 1, USB * 2, Audio Jack * 2 (Mic-in and Headphone out) , VGA * 1, DC-in *1
- Communications
- LAN: Ethernet 10/100 Base T support by docking station
Wireless LAN: Support USB I/F, 802.11b+g WLAN band antenna
- Security
- Kensington lock hole
- Battery
- Li-Ion 2 cells,3.9Ah, Battery life 4 hrs
- Dimensions (W x D x H)
- Dimensions: 190(W)x120.8(D)x28.3(H)mm , ~740g (with 6.5'' WTFT LCD, 2-cells)
- OS
- CPU
- VIA Esther Mobile Technology
VIA Esther ULV C7-M (1.0GHz~1.2GHz, 400/800MHz, 128KB/128KB L2)
Nano BGA2 90nm, 3.5W~7.5W TDP
- Display
- 6.5'' TFT-LCD WVGA, 800x480, with LCD
- System Memory
- DDR2-533 768MB on board and No memory sockets for upgrade
- Chipset
- VIA VX-700 UniChrome Pro II Graphics Integrated Integrated in VIA VX-700 graphics controller UniChrome Pro Core
- Storage
- One 1.8'' 5mm IDE HDD 4200 rpm support Supported capacities of 30/40 GB
- Optical Disk Drive
- External ODD by USB connection External 8/4/8X DVD+/-RW (optional) External 8/4/8/5X Super Multi DVD RW (optional)
- I/O Port
- Media Card Slot (SD/SD-IO) * 1, USB * 2, Audio Jack * 2 (Mic-in and Headphone out) , VGA * 1, DC-in *1
- Communications
- LAN: Ethernet 10/100 Base T support by docking station
Wireless LAN: Support USB I/F, 802.11b+g WLAN band antenna
- Security
- Kensington lock hole
- Battery
- Li-Ion 2 cells,3.9Ah, Battery life 4 hrs
- Dimensions (W x D x H)
- Dimensions: 190(W)x120.8(D)x28.3(H)mm , ~740g (with 6.5'' WTFT LCD, 2-cells)
