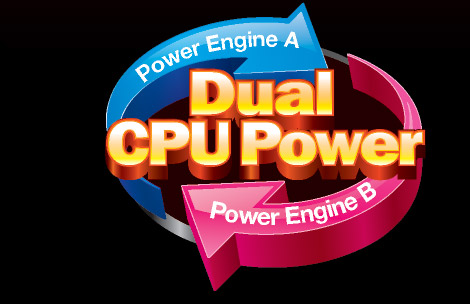

Imagine a workstation class redundant (duplicated) power design on a desktop motherboard! GIGABYTE’s proprietary Dual Power Switching Technology allows CPU VRM power phases to split* evenly into 2 sets of power engines that operate in tandem. This allows 1 set of power phases to rest while the other is active as opposed to a traditional power design where all the power phases are always active. So GIGABYTE Dual CPU Power effectively halves the amount of work done by each set of power phases to significantly increase motherboard durability and reliability. |
|
 |
 |
Power Phase Boost with Multi-Gear Switching |
|
GIGABYTE X58A-OC motherboard also features Power Phase Boost with Multi-Gear Switching.** This operates both when Dual Power Switching is active and when it is not.
|
|
Normal Loading

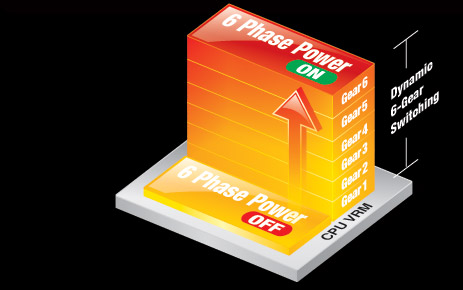

6 Power Phases are active
with Dynamic 6-Gear Switching |
|
Heavy Loading

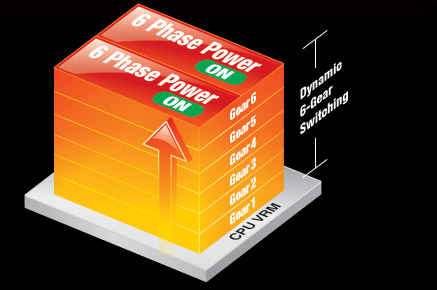

Full 12 Power Phases are active
with Dynamic 6-Gear Switching |
|
 |
 |
**Multi-Gear Switching requires system to enable GIGABYTE Dynamic Energy Saver program.
The number of power phases for each Gear switching may vary between models. |
|
|
Benefits of 2x Copper PCB
．Cooler than traditional motherboards
．Enhanced durability
．Improved energy efficiency
．Greater margins for overclocking |
|
| 2x Copper PCB |
Traditional |
| |
|
PCB layer cross-section image, magnified 200x
|
|
Lower
Temperature |
Better
Overclocking |
Better Power
Effciency |
2x Lower
Impedance |
Lower EMI |
Better ESD
Protection |
|
PCB (Printed Circuit Board)
2x copper PCB = 2 oz copper PCB = weight of copper layer
30.48 cm x 30.48 cm (1 square foot) PCB is 56.7 g (2 oz) |
|
|
|

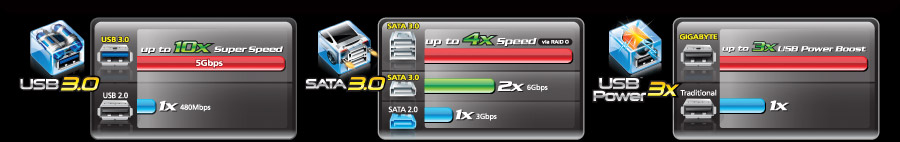

GIGABYTE 333 Onboard Acceleration motherboards set a new standard in high performance computing by incorporating all the industry's latest high-speed data transfer technologies. Proving once again to be the true Leader in Motherboard Innovation, the GIGABYTE 333 Onboard Acceleration delivers unparallel performance with onboard integration of the latest SuperSpeed USB 3.0 technologies, SATA Revision 3.0 (6Gbps) technologies, and an unprecedented 3x USB power boost on all USB ports for the most power hungry USB devices. |
|
 |
 |
| |
USB 3.0 10x performance is a maximum theoretical value.
Actual performance may vary by system configuration. |
|
SATA3 RAID 0 4x and SATA3 2x performance are
maximum theoretical values. Actual performance
may vary by system configuration. |
|
3x USB power is a maximum theoretical value.
Actual performance may vary by system configuration. |
|
|
GIGABYTE On/Off Charge technology allows you to charge your iPhone, iPad and iPod Touch regardless of whether your PC is on, in standby mode or even off. A derivative of GIGABYTE's highly acclaimed 3x USB Power feature, On/Off Charge enables devices to draw more current from GIGABYTE motherboard USB ports than standard USB ports allow, so that charging from your PC can be as fast as with a charger. |
|
 |
 |
Quick Charge Your iPhone Anytime
Quick Charge for iPhone / iPad / iPod touch |
|
|
Working |
Standby |
Suspend
to RAM |
Suspend
to DISK |
Shutdown |
Charge time
(Lower is Better) |
(S0) |
(S1) |
(S3) |
(S4) |
(S5) |
| |
GIGABYTE
ON/OFF
Charge |
YES |
YES |
YES |
YES* |
YES* |
|
Up to
40% Faster |
| |
Traditional
Design |
No |
No |
No |
No |
No |
|
|
On/Off Charge USB Port |
*Due to certain mobile phone limitations, users may need to connect the mobile phone to their PC before the PC enters S4/S5 mode to enable a quick charge from non ON/OFF Charge USB ports.
Charging results may vary by model.
|
|
 |
|
|
|
