| Additional GIGABYTE Features |
|
| GIGABYTE 333™ Onboard Acceleration
|
GIGABYTE X79 series motherboards feature GIGABYTE 333™ Onboard Acceleration , a range of the latest technologies that are designed help speed up data transfer, including SuperSpeed USB 3.0 technology, SATA Revision 3.0 (6Gbps) technology and an unprecedented 3x USB power boost on all USB ports for more power hungry USB devices. |
| |
 |
|
|
|
| |
＊3x USB power is a maximum theoretical value. Actual performance may vary by system configuration. |
|
＊USB 3.0 10x performance is a maximum theoretical value. Actual performance may vary by system configuration. |
|
＊SATA3 RAID 0 4x and SATA3 2x performance are maximum theoretical values. Actual performance may vary by system configuration. |
|
| |
| |
| One Fuse Per USB Port |
GIGABYTE One Fuse per USB Port Design |
|
| |
Traditional One Fuse Design for
Multi-USB Ports |
| |
|
| |
|
|
|
| |
| |
| GIGABYTE Ultra Durable™ 3
|
GIGABYTE X79 motherboards are equipped with the highest quality components that guarantee lower system temperatures, improved energy efficiency and enhanced stability for overclocking. GIGABYTE Ultra Durable™ 3 design features 2 ounces of copper for both the power and ground layers which dramatically lower system temperature. GIGABYTE's Ultra Durable™ 3 also features Japanese made solid capacitors (including POScaps on the UD7 and UD5), PowerPAK MOSFETs and Ferrite Chokes which combine to offer lower motherboard temperatures, less wasted power and extended product longevity. |
| |
 |
|

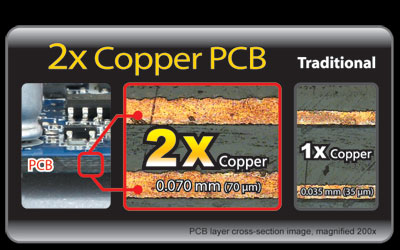

PCB (Printed Circuit Board)
2x copper PCB = 2 oz copper PCB = weight of copper layer
30.48 cm x 30.48 cm (1 square foot) PCB is 56.7 g (2 oz) |
|
| Copper Layer |
Thickness |
| 2x copper |
0.070mm (70 µm) |
| 1x copper |
0.035mm (35 µm) |
|
|
|
| |
 |
Lower
Temperature |
Better
Overclocking |
Better Power
Effciency |
2x Lower
Impedance |
Lower EMI |
Better ESD
Protection |
|
| |
| |
| GIGABYTE On/Off Charge™
|
GIGABYTE X79 series motherboards feature ON/OFF Charge™, a unique GIGABYTE technology which allows you not only to charge your iPhone, iPad or iPod Touch, but also allows you to Quick Charge it. As an added bonus, it can even be charged when your PC is turned off, so even if you forget to plug it into your charger after you've synced up your music, it will be fully charged when you need it.
|
| Quick Charge Your iPhone Anytime |
|
| |
Quick Charge for iPhone / iPad / iPod touch |
ON/OFF
Charge
USB Port |
|
 |
|
Working |
Standby
|
Suspend
to RAM |
Suspend
to DISK |
Shutdown |
Charge time
(Lower is Better) |
|
(S0) |
(S1) |
(S3) |
(S4) |
(S5) |
|
Yes |
Yes |
Yes |
Yes* |
Yes* |
|
|
No |
No |
No |
No |
No |
|
|
| |
| |
* Due to certain mobile phone limitations, users may need to connect the mobile phone to their PC before the PC enters S4/S5 mode to enable a quick charge from non ON/OFF Charge USB ports.
Charging results may vary by model. |
|
|
|
| |
| |
