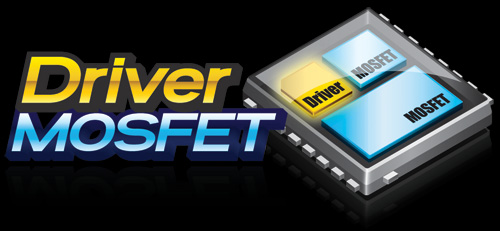

Driver MOSFET : Integration of VRM Components


A traditional Voltage Regulator Module (VRM) consists of a Choke, Capacitors, MOSFETs and a Driver IC. By incorporating the MOSFETs and driver IC in accordance with the Driver-MOSFET specification, we can achieve higher power transfer and increased efficiency at higher switching frequencies to satisfy the growing power requirements of today’s processors. Driver-MOSFETs also help to reduce VRM real estate requirements in the CPU zone.


Discrete PowerMOS x 2
Driver IC x 1		 Mounting area
reduced by
50% !

Traditional MOSFET + Driver IC
Driver MOSFET

    Power Efficiency
 Power Efficiency

  Driver-MOSFETs are able to achieve higher power transfer and increased efficiency at higher switching frequencies to satisfy the growing power requirements of today's processors.
        Driver-MOSFET         Traditional MOSFET
Benefits of GIGABYTE's Ultra Durable 3 with Driver MOSFETs

GIGABYTE's Ultra Durable 3 with
Driver MOSFETs
Traditional
Design
Energy Efficiency
Good
Poor
Component
Switching
Power Loss
Low
High
Heat Generation
Low
High
Durability
High
Low
