 Models



•  Based on Intel G41 platform

Intel
Model

GA-P41T-D3P
GA-P41T-D3P

GA-G41MT-D3P
GA-G41MT-D3P
GA-G41MT-S2P
GA-G41MT-S2P
CPU Support
Intel Core2 multi core processors
Intel Core2 multi core processors
Intel Core2 multi core processors
CPU Socket
LGA775
LGA775
LGA775
QPI/FSB
1333/1066/800MHz
1333/1066/800MHz
1333/1066/800MHz
Chipset
Intel G41+ICH7
Intel G41+ICH7
Intel G41+ICH7
Onboard Graphics
-
Intel GMA X4500
Intel GMA X4500
Graphics Interface
1*PCI-E x16 slot
1*PCI-E x16 slot
1*PCI-E x16 slot
Memory Type
Dual-Channel DDR3
1066/800
Dual-Channel DDR3
1066/800
Dual-Channel DDR3
1066/800
Memory DIMM
2*DDR3 (Max 8GB)
2*DDR3 (Max 8GB)
2*DDR3 (Max 8GB)
Expansion Slots
3*PCI-Ex1 +3*PCI
2*PCI-Ex1 +1*PCI
2*PCI-Ex1 +1*PCI
ATA connector
4*SATA 3Gb/s +1*PATA
4*SATA 3Gb/s +1*PATA
4*SATA 3Gb/s +1*PATA
SATA RAID
-
-
-
USB
8*USB2.0
8*USB2.0
8*USB2.0
Audio
8-channel HD
8-channel HD
8-channel HD
1394
-
-
-
LAN
GbE LAN
GbE LAN
GbE LAN
Features & Software
On/Off Charge, Ultra Durable 2,
4 phase power,USB 3x power,
All 50000hrs solid capacitors,
108dB SNR Blu-ray, ErP Ready
On/Off Charge, Ultra Durable 2,
4 phase power,USB 3x power,
All 50000hrs solid capacitors,
108dB SNR Blu-ray, ErP Ready

On/Off Charge, Ultra Durable 2,4 phase power,USB 3x power,
50000hrs solid capacitors for CPU VRM
108dB SNR Blu-ray, ErP Ready

Form Factor (mm)
mATX (305x194)
mATX (244x194)
mATX (244x194)
For Intel Platform
*

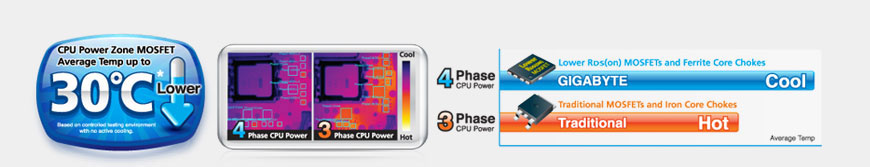

For the most accurate thermal readings, GIGABYTE engineers compared a traditional motherboard (3 phases, iron-core chokes, non Lower RDS(on) MOSFETs) to a GIGABYTE Ultra Durable™2 motherboard with 4 power phases, Ferrite Core Chokes and Lower RDS(on) MOSFETs in a controlled testing environment, where current was supplied to the VRM and temperature readings were taken at various component points.



•  Based on NVIDIA platform

AMD
Model

GA-M52LT-D3P
GA-M52LT-D3P

GA-M68MT-D3P
GA-M68MT-D3P
GA-M68MT-S2P
GA-M68MT-S2P
CPU Support
AMD AM3 PhenomII/ AthlonII CPU
AMD AM3 PhenomII/ AthlonII CPU
AMD AM3 PhenomII/ AthlonII CPU
CPU Socket
AMD Socket AM3
AMD Socket AM3
AMD Socket AM3
QPI/FSB
2000MT/s (HT1.0)
2000MT/s (HT1.0)
2000MT/s (HT1.0)
Chipset
NV nForce 520LE
NV GeForce 7025/ nForce 630a
NV GeForce 7025/ nForce 630a
Onboard Graphics
-
NV CineFX 3.0 (DX9)
NV CineFX 3.0 (DX9)
Graphics Interface
1*PCI-E x16 slot
1*PCI-E x16 slot
1*PCI-E x16 slot
-
RGB port
RGB port
Memory Type
Dual-Channel DDR3
1666+/1333/1066
Dual-Channel DDR3
1333+/1066
Dual-Channel DDR3
1333+/1066
Memory DIMM
4*DDR3 (Max 16GB)
2*DDR3 (Max 8GB)
2*DDR3 (Max 8GB)
Expansion Slots
2*PCI-Ex1 + 4*PCI
2*PCI-Ex1 + 1*PCI
2*PCI-Ex1 + 1*PCI
ATA connector
2*SATA 3Gb/s + 1*PATA
4*SATA 3Gb/s
4*SATA 3Gb/s
SATA RAID
0, 1 (nForce 520LE)
0, 1, 5, 10
(GeForce 7025/ nForce 630a)
0, 1, 5, 10
(GeForce 7025/ nForce 630a)
USB
8*USB2.0
10*USB2.0
10*USB2.0
Audio
8-channel HD
8-channel HD
8-channel HD
1394
-
-
-
LAN
10/100 LAN
GbE LAN
GbE LAN
Features & Software
4+1phase, On/Off Charge, Ultra Durable 2 Classic, USB 3x power, All 50000hrs solid capacitors, 108dB SNR Blu-ray, Auto Green, EasyTune6, ErP Ready
4+1phase, On/Off Charge, Ultra Durable 2 Classic, USB 3x power, All 50000hrs solid capacitors, 108dB SNR Blu-ray, Auto Green, EasyTune6, ErP Ready
4+1phase, On/Off Charge, Ultra Durable 2 Classic, USB 3x power, 50000hrs solid capacitors for CPU VRM, 108dB SNR Blu-ray, Auto Green, EasyTune6, ErP Ready
Form Factor (mm)
ATX (305x216)
mATX (244x206)
mATX (244x206)
For AMD Platform :

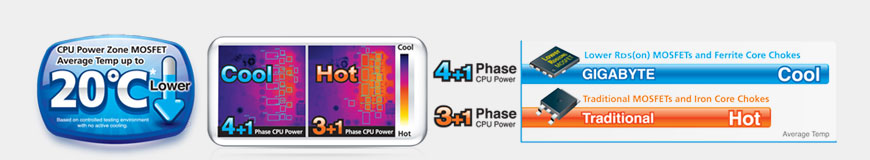

* For the most accurate thermal readings, GIGABYTE engineers compared a traditional motherboard (3+1 phases, non Lower RDS(on) MOSFETs) to a GIGABYTE Ultra Durable™2 motherboard with 4+1 power phases and Lower RDS(on) MOSFETs in a controlled testing environment, where current was supplied to the VRM and temperature readings were taken at various component points.
