Z68 Chipset
|
X58 Chipset

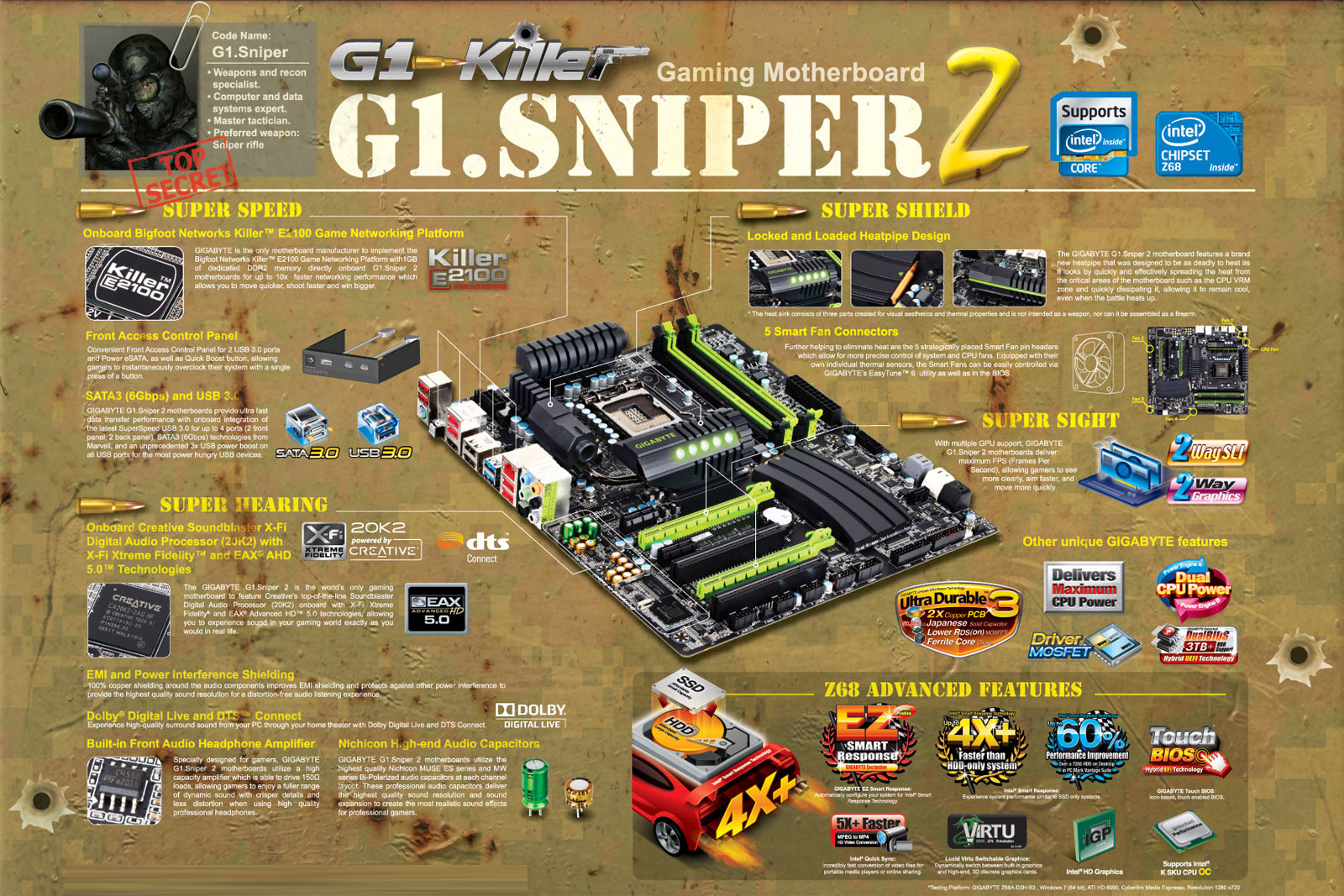

  Z68 Chipset


Profile






Code Name:
G1.Sniper


Model


CPU Support
2nd Generation Intel® Core Processors

CPU Socket
LGA1155

Chipset
Intel Z68 chipset

Onboard Graphics
Intel HD Graphics 2000/3000

Graphics Interface
2*PCI-E 2.0 x16 slot
(x16, x8)/ HDMI

Memory Type
Dual Channel 2133/1333/1066

Memory DIMM
4*DDR3 (Max 32 GB)

Expansion Slots
2*PCI-Ex1+ 2*PCI

SATA RAID
RAID 0,1,5,10, JBOD

SATA connector
4* SATA 6Gb/s+3* SATA
3Gb/s+1*eSATA 3Gb/s

USB
4*USB 3.0 +14*USB 2.0

Audio
Creative HW audio 20K2

Front audio headphone amplifier

Nichicon MUSE capacitor

LAN
Bigfoot Killer 2100

TPM
Onboard LPC pin header for
Infineon TPM module

Features&Software
Touch BIOS,EZ Smart Response, Intel Smart Response, Lucid Virtu,8 power phase,Ultra Durable 3, On/off Charge, Smart 6, 2 way CrossFireX/SLI,Driver MOSFET,X-Fi,EAX

Form Factor (mm)
ATX (305x264)



  X58 Chipset
Profile



Code Name:
G1.Assassin

Code Name:

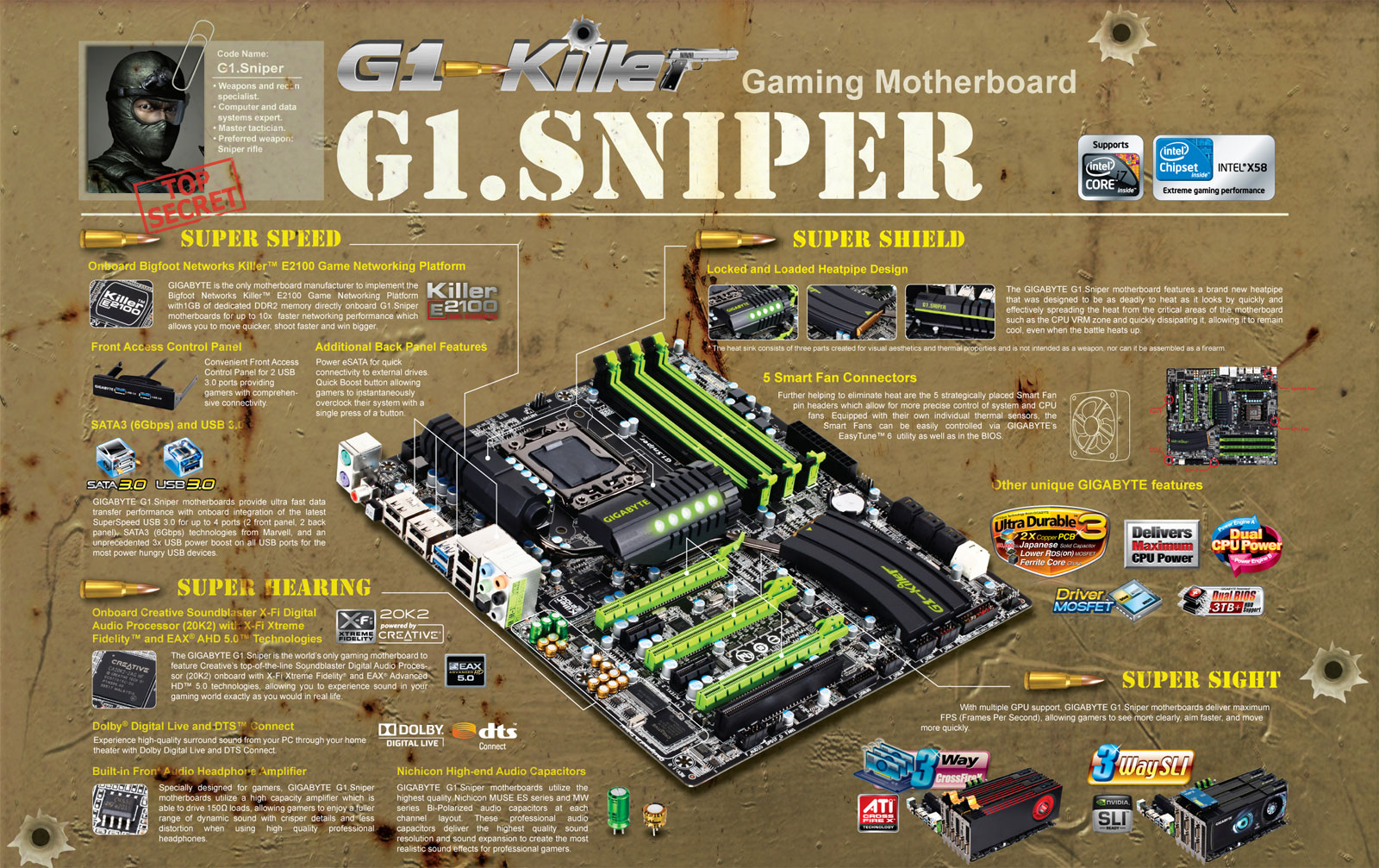

G1.Sniper

Code Name:

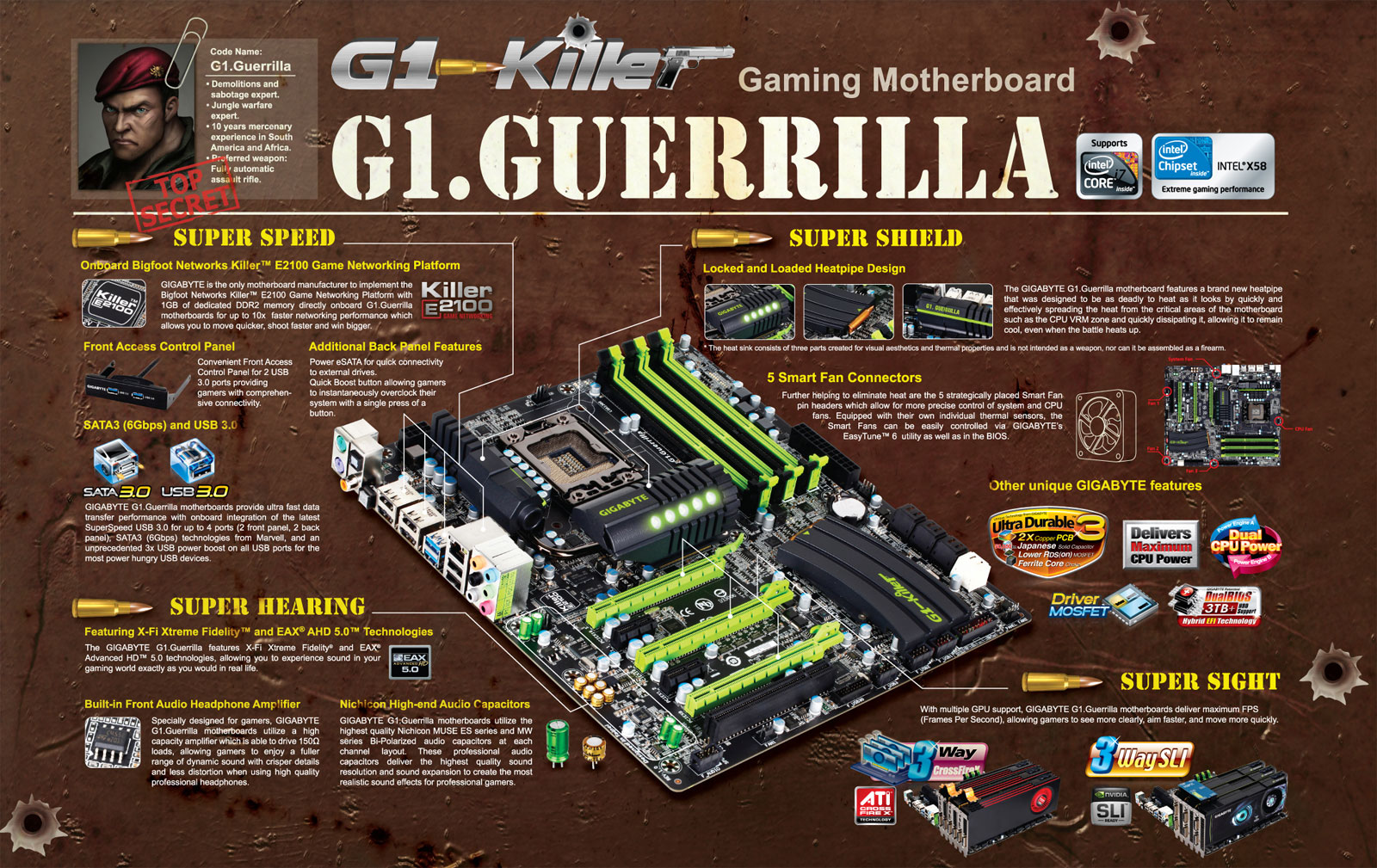

G1.Guerrilla
Model
G1.Assassin




CPU Support
Intel® Core™ i7 Processors
Intel® Core™ i7 Processors
Intel® Core™ i7 Processors
CPU Socket
LGA1366
LGA1366
LGA1366
QPI/FSB
4.8GT/s, 6.4GT/s
4.8GT/s, 6.4GT/s
4.8GT/s, 6.4GT/s
Chipset
X58+ICH10R
X58+ICH10R
X58+ICH10R
Graphics Interface
4*PCI-E 2.0 x16 slot  (2x16, 2x8)
3*PCI-E 2.0 x16 slot  (2x16, 1x8)
3*PCI-E 2.0 x16 slot  (2x16, 1x8)
Memory Type
3 Channel DDR3 2200/1600/1333MHz
3 Channel DDR3 2200/1600/1333MHz
3 Channel DDR3 2200/1600/1333MHz
Memory DIMM
6*DDR3 (Max 24 GB)
6*DDR3 (Max 24 GB)
6*DDR3 (Max 24 GB)
Expansion Slots
2*PCI-Ex1+ 1*PCI
2*PCI-Ex1+ 1*PCI
2*PCI-Ex1+ 1*PCI
SATA connector
2* SATA 6Gb/s+6* SATA 3Gb/s+ 1*Power eSATA (front bezel)
2* SATA 6Gb/s+6* SATA 3Gb/s+2*eSATA 3Gb/s
2* SATA 6Gb/s+6* SATA 3Gb/s+2*eSATA 3Gb/s
SATA RAID
RAID 0,1,5,10, JBOD
RAID 0,1,5,10, JBOD
RAID 0,1,5,10, JBOD
USB 3.0
8 (4 front, 4 rear)
4 (2 front, 2 rear)
4 (2 front, 2 rear)
USB 2.0
8 (4 front, 4 rear)
12 (6 front, 6 rear)
12 (6 front, 6 rear)
Audio
Creative HW audio 20K2
Creative HW audio 20K2
Realtek ALC 889
Front audio headphone amplifier
Front audio headphone amplifier
Front audio headphone amplifier
Nichicon MUSE capacitor
Nichicon MUSE capacitor
Nichicon MUSE capacitor
LAN
Bigfoot Killer™ 2100
Bigfoot Killer™ 2100
Bigfoot Killer™ 2100
HW OC botton
Yes (front bezel)
Yes (rear panel)
Yes (rear panel)
Features & Software
16 power phase, Dual Power, 3 way SLI™, 4 way CrossFire™ X, Driver MOSFET, X-Fi, EAX, Dolby, DTS, 3TB+ HDD,On/Off charge, USB 3.0,USB 3x power, Smart6, UD3,DES2
8 power phase, Dual Power, 3 way SLI™,
3 way CrossFire™ X,Driver MOSFET, X-Fi, EAX, Dolby, DTS,3TB+ HDD, On/Off charge,
USB 3.0, USB 3x power, Smart6, UD3,DES2
8 power phase, Dual Power, 3 way SLI™,
3 way CrossFire™ X,Driver MOSFET, X-Fi,
3TB+ HDD, On/Off charge,USB 3.0,
USB 3x power,Smart6, UD3,DES2
Form Factor (mm)
XL-ATX (345x262)
ATX (305x264)
ATX (305x263)
*Product features may vary by model. *The specifications and pictures are subject to change without notice.
*Motherboard models may vary based on local distribution.
*Please refer to GIGABYTE website for CPU support information.
