- Basado en la plataforma G41
|
 |
|
| Intel |
| Modelo |
|
|
|
| CPU |
Intel Core2 multi core processors |
Intel Core2 multi core processors |
Intel Core2 multi
core processors |
| Socket |
LGA775 |
LGA775 |
LGA775 |
| QPI/FSB |
1333/1066/800MHz |
1333/1066/800MHz |
1333/1066/800MHz |
| Chipset |
Intel G41+ICH7 |
Intel G41+ICH7 |
Intel G41+ICH7 |
| Video Integrado |
- |
Intel GMA X4500 |
Intel GMA X4500 |
| Interfaz Gráfica |
1*PCI-E x16 slot |
1*PCI-E x16 slot |
1*PCI-E x16 slot |
| Tipo de Memoria |
Dual-Channel DDR3
1066/800 |
Dual-Channel DDR3
1066/800 |
Dual-Channel DDR3
1066/800 |
| DIMM |
2*DDR3 (Max 8GB) |
2*DDR3 (Max 8GB) |
2*DDR3 (Max 8GB) |
| Puertos de Expansión |
3*PCI-Ex1 +3*PCI |
2*PCI-Ex1 +1*PCI |
2*PCI-Ex1 +1*PCI |
| Conector ATA |
4*SATA 3Gb/s +1*PATA |
4*SATA 3Gb/s |
4*SATA 3Gb/s |
| SATA RAID |
- |
- |
- |
| USB |
8*USB2.0 |
8*USB2.0 |
8*USB2.0 |
| Audio |
8-channel HD |
8-channel HD |
8-channel HD |
| 1394 |
- |
- |
- |
| LAN |
GbE LAN |
GbE LAN |
GbE LAN |
| Características y Software |
On/Off Charge, Ultra Durable 2,
4 phase power,USB 3x power,
All 50000hrs solid capacitors,
108dB SNR Blu-ray, ErP Ready |
On/Off Charge, Ultra Durable 2,
4 phase power,USB 3x power,
All 50000hrs solid capacitors,
108dB SNR Blu-ray, ErP Ready |
On/Off Charge, Ultra Durable 2,4 phase power,USB 3x power,
50000hrs solid capacitors for CPU VRM
108dB SNR Blu-ray, ErP Ready
|
| Tamaño (mm) |
mATX (305x194) |
mATX (244x194) |
mATX (244x194) |
| Intel |
| Modelo |
|
|
|
| CPU |
Intel Core2 multi core processors |
Intel Core2 multi core processors |
| Socket |
LGA775 |
LGA775 |
| QPI/FSB |
1333/1066/800MHz |
1333/1066/800MHz |
| Chipset |
Intel G41+ICH7 |
Intel G41+ICH7 |
| Video Integrado |
Intel GMA X4500 |
Intel GMA X4500 |
| Interfaz Gráfica |
1*PCI-E x16 slot |
1*PCI-E x16 slot |
| Tipo de Memoria |
Dual-Channel DDR3
1066/800 |
Dual-Channel DDR3
1066/800 |
| DIMM |
2*DDR3 (Max 8GB) |
2*DDR3 (Max 8GB) |
| Puertos de Expansión |
2*PCI-Ex1 +1*PCI |
2*PCI-Ex1 +1*PCI |
| Conector ATA |
4*SATA 3Gb/s |
4*SATA 3Gb/s +1*PATA |
| SATA RAID |
- |
- |
| USB |
8*USB2.0 |
8*USB2.0 |
| Audio |
8-channel HD |
8-channel HD |
| 1394 |
- |
- |
| LAN |
GbE LAN |
GbE LAN |
| Características y Software |
On/Off Charge, Ultra Durable 2,
4 phase power,USB 3x power,
All 50000hrs solid capacitors,
108dB SNR Blu-ray, ErP Ready |
On/Off Charge, Ultra Durable 2,
4 phase power,USB 3x power,
All 50000hrs solid capacitors,
108dB SNR Blu-ray, ErP Ready |
| Tamaño (mm) |
mATX (244x194) |
mATX (244x194) |
|
Para la Plataforma Intel

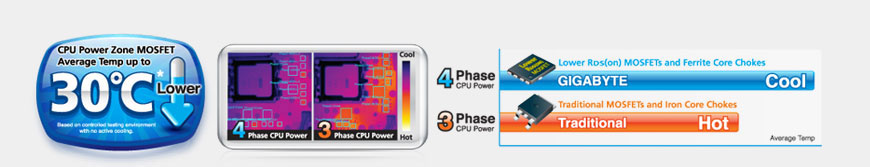

* Para lecturas más precisas de la temperatura, los ingenieros de GIGABYTE comparan una motherboard tradicional (3 fases, choques de hierro, MOSFETs comunes) con una motherboard Ultra Durable™2 de GIGABYTE con 4 fases de poder, Choques con Núcleo de Ferrita y MOSFETs de Bajo RDS(activo) en un ambiente de pruebas controlado, en dónde corriente ha sido proveída al VRM y la temperatura ha sido tomada en varios componentes.
|
|
| |
- Basado en la Plataforma NVIDIA
|
 |
|
|
| AMD |
| Modelo |
|
|
|
| CPU |
AMD AM3 PhenomII/ AthlonII CPU |
AMD AM3 PhenomII/ AthlonII CPU |
AMD AM3 PhenomII/ AthlonII CPU |
Socket |
AMD Socket AM3 |
AMD Socket AM3 |
AMD Socket AM3 |
| QPI/FSB |
2000MT/s (HT1.0) |
2000MT/s (HT1.0) |
2000MT/s (HT1.0) |
| Chipset |
NV nForce 520LE |
NV GeForce 7025/ nForce 630a |
NV GeForce 7025/ nForce 630a |
| Video Integrado |
- |
NV CineFX 3.0 (DX9) |
NV CineFX 3.0 (DX9) |
| Interfaz Gráfica |
1*PCI-E x16 slot |
1*PCI-E x16 slot |
1*PCI-E x16 slot |
- |
RGB port |
RGB port |
| Tipo de Memoria |
Dual-Channel DDR3
1666+/1333/1066 |
Dual-Channel DDR3
1333+/1066 |
Dual-Channel DDR3
1333+/1066 |
| IMM |
4*DDR3 (Max 16GB) |
2*DDR3 (Max 8GB) |
2*DDR3 (Max 8GB) |
| Puertos de Expansión |
2*PCI-Ex1 + 4*PCI |
2*PCI-Ex1 + 1*PCI |
2*PCI-Ex1 + 1*PCI |
| Conector ATA |
2*SATA 3Gb/s + 1*PATA |
4*SATA 3Gb/s |
4*SATA 3Gb/s |
| SATA RAID |
0, 1 (nForce 520LE) |
0, 1, 5, 10
(GeForce 7025/ nForce 630a) |
0, 1, 5, 10
(GeForce 7025/ nForce 630a) |
| USB |
8*USB2.0 |
10*USB2.0 |
10*USB2.0 |
| Audio |
8-channel HD |
8-channel HD |
8-channel HD |
| 1394 |
- |
- |
- |
| LAN |
10/100 LAN |
GbE LAN |
GbE LAN |
| Características y Software |
4+1phase, On/Off Charge, Ultra Durable 2 Classic, USB 3x power, All 50000hrs solid capacitors, 108dB SNR Blu-ray, Auto Green, EasyTune6, ErP Ready |
4+1phase, On/Off Charge, Ultra Durable 2 Classic, USB 3x power, All 50000hrs solid capacitors, 108dB SNR Blu-ray, Auto Green, EasyTune6, ErP Ready |
4+1phase, On/Off Charge, Ultra Durable 2 Classic, USB 3x power, 50000hrs solid capacitors for CPU VRM, 108dB SNR Blu-ray, Auto Green, EasyTune6, ErP Ready |
| Tamaño (mm) |
ATX (305x216) |
mATX (244x206) |
mATX (244x206) |
|
Para la Plataforma AMD :
*

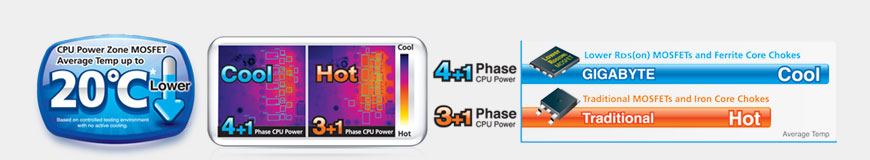

Para lecturas más precisas de la temperatura, los ingenieros de GIGABYTE comparan una motherboard tradicional (3+1 fases, choques de hierro, MOSFETs comunes) con una motherboard Ultra Durable™2 de GIGABYTE con 4+1 fases de poder, Choques con Núcleo de Ferrita y MOSFETs de Bajo RDS(activo) en un ambiente de pruebas controlado, en dónde corriente ha sido proveída al VRM y la temperatura ha sido tomada en varios componentes. |
|
| |
|
