Boost to the SLI extreme

Best 3-way SLI water cooling system powered by GeForce GTX 980 x3

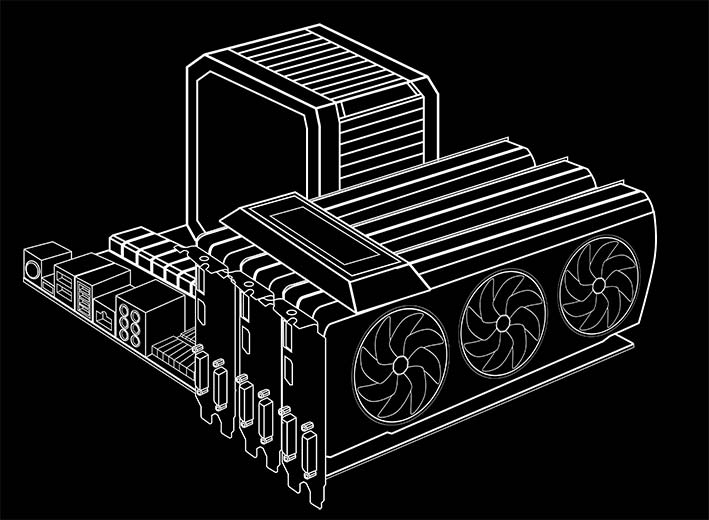

Problems you may face while building a Super PC.

Be caught between noise and temperature.

Space limitation for a watercooling system.

Spend a lot of time and budget, but get no warranty for building your own water cooling system.

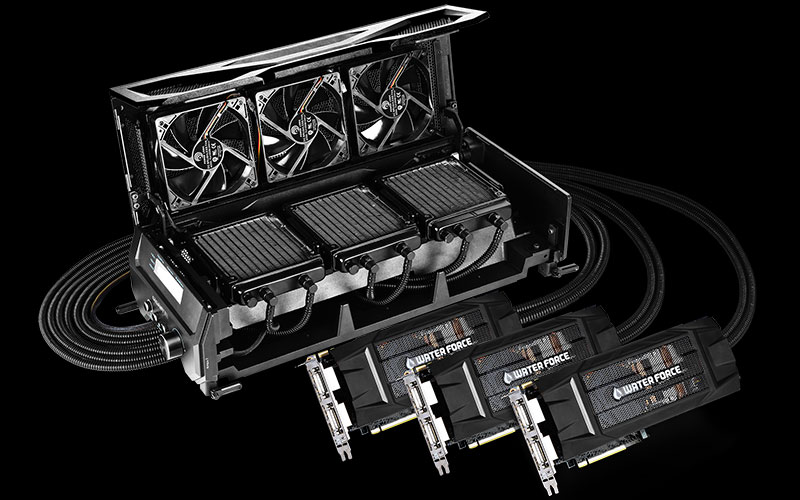

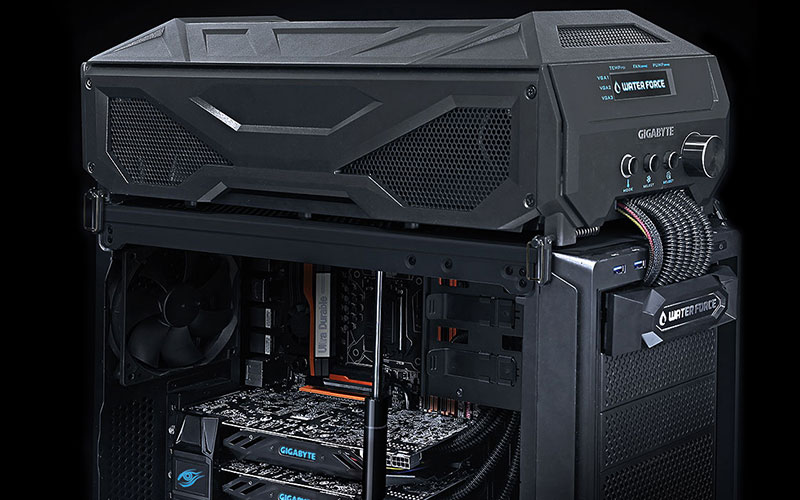

Best 3-Way SLI water cooling system powered by GeForce GTX 980.

The WATERFORCE is specially designed for the gamers who dream about a silent and powerful SUPER PC. No more noise nightmare or harass of uneven temperatures while using multi graphics cards.

View what you'll get.

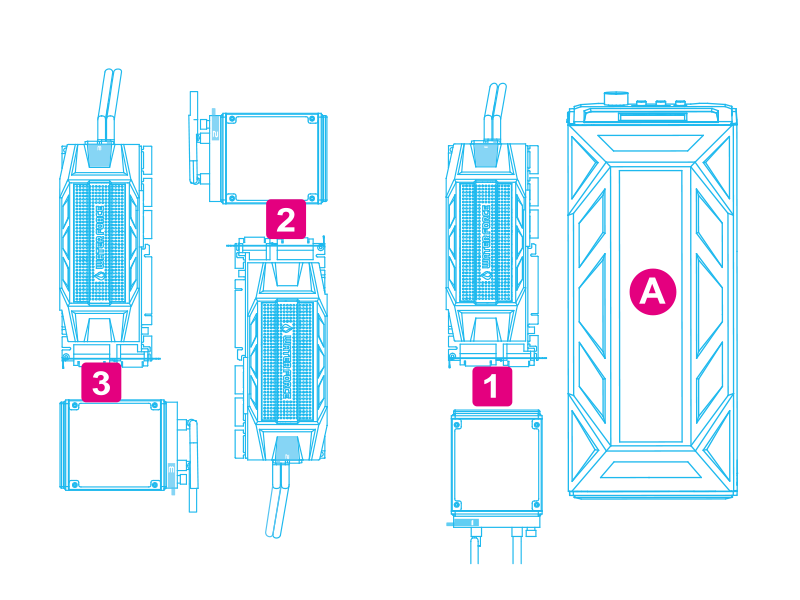

WATERFORCE Premium Pack

the package of the WATERFORCE.

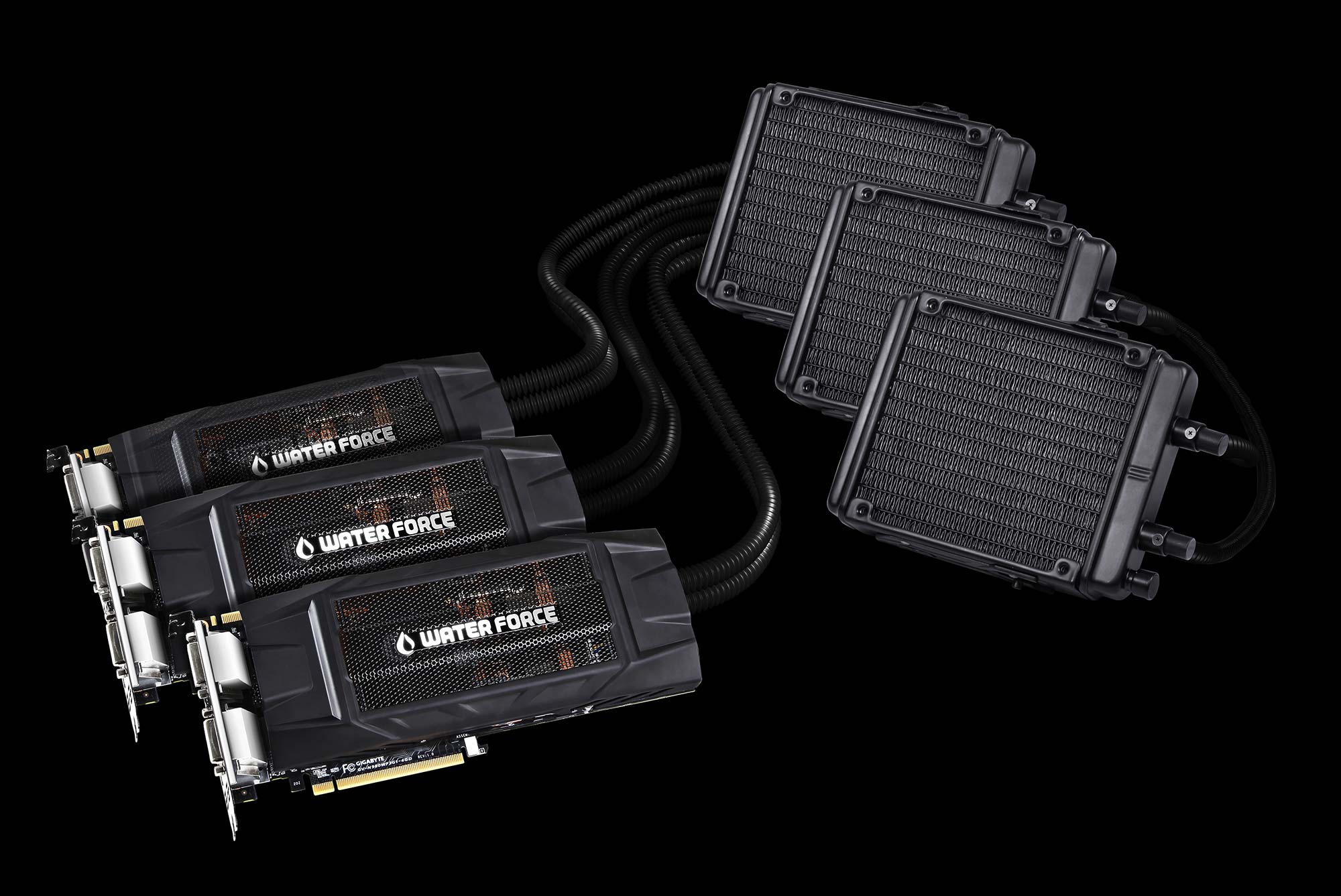

  • 1 Graphics Card 1 + Radiator 1
  • 2 Graphics Card 2 + Radiator 2
  • 3 Graphics Card 3 + Radiator 3

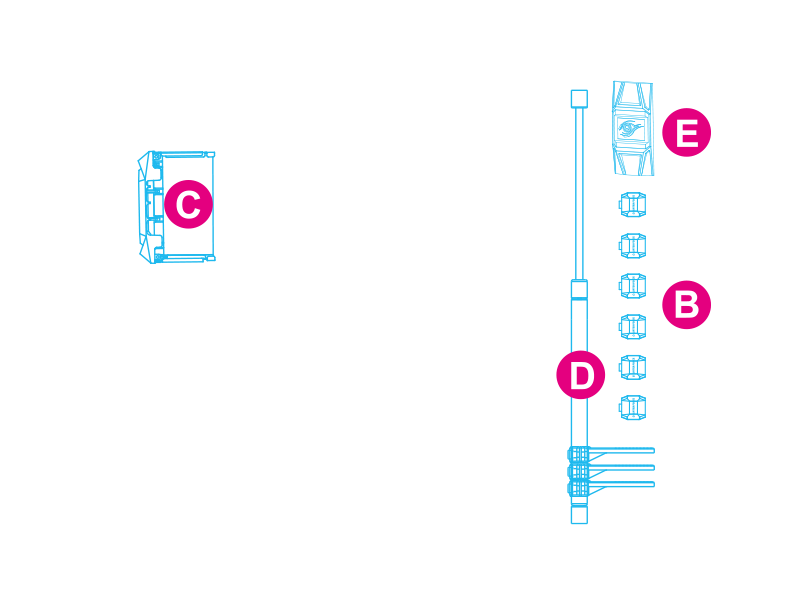

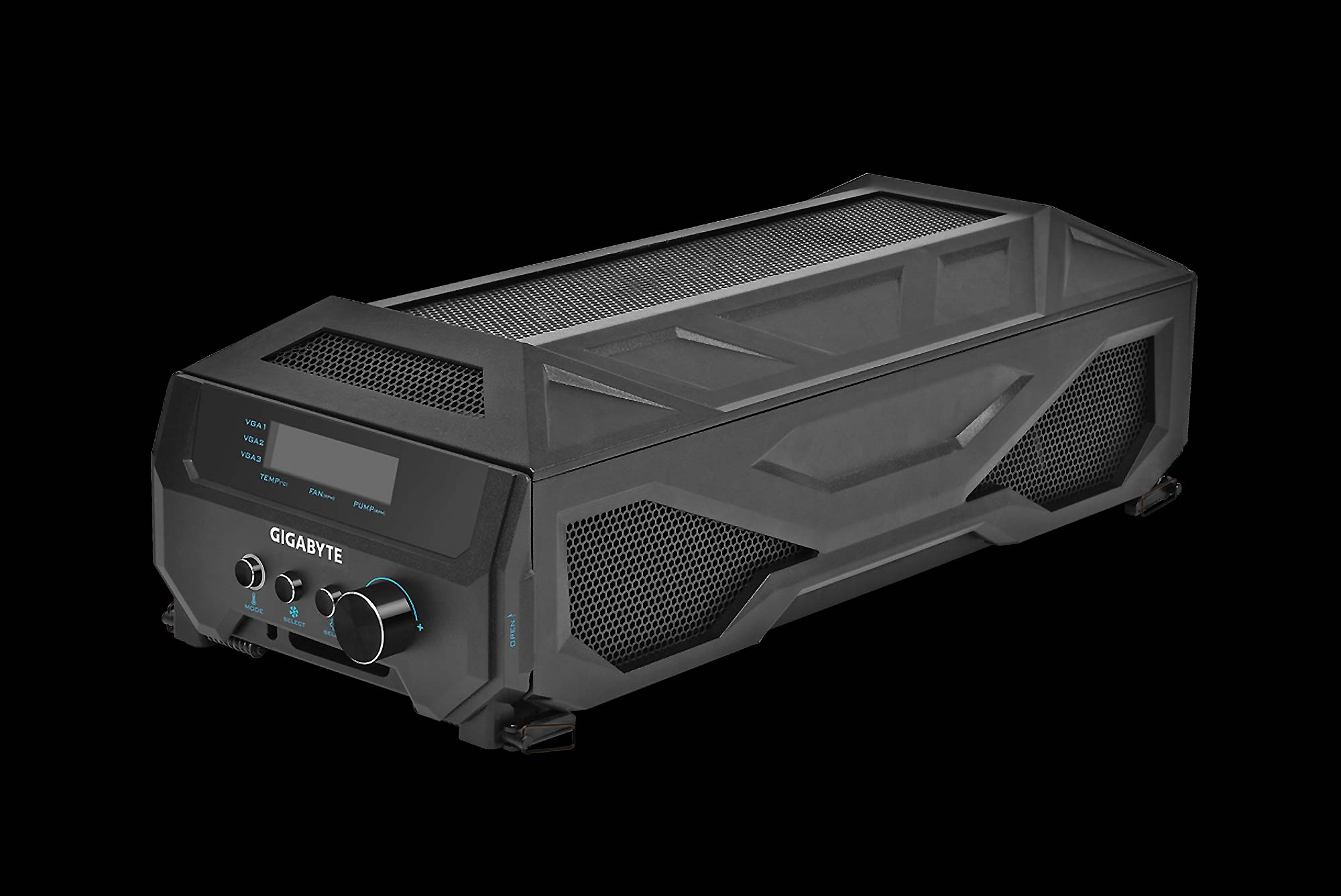

  • A Watercooling Box

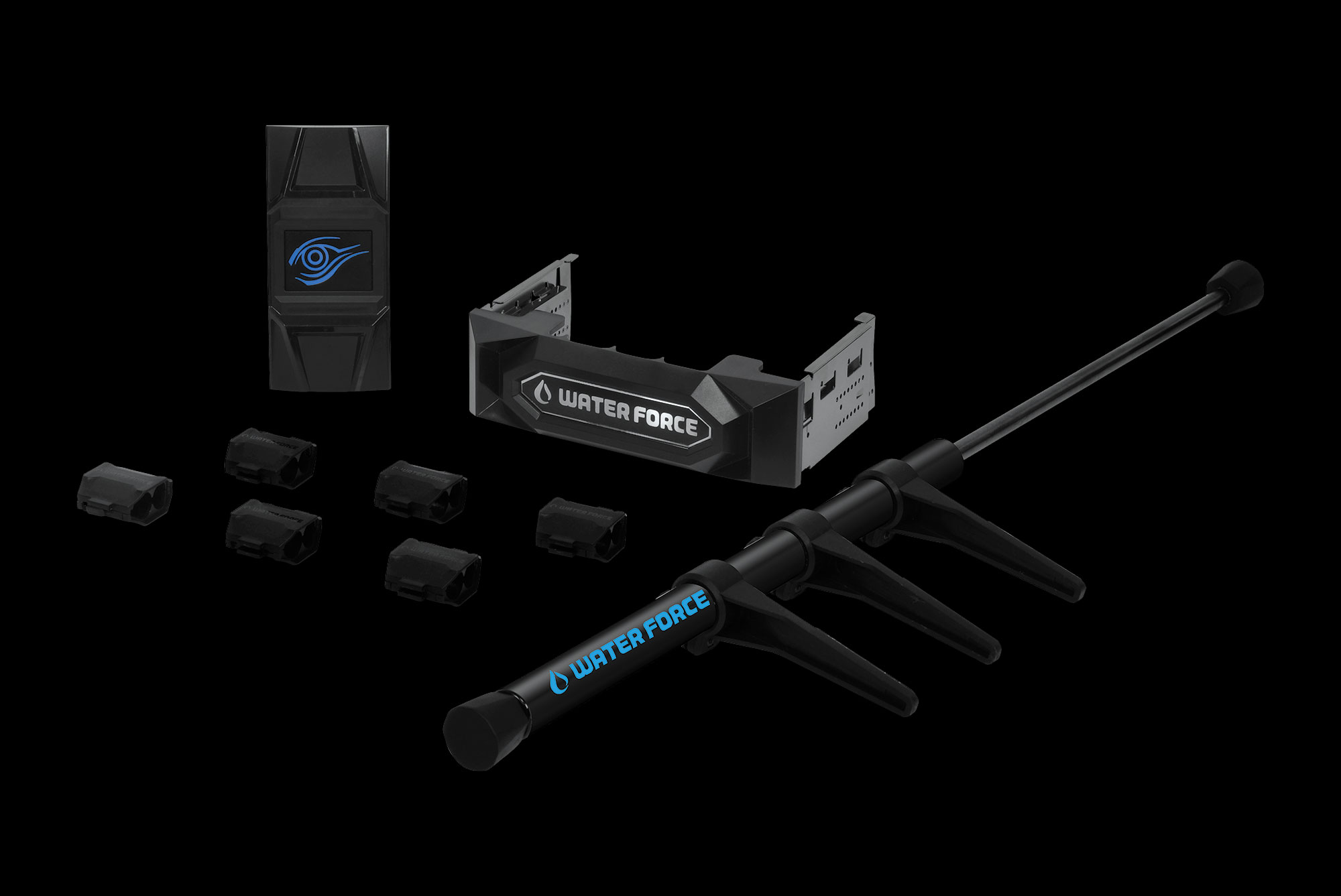

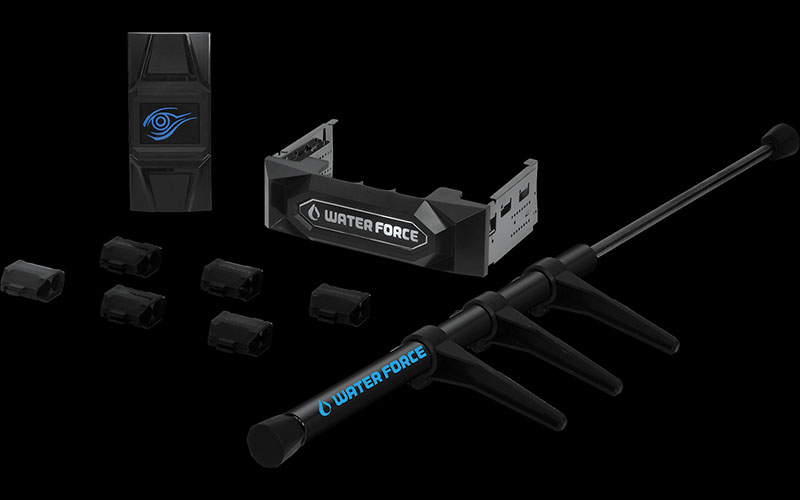

  • B Pipe Clams (Total 6 pcs)
  • C CD-ROM Box
  • D VGA Jack
  • E 3-WAY SLI Bridge
  • F Straps (total 2pcs)

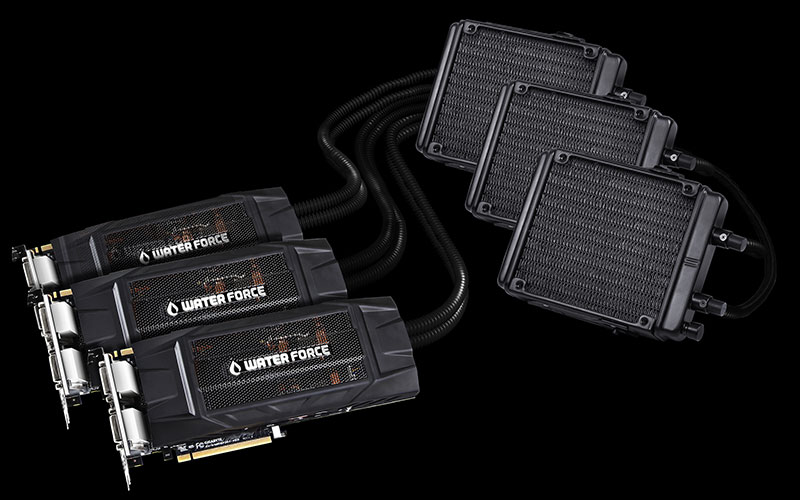

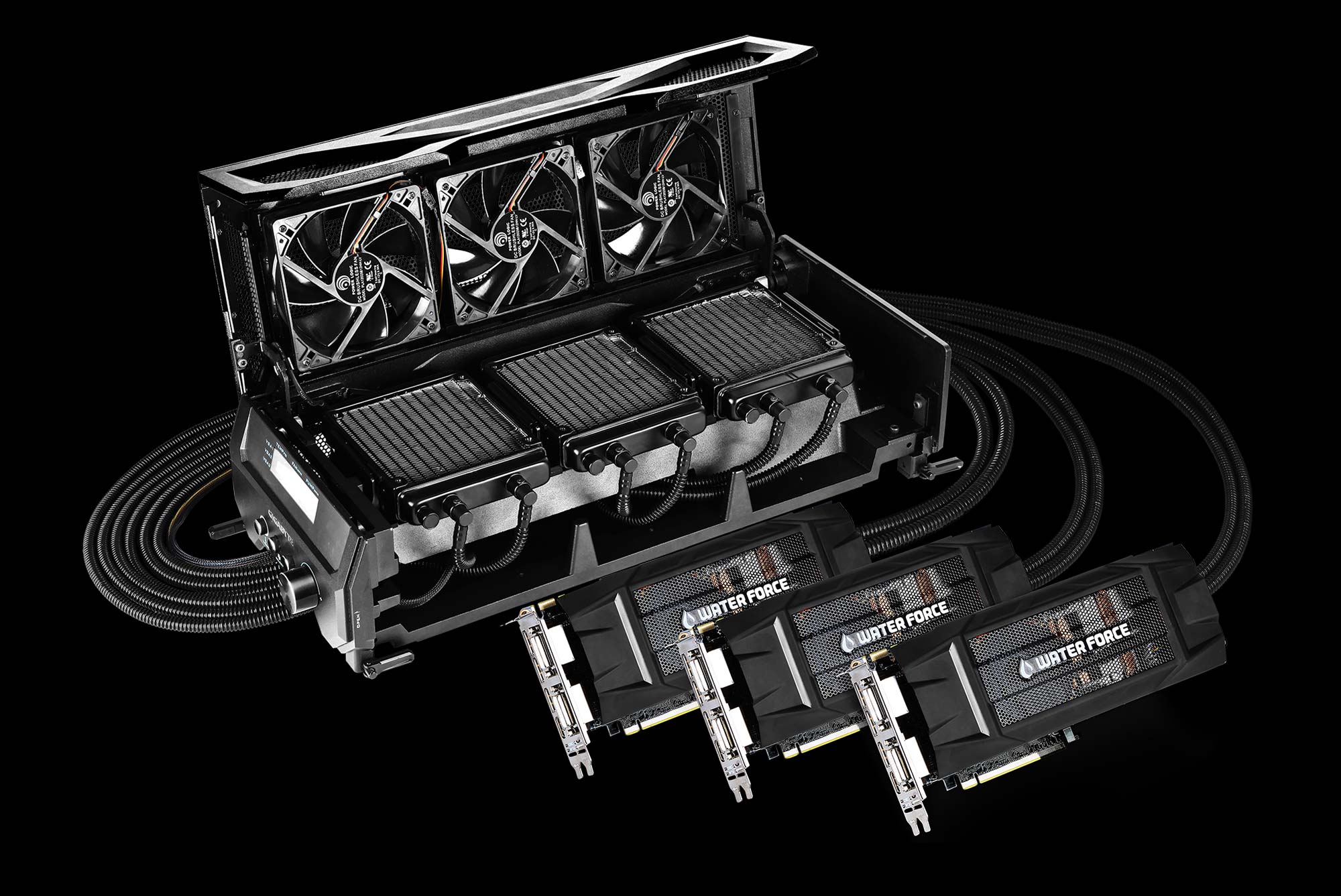

Product Shots

What it looks like.

Real time temperature & speed control

decide how to control your own WATERFORCE.

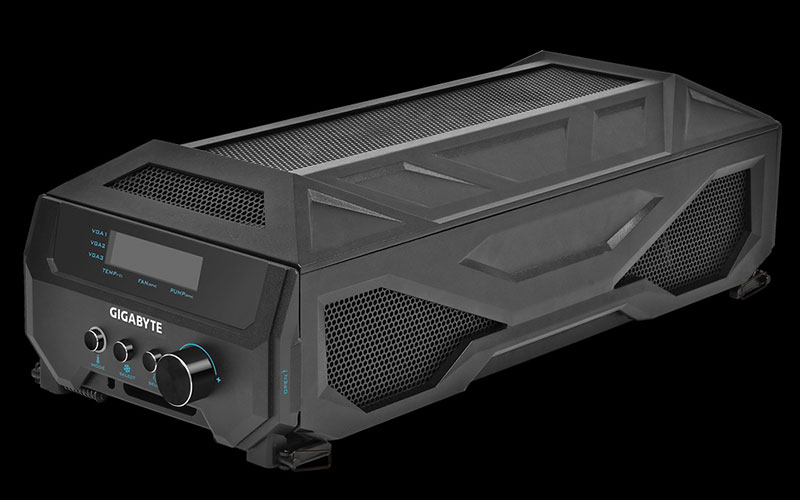

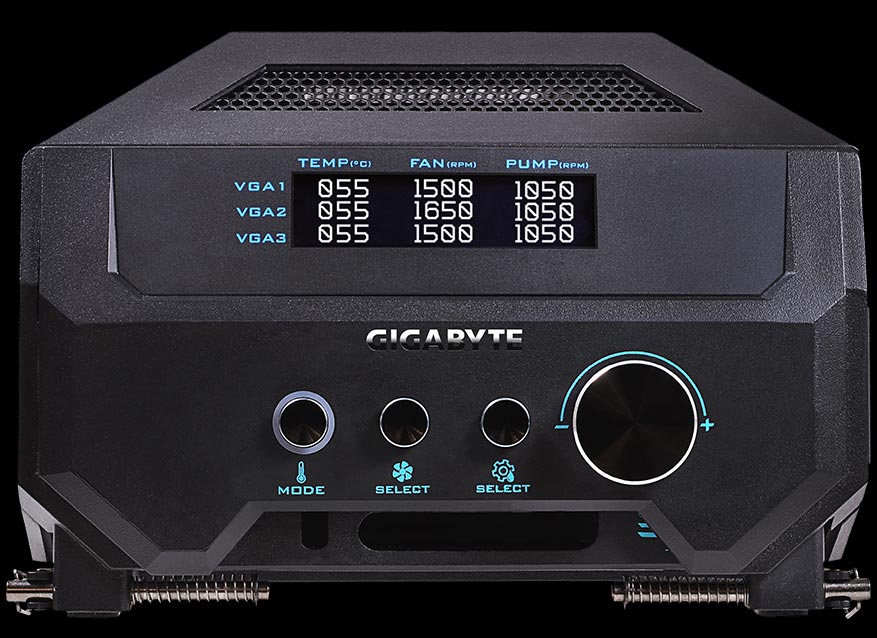

WATERFORCE is designed with an OLED display panel, where gamers can easily monitor and adjust all the settings about the SLI graphics cards in your super PC.

  • Temp (°C):
    Real-Time display each GPU temperature.
  • Fan (rpm):
    Displays each fan speed in the WATERCOOLING BOX.
  • Pump (rpm):
    Displays each pump speed on the graphics card.
How does it perform?
...

Best cooling solution for 3-way SLI

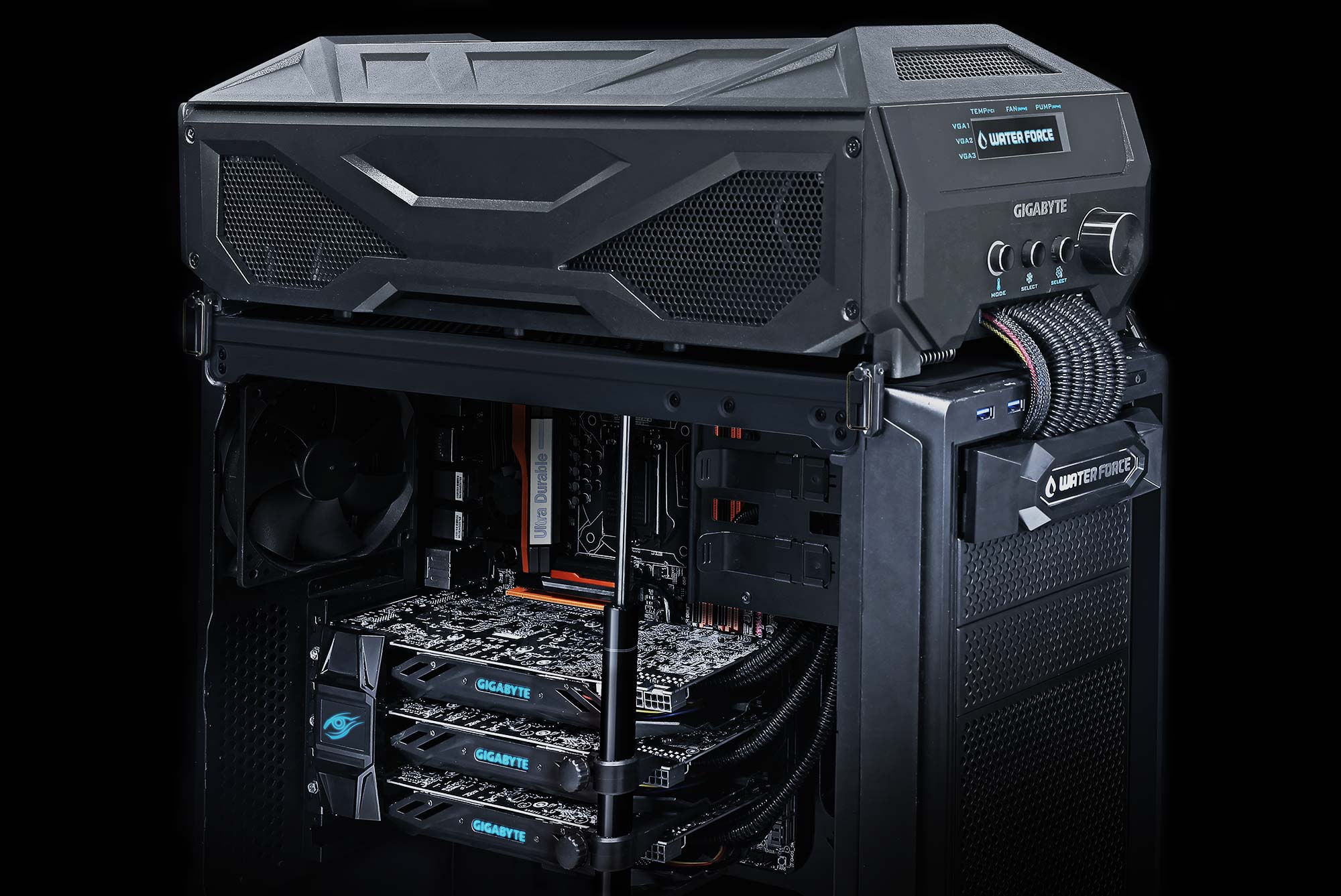

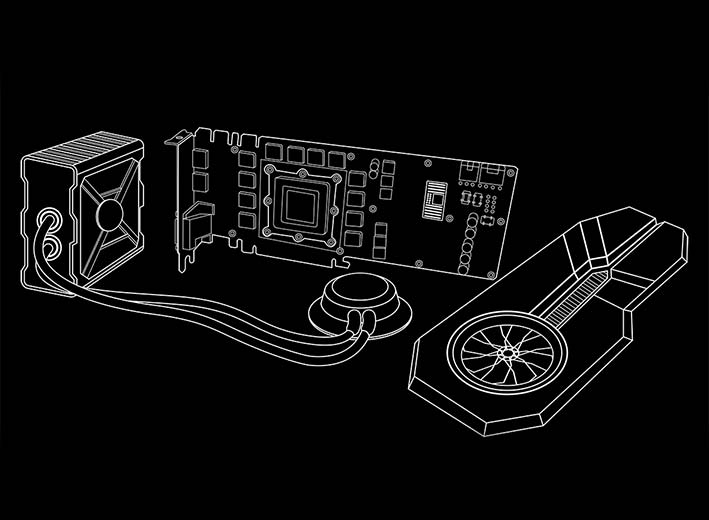

WATERFORCE is an exclusive 3-way SLI closed loop water cooling system. It can dissipate the heat of GPU, memory and MOSFET.

Show me its power!

Excellent temperature control

the power of water.

  • WATERFORCE
  • Reference Air Cooling

Comparing with the 3-way SLI reference cooler, WATERFORCE presents 42.6% lower temperature which means gamers will have an significant better performance while gaming.

42.6% cooler!

How to install & use

Get your WATERFORCE up and running.

Specifications

per single graphics card.

GV-N980X3WA-4GD

3-way SLI Gaming Graphics Cards

GPUGeForce GTX 980
Core Base Clock1228 MHz (ref. 1127)
Core Boost Clock1329 MHz (ref. 1216)
Memory Clock7010 MHz
Memory Size4096MB
Bus TypePCI Express 3.0
Memory Bus256-bit
CUDA Cores2048
Memory TypeGDDR5 128Mx32
DirectX12
OPENGL4.4
DVI Port1*DVI-I / 1*DVI-D
DisplayPort3
HDMI1

#FAQ

Frequently asked questions.

The normal GPU working temperature should be within 30°C to 70°C.
This situation might happen if you did not connect the WATERFORCE panel power properly.
Please power off the PC and check if the WATERFORCE main power cable is connected properly to the power supply module.
  • Step 1: Check if the internal USB cable is connected properly or not.
    Please power off the PC and check if the internal USB cable is connected properly to the motherboard
  • Step 2: Check if the OC GURU II is installed or not.
    Install the OC GURU II from the driver DVD or download it from WATERFORCE product page:
    http://www.gigabyte.com/products/product-page.aspx?pid=5255.
  • Step 1: Check if there is any air dust or object on the water cooling box. Check if you put any objects on the water cooling box. Remove the object to allow the air to circulate.
  • Step 2: Check if the fans in the water cooling box are running properly.
    - If yes, please tune the fan speed by using the control panel.
    - If no, please open the water cooling box and recheck whether the fan power cables are connected properly.
  • Step 3: Turn of the PC and wait for 5 minutes. The situation might also happen because of the pump fault. Try to turn off your PC and turn it back on again after 5 minutes. If the problem persists, please contact GIGABYTE technical support or local service center to help returning the card.
It could be due to problems with the SLI Bridge or the graphics cards. Please contact GIGABYTE technical support or local service center for further assistance.
