GIGABYTE Exclusive Ultra Durable™ Technologies
Durable Black Solid Caps
GIGABYTE 8 Series motherboards integrate the absolute best quality solid state capacitors that are rated to perform at maximum efficiency for extended periods, even in extreme performance configurations. This provides peace of mind for end users who want to push their system hard, yet demand absolute reliability and stability. With ultra-low ESR no matter how high the CPU loading, these exclusive capacitors also come in customized jet black, exclusively on GIGABYTE 8 series motherboards.
“Rated for an unprecedented 10,000 hours of intensive operation at an incredible 105°C” – Nippon Chemi-Con

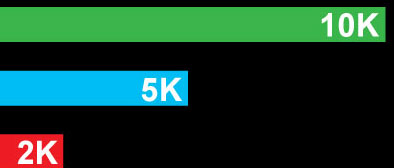

Lifespan
High-End 10K hours Solid Caps
Mainstream 5K hours Solid Caps
Standard 2K hours Solid Caps
Testing result for reference only. Results may differ according to system configuration.




High ESD Protection for USB and LAN

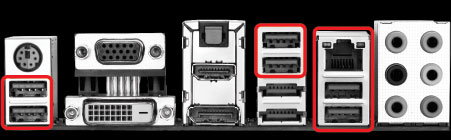

GIGABYTE 8 Series motherboards raise the bar in terms of protecting your system, providing advanced electrostatic discharge (ESD) protection for both your Ethernet LAN and USB ports, both common sources of ESD-related failures. Each LAN and USB port is paired with a dedicated protection filter that can withstand high electrostatic discharges, protecting your system from common electrical surges and even direct lighting strikes.
High ESD
Protection




2x Copper PCB
GIGABYTE’s exclusive 2X Copper PCBs design provides sufficient power trace paths between components to handle greater than normal power loads and to remove heat from the critical CPU power delivery area. This is essential to ensure the motherboard is able to handle the increased power loading that is necessary when overclocking.


2x Copper PCB
   Traditional


PCB layer cross-section image, magnified 200x

PCB (Printed Circuit Board)
2x copper PCB = 2 oz copper PCB = weight of copper layer
30.48 cm x 30.48 cm (1 square foot) PCB is 56.7 g (2 oz)
Copper Layer Thickness
2x copper 0.070mm(70 µm)
1x copper 0.035mm(35 µm)

Lower
Temperature
Better
Overclocking
Better Power
Efficiency
2x Lower
Impedance
Lower EMI
Better ESD
Protection

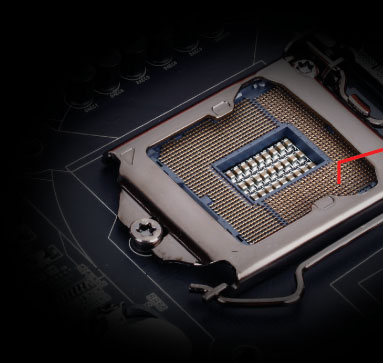

Gold Plated CPU Socket
GIGABYTE 8 Series motherboards come equipped with a gold plated CPU socket, which means that enthusiasts can enjoy absolute reliability and longevity for the CPU socket overtime, without having any concerns about corroded pins and bad contacts.

15µ
Gold Plated CPU Socket




One Fuse per USB Port
On GIGABYTE 8 Series motherboards each USB port has its own dedicated power fuse that prevents unwanted USB port failure, helping to safe guard your important data during transfer

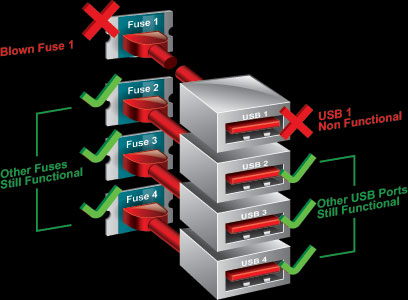

GIGABYTE One Fuse per USB Port Design

Traditional One Fuse Design
for Multi-USB Ports



Features and Actual component specifications may vary by model.
Photos are for reference only.
