Insist on an Ultra Durable™ Motherboard for your new PC


|
|
|
2X Copper PCB
|
|
|
|



Quality Inside and Out
Even though several of the high quality components used in GIGABYTE Ultra Durable™ motherboards are not visible from the outside, rest assured that they are working hard to provide better efficiency, greater power savings, lower system temperatures, better overclocking performance and extended system longevity. That’s the GIGABYTE Ultra Durable™ guarantee.
PCB (Printed Circuit Board)
2x copper PCB = 2 oz copper PCB = weight of copper layer
30.48 cm x 30.48 cm (1 square foot) PCB is 56.7 g (2 oz)

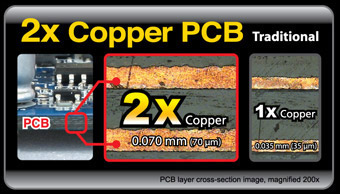

Copper Layer Thickness
2x copper 0.070mm(70 µm)
1x copper 0.035mm(35 µm)

High Capacity
Ferrite Core
Choke

Solid Capacitor

Power Stage

2x Copper
Inner Layer
Signal Layer

Power Layer


New Glass Fabric

Ground Layer

Signal Layer



* Actual component specifications may vary by model

The Benefits of 2 oz Copper PCB design

  Lower
Temperature
Better
Overclocking
Better Power
Efficiency
2x Lower
Impedance
Lower EMI Better ESD
Protection

GIGABYTE’s exclusive 2X Copper PCBs design provides sufficient power trace paths between components to handle greater than normal power loads and to remove heat from the critical CPU power delivery area. This is essential to ensure the motherboard is able to handle the increased power loading that is necessary when overclocking.
