 Model



•  Berbasis platform Intel G41

Intel
Model

GA-P41T-D3P
GA-P41T-D3P

GA-G41MT-D3P
GA-G41MT-D3P
GA-G41MT-S2P
GA-G41MT-S2P
CPU Support
Intel Core2 multi core processors
Intel Core2 multi core processors
Intel Core2 multi core processors
CPU Socket
LGA775
LGA775
LGA775
QPI/FSB
1333/1066/800MHz
1333/1066/800MHz
1333/1066/800MHz
Chipset
Intel G41+ICH7
Intel G41+ICH7
Intel G41+ICH7
Onboard Graphics
-
Intel GMA X4500
Intel GMA X4500
Graphics Interface
1*PCI-E x16 slot
1*PCI-E x16 slot
1*PCI-E x16 slot
Memory Type
Dual-Channel DDR3
1066/800
Dual-Channel DDR3
1066/800
Dual-Channel DDR3
1066/800
Memory DIMM
2*DDR3 (Max 8GB)
2*DDR3 (Max 8GB)
2*DDR3 (Max 8GB)
Expansion Slots
3*PCI-Ex1 +3*PCI
2*PCI-Ex1 +1*PCI
2*PCI-Ex1 +1*PCI
ATA connector
4*SATA 3Gb/s +1*PATA
4*SATA 3Gb/s
4*SATA 3Gb/s
SATA RAID
-
-
-
USB
8*USB2.0
8*USB2.0
8*USB2.0
Audio
8-channel HD
8-channel HD
8-channel HD
1394
-
-
-
LAN
GbE LAN
GbE LAN
GbE LAN
Fitur & Software
On/Off Charge, Ultra Durable 2,
4 phase power,USB 3x power,
All 50000hrs solid capacitors,
108dB SNR Blu-ray, ErP Ready
On/Off Charge, Ultra Durable 2,
4 phase power,USB 3x power,
All 50000hrs solid capacitors,
108dB SNR Blu-ray, ErP Ready

On/Off Charge, Ultra Durable 2,4 phase power,USB 3x power,
50000hrs solid capacitors for CPU VRM
108dB SNR Blu-ray, ErP Ready

Form Factor (mm)
mATX (305x194)
mATX (244x194)
mATX (244x194)


Intel
Model

GA-G41MT-D3V
GA-G41MT-D3V

GA-G41MT-D3PT
GA-G41MT-D3PT

CPU Support
Intel Core2 multi core processors
Intel Core2 multi core processors
CPU Socket
LGA775
LGA775
QPI/FSB
1333/1066/800MHz
1333/1066/800MHz
Chipset
Intel G41+ICH7
Intel G41+ICH7
Onboard Graphics
Intel GMA X4500
Intel GMA X4500
Graphics Interface
1*PCI-E x16 slot
1*PCI-E x16 slot
Memory Type
Dual-Channel DDR3
1066/800
Dual-Channel DDR3
1066/800
Memory DIMM
2*DDR3 (Max 8GB)
2*DDR3 (Max 8GB)
Expansion Slots
2*PCI-Ex1 +1*PCI
2*PCI-Ex1 +1*PCI
ATA connector
4*SATA 3Gb/s
4*SATA 3Gb/s +1*PATA
SATA RAID
-
-
USB
8*USB2.0
8*USB2.0
Audio
8-channel HD
8-channel HD
1394
-
-
LAN
GbE LAN
GbE LAN
Features & Software
On/Off Charge, Ultra Durable 2,
4 phase power,USB 3x power,
All 50000hrs solid capacitors,
108dB SNR Blu-ray, ErP Ready
On/Off Charge, Ultra Durable 2,
4 phase power,USB 3x power,
All 50000hrs solid capacitors,
108dB SNR Blu-ray, ErP Ready
Form Factor (mm)
mATX (244x194)
mATX (244x194)
For Intel Platform
*

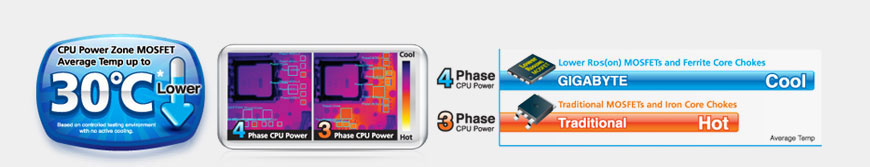

Untuk mengukur panas yang akurat, peneliti GIGABYTE membandingkan motherboard tradisional (3 fasa, choke inti besi, MOSFETs yang bukan Lower RDS(on)) dengan motherboard GIGABYTE Ultra Durable™2 dengan 4 fasa daya, choke Ferrite Core, dan MOSFETs yang Lower RDS(on) pada lingkungan percobaan yang diatur, ketika arus listrik dialirkan ke area VRM dan pengukuran suhu dilakukan pada titik komponen yang berbedaa-beda.



•  Berbasis platform NVIDIA

AMD
Model

GA-M52LT-D3P
GA-M52LT-D3P

GA-M68MT-D3P
GA-M68MT-D3P
GA-M68MT-S2P
GA-M68MT-S2P
CPU Support
AMD AM3 PhenomII/ AthlonII CPU
AMD AM3 PhenomII/ AthlonII CPU
AMD AM3 PhenomII/ AthlonII CPU
CPU Socket
AMD Socket AM3
AMD Socket AM3
AMD Socket AM3
QPI/FSB
2000MT/s (HT1.0)
2000MT/s (HT1.0)
2000MT/s (HT1.0)
Chipset
NV nForce 520LE
NV GeForce 7025/ nForce 630a
NV GeForce 7025/ nForce 630a
Onboard Graphics
-
NV CineFX 3.0 (DX9)
NV CineFX 3.0 (DX9)
Graphics Interface
1*PCI-E x16 slot
1*PCI-E x16 slot
1*PCI-E x16 slot
-
RGB port
RGB port
Memory Type
Dual-Channel DDR3
1666+/1333/1066
Dual-Channel DDR3
1333+/1066
Dual-Channel DDR3
1333+/1066
Memory DIMM
4*DDR3 (Max 16GB)
2*DDR3 (Max 8GB)
2*DDR3 (Max 8GB)
Expansion Slots
2*PCI-Ex1 + 4*PCI
2*PCI-Ex1 + 1*PCI
2*PCI-Ex1 + 1*PCI
ATA connector
2*SATA 3Gb/s + 1*PATA
4*SATA 3Gb/s
4*SATA 3Gb/s
SATA RAID
0, 1 (nForce 520LE)
0, 1, 5, 10
(GeForce 7025/ nForce 630a)
0, 1, 5, 10
(GeForce 7025/ nForce 630a)
USB
8*USB2.0
10*USB2.0
10*USB2.0
Audio
8-channel HD
8-channel HD
8-channel HD
1394
-
-
-
LAN
10/100 LAN
GbE LAN
GbE LAN
Fitur & Software
4+1phase, On/Off Charge, Ultra Durable 2 Classic, USB 3x power, All 50000hrs solid capacitors, 108dB SNR Blu-ray, Auto Green, EasyTune6, ErP Ready
4+1phase, On/Off Charge, Ultra Durable 2 Classic, USB 3x power, All 50000hrs solid capacitors, 108dB SNR Blu-ray, Auto Green, EasyTune6, ErP Ready
4+1phase, On/Off Charge, Ultra Durable 2 Classic, USB 3x power, 50000hrs solid capacitors for CPU VRM, 108dB SNR Blu-ray, Auto Green, EasyTune6, ErP Ready
Form Factor (mm)
ATX (305x216)
mATX (244x206)
mATX (244x206)
For AMD Platform :
* Untuk mengukur panas yang akurat, peneliti GIGABYTE membandingkan motherboard tradisional (3 fasa, choke inti besi, MOSFETs yang bukan Lower RDS(on)) dengan motherboard GIGABYTE Ultra Durable™2 dengan 4 fasa daya, choke Ferrite Core, dan MOSFETs yang Lower RDS(on) pada lingkungan percobaan yang diatur, ketika arus listrik dialirkan ke area VRM dan pengukuran suhu dilakukan pada titik komponen yang berbedaa-beda.
