GIGABYTE AMP-UP Audio™ Technology
GIGABYTE G1™ Gaming motherboards are equipped with the GIGABYTE exclusive AMP-UP Audio Technology, which provides the industry’s highest level of onboard audio features and technologies. With GIGABYTE AMP-UP Audio, gamers and audiophiles are able to experience crisp, ultra realistic sound effects while gaming, and the richest possible sound experience when listening to their favorite music and movies.

Creative Sound Core3D™
Quad-Core Audio
Processor
High End Audio Capacitors
Bi-Polarized Audio
Capacitors
GIGABYTE Exclusive
Upgradable OP-AMP
(Operational amplifier)
Gold Plated Audio Jacks


Front Headphone
Amplifier IC

Sound Blaster SBX Pro
Studio (Full Suite)



Front Panel Audio
Support
600 ohm
Headphone


Gain Boost

* Features may vary by model.






GIGABYTE Direct Audio Route Design
Audio Processor


Audio Capacitors
AMP

        Audio Jack
HD Link from PCH


• Shortest route, no wasted trace.
• Less crosstalk & less EMI.
• AMP very close to audio jack for lowest noise.
• Better signal quality and better audio quality.


The shortest route is always the best for audio signals.

The GIGABYTE X99 G1™ Gaming motherboards feature the shortest audio communication paths between each critical component, from chipset to audio jack. This reduces the crosstalk along the way, and the very close proximity of the AMP to the audio jack directly results in lower noise disturbance.

With this high quality audio design, GIGABYTE G1™ Gaming motherboards are able to bring users better signal quality for the absolute best audio experience.






Independent Right and Left Audio Channel PCB Layers
Locating the right and left audio channels on separate PCB layers, GIGABYTE X99 series motherboards are able to eliminate channel crosstalk and maintain the best audio quality.

Left Audio Channel
PCB Layer

Right Audio Channel
PCB Layer







Creative® Sound Core3D™ Quad-Core Audio Processor
Combining world’s first Quad-Core Creative Sound Core3D Audio Processor Plus Advanced Creative SBX PROSTUDIO Audio Suite.
+ Harnessing the power of a Dedicated Audio Processor to offload workload from CPU
+ Total solution from Creative (Hardware +Software)
+ Richer overall audio experience
Creative® Sound Core3D™
with Custom Gold Plated Shielding
* Features may vary by model.

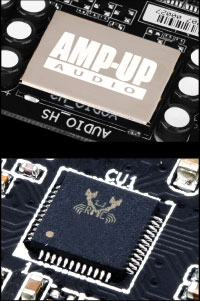

Realtek ALC1150 115dB SNR HD Audio with Built-in Rear Audio Amplifier

115dB SNR HD Audio
The Realtek ALC1150 is a high-performance multi-channel High Definition Audio Codec that delivers an exceptional audio listening experience with up to 115dB SNR, ensuring users get the best possible audio quality from their PC.

The ALC1150 provides ten DAC channels that simultaneously support 7.1-channel sound playback, plus 2 channels of independent stereo sound output (multiple streaming) through the front panel stereo outputs. Two stereo ADCs are integrated and can support a microphone array with Acoustic Echo Cancellation (AEC), Beam Forming (BF), and Noise Suppression (NS) technologies. The ALC1150 incorporates Realtek proprietary converter technology to achieve Front differential output 115dB Signal-to-Noise ratio (SNR) playback (DAC) quality and 104dB SNR recording (ADC) quality.
Built-in Rear Audio Amplifier

* Features may vary by model.



* Photos are for reference only.
** Product features may vary by model.
