XTREME
PERFORMANCE

GIGABYTE Xtreme Gaming Series graphics cards are crafted for perfection in pursuit of the ultimate graphics experience for gaming enthusiasts. Based on the revolutionary NVIDIA® Pascal™ GPU architecture, Xtreme gaming graphics card brings you incredible gaming experience.

- GPU Gauntlet™ Sorting
- Pascal-powered graphics card give you superior performance and power efficiency
- Support up to 8K display @60Hz
- Outstanding performance for Virtual Reality gaming

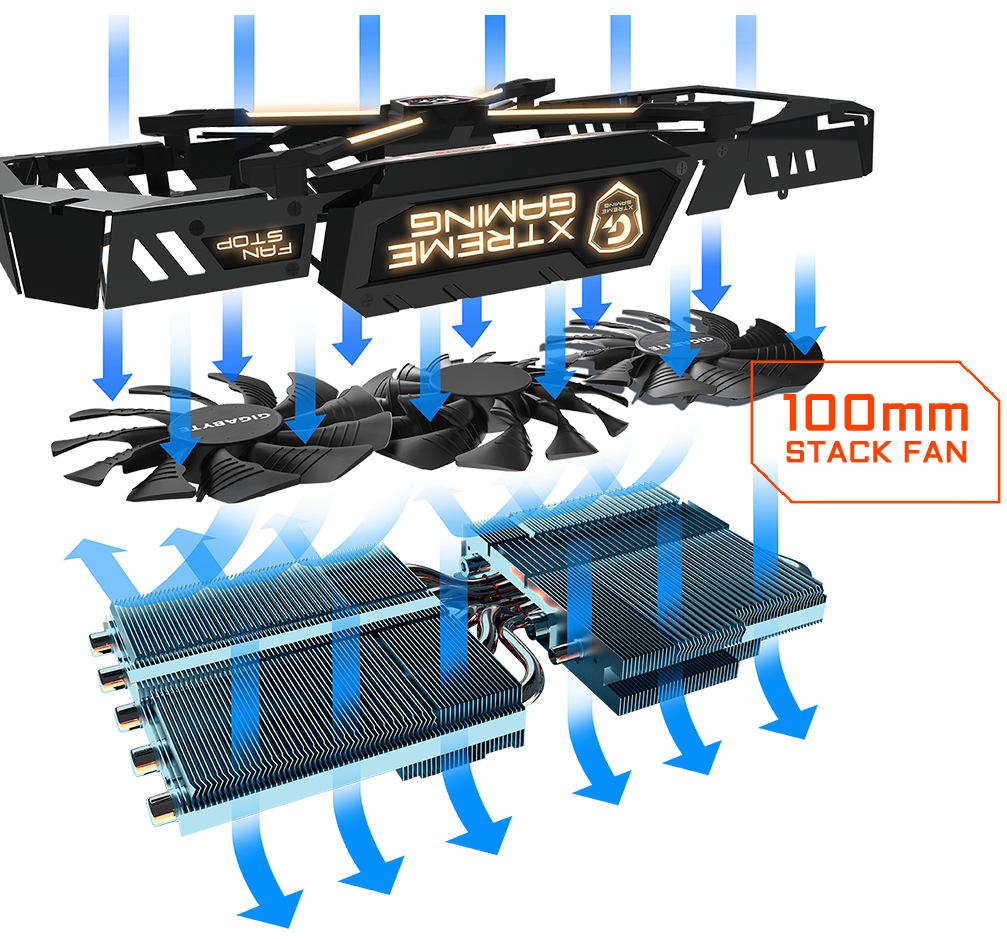

WINDFORCE STACK
3X COOLING SYSTEM

The WINDFORCE stack 3X cooling system features GIGABYTE patent-pending 3X 100mm stack fan, unique blade fan design, double ball bearing structure, angular fin design and 6 composite heat-pipes, together delivering an effective heat dissipation capacity for higher performance at lower temperatures.

Stack Fan Design

The 3x 100mm stack fans provide larger and more smooth airflow. And with more heatsink coverage than 3x 80mm fans, WINDFORCE stack fans will have 10% better cooling performance.

3x 100mm Stack fans

Much more heatsink coverage by strong and smooth airflow

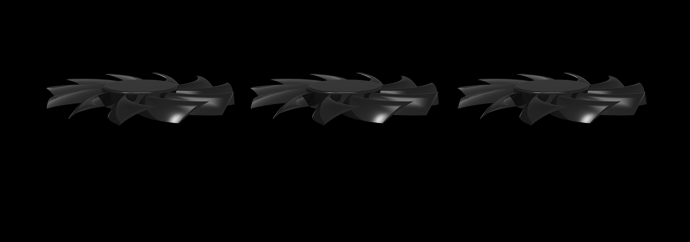

3x 80mm Standard fans

There is no airflow in the junction of 2 fans, resulting a smaller heatsink coverage

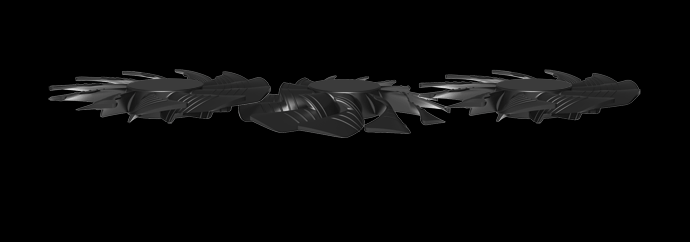

INNOVATIVE STACK FAN DESIGN

Make 3x 100mm stack fans into less than 300mm length area. To concentrate and enlarge the airflow on the whole heatsink for the most efficient heat dissipation.

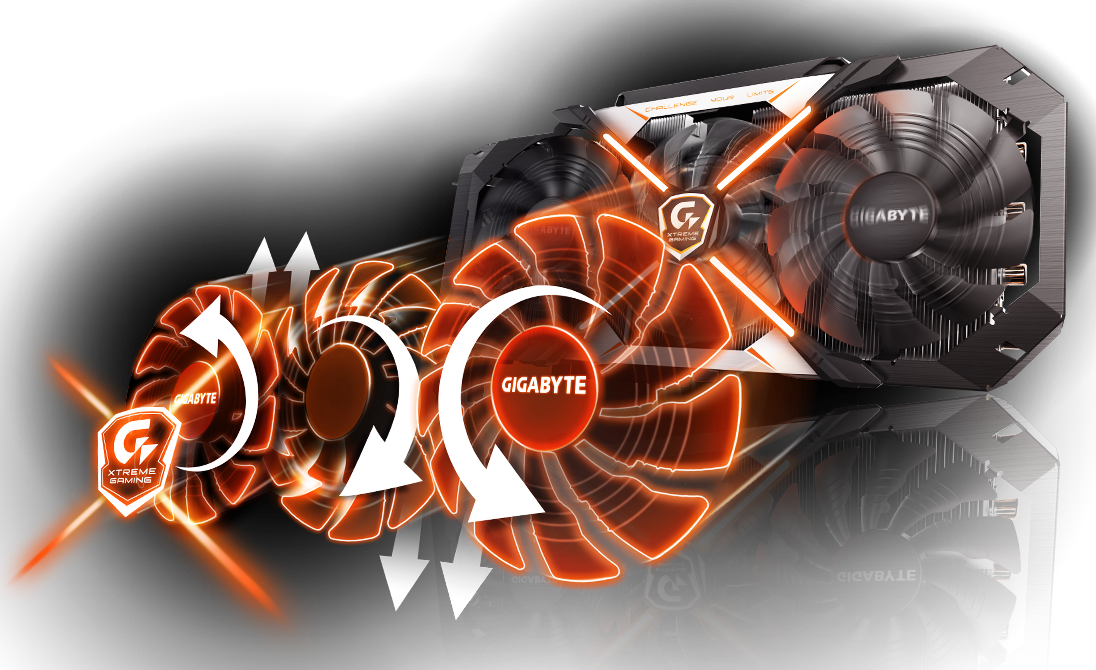

ALTERNATE SPINNING FAN DESIGN

The middle fan spins in the reverse direction to optimize the airflow to dissipate the heat more effective for accomplishing higher performance at a lower temperature.

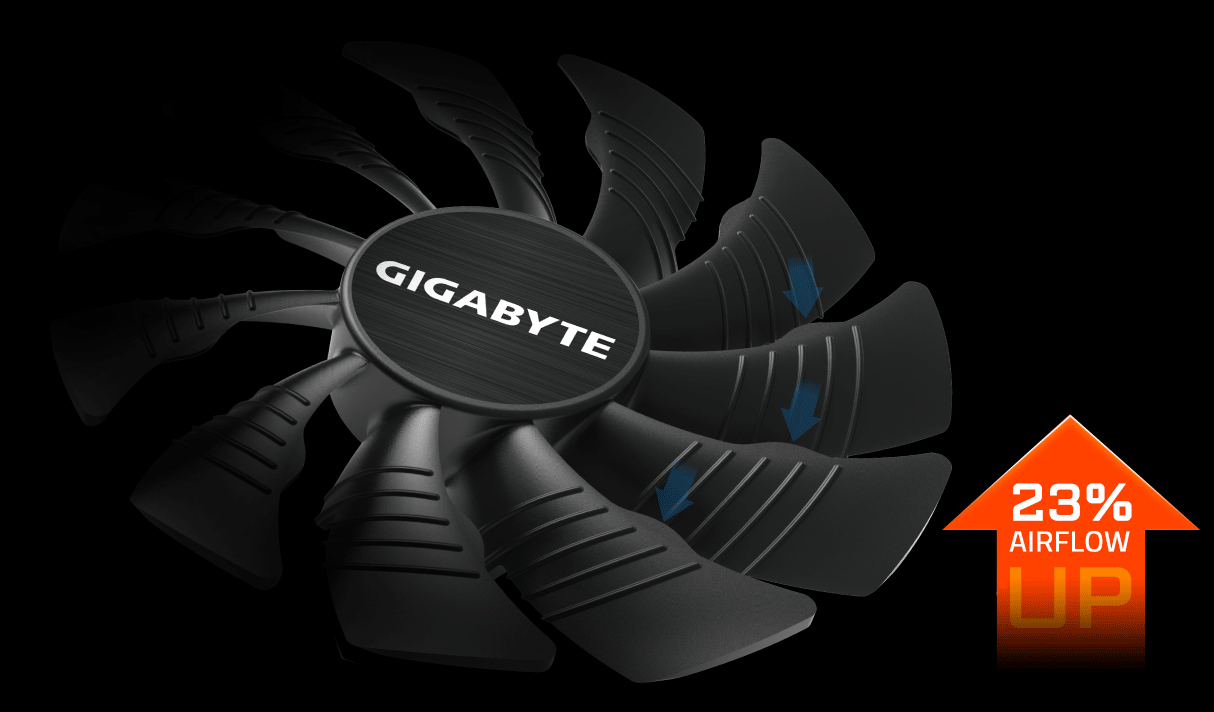

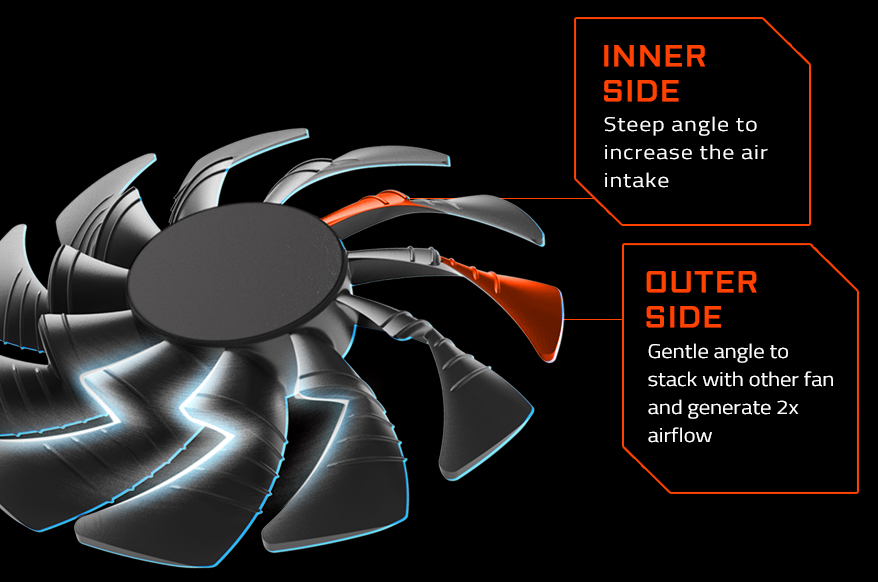

UNIQUE BLADE
FAN DESIGN

The airflow is spilt by the triangle fan edge, and guided smoothly through the 3D stripe curve on the fan surface, effectively enhancing the airflow by 23% over the traditional fans.

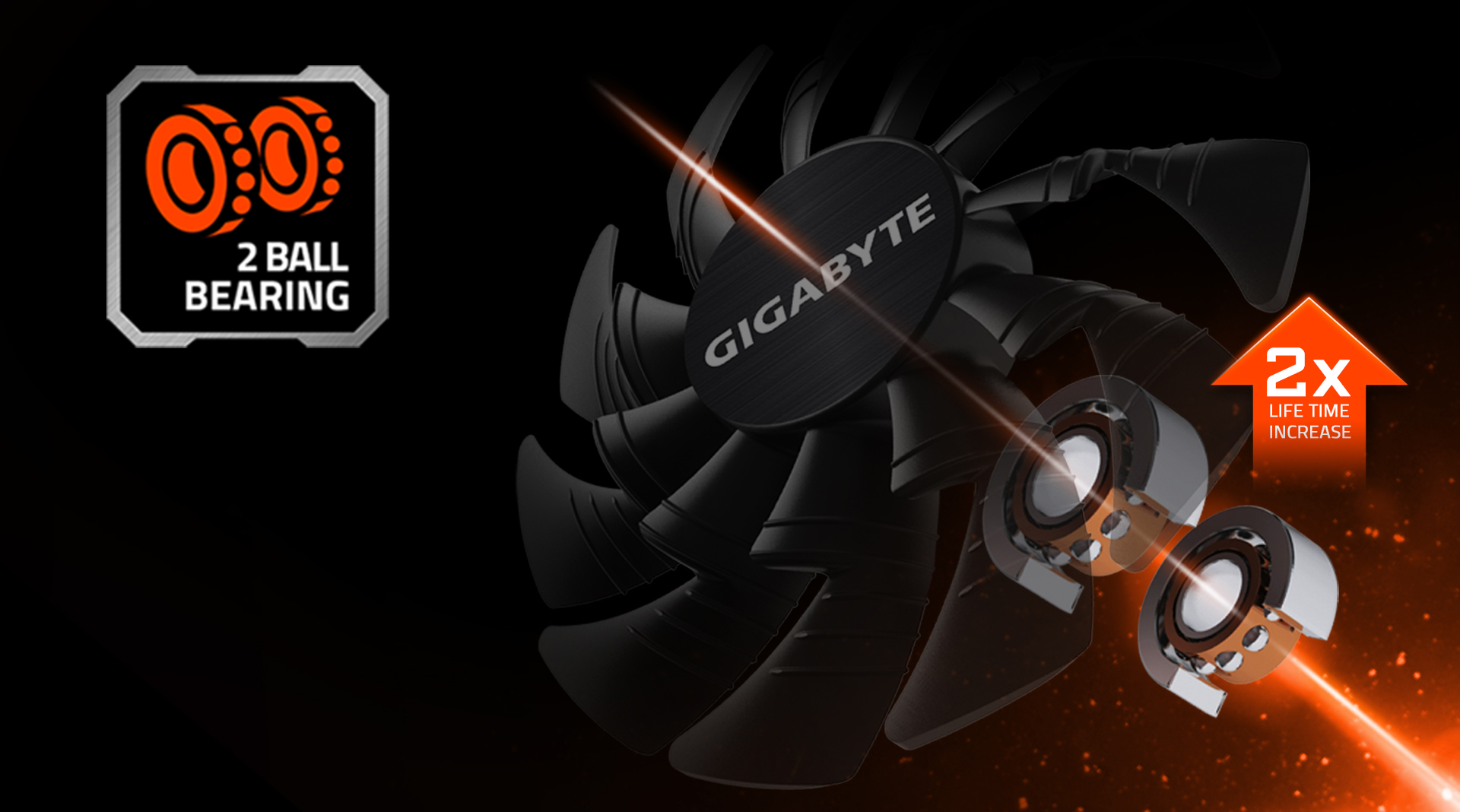

DOUBLE BALL BEARING
STRUCTURE

The double ball bearing structure has better heat endurance and efficiency than sleeve structure. Hence it will provide longer life time.

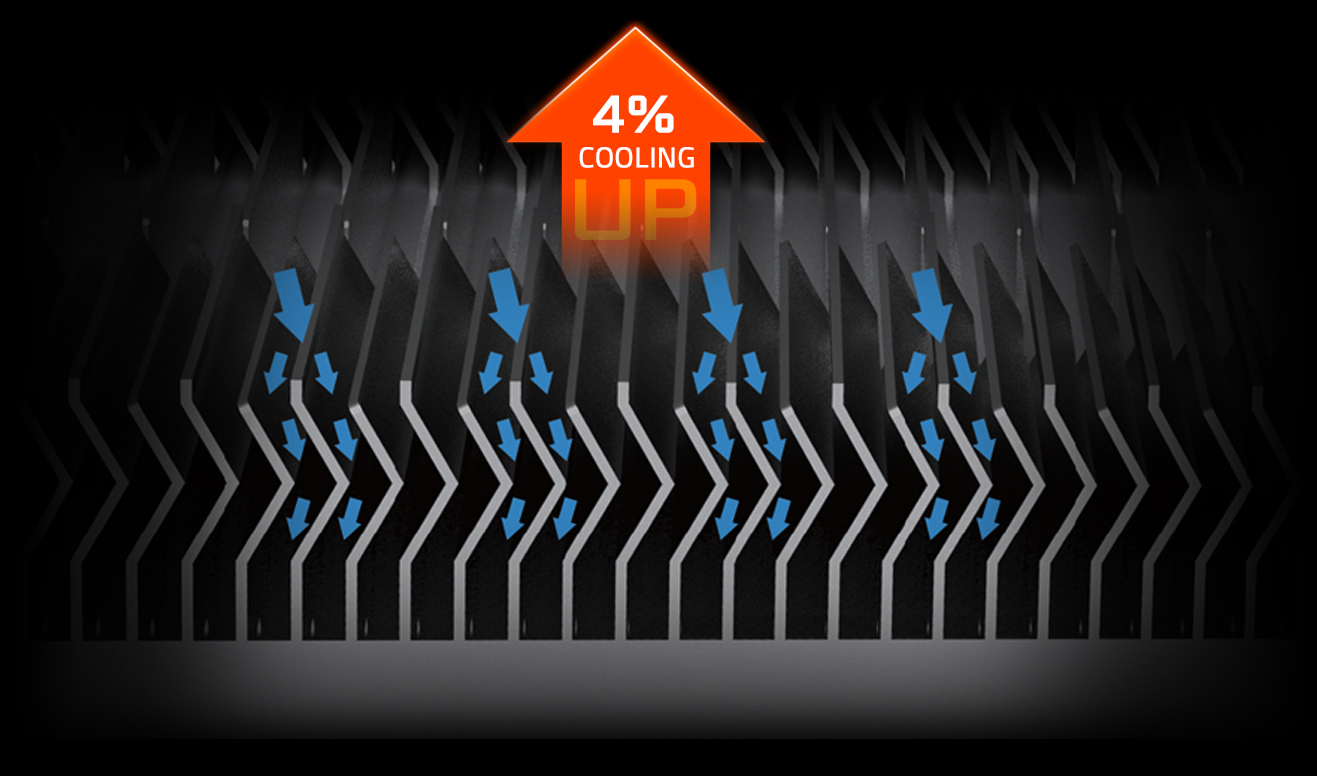

ANGULAR FIN DESIGN

The angular and unequal fins height does not only channel the airflow through the fins and enlarge the contact surface but also results in a lower noise level and better cooling capacity.

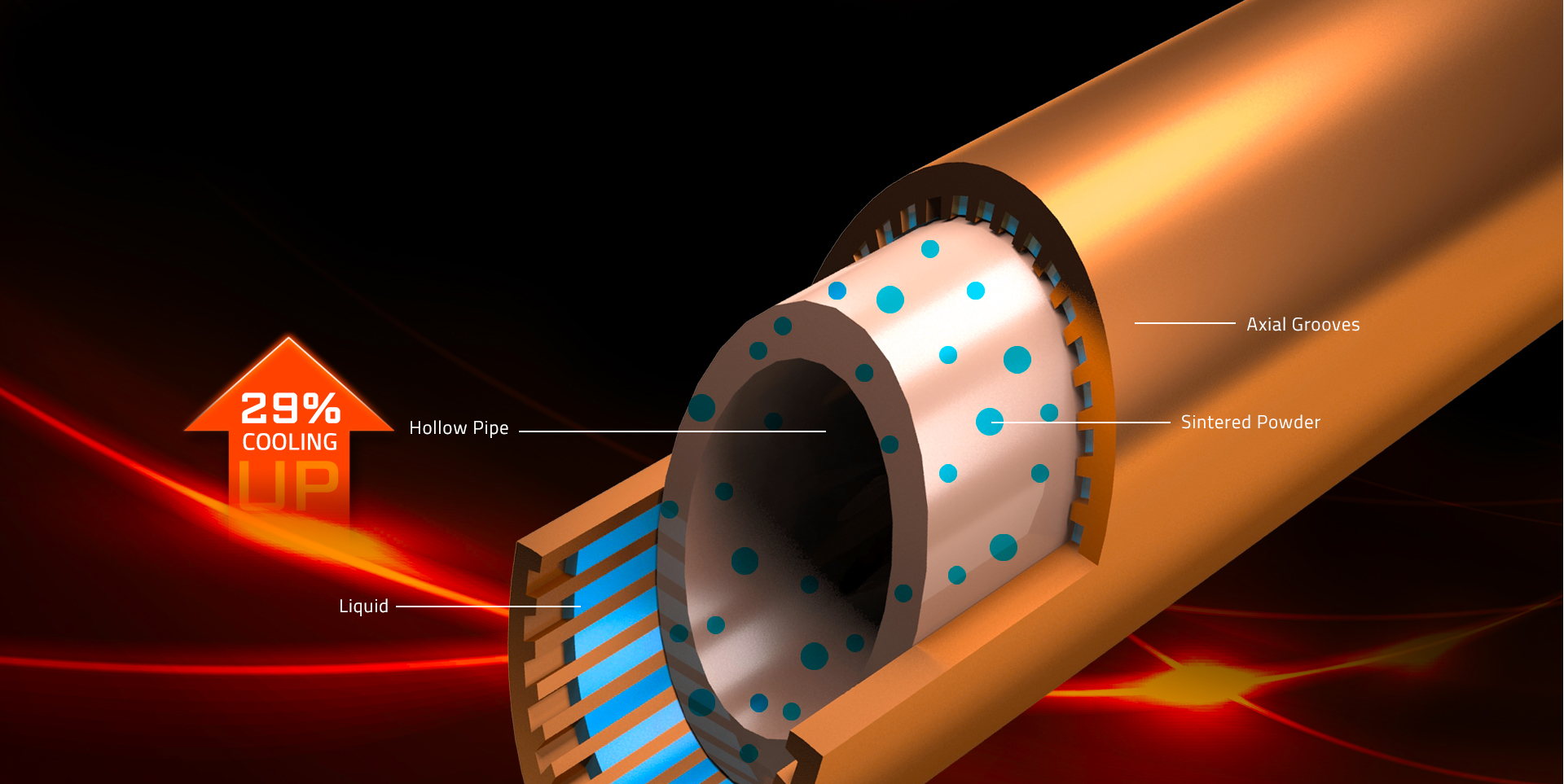

COMPOSITE HEAT-PIPES

The composite heat-pipes combines both thermal conductivity and phase transition for efficiently managing the transfer of heat between two solid interfaces which increases 29% of cooling capacity.

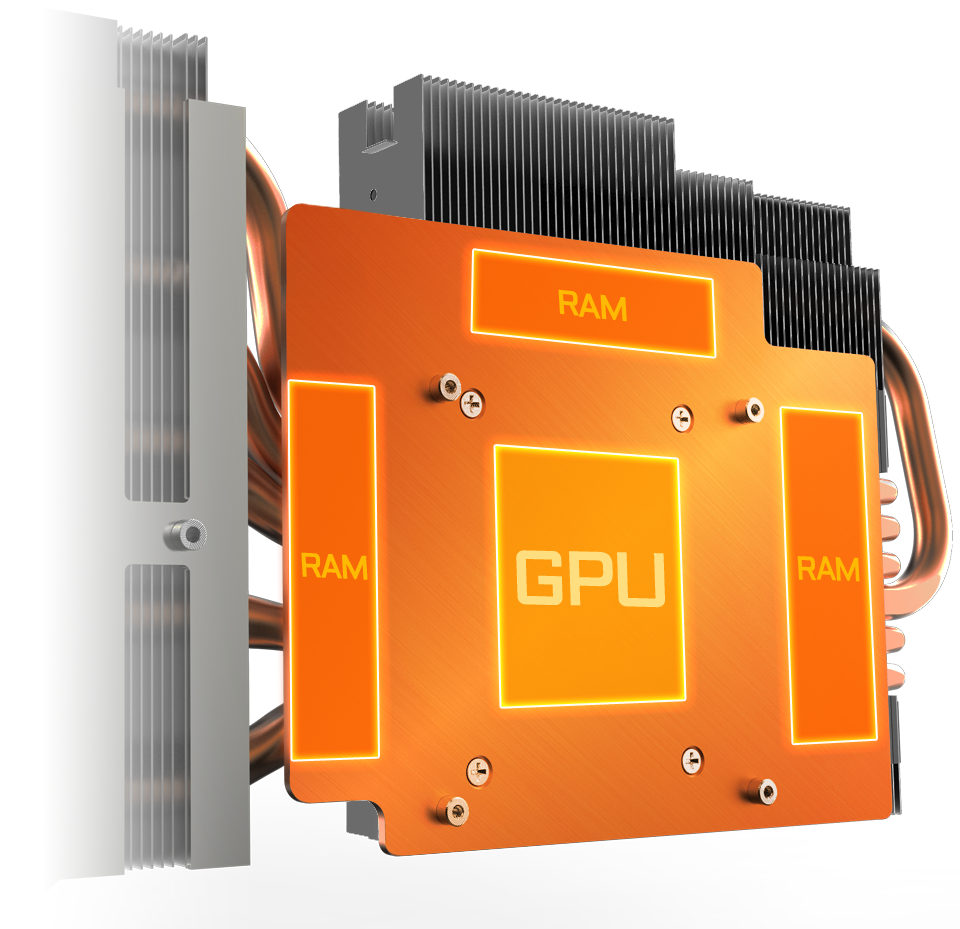

LARGE COPPER BASE PLATE

With direct contact to the GPU and VRAM, the large copper base plate combines the composite heat pipes to efficiently transfer heat generated from the interior cores to the heat sink, keeping the graphics card cool and stable when overclocked for better performance.

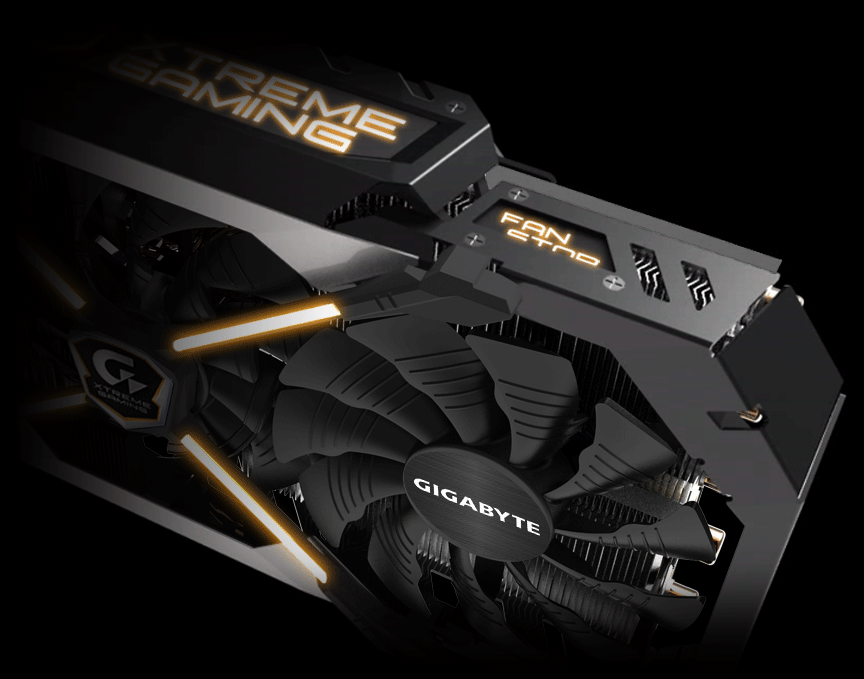

3D ACTIVE FAN WITH
RGB LED INDICATORS

The XTREME GAMING graphics cards are equipped with 3D-Active Fan, the industry's first 0dB semi-passive fan design introduced by GIGABYTE back in 2007. The fans will remain off when the GPU is under a set loading or temperature for low power gaming. The LED fan indicator on the top of the graphics card provides an instant display of the fan status.

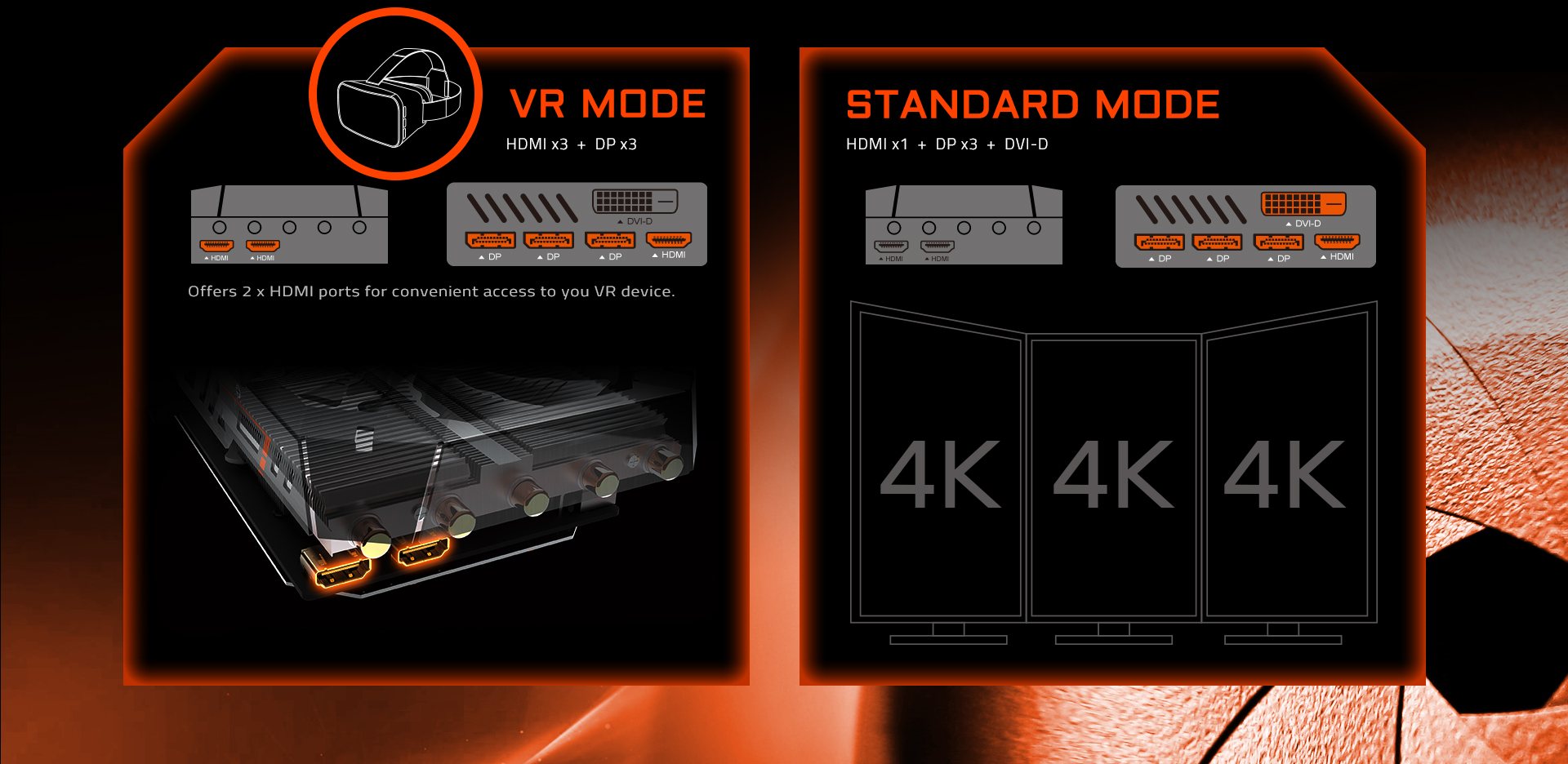

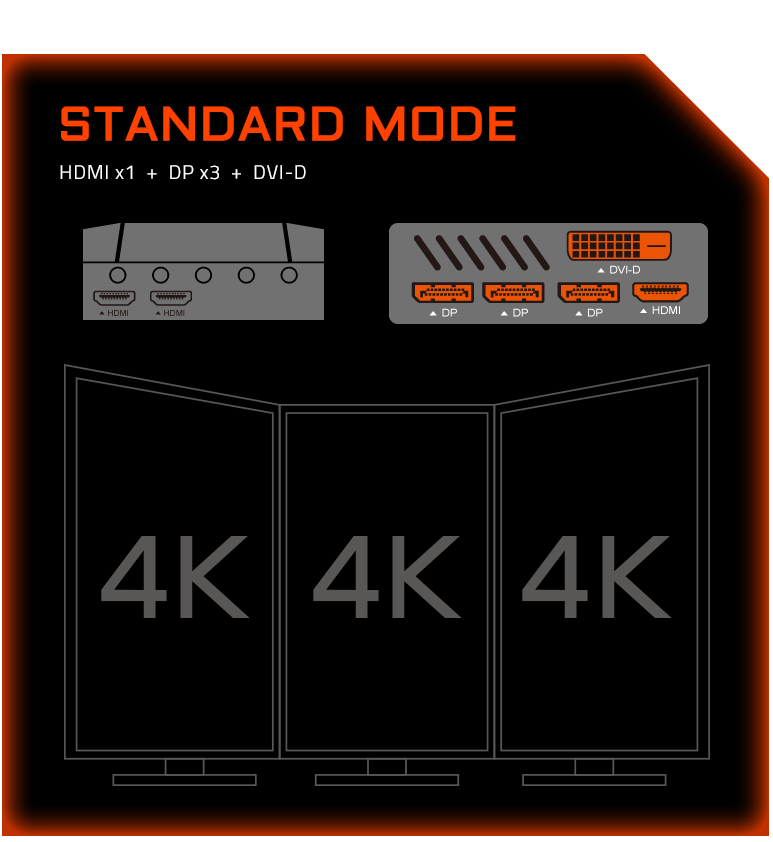

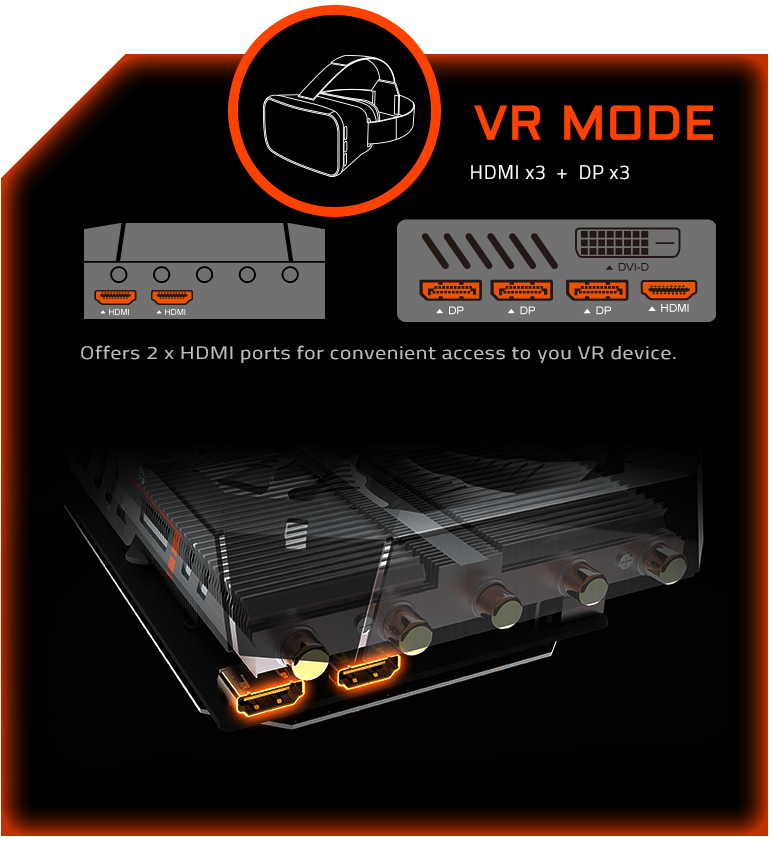

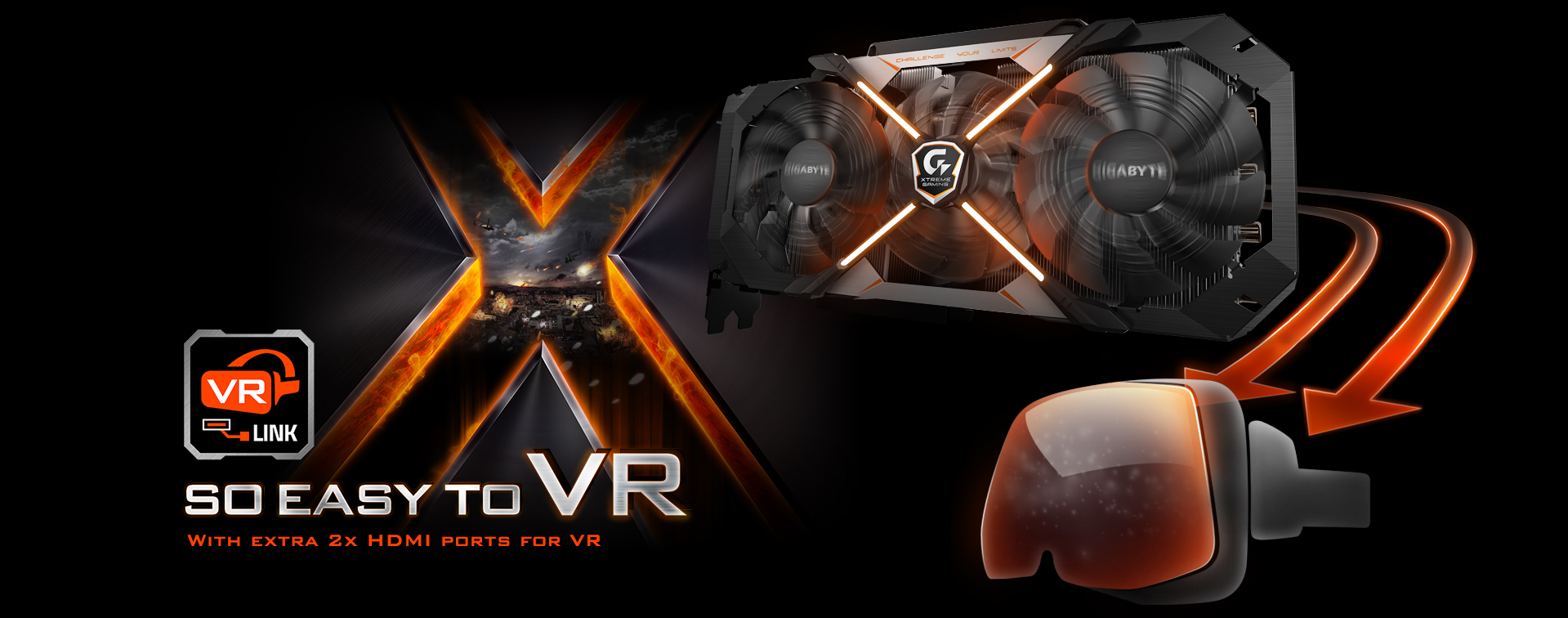

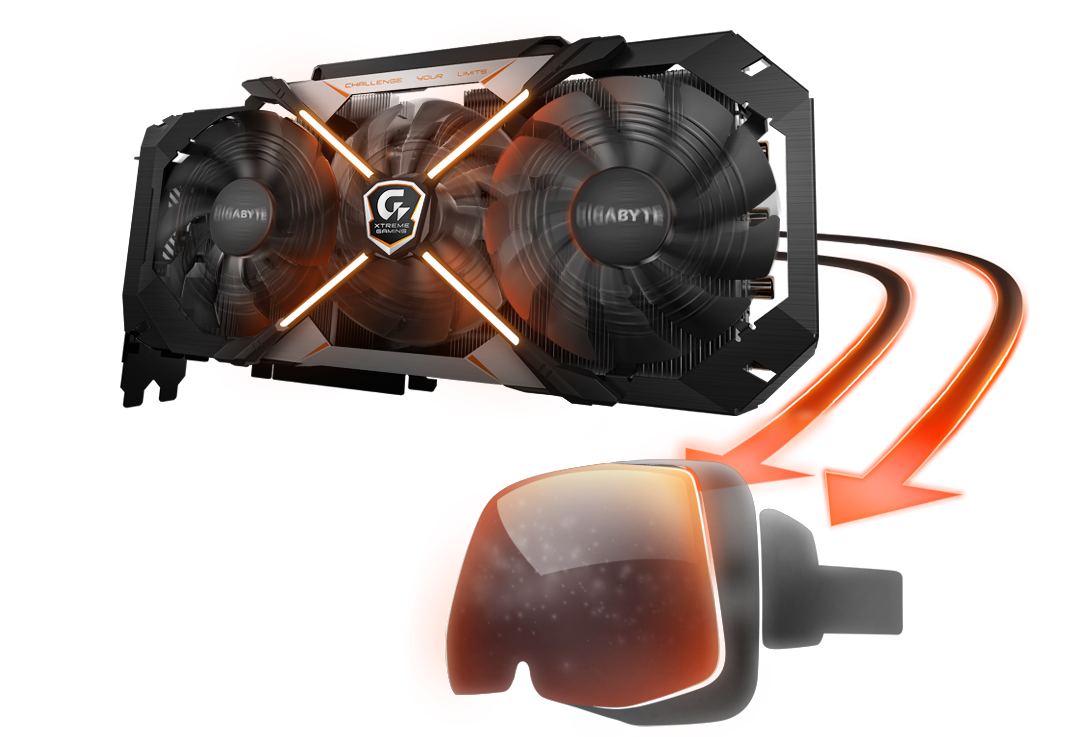

With 2 extra HDMI ports, Xtreme VR Link innovatively provides the most flexible output connectivity. Connect up to 4 monitors and/or VR devices at the same time with a total of 3 DisplayPort and 3 native HDMI ports that could be used interchangeably under VR Mode for all types of gaming configuration. Outputs are automatically detected upon restarting PC with no further setting required.

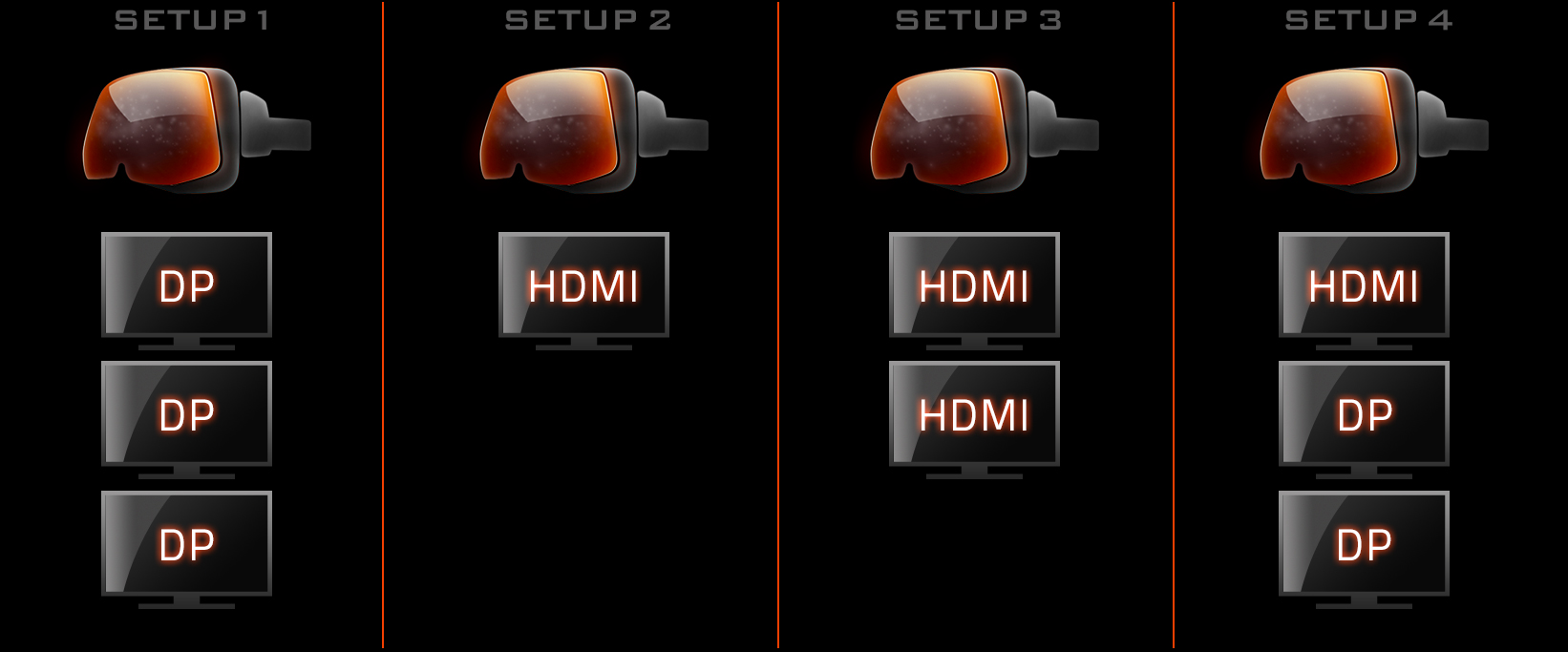

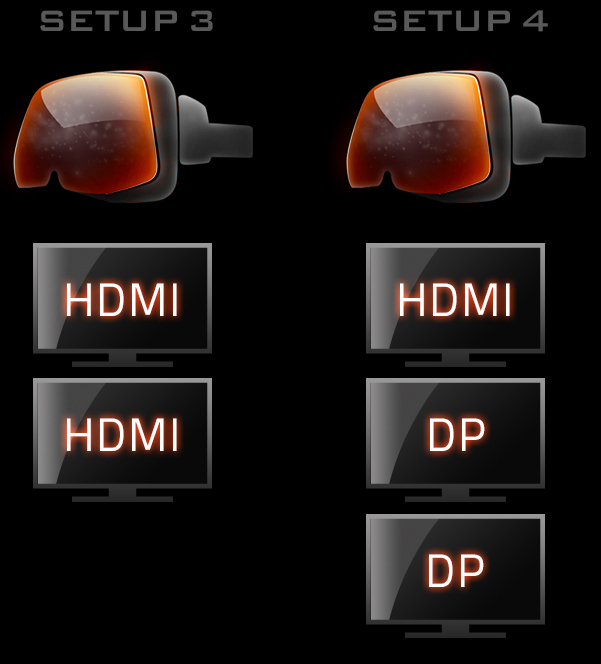

MULTI DISPLAY CONFIGURATION SUPPORT

Xtreme VR Link is the only output technology in the market that supports the following combinations of displays without any adaptors required.

VR Headsets are connected via HDMI

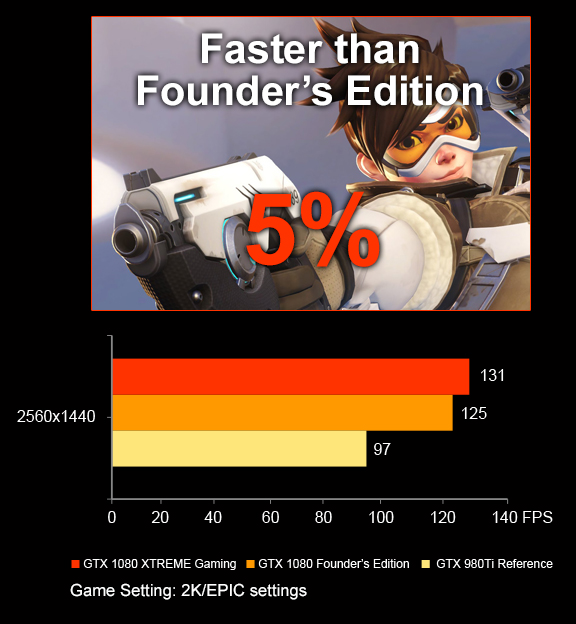

OVERWATCH

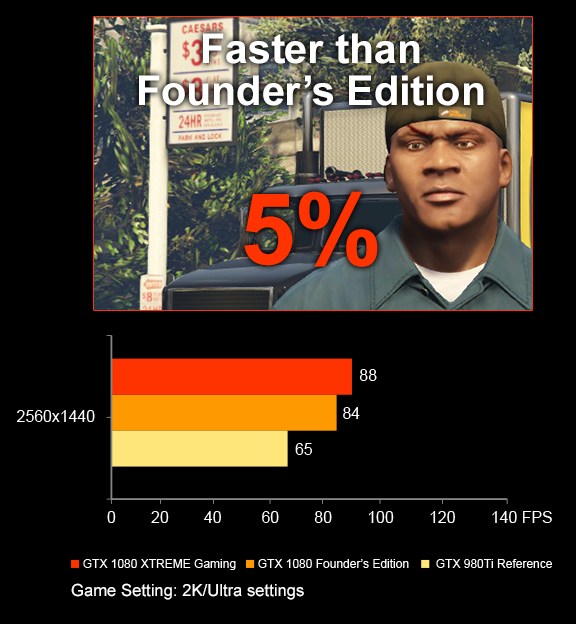

GTA5

WITCHER 3

System Configuration: MB:GA-Z97-SOC / CPU: Intel i7 4790K / Memory: 16GB / HDD: SSD 128GB / OS: Windows7 64bit

16.8M CUSTOMIZABLE COLOR LIGHTING

With 16.8M customizable color options and numerous lighting effects, you could now choose the right scheme for your gaming rig through XTREME Engine utility.



Smoothly cycles through all colors


Choose a color to fade in and out

Choose a color for static light

Choose a color for flash effect

Choose a color for double flash effect

speed down
speed up

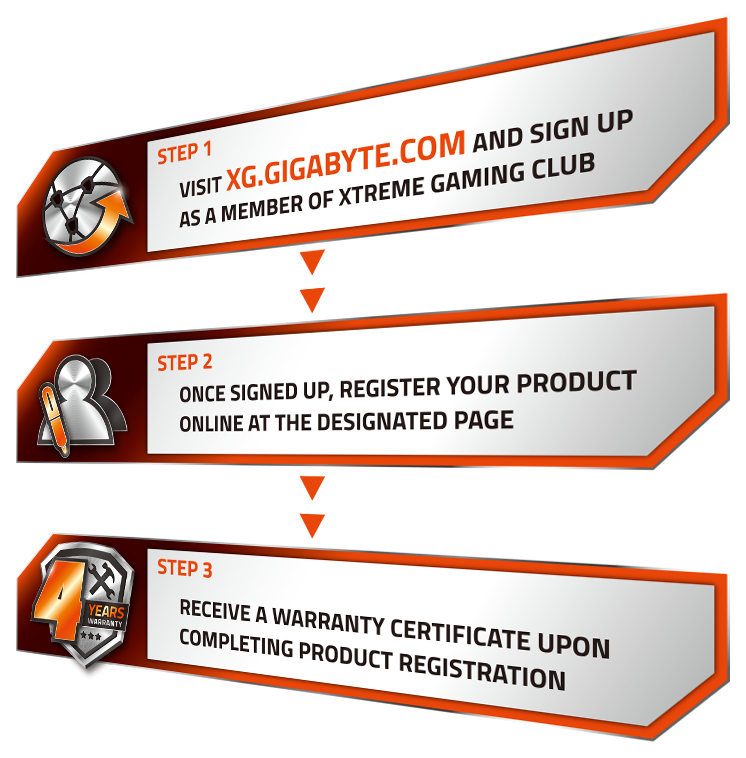

We want your experience with XTREME GAMING to be the best you have ever had. This is why, on top of our standard 3-year warranty, we would like to offer you an additional 1 year of Xtreme Care protection to your XTREME GAMING graphics card free of charge. Register on XTREME GAMING to get 4 years warranty.

AEROSPACE-GRADE PCB COATING FOR BEST PROTECTION

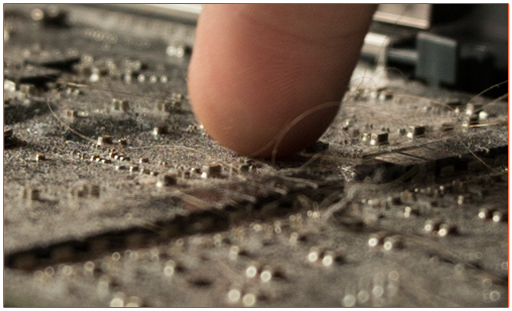

Dust -resistant shields the circuit board from dust, insects, dropped screws, drill shavings, and abrasion.

Moisture-resistant prevents unwanted conduction paths and board damage.

Corrosion-resistant protects boards from environmental contaminants, such as salt spray, humidity, and corrosion.

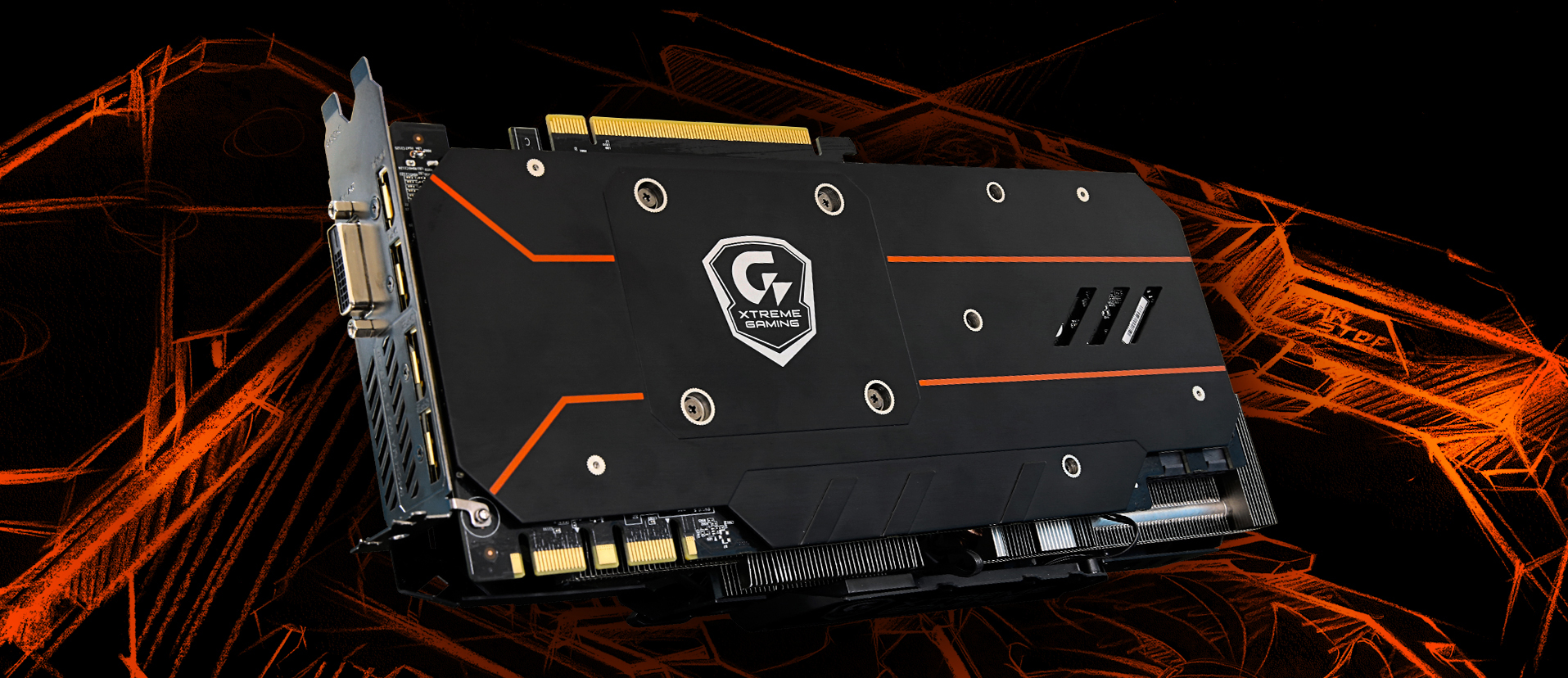

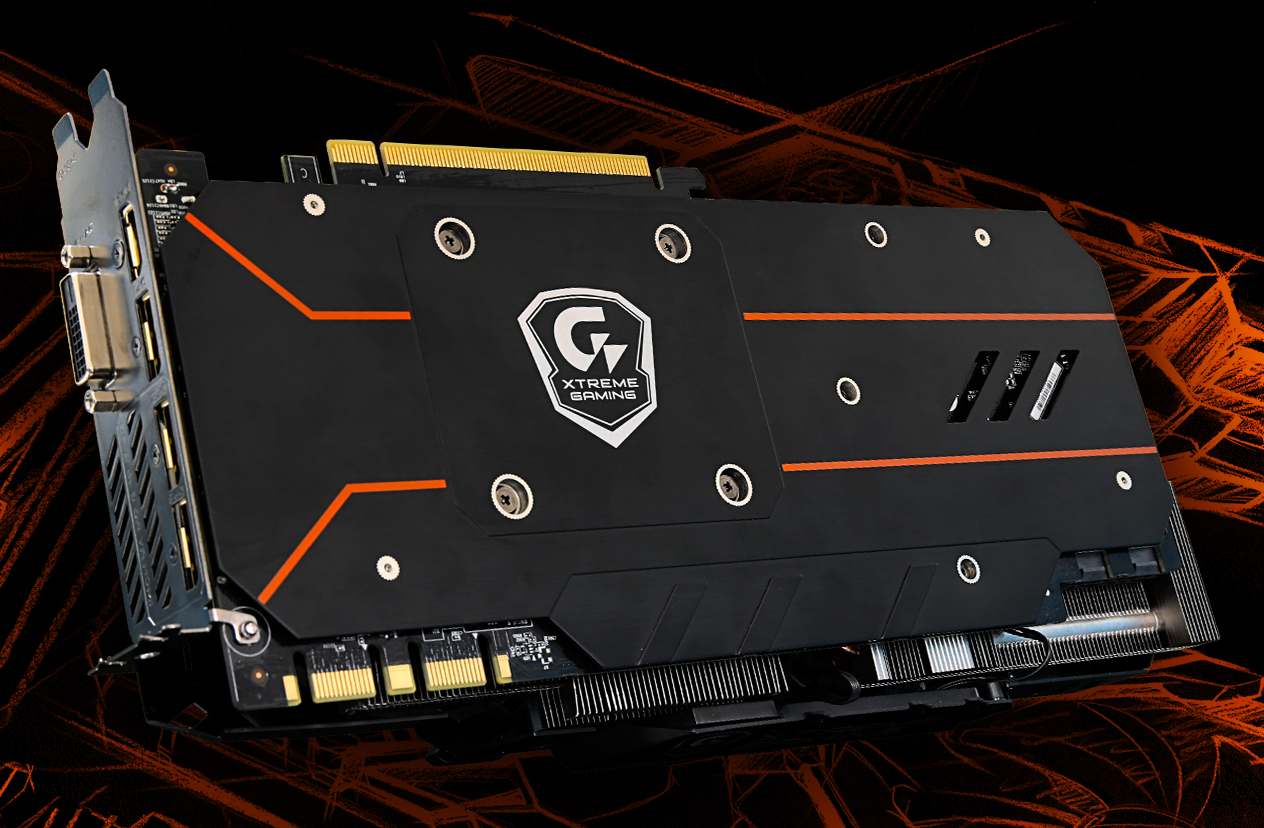

STYLISH METAL BACK PLATE

Glorious black metal back plate provides the solid protection, strengthens the structure and inspires the passion for gaming

(*The picture is reference only.)

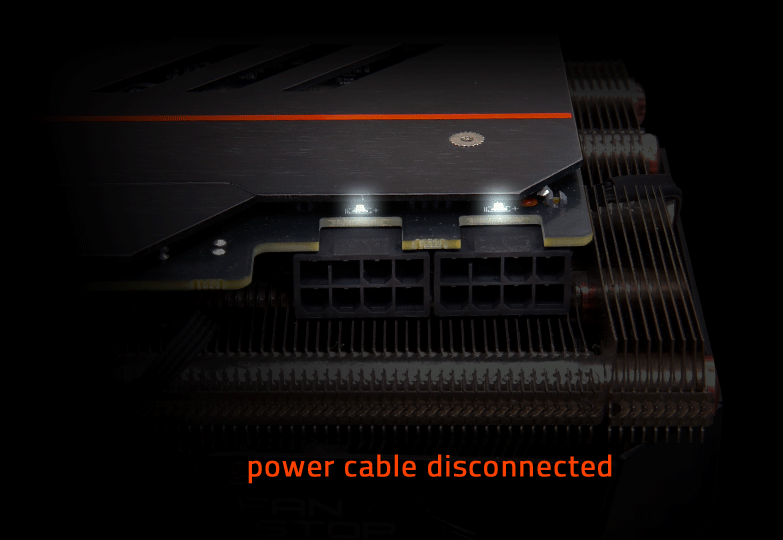

LED POWER INDICATORS TO SHOW IF THE PCI-E VOLTAGE FROM PSU IS STABLE

Be alert when PCI-E voltage is unstable with the smart power LED indicators. When experiencing any power abnormality, the indicator will alert gamers by flashing light.

BUILT FOR EXTREME OVERCLOCKING WITH 12+2 POWER PHASES

Compared to the reference design, the 12+2 power phases on the card make the MOSFET working at a lower temperature and provide more stable voltage output. Over temperature protection and load balance to each MOSFET can effectively extend the card life.

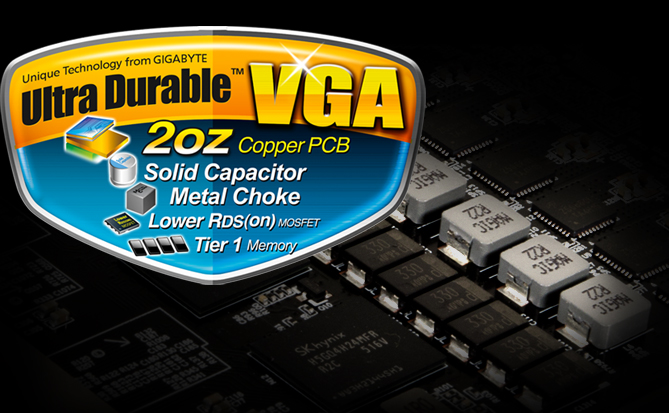

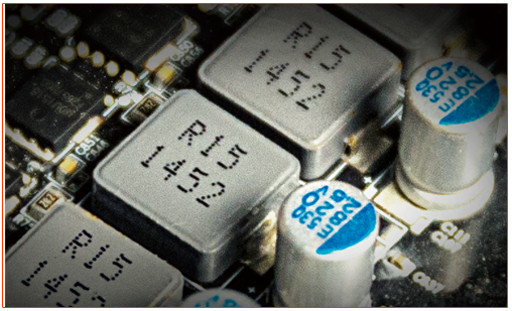

TITAN X-GRADE CHOKES AND CAPACITORS FOR EXTREME DURABILITY

Xtreme Gaming Graphics Cards are engineered with the same highest-grade chokes and capacitors as those of Titan X, delivering high quality performance and longer system lifespan.

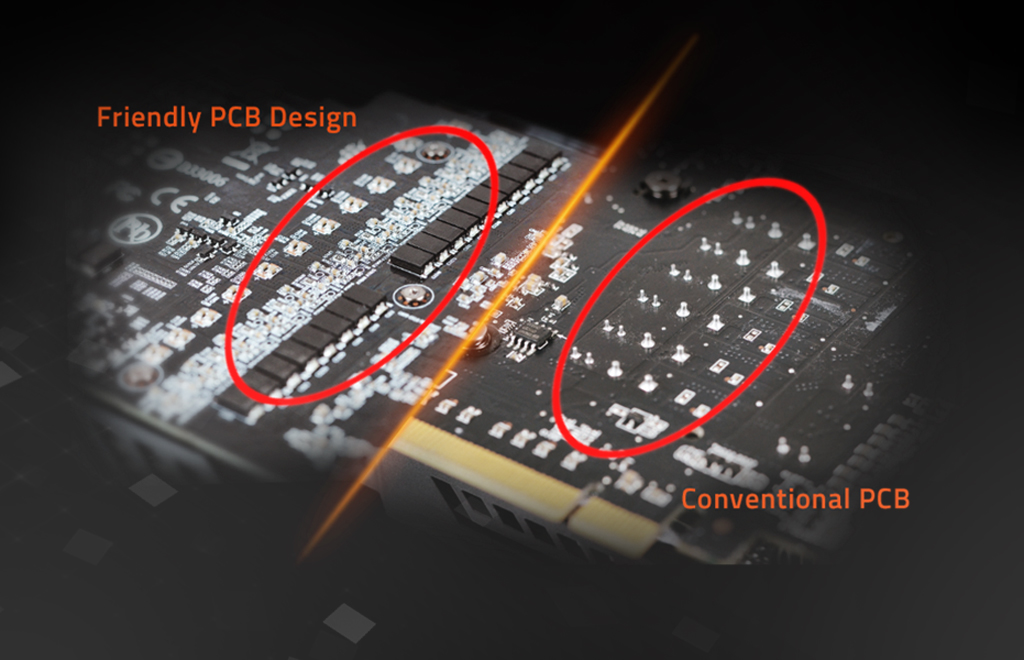

FRIENDLY PCB DESIGN THANKS TO FULLY AUTOMATED PRODUCTION PROCESS

Fully automated production process ensures top quality of the circuit boards and eliminates sharp protrusions of the solder connectors seen on the conventional PCB surface. This friendly design prevents your hands from getting cut or inadvertently damaging components when making your build.

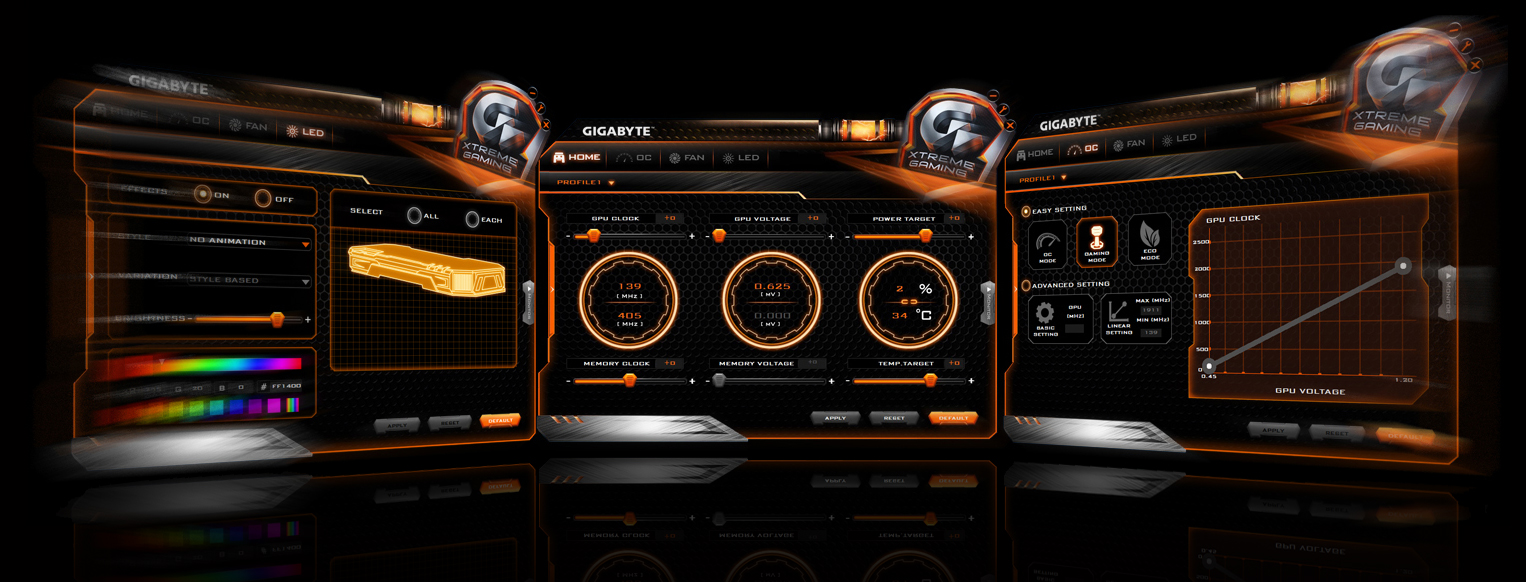

INTUITIVE XTREME ENGINE

Clock speeds, voltage, fan performance, power target can be monitored and tuned in real-time according to your own preference through this intuitive interface. Download
(*The interface and functionality of the software is subject to each model.)
