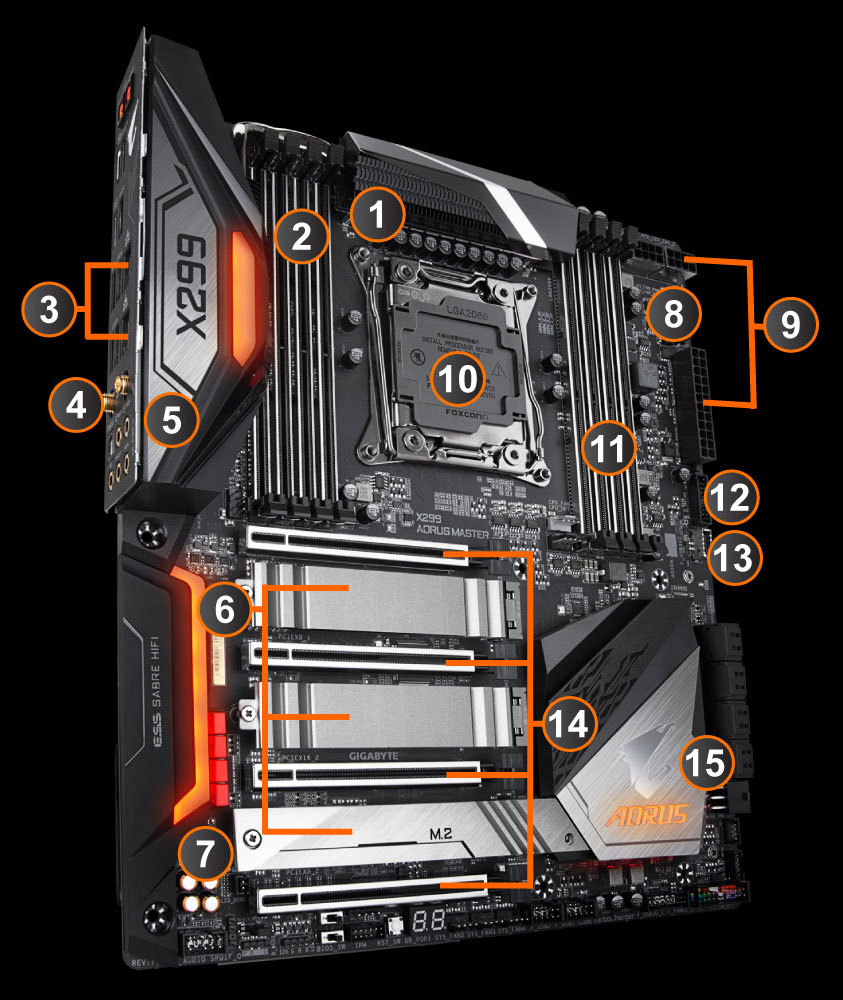

DESIGN CONCEPT

Wings of Excellence

The falcon utilizes its powerful wings to soar through the skies and lock down its prey. The AORUS Core takes inspiration from the falcon’s aerodynamic wings, incorporating a multi-layered design which features wing shaped contours and also resembles the falcon’s high velocity ascension and dive through the skies. With sleek and metallic armor, the AORUS Core symbolizes advancement in technology with its futuristic style.

1
12 Phase Digital VRM Solution with Smart Power Stage
2
Advanced Thermal Design
• Active cooling fan
• Fins-Array Heatsink
• 6mm Heatpipe
• 5 W/mK thermal conductivity pad
• Thermal Baseplate
3
Onboard 2.5GbE LAN
Intel® i219v GbE LAN
• cFosSpeed Internet Accelerator
4
Intel® 802.11ac 2x2 WIFI & BT 4.2
5
Integrated I/O Shield
• Power/ Reset & Clear CMOS Buttons
6
Triple M.2 Connectors
• PCIe 3.0 x4
• Triple Thermal Guards
7
Audio Solutions
• ALC1220-VB Audio
• ESS 9218 SABRE DAC
• Gold Plated Audio Jacks
• High-end Audio Capacitors
08
RGB FUSION 2.0
• Addressable LED header*2
• RGB LED header*2
09
Solid Pin Power Connectors
• 24pin ATX power connector
• 8+8 pin CPU power connectors with metal shielding
10

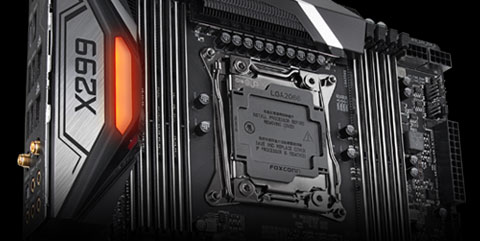

Supports 9th Gen Intel® X Core™ Processors
11
• Quad Channel DDR4, 8 DIMMs with Ultra Durable Memory Armor
• XMP Support
12
USB TurboCharger
13
Front USB 3.1 Gen2 Type-C™
14

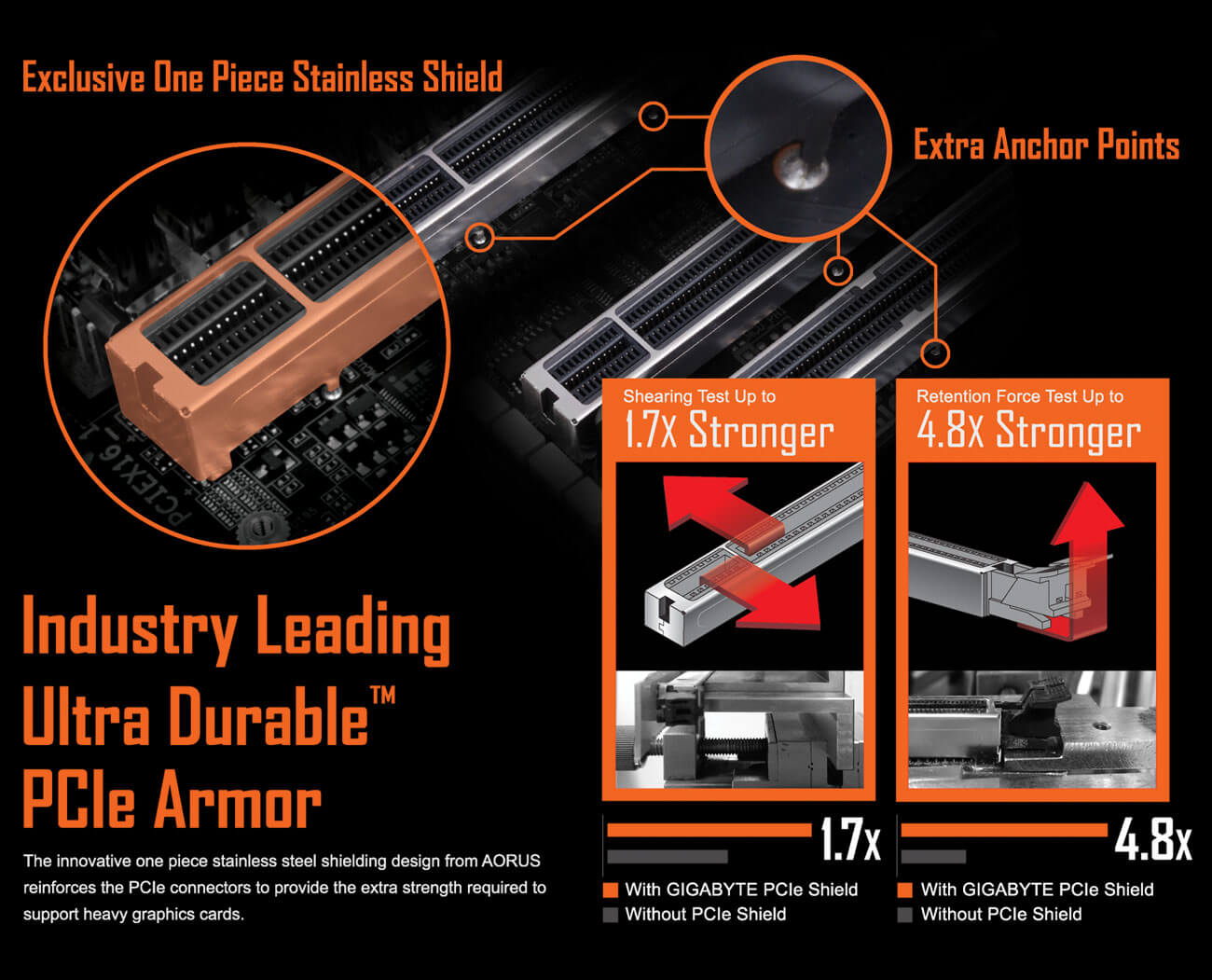

Ultra Durable PCIe Armor
• 4 way dual wide PCIE Lane
15
DualBIOS™ with Socketed BIOS
AORUS PERFORMANCE

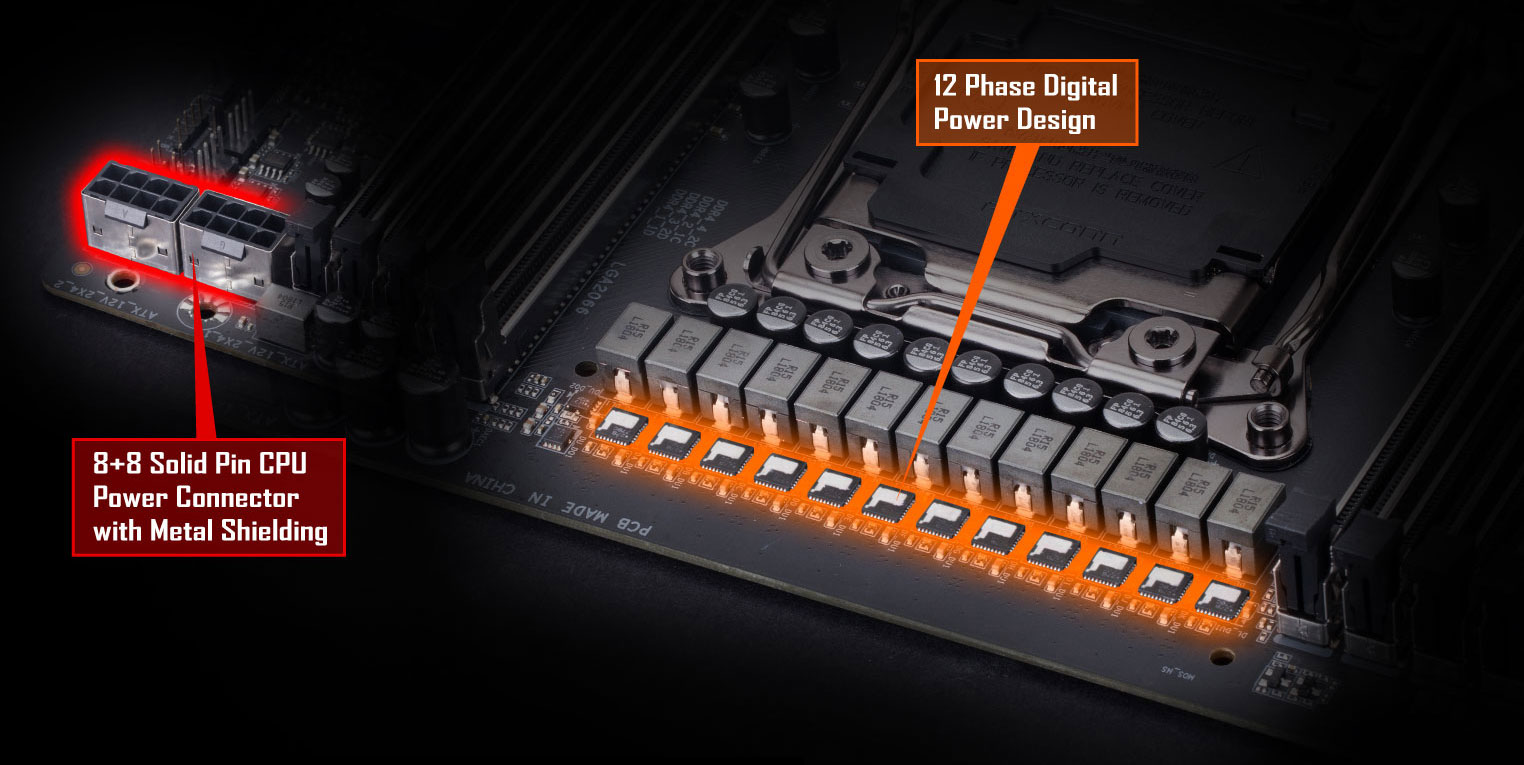

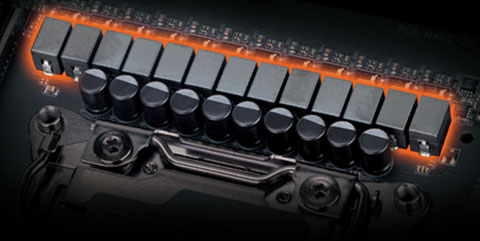

12 Phase Digital Power Design

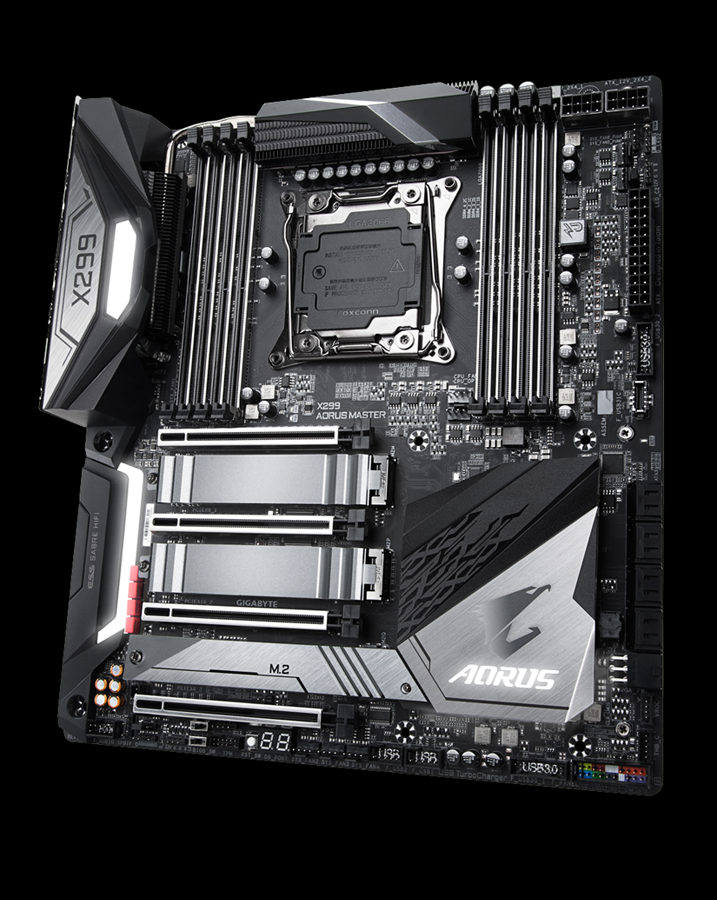

X299 AORUS MASTER motherboard uses an 12 phase digital CPU power design which includes both digital PWM Controller. These 100% digital controller and additional 8+8 Solid-pin CPU Power Connectors offer incredible precision in delivering power to the motherboard's most power-hungry and energy-sensitive components, allowing enthusiasts to get the absolute maximum performance from the new 9th Generation Intel Core processors.
2X Copper PCB
GIGABYTE's exclusive 2X Copper PCBs design provides sufficient power trace paths between components to handle greater than normal power loads and to remove heat from the critical CPU power delivery area. This is essential to ensure the motherboard is able to handle the increased power loading that is necessary when overclocking.

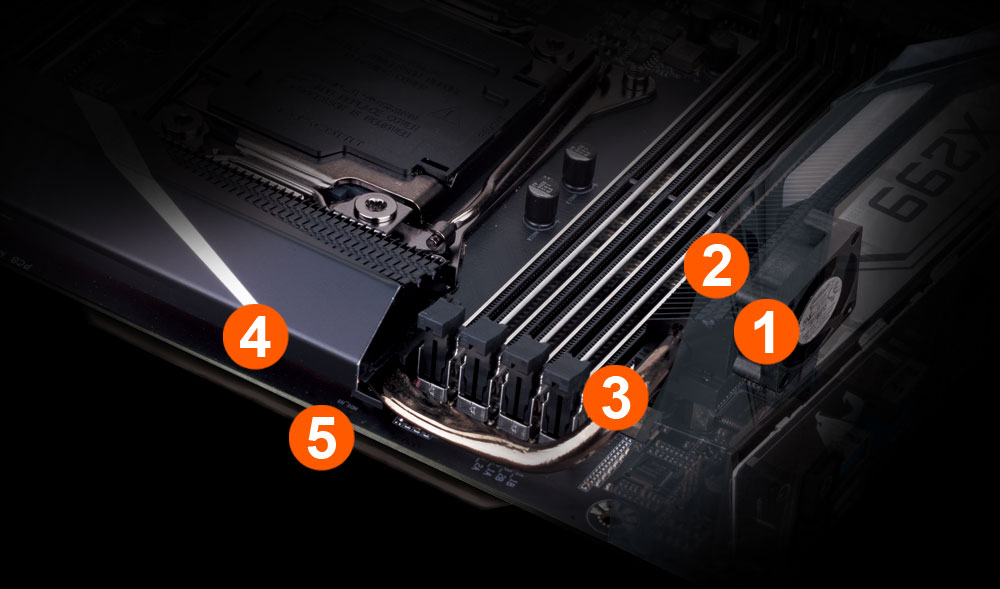

Fins-Array Heatsink with 6mm Heatpipe and High Thermal Conductivity Pad
  1. X299 AORUS MASTER uses Fins-Array Heatsink which increases the heat dissipation area by 300% compared to traditional heatsinks of the same size. By using LAIRD 1.5mm thick, 5W/mK high thermal conductivity pad, it can transfer 2.7x more heat than traditional thermal pads in the same time period. 6mm Heatpipe helps to transfer heat between two heatsinks which improves overall thermal balance of the MOSFETs.
1. Fins-Array
Increase 300% heat dissipation area compared to traditional heatsink in same size.
2. Active Fan
Built-in active cooling fan for faster MOSFET Heat dissipation; automatically adjust fan speed base on VRM temp.

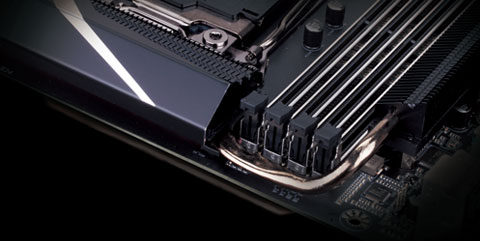

3. 6mm Heatpipe
Heatpipe helps to transfer heat between two heatsinks which improves overall thermal balance of the MOSFETs.
4. High Thermal Conductivity pad
By using 1.5mm thicker 5 W/mK thermal conductivity pad, it can transfer 2.7x more heat than usual thermal pad in the same time.
5. Thermal Baseplate
By using thermal pads between PCB back side components and baseplate to transfer heat and dissipate it by large metal plate.

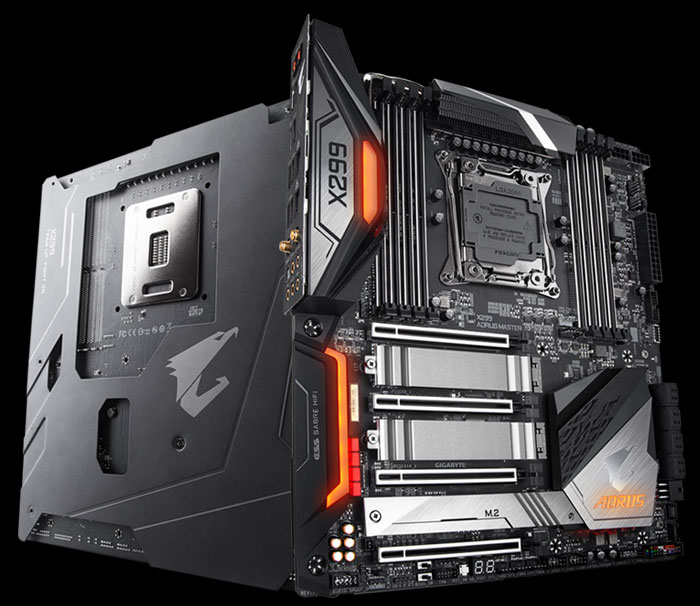

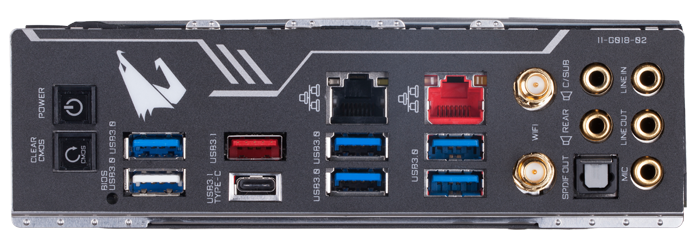

Base plate + I/O Shield Armor
Durable design and easy installation
  1. With an integrated base plate, GIGABYTE Motherboards give users a strong foundation to build their Gaming PCs.

  2. With an integrated I/O shield, building a GIGABYTE Ultra Durable PC is even easier.

  3. Integrated Power/Reset/Clear CMOS buttons on the I/O shield enable users easier debugging and operation.

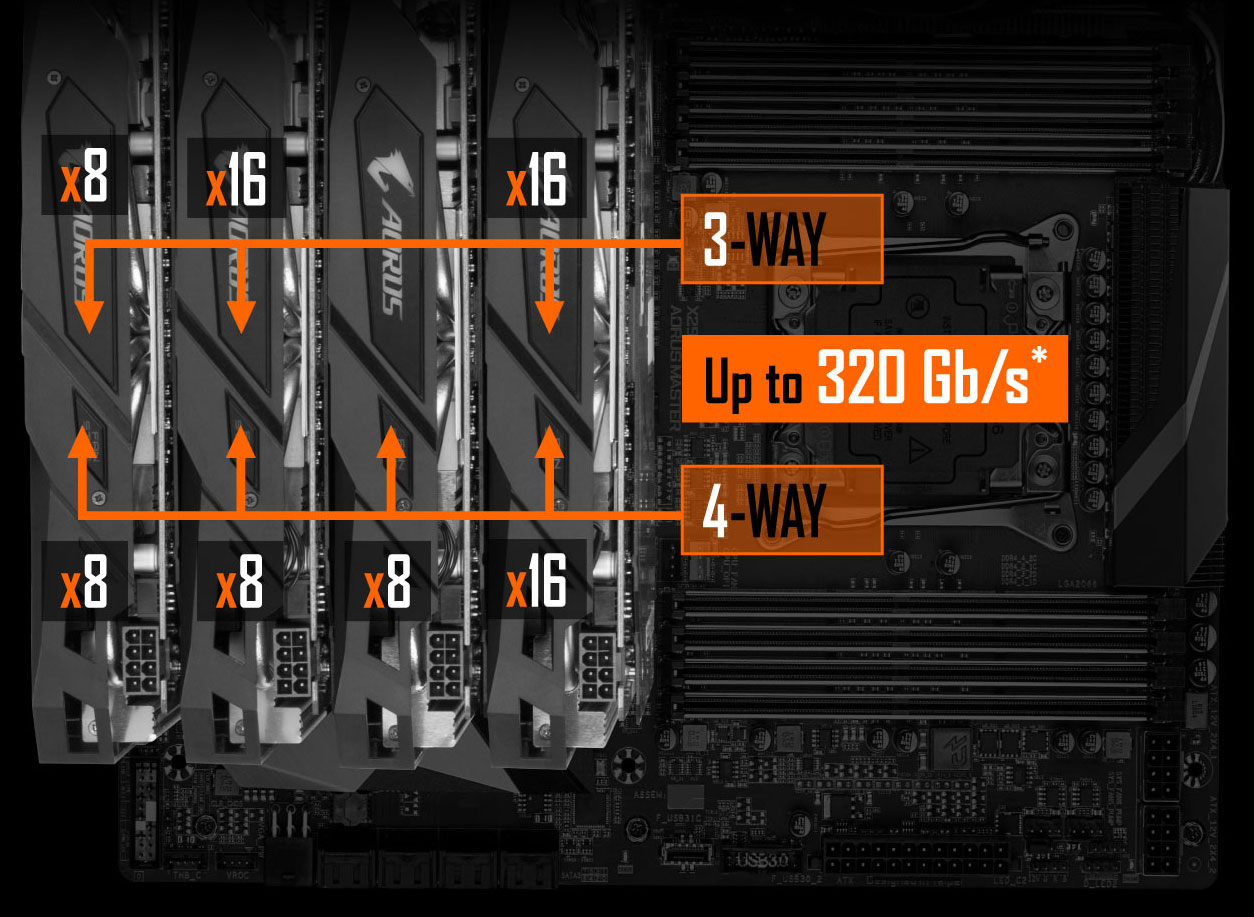

4 Way Dual Wide PCIe Lanes Design
  1. 3- and 4-Way Graphics with up to 40 PCIe Lanes Bandwidth.
  2. X299 AORUS MASTER features unique PCI Express design that utilizes all 44 lanes from the CPU for full bandwidth.
  3. The placement allow users to install 4 dual wide PCIe cards in the same time.

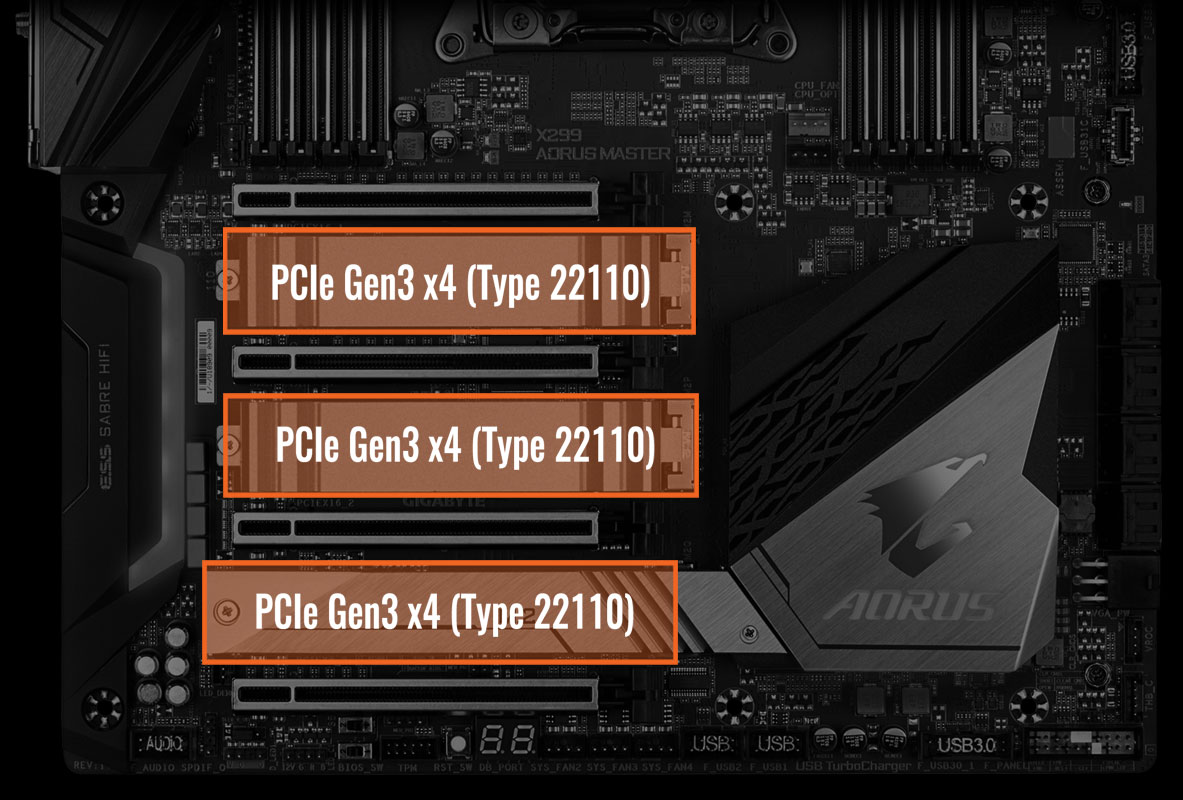

Triple PCIe Gen3 x4 M.2

AORUS Gaming Motherboards are focused on delivering M.2 technology to enthusiasts who want to maximize their system's potential.
Triple NVMe M.2 PCIe SSDs in RAID 0 Support
Extreme Performance with Gen3 x4 NVMe PCIe SSDs

X299 AORUS motherboards offer the industry's best compatibility in terms of NVMe storage for users who demand high capacity and seek the best performance. AORUS' unique design can be configured in RAID for record speeds of up to 3551 MB/s (Sequential Read), making AORUS the obvious choice for the ultimate PC.

M.2 + M.2 + M.2
Extreme sequential Read 3551 MB/s, Sequential Write 3063 MB/s speed

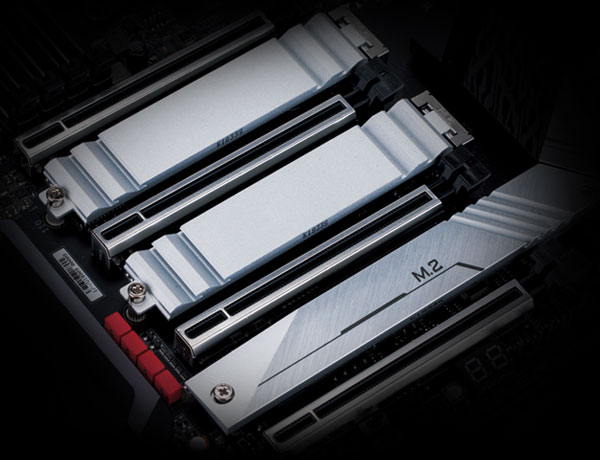

AORUS M.2 Thermal Guard
GIGABYTE Ultra-Efficient M.2 Thermal Guard
With durability in mind, GIGABYTE provides a thermal solution for M.2 SSD devices. The M.2 Thermal Guard prevents throttling and bottlenecks from high speed M.2 SSDs as it helps to dissipate heat before it becomes an issue.
Thermal Throttling As Temperature Rises
Support for DDR4 XMP Up to 4000MHz and Beyond*

AORUS is offering a tested and proven platform that ensures proper compatibility with profiles up to 4000MHz and beyond. All users need to do to attain this performance boost is to ensure that their memory module is XMP capable and that the XMP function is activated and enabled on their AORUS motherboard.

Learn more about AORUS PERFORMANCE
Broad DDR4 Compatibility with Support List of 1000+ DDR4 Validated！

AORUS partners very closely with memory vendors from around the world to ensure that modules offered by popular memory brands are compatible with AORUS Motherboards. AORUS has verified over 1000+ different modules to ensure performance in a AORUS built system.

AORUS AUDIO

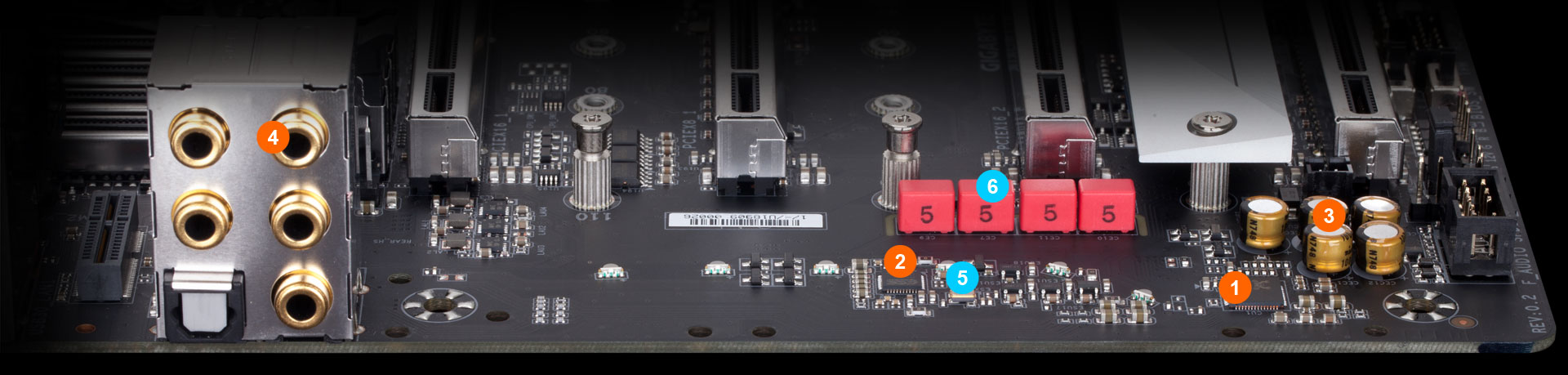

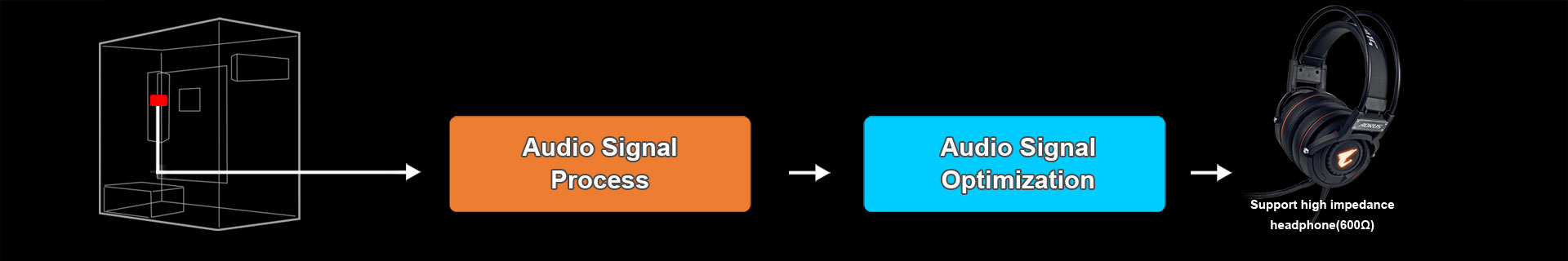

Hi-Fi Audio System- As a Built-in Sound Card
For Hi-Fi Audio Solution, can be grouped into 2 parts.
Audio Signal Process, not distorted digital signal go through ESS 9218 Sabre DAC for Digital/Analog converter with 130dB SNR, 112dB THD+N and supports higher impedance up to 600 Ω headphone. Further, audiophile grade capacitor and gold plated audio jack ensures the non-compensated audio performance. Audio Signal Optimization, TXC Oscillator provides precise time triggers to Digital-Analog Converters. WIMA Capacitors to deliver crystal and balanced sound.
Audio Signal Process
Digital Audio
True Hi-Fidelity Music
Provides surround sound audio and enables DSD music playback
Digital / Analog Convert

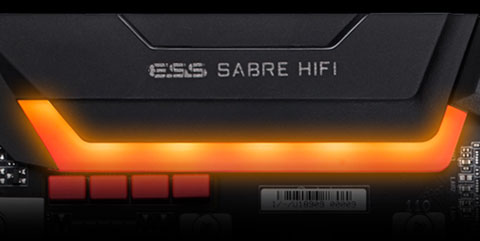

ESS SABRE reference DAC 9218
  • Support QUAD DAC™
    to deliver superb 124dB DNR and -112dB THD+N.
  • True 2vrms outputs are capable of driving professional high impedance headphones and deliver professional line-level outputs.
  • Analog Volume Control
    delivers 130dB SNR at low listening levels by reducing noise as the audio signal decreases.
  • High-Res music
    Supports up to 32bit from 384kHZ to 192KHz PCM
Audio Signal Amplification
Audiophile Grade Capacitors
Deliver true acoustic sound
Crystal Sound Output
Gold Plated Audio Jacks
High resistance to corrosion and oxidation
Audio Signal Optimization
Precise TXC Oscillator
Provides precise time triggers to Digital-Analog Converters.
Audiophile Grade Capacitors
Famous WIMA capacitors are used as feedback signal processing to deliver crystal and balanced sound.
ALC1220-VB Immersive Gaming ViBes
All New Realtek High-End HD Audio Codec
ALC1220 120dB(A) SNR HD Audio with Smart Headphone Amp automatically detects impedance of your head-worn audio device, preventing issues such as low volume and distortion.
With the new VB series audio controller, stream your voice to the world vibrantly with both front/rear microphone SNR up to 110/114dB(A).
No More Confusion
During In-Game Voice Chat
Microphone input with higher front dynamic range allows gamers to hear more clearly. No more misunderstandings, no more confusing GO! GO! GO! as NO! NO! NO!

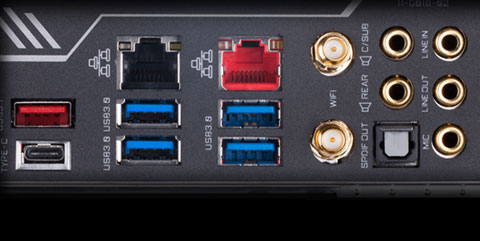

AORUS CONNECTIVITY

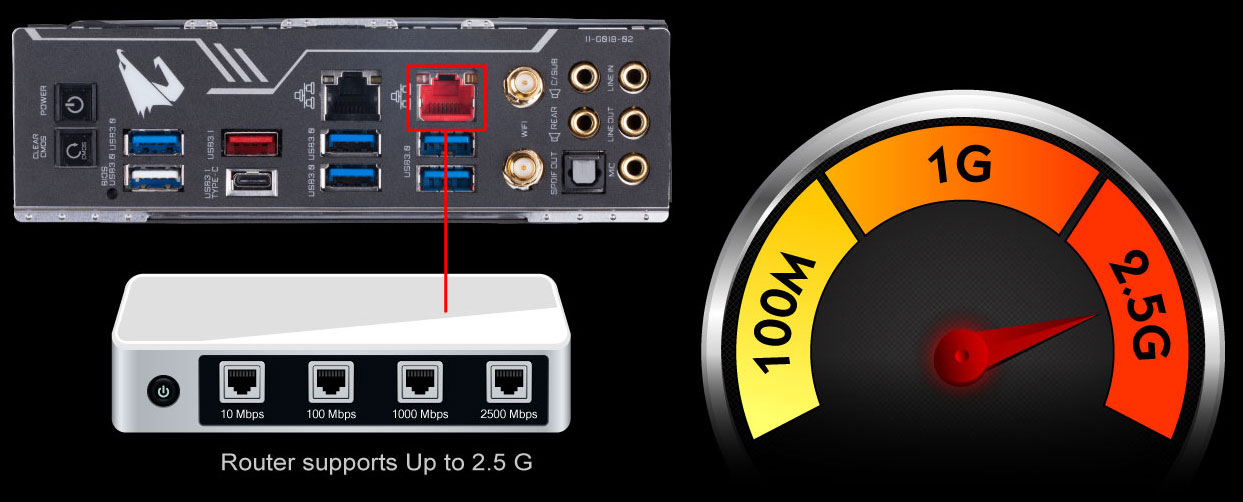

First Adopter on 2.5GbE LAN Onboard

2X Faster than ever
  1. Adoption of 2.5G LAN provide up to 2.5 GbE network connectivity, with at least 2 times faster transfer speeds compared to general 1GbE networking, perfectly designed for gamers with ultimate online gaming experience
  2. Support Multi-Gig(10/100/1000/2500Mbps) RJ-45 ethernet


Intel® GbE LAN with cFosSpeed Internet Accelerator Networking

Intel® GbE LAN features cFosSpeed, a network traffic management application which helps to improve network latency and maintain low ping times to deliver better responsiveness in crowded LAN environments.



Faster and Better Coverage with Intel® Dual Band 802.11ac WIFI+BT4.2 Module
The onboard 802.11ac WIFI module from Intel® supports up to 867 Mb/s wireless networks and BLUETOOTH 4.2. The bonded 2.4GHz/5GHz Dual Band and 2T2R antenna expands your coverage.

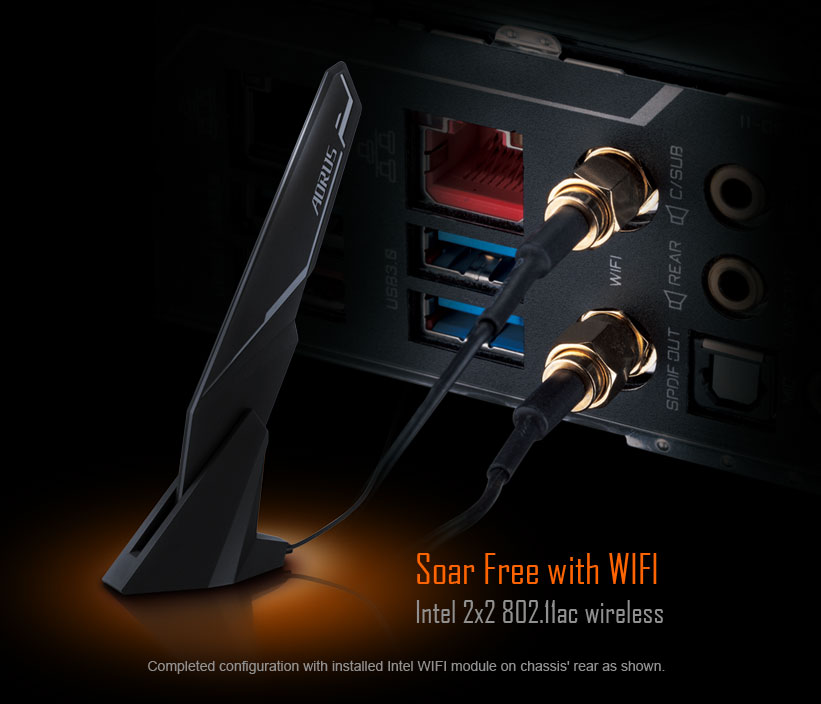

AORUS Antenna Supports Dual Band with Better Wifi Signal
  1. All new antenna supported dual band 802.11ac 2.4GHz & 5GHz.
    better signal strength compared to traditional antenna design
  2. AORUS Antenna with smart antenna function for the best WIFI signal transmitting
  3. Multiple angle tilt and magnetic base for the best signal strength direction and location

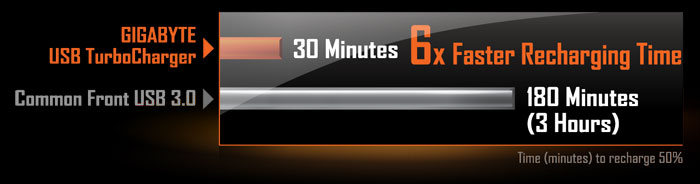

USB TurboCharger
GIGABYTE patent pending USB TurboCharger technology allows users to recharge their mobile devices with stunning speed, up to 50% in less than 30 minutes*. By connecting the Front USB 3.0 Type-A chassis cable to our motherboard, users can utilize the USB TurboCharger to recharge both Android devices with QC 3.0 and Apple devices with Apple Fast-Charge function.
*Charge time varies with device's hardware design, battery size, front USB 3.0 cable quality of chassis, power saving setting (CEC 2019, ERP), and environmental factors, actual results will vary.
PERFORMANCE FUELED BY
OPTANE


The X299 AORUS Platform supports Intel's latest Optane technology. Optane fuels storage performance by acting as a cache drive giving users a significant boost compared to traditional mechanical drives.

USB Type-C™ Front Panel Connector

Equipped with next generation connectivity AORUS Gaming Motherboards already support the chassis of the future. The onboard USB Type-C™ header for USB 3.1 Gen2 makes access convenient when connecting a USB 3.1 Gen2 drive or charging your new mobile device.

Learn more about AORUS CONNECTIVITY
Native Intel USB 3.1 Gen 2 Controller
Connecting the Future - USB Type-C™
Intel's native USB 3.1 host controller provides USB 3.1 ports with speeds up to 10Gbps .With twice the bandwidth compared to its previous generation as well as backwards compatibility with USB 2.0 and 3.0, the much improved USB 3.1 protocol is available over the new reversible USB Type-C™ and the traditional USB Type-A connector for better compatibility over a wider range of devices.
Connecting the Future - USB Type-C™
• The World's Next Universal Connector
• Reversible USB Type-C™ with USB 3.1 Gen 2
AORUS STYLE

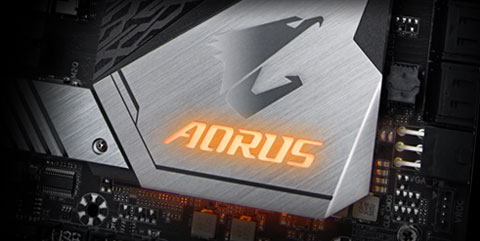

RGB Fusion 2.0

With AORUS Motherboards, RGB Fusion 2.0 is even better with Addressable LEDs.* RGB Fusion 2.0 offers users the option to control onboard RGB and external RGB / Addressable LED light strips for their PC. Already feature filled with colors and patterns, RGB Fusion 2.0 on X299 Series AORUS Motherboards are now upgraded with Addressable LED support. With external Addressable LED strips*, where each LED is digitally addressable, users can experience even more patterns, styles, and illuminations.

AORUS Motherboards will support either 5v or 12v Addressable LED lighting strips and up to 300 LED lights. RGB Fusion 2.0 with Addressable LEDs comes with new patterns and various speed settings with more to come.

* Addressable LEDs are available only on select Motherboards, external LED Strips, Addressable LED Strips are not included with Motherboard purchase.

Multi-Zone Light Show Design
Now offering more LED customizations than ever, users can truly adapt their PC to represent their lifestyle. With full RGB support and a redesigned RGB Fusion 2.0 application, the user has complete control over the LEDs which surround the motherboard.
RGB Fusion 2.0 Software
RGB Fusion APP
RGB Fusion 2.0 Ready
With an integrated intuitive user interface, the RGB Fusion 2.0 provides you a better solution for customizing the lighting effects across all supported devices. From motherboards, graphics cards to the peripheral products, you can personalize your gaming rig with your own style and show off your build by sharing the profiles. In addition, the new gaming mode makes the lighting effects interactive with selected games to bring you the most immersive gaming experience.
Sync with one click
Individual control as you wish

GIGABYTE RGB Fusion APP

Don't just make your PC shine, make it a work of art that friends will envy. With the GIGABYTE RGB Fusion mobile app users can watch as they control the lighting within their gaming PC. This gives users ease of access as they try and adjust colors and speeds for different modes, all this can be achieved away from the keyboard and monitor of their PC.

With a dazzling array of products supported, RGB Fusion 2.0 is the software that brings it all together, letting your accessories synchronize to the same beat. Customize all your LEDs how you like — have them match, dazzle and impress. Learn more about RGB Fusion 2.0
AORUS COOLING

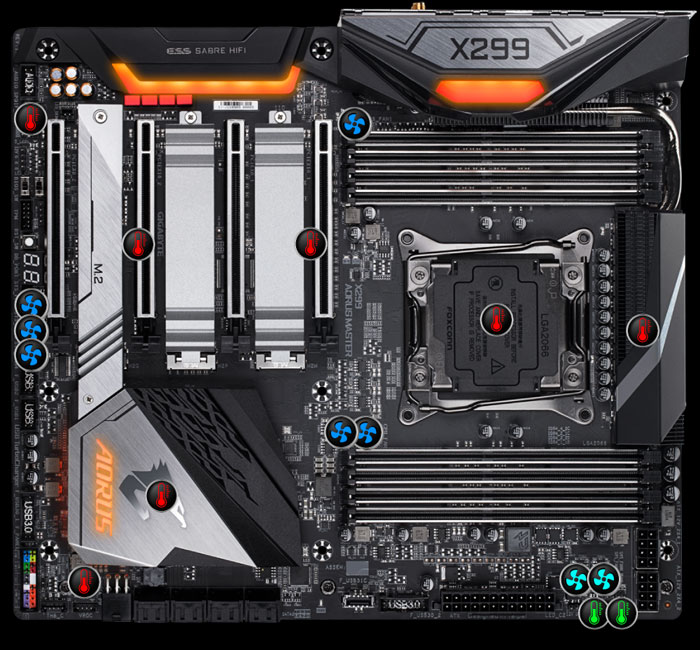

Smart Fan 5

With Smart Fan 5 users can ensure that their gaming PC can maintain its performance while staying cool. Smart Fan 5 allows users to interchange their fan headers to reflect different thermal sensors at different locations on the motherboard. Not only that, with Smart Fan 5 more hybrid fan headers that support both PWM and Voltage mode fans have been introduced to make the motherboard more liquid cooling friendly.

Fan Pin Headers
FAN / Water Pump Pin Headers
Internal Temperature Sensors
External Temperature Sensors
Different models have different number of fan pin headers and temperature sensors. Smart Fan 5 function may vary by model.
Temperature Sensors
Hybrid Fan Headers
Temperature Sensor Cable x 2
■ 8 Fan / Water Pump Connectors
■ 7 Temperature Sensors
■ 2 External Temperature Sensors
■ All Hybrid Fan Headers
■ Support GPU temperature as source
■ Interoperable Fans and Sensors
■ Supports High Current Fans up to 24W(2AX12V) with Over-Current Protection
■ Intuitive UI for Fan Control
FAN STOP
Hybrid FAN Header
Smart Fan 5 Software

Achieve fan silence. With Fan Stop, map any fan to stop completely when temperatures drop below a specified threshold. Which fan stops, based on readings from which sensor, and at what temperature—all of it can be customized to your liking.

Intelligent Fan Control Design
Hybrid Fan Pin Headers

Assume complete control over your liquid cooling setup! Smart Fan 5 receives up-to-the-second information on flow-rate and water-temperature through the Hybrid Fan Pin Headers or external thermistor sensors—giving you absolute mastery over your PC.
• All Hybrid Fan Headers can automatically detect the type of cooling device whether it be fan or pump with different PWM or Voltage mode.

New Smart Fan 5 Software
Choose from different modes, Quiet to Full Speed, to match your system usage preferences.
For each fan or pump, you can use the intuitive fan curve to define trigger thresholds and corresponding fan speeds.
AORUS ULTRA DURABLE

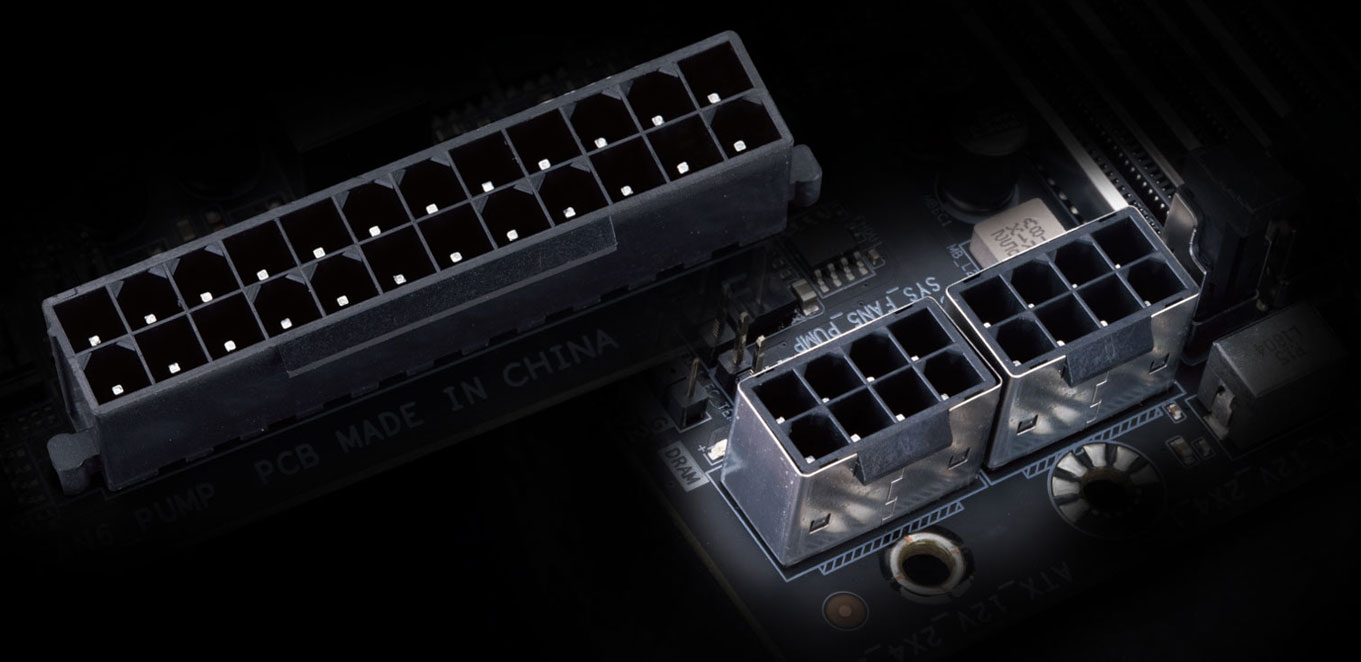

Solid Pin Power Connectors
X299 AORUS motherboards feature solid plated ATX 24pin & ATX 12V 8pin + 8pin power connectors to offer a stable power supply during CPU overloading.
Solid Pin Power connector advantages
  1. Larger contact area for electricity
  2. More metal quantity to sustain higher power and generated heat
  3. Ultra durable and longer lifespan

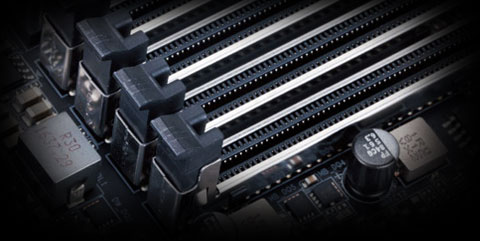

GIGABYTE Patented Double Locking Bracket

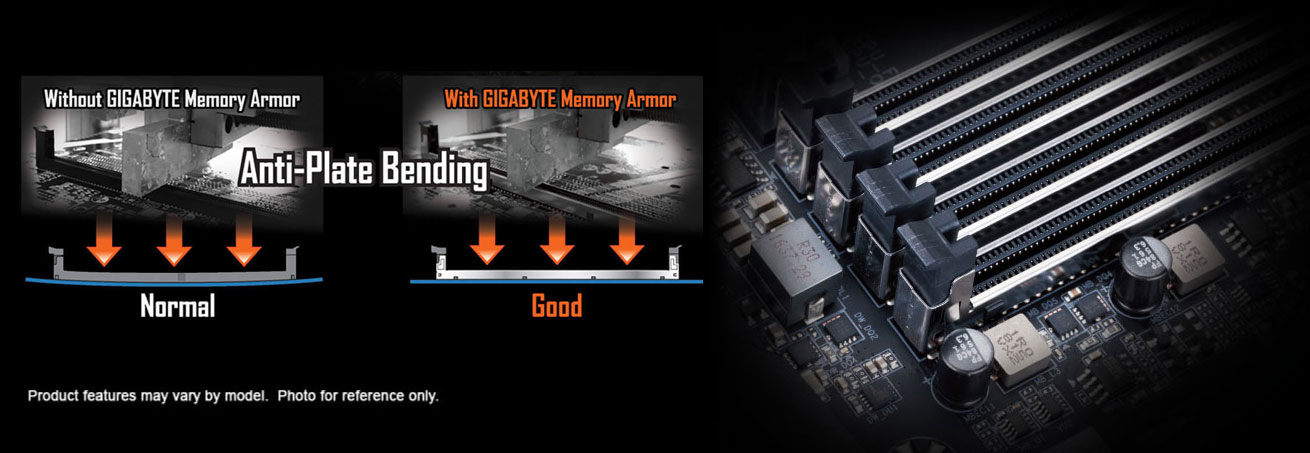

Ultra Durable™ Memory Armor
AORUS' exclusive one piece stainless steel shielding design prevents against PCB distortion/twisting and plate bending, in addition to preventing any possible ESD interference.
Learn more about AORUS ULTRA DURABLE

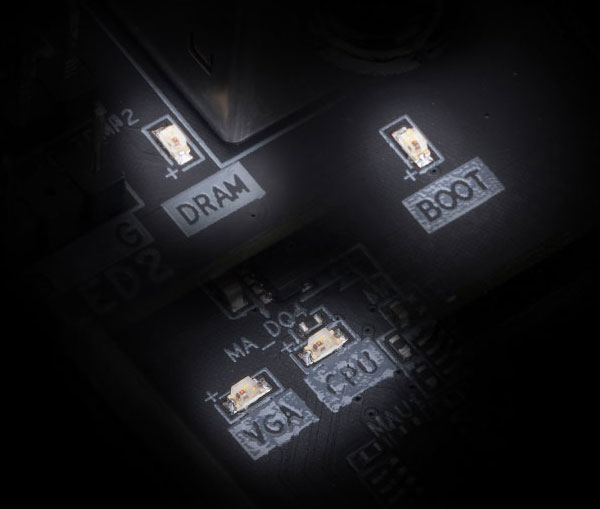

Diagnostic LEDs
Hardware Troubleshooting at a Glance
Onboard LEDs controlled by the system BIOS indicate if a malfunction is occurring, allowing users to quickly diagnose which major component (CPU/DDR/VGA/HDD) is malfunctioning so they may take action promptly.

* Photo for reference only.

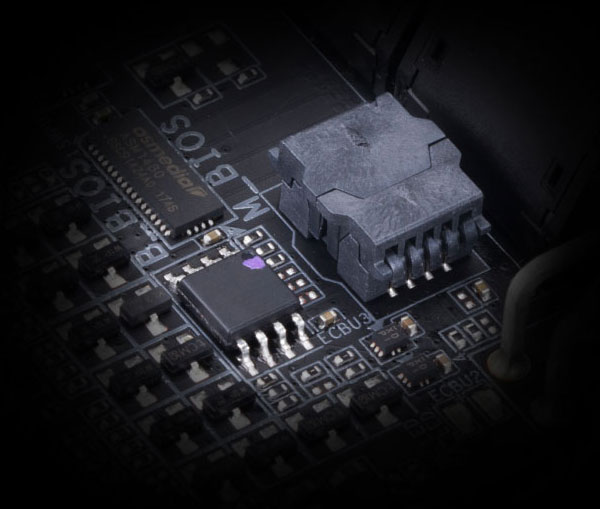

GIGABYTE Patented
DualBIOS™ Design
GIGABYTE Ultra Durable™ motherboards feature GIGABYTE DualBIOS™, an exclusive technology from GIGABYTE that protects arguably one of your PC's most crucial components, the BIOS. GIGABYTE DualBIOS™ means that your motherboard has both a 'Main BIOS' and a 'Backup BIOS', protecting users from BIOS failure due to virus, hardware malfunction, improper OC settings or power failure during the update process.
Easy to Install "G Connector" Design

The tiny cables of the front panel connectors can be hard to manipulate as space is restricted and indicators are tiny. With the G Connector, you can connect all the FP cables at once, simplifying the process of building your next PC and saving you frustration.

AORUS EXCELLENCE
GIGABYTE BIOS & Applications
BIOS
APP CENTER
EasyTune
@BIOS
System Information Viewer
BIOS
New User Interface
All new EASY MODE shows important hardware information in one page including CPU clock, Memory, Storage, Fan.
My Favorites
Add constantly used items into the favorite menu for quick access.
Storage Information
Show all kinds of storage information including SATA, PCIE and M.2 interface.
Changelog
List all changes before saving and exiting bios. Quickly review overall settings modification.
Optimized Memory Installation Reminder
Displays correct installation reminder message when user installs two memory modules but runs single channel mode.
Intuitive Load Line Curve
Clearly show each loadline calibration setting in an intuitive curve graph.
APP CENTER
GIGABYTE APP CENTER is an useful portal of all GIGABYTE MB utilities and drivers, you can choose any utility you want to install from APP CENTER and keep you updated with latest utilities and drivers version.
EasyTune™
GIGABYTE's EasyTune™ is a simple and easy-to-use interface that allows users to fine-tune their system settings or adjust system and memory clocks and voltages in a Windows environment. With Smart Quick Boost, one click is all it takes to automatically overclock your system, giving an added performance boost when you need it the most.
@BIOS
The GIGABYTE @BIOS app allows you to update your system’s BIOS from within Windows using a simple and slick graphical user interface. @BIOS can automatically download the latest version from the GIGABYTE servers or you can update your BIOS from a file on your computer. @BIOS also allows you to save your current BIOS to a file, recover your previous BIOS from an image and backup your BIOS to an image.
System Information Viewer
GIGABYTE System Information Viewer is a central location that gives you access to your current system status. Monitor components such as the clocks and processor, set your preferred fan speed profile, create alerts when temperatures get too high or record your system's behavior; these are the possibilities of the System Information Viewer.
XSplit Gamecaster + Broadcaster: Cast Your Game Anytime, Anywhere

Now set up your stage and share the greatest gaming moments with XSplit Gamecaster + Broadcaster! Fully optimized social media integration is ready for real-time chats—keeping you notified yet focused in the game. It takes just one click to stream your gameplay to Twitch. Host your game like a pro!

* Free 1 year XSplit Gamecaster + Broadcaster Premium License.
