  G1™ Audio
|
|
|



GIGABYTE AMP-UP Audio™ Technology
GIGABYTE G1™ Gaming motherboards are equipped with the GIGABYTE exclusive AMP-UP Audio Technology, which provides the industry’s highest level of onboard audio features and technologies. With GIGABYTE AMP-UP Audio, gamers and audiophiles are able to experience crisp, ultra realistic sound effects while gaming, and the richest possible sound experience when listening to their favorite music and movies.

How does GIGABYTE AMP-UP Audio™ Technology work?

Creative Sound Core3D™
Quad-Core Audio Processor
High End Audio Capacitors
Bi-Polarized Audio Capacitors
GIGABYTE Exclusive
Upgradable OP-AMP
(Operational amplifier)
Gold Plated Audio Jacks

Sound Blaster SBX Pro
Studio (Full Suite)



Gain Boost
Rear Panel Audio: Gaming Headphone / Gaming PC Speakers/ AV System

* Product features may vary by model.
GIGABYTE Direct Audio Route Design
Z97X-Gaming G1 WIFI-BK

• Shortest route, no wasted trace.
• Less crosstalk & less EMI.
• AMP positioned close to audio jack for lowest noise.
• Better signal quality and better audio quality.

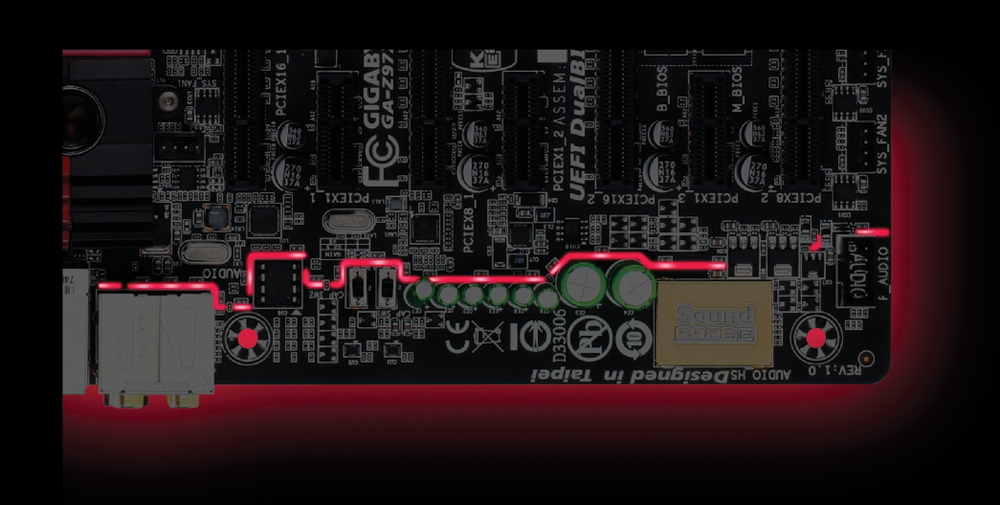

The shortest route is always the best for audio signals.
The GIGABYTE 9 Series G1™ Gaming motherboards feature the shortest audio communication paths between each critical component, from chipset to audio jack. This reduces the crosstalk along the way, and the very close proximity of the AMP to the audio jack directly results in lower noise disturbance.

With this high quality audio design, GIGABYTE G1™ Gaming motherboards are able to bring users better signal quality for the absolute best audio experience.
* Features may vary by model.

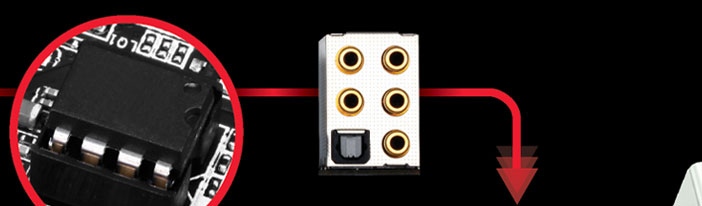

GIGABYTE Exclusive : Upgradable OP-AMP

Customizable
+ Users can choose audio quality based on individual listening preferences.
+ Wide availability of additional OP-AMPs.

Low Cost way to dramatically improve audio quality
+ Improve audio dynamics and overall sound-quality with little cost.
+ No need for expensive speakers or high-end audio equipment.

* IC Extractor not included.

Exclusive onboard 'Gain Boost' selector switches
+ Select either standard 2.5x or high-amplification 6x mode.
+ 6x mode is ideal for high impedance speakers and headphones.


Creative® Sound Core3D™ Quad-Core Audio Processor
Combining world’s first Quad-Core Creative Sound Core3D Audio Processor Plus Advanced Creative SBX PROSTUDIO Audio Suite.
+ Harnessing the power of a Dedicated Audio Processor to offload workload from CPU
+ Total solution from Creative (Hardware +Software)
+ Richer overall audio experience

Creative® Sound Core3D™

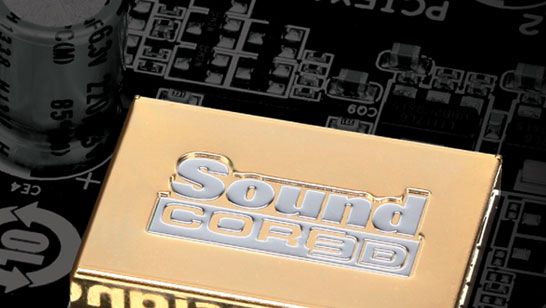

with Custom Gold Plated Shielding

Creative SBX Pro Studio Audio Suite
SBX Pro Studio™ suite of audio playback technologies deliver a new level of audio immersion. Realistic surround sound, the ability to clearly hear specific sounds in a gaming environment are just a few elements of SBX Pro Studio that enhances the overall experience, be it movies, games or music.




High End Audio Capacitors

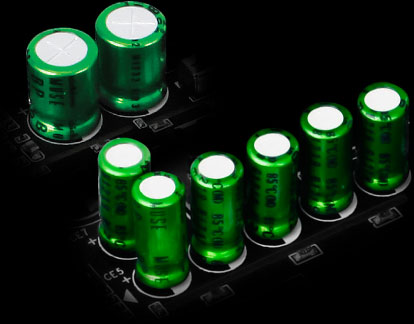

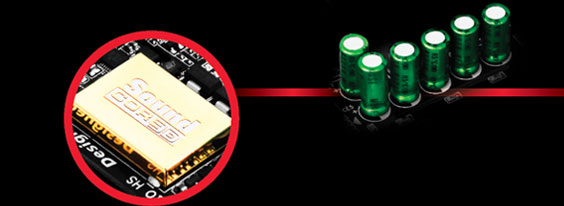

GIGABYTE G1™ Gaming motherboards use high end, Japanese branded Nichicon audio capacitors. These professional audio capacitors deliver the highest quality sound resolution and sound expansion to create the most realistic sound effects for professional gamers.



* Product features may vary by model


Gold Plated Audio Hardware

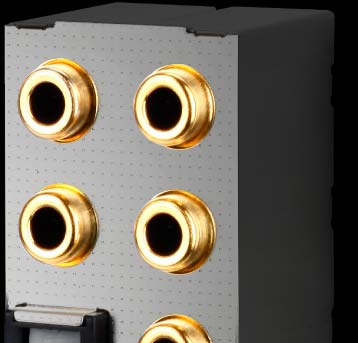

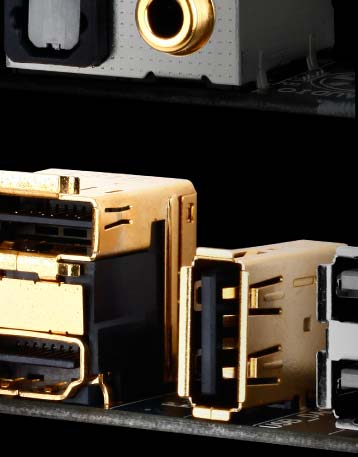

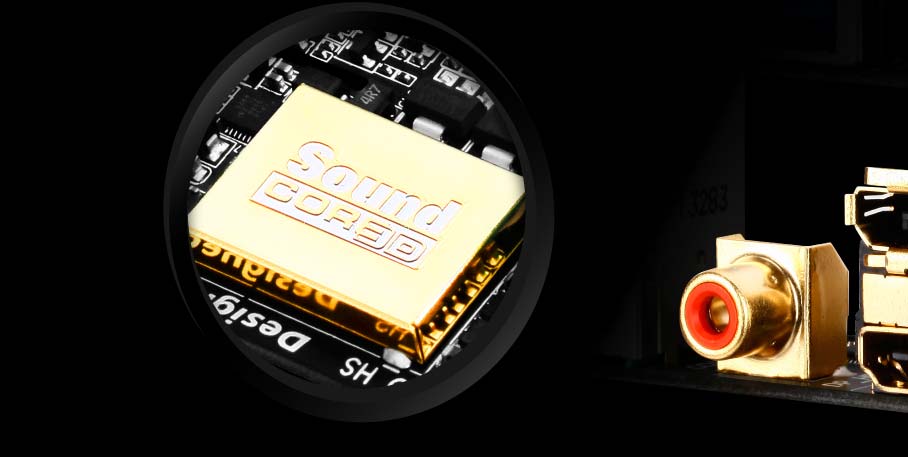

GIGABYTE G1™ Gaming motherboards pack top quality gold plated audio and HDMI connectors for improved connectivity and long lasting durability. Gold has superb signal conductivity and will not tarnish over extended periods of use. The Creative Sound Core3D™ processor is also shielded by a gold plated cover which eliminates electrostatic interference.



Clean, low-noise power for your Digital-to-Analog Audio converter

Featuring dual USB 2.0 ports, GIGABYTE USB DAC-UP provides clean, noise-free power delivery to your Digital-to-Analog Converter. DACs can be sensitive to fluctuations in power from the other USB ports, which is why GIGABYTE USB DAC-UP takes advantage of an isolated power source that minimizes potential fluctuations and ensures the best audio experience possible.


Dedicated
power design
USB DAC-UP Power

Regular USB Power

* Product features may vary by model.


Realtek ALC1150 115dB SNR HD Audio

The ALC1150 is a high-performance multi-channel High Definition Audio Codec that delivers an exceptional audio listening experience with up to 115dB SNR, ensuring users get the best possible audio quality from their PC.

The ALC1150 provides ten DAC channels that simultaneously support 7.1-channel sound playback, plus 2 channels of independent stereo sound output (multiple streaming) through the front panel stereo outputs. Two stereo ADCs are integrated and can support a microphone array with Acoustic Echo Cancellation (AEC), Beam Forming (BF), and Noise Suppression (NS) technologies. The ALC1150 incorporates Realtek proprietary converter technology to achieve Front differential output 115dB Signal-to-Noise ratio (SNR) playback (DAC) quality and 104dB SNR recording (ADC) quality.

Dedicated Audio Hardware Zone
+ Separation on the PCB layer protects the board’s sensitive analog audio components.
+ Separate analog and digital ground to protect against Electromagnetic Interference (EMI).
+ LED trace path lighting illuminates to show the separation of the PCB layers.


Locating the right and left audio channels on separate PCB layers, GIGABYTE 9 Series G1™ gaming motherboards are able to eliminate channel crosstalk and maintain the best audio quality.
Left Audio Channel
PCB layer

Right Audio Channel
PCB layer
  The above photos are for reference only.

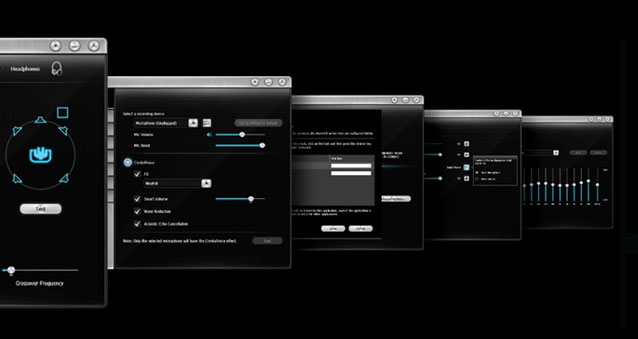

Additional Sound Blaster X-Fi MB3

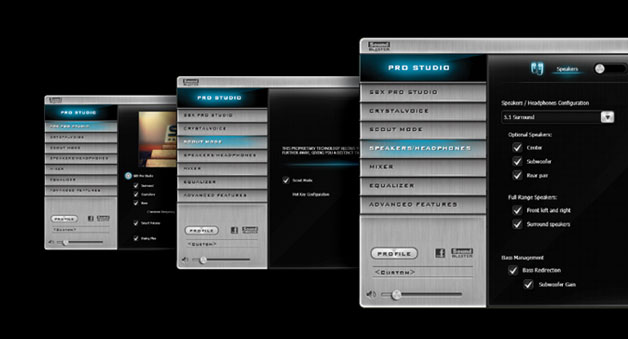

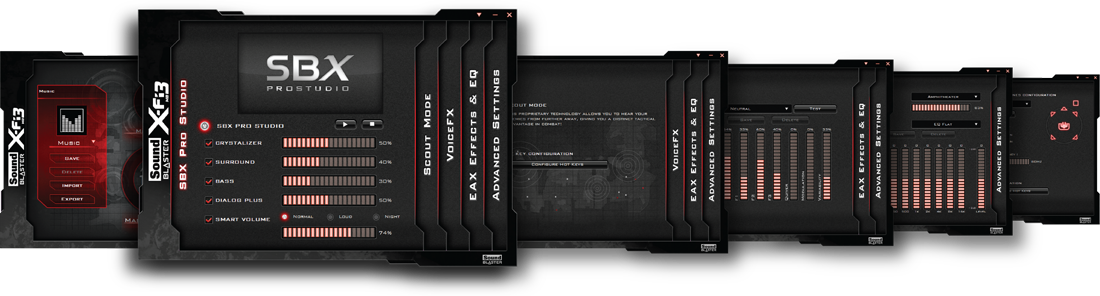

GIGABYTE G1™ Gaming motherboards also include Sound Blaster X-Fi MB3 software suite. Sound Blaster X-Fi MB3 software suite is a powerful audio platform offering premium audio quality, effects and features for gamers. It features SBX Pro Studio™ suite of technologies, which is designed to give you the fullest audio experience.





* Product features may vary by model.
