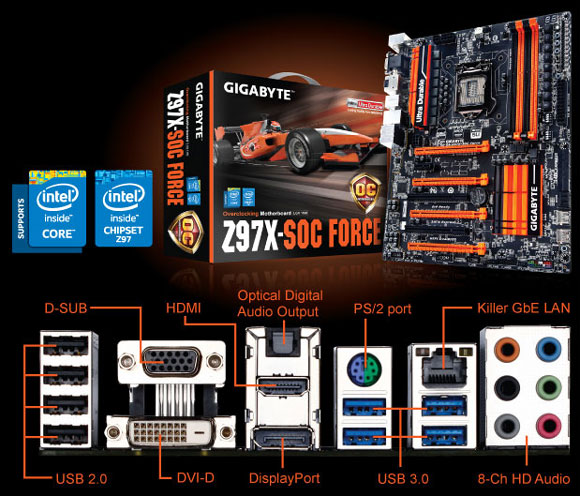

GA-Z97X-SOC Force Specifications
|
CPU support
|
|
4th Gen & 5th Gen Intel® Core™ processors |
CPU socket |
|
LGA 1150 |
Chipset |
|
Intel Z97 Chipset |
Graphics Interface |
|
1*PCI-E 3.0 x16 +1*PCI-E 3.0 x8 + 2*PCI-E x4* |
Display Interface |
|
HDMI, DisplayPort, DVI-D, D-SUB |
Memory Type |
|
2 Channel DDR3 |
Memory DIMM |
|
4*DDR3 |
Expansion slots |
|
1*PCI-E x1, 2*PCI |
SATA connectors |
|
6*SATA3**, 1*SATA EXPRESS |
SATA RAID |
|
RAID 0,1,5,10 |
USB |
|
6*USB 3.0 + 8*USB 2.0 |
Audio / LAN |
|
8-channel HD / Killer GbE LAN |
Form Factor(mm) |
|
ATX (305x244) |
|
* PCI-E x4 slot shares bandwidth with PCI-E x8 slot. |
** Only 4 SATA3 connectors are available when SATA EXPRESS is enabled . |
|
|

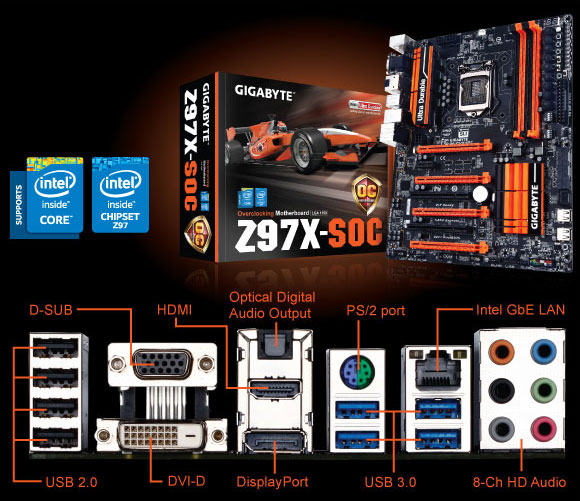

GA-Z97X-SOC Specifications
|
CPU support
|
|
4th Gen & 5th Gen Intel® Core™ processors |
CPU socket |
|
LGA 1150 |
Chipset |
|
Intel Z97 Chipset |
Graphics Interface |
|
1*PCI-E 3.0 x16 +1*PCI-E 3.0 x8 + 2*PCI-E x4* |
Display Interface |
|
HDMI, DisplayPort, DVI-D, D-SUB |
Memory Type |
|
2 Channel DDR3 |
Memory DIMM |
|
4*DDR3 |
Expansion slots |
|
1*PCI-E x1, 2*PCI |
SATA connectors |
|
6*SATA3**, 1*SATA EXPRESS |
SATA RAID |
|
RAID 0,1,5,10 |
USB |
|
6*USB 3.0 + 8*USB 2.0 |
Audio / LAN |
|
8-channel HD / Intel GbE LAN |
Form Factor(mm) |
|
ATX (305x244) |
|
* PCI-E x4 slot shares bandwidth with PCI-E x8 slot. |
** Only 4 SATA3 connectors are available when SATA EXPRESS is enabled . |
|
