EXTREME Thermal Design
Z390 AORUS XTREME WATERFORCE は最新の放熱対策により、
放熱性を強化しています。
放熱性を強化しています。
![](images/logo5g.png)
EXTREME Thermal Design
AORUS All-In-One Monoblock
NanoCarbon Baseplate
16X Hybrid Fan Header
![](images/mainsec02.jpg)

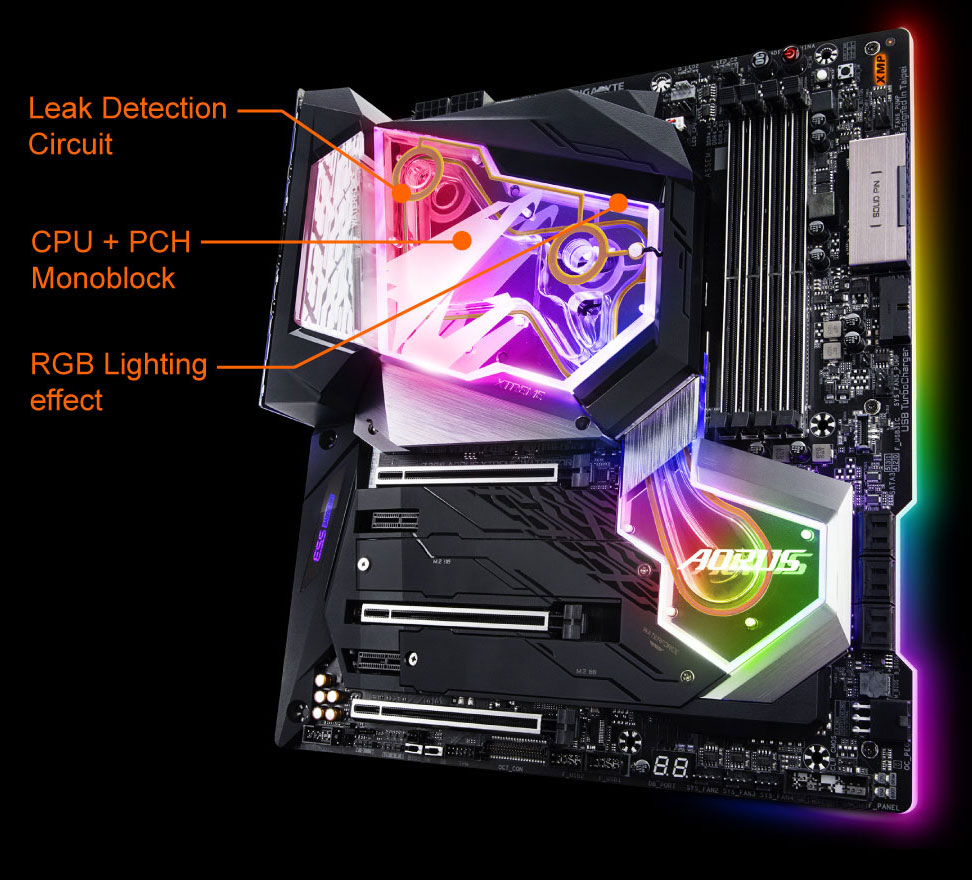

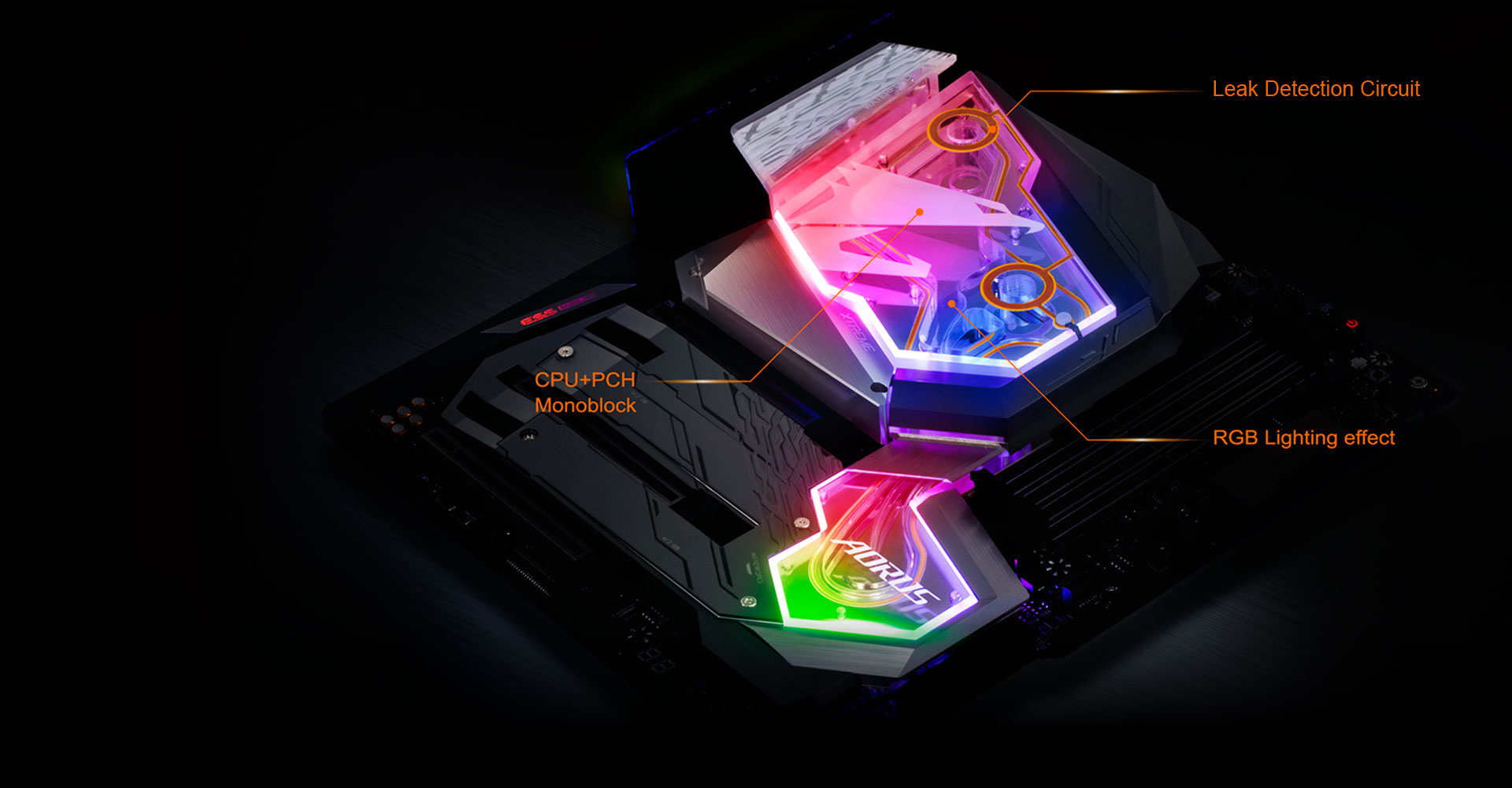

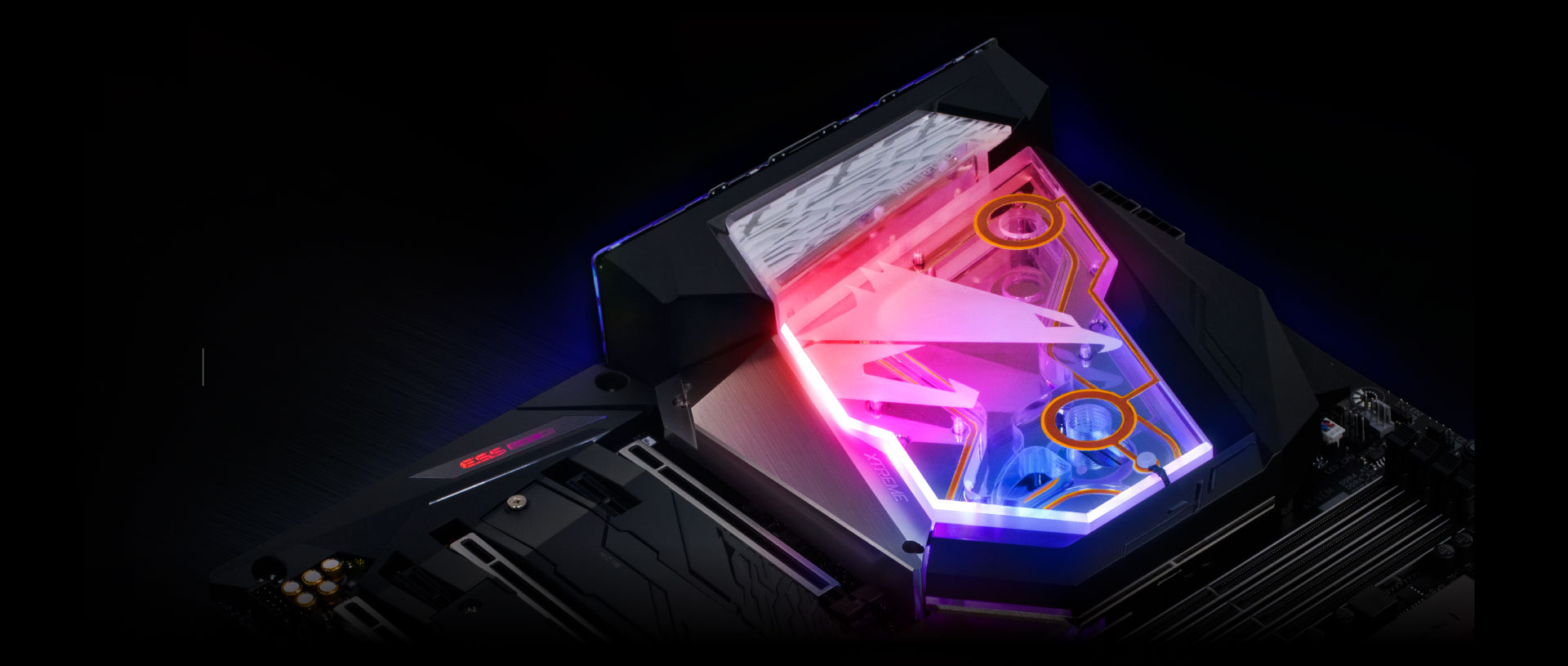

- 一体型水枕により、CPU & PCH を同時に水冷可能
- 高密度銅製フィンによる高熱伝導
- 水漏れ検知回路を搭載
- G1/4" 規格のフィッティング対応
- 水漏れ検知時のシャットダウン機能搭載
- デジタル式 LED 照明効果付
- 高熱伝導率サーマルパッド付
- バックプレートによる MB 歪み防止
Specifications | Spec |
Fin Total Surface Area(mm2) | 4630.5 |
Fin Gap(mm) | 0.3 |
Sealing | SR50A |
Threads(inch) | 2 x G1/4 |
Max(mpa) | 0.25 |
Thermal Grease (W/mK) | TC-5026, k=2.9(W/mk) |
Thermal Pad (W/mK) | 5(MOS, Choke, LAN, PCH) |
Digital LED Pin Header | Yes, 4 pin |
Digital RGB LED | 51(CPU 39; PCH 12) |
RGB Fusion 2.0 | YES |
Leak Detection | YES |
Covered area | CPU, PCH, MOS, M.2 |
Weight (kg) | 3.1 |
![](images/Z390_Monoblock.jpg)
![](images/monoblock.jpg)

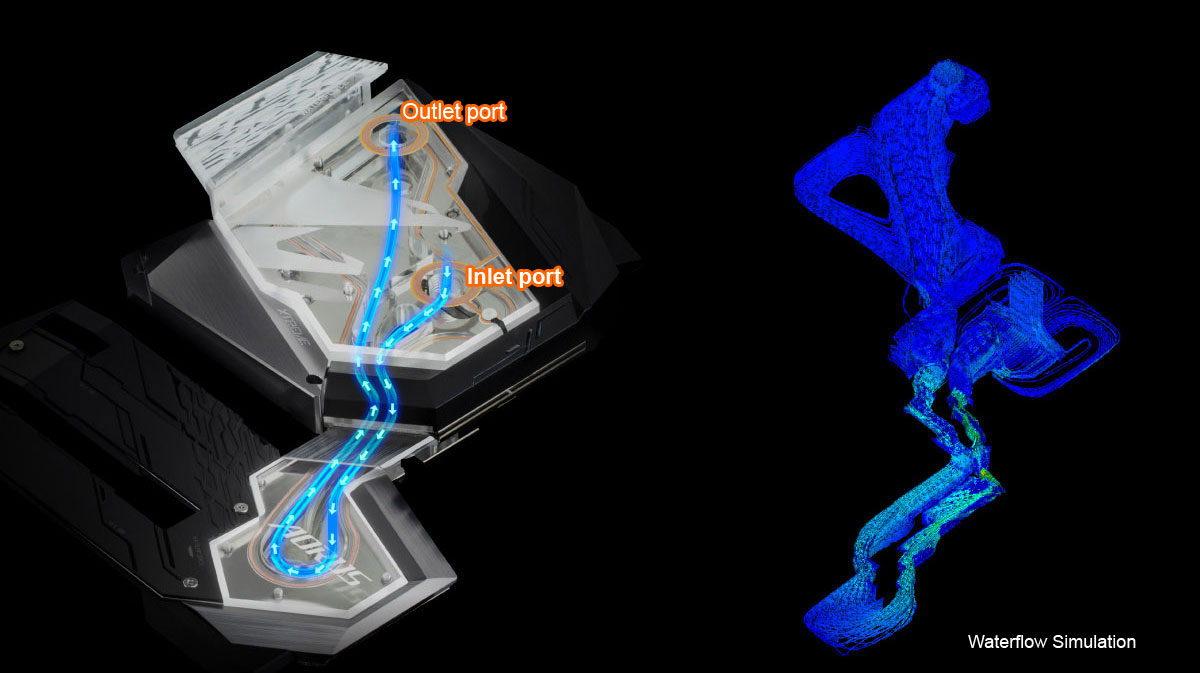

水冷組立時に、クーラントの流れ方向が最適になるようご注意ください。
![](images/lefticon.png)
![](images/righticon.png)
- バックプレートにより、マザーボード裏面の放熱性を高めるだけではなく、マザーボード全体の強度+取付する際の扱いやすさが向上します。
- また、最新式の一体型 I/O バックパネルにより、PC ケースへの取付作業が簡単に行えます。
![](images/logo5g.png)
![](images/Base-plate_port.png)
NanoCarbon コーティング

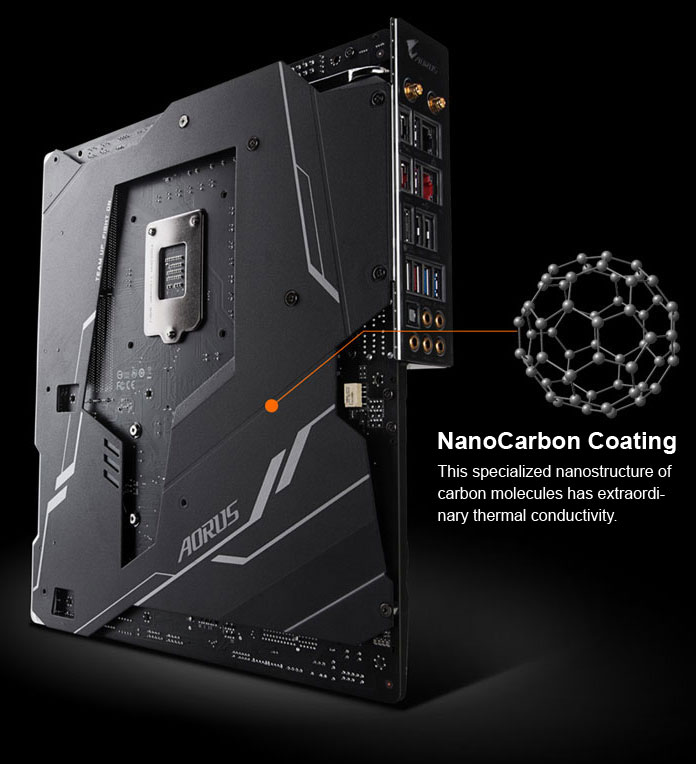

NanoCarbon コーティングをバックプレートに施すことにより、放熱性をさらに高めました。
![](images/Base-plate.jpg)
![](images/smart-fan5-logo.png)
Smart Fan 5
Smart Fan 5 によって、 高性能ゲーミングPCであっても最適な冷却状態を維持できます。 Smart Fan 5 では、マザーボード上の複数の温度センサーによって、 ファン端子ごとに制御を行うことが可能です。 また、Smart Fan 5 によって制御されるファン端子はハイブリッド式であり、 PWM および Voltage 両モードに対応しています。
![](images/smart-fan5.jpg)
![](images/smart-icon-blue.png)
![](images/smart-icon-green.png)
![](images/smart-icon-red.png)
![](images/smart-icon-green-t.png)
温度センサー
![](images/smart-fan5-tex10.png)
Hybrid Fan ピンヘッダ
![](images/smart-fan5-fanx8.png)
![](images/temperature-sensor-cable.png)
■ 8 Fan / Water Pump Connectors
■ 8 Temperature Sensors
■ 2 External Temperature Sensors
■ All Hybrid Fan Headers
■ Support GPU temperature as source
■ Interoperable Fans and Sensors
■ Supports High Current Fans up to 24W(2A x 12V) with Over-Current Protection
■ Intuitive UI for Fan Control
■ 8 Temperature Sensors
■ 2 External Temperature Sensors
■ All Hybrid Fan Headers
■ Support GPU temperature as source
■ Interoperable Fans and Sensors
■ Supports High Current Fans up to 24W(2A x 12V) with Over-Current Protection
■ Intuitive UI for Fan Control
![](images/rgb-fan-commander.jpg)

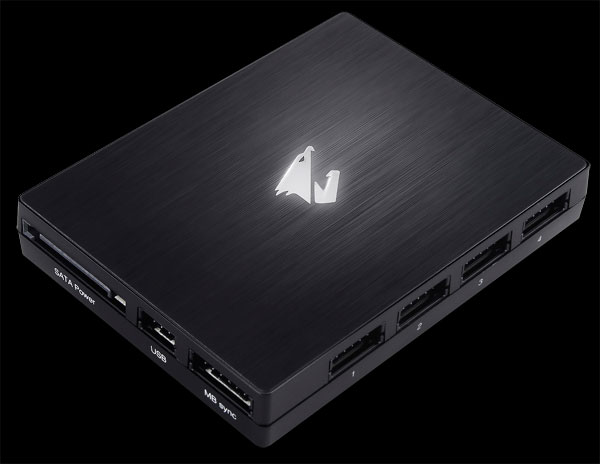

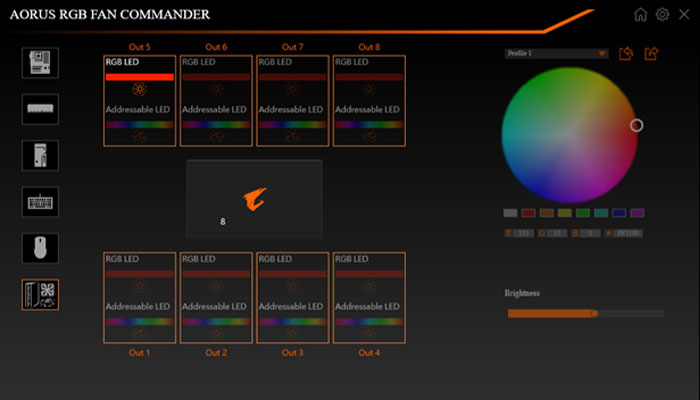

同梱されている RGB FAN COMMANDER のより、さらに 8 Fan ヘッダピンが使用可能です。
ファンピンヘッダーと温度センサー数についてはモデルによって異なる場合があります。
Smart Fan 5 機能についてはモデルによって異なる場合があります。
Smart Fan 5 機能についてはモデルによって異なる場合があります。
![](images/fan-stop.jpg)
本マザーボードでは、ファンストップで完全な静寂を実現できます。
温度が指定されたしきい値を下回った時に、ファンを停止するように設定可能です。
優れたファン・コントロール設計
![](images/fan-control-design.jpg)
![](images/FAN_ON.jpg)
Hybrid Fan Pin Headers

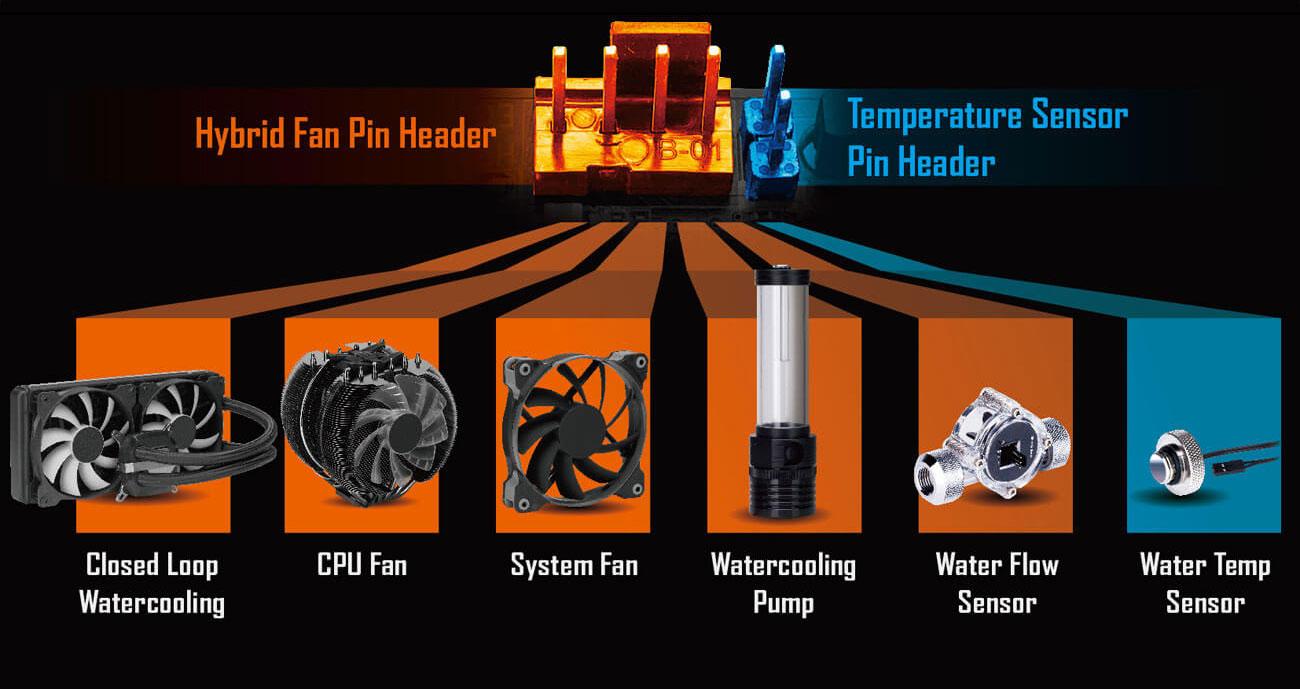

水冷設定を完全に制御しよう! Smart Fan 5 は、ハイブリッド・ファンピンヘッダを介して流量に関する最新の情報を受け取り、PC の水冷を完全に制御できます。
すべてのハイブリッド・ファンヘッダーは、
PWM および Voltage 両モードのファン/ポンプのいずれであっても、自動的に検出して最適な設定を行います。
![](images/hybrid-fan-pin-header.jpg)

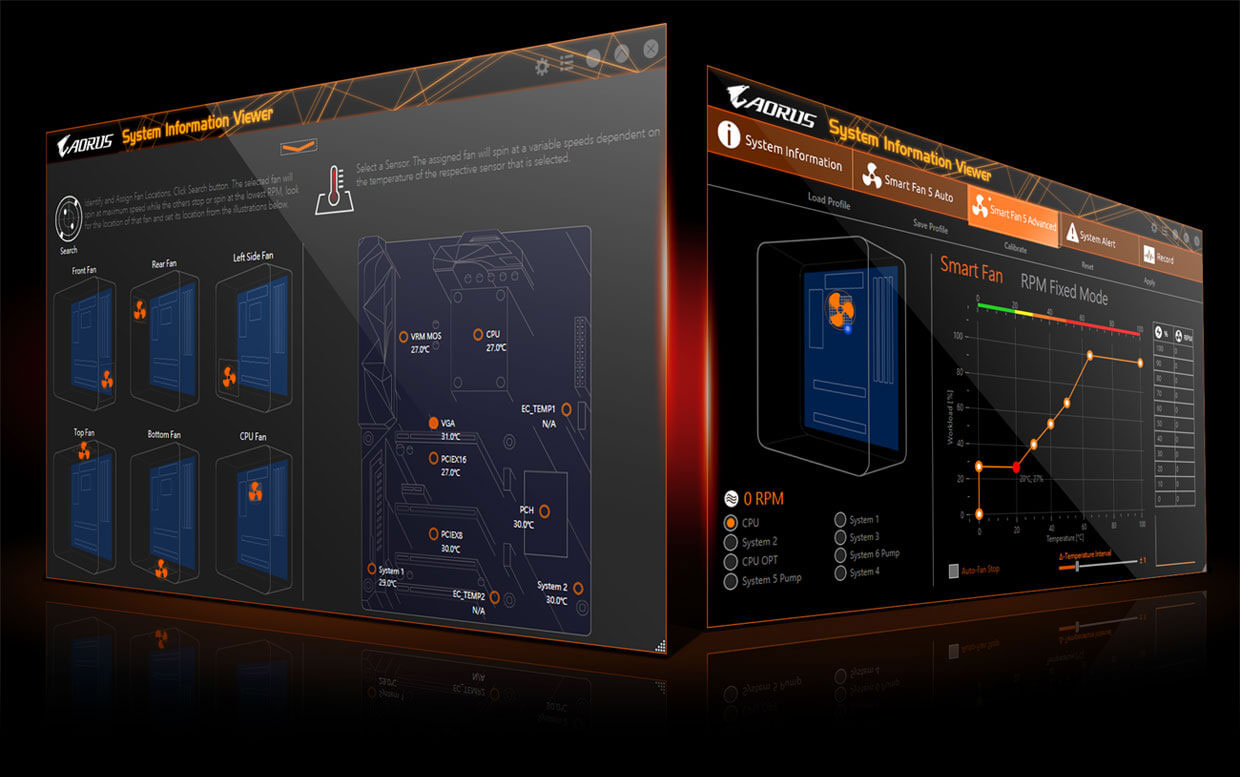

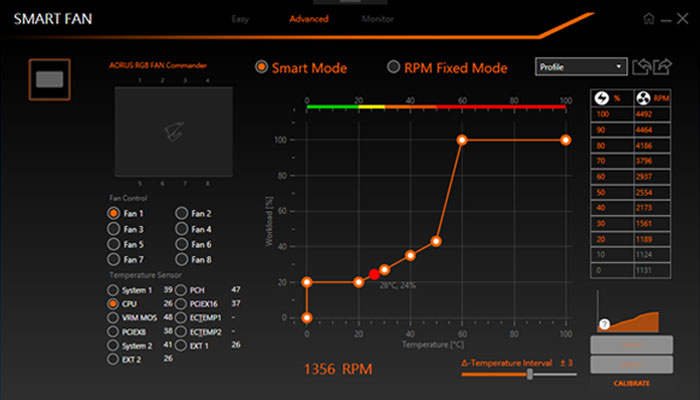

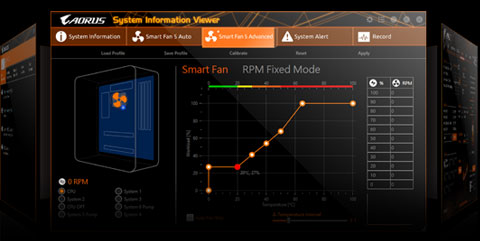

新しくなった Smart Fan 5 ソフトウェア
