New Processor Architecture

Intel® Xeon® Scalable processors are designed for the performance demands of complex, data-demanding workloads such as in-memory databases, and real-time business analytics.

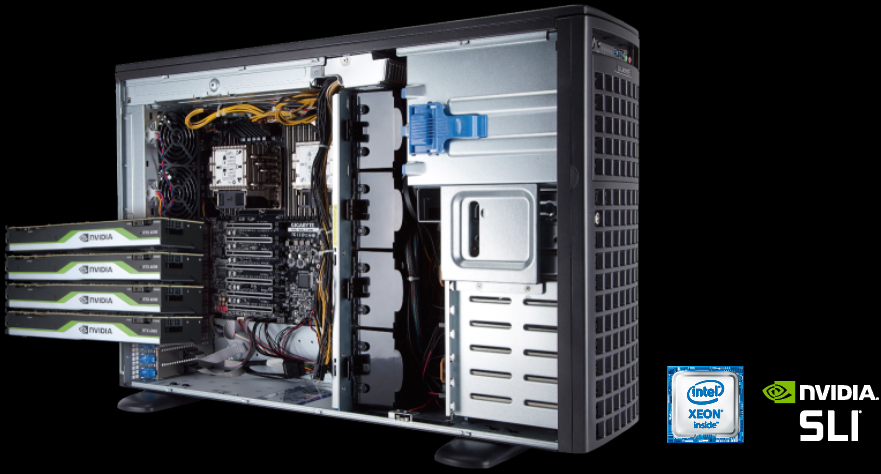

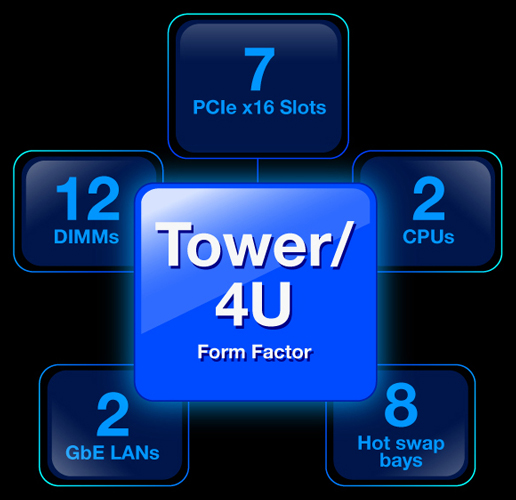

THE PERFORMANCE AND SPACE OPTIMIZED SERVER

W42G-P08R is compatible with both rack mount and tower mode, which takes on a high performance role as a multi-GPU server for designers or mid-level enterprises.


Applications:
• Deep learning and AI
• Rendering
• Virtualization

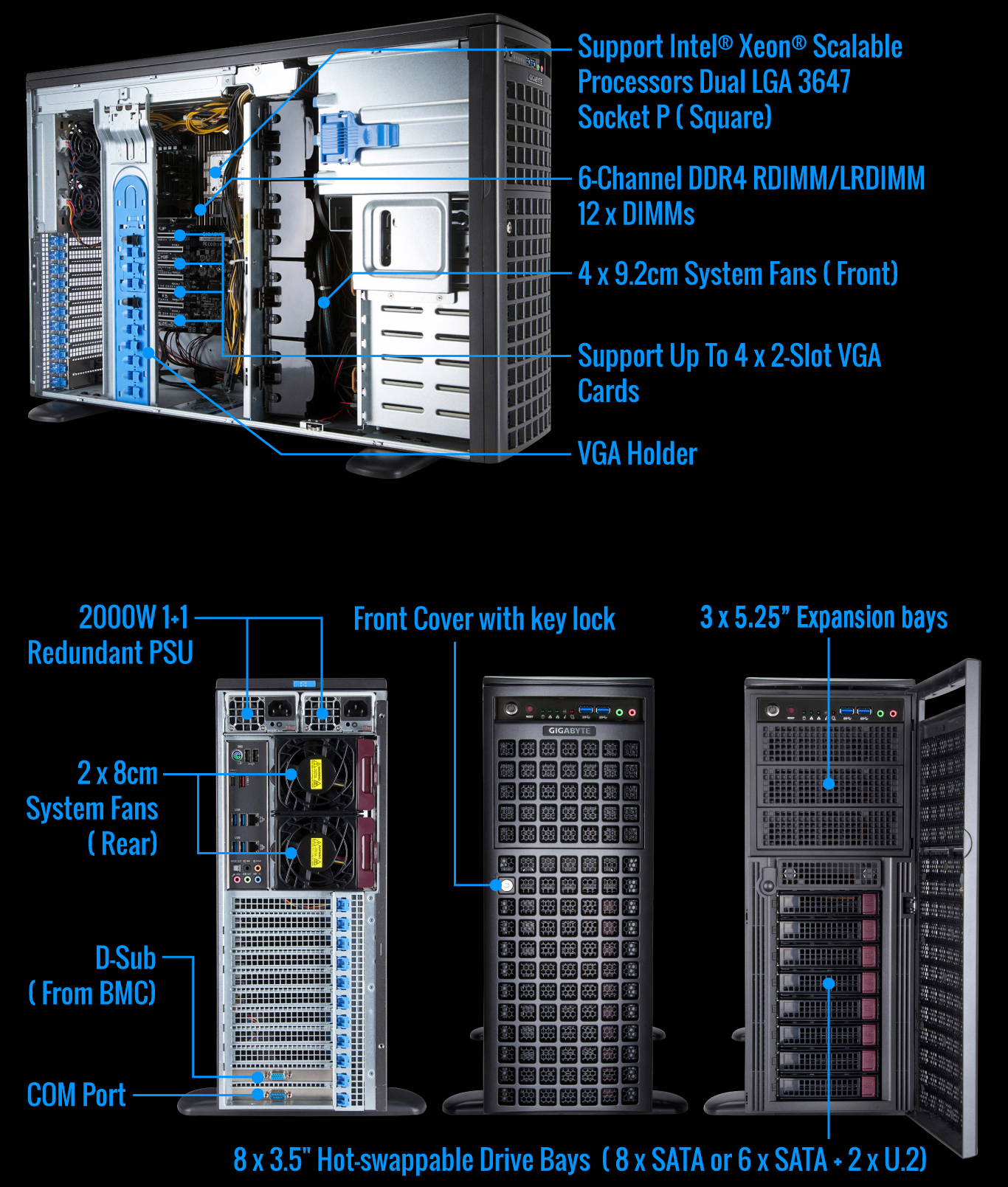

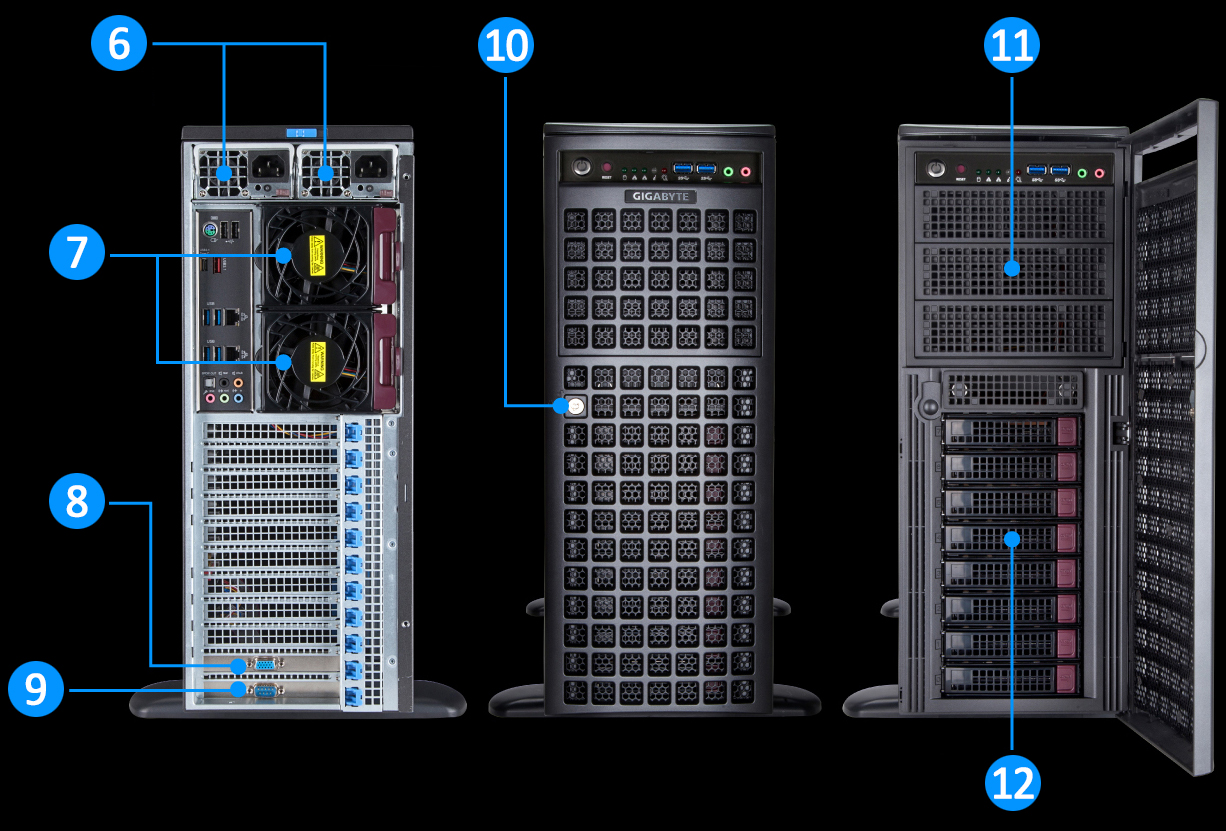

SPEC OVERVIEW

1
Support Intel® Xeon® Scalable Processors Dual LGA 3647 Socket P (Square)
2
6-Channel DDR4 RDIMM/LRDIMM 12 x DIMMs
3
4 x 9.2cm System Fans (Front)
4
Support Up To 4 x 2-Slots VGA Cards
5
VGA holder


6
2000W 1+1 Redundant PSU
7
2 x 8cm System FANs (Rear)
8
D-Sub (From BMC)
9
COM port
10
Front Cover with key lock
11
3 x 5.25" Expansion bay
12
8 x 3.5" Hot-swappable Drive Bays (8 x SATA or 6 x SATA + 2 x U.2)

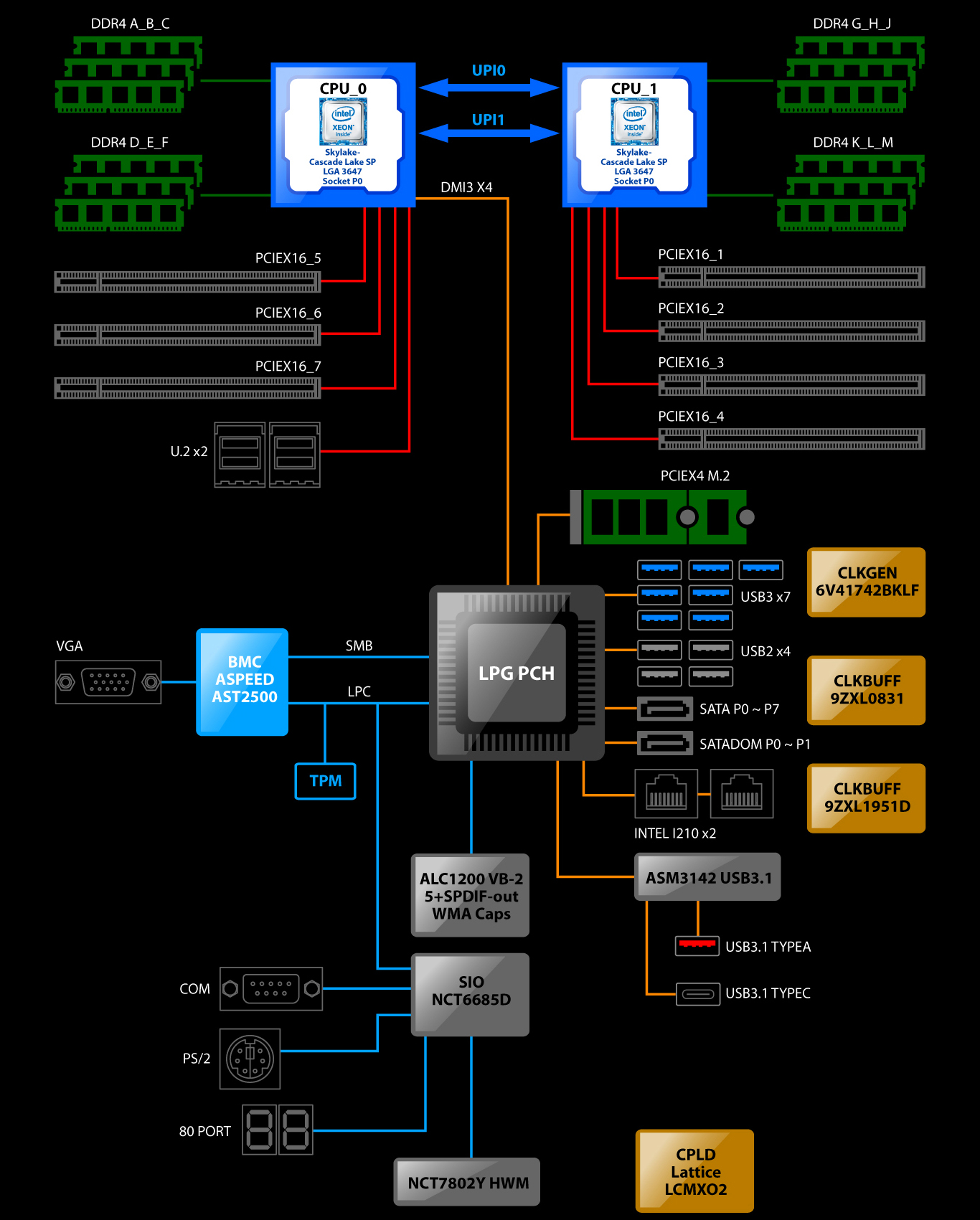

W42G-P08R Motherboard Block Diagram

PERFORMANCE
4-Way SLI™/4-Way CrossFire™ Multi-Graphics

Multi-graphics configurations offer better graphics performance for applications which demand the highest frame rates without compromising on resolution.

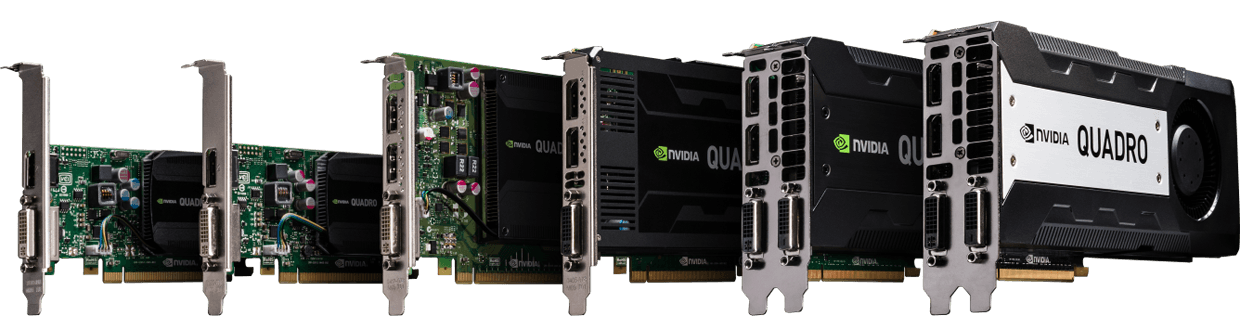

NVIDIA® QUADRO® Professional Graphics Supports

NVIDIA® QUADRO® 3D Workstation Professional Graphics Solutions are designed and built specifically for artists, designers, and engineers, NVIDIA Quadro GPUs power more than 100 professional applications across a broad range of industries. Professionals trust them to enable their best work using applications such as Adobe® Creative Cloud, Avid Media Composer, Autodesk Suites, Dassault Systemes, CATIA and SOLIDWORKS, Siemens NX, PTC Creo, and many more.

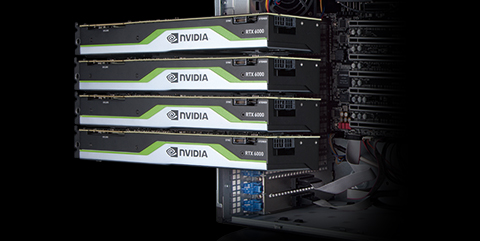

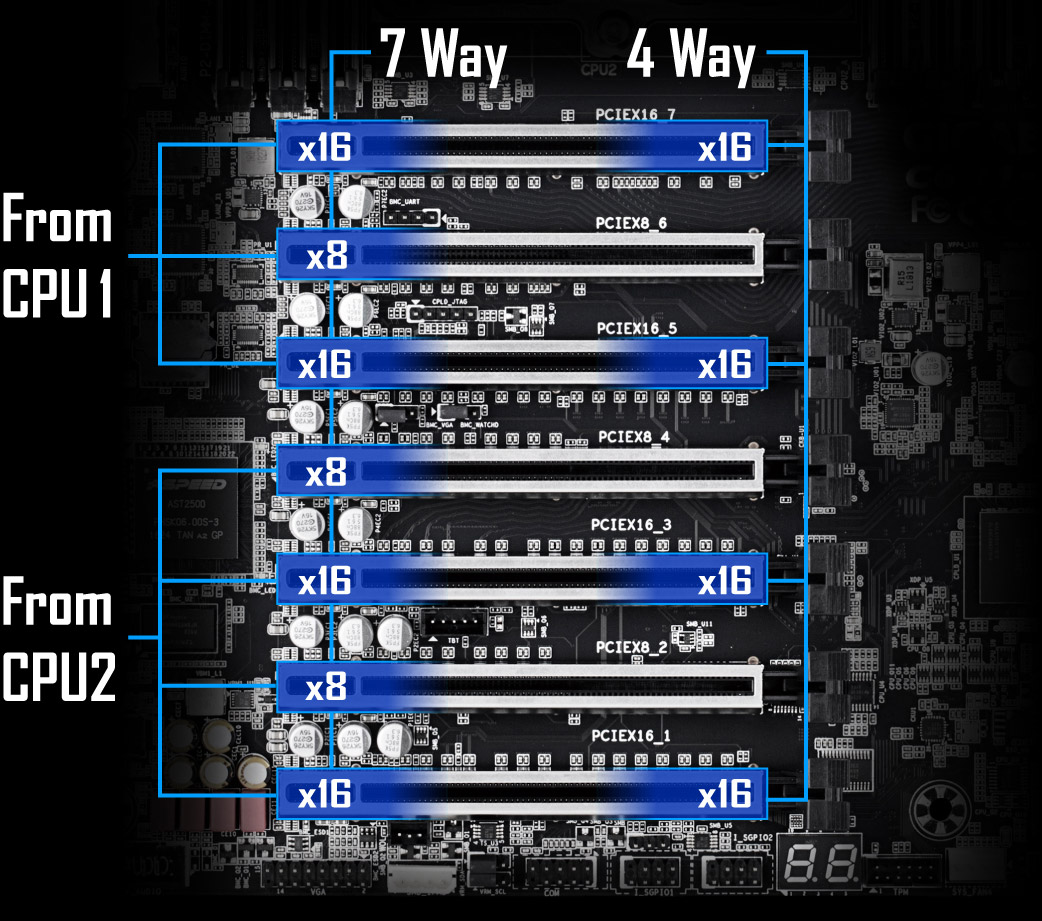

High Performance Multi-GPU Solutions
Delivered by Dual Intel® Xeon Scalable CPUs and 7 x PCIe x16 Slots
Rendering Performance Comparison
Tests run on a GIGABYTE W42G-P08R system with Dual Intel® Xeon® Platinum 8280, 56 cores 112 threads 2.7GHz, 96GB DDR4 memory, NVIDIA QUADRO RTX 6000, running Win 10 64-bit Fall Creators Update. Performance testing completed with OctaneBench Benchmark version 4.00c.
* Image and chart above may show a varied configuration or optional parts, please refer to parts list for standard parts included.

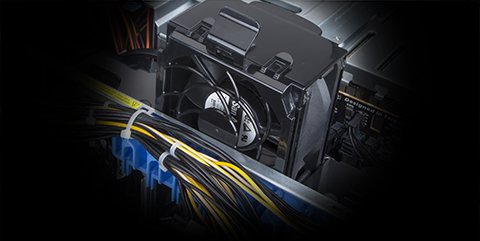

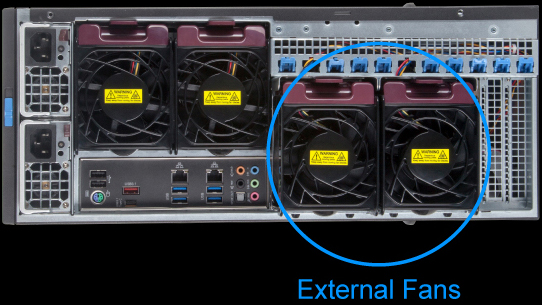

External Fan Design

The chassis supports 6 system fans with optimal cooling airflow and 2 external GPU fans (optional) can be installed on W42G-P08R to strengthen thermal dissipation and lower graphics card temperatures to maximize performance.

With External Fans
Normal
*GPU Temperature of 4 GPU cards
Lower Temperature
NVIDIA Quadro RTX Server
TRANSFORM CONTENT RENDERING WITH NVIDIA RTX SERVER W42G-P08R

NVIDIA RTX Server W42G-P08R brings GPU-accelerated power and performance to deliver the most efficient, comprehensive rendering solution, from interactive sessions in the desktop to final batch rendering in the data center. Powered by NVIDIA Quadro RTX™ GPUs and leading independent software vendors in rendering, NVIDIA RTX Server W42G-P08R is a validated solution that delivers unprecedented rendering and compute performance at a fraction of the cost, space, and power requirements of a traditional CPU render farm, so you can produce beautiful content faster than ever before.


OFFLINE RENDERING
Drastically reduce the time required for offline rendering with the power of GPU acceleration with the NVIDIA RTX Server W42G-P08R.

VIRTUAL WORKSTATIONS
Provision multiple, easy-to-manage virtual workstations or a combination of virtual workstations and render nodes from a single NVIDIA RTX Server W42G-P08R with Quadro vDWS

ACCELERATED DESKTOP RENDERING
Boost local workstation rendering performance and interactivity by connecting to NVIDIA RTX Server W42G-P08R and tapping into the power of up to 4 GPUs.
TOOL-LESS COMPONENT
TOOL-LESS COMPONENT

W42G-P08R features tool-less design that helps IT managers to maintain/upgrade system components easily with no tools required to replace the system components, including VGA holder, and system fans.

GIGABYTE REMOTE MANAGEMENT

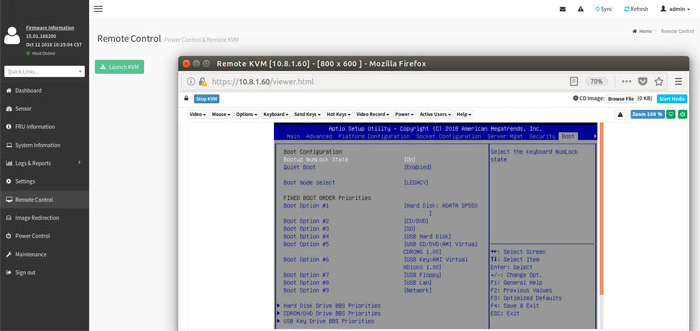

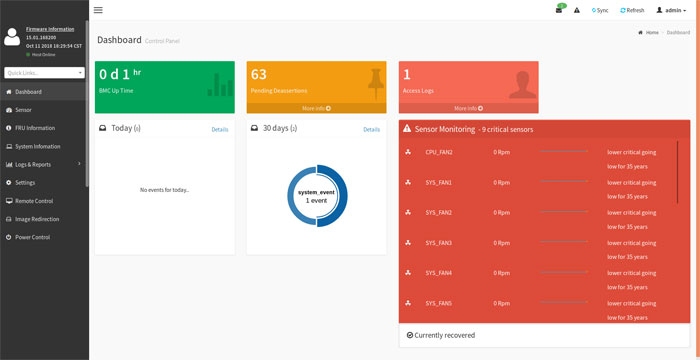

GIGABYTE Remote Management

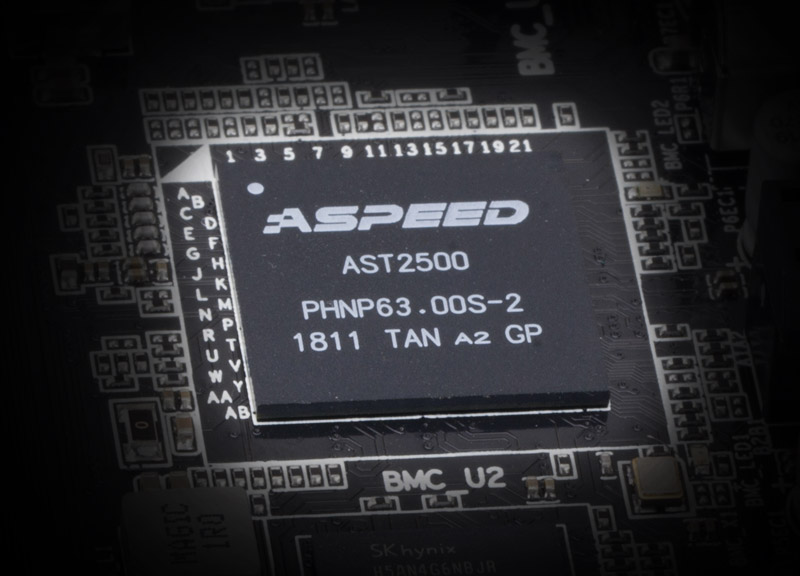

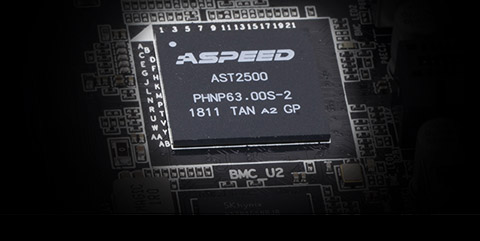

With ASPEED AST 2500 BMC, Gigabyte server boards can provide an IPMI 2.0 compliant solution for IT managers to do remote management through the web interface.

Key Features include:

  1. IPMI 2.0 implementation
  2. Full configuration via web interface
  3. Hardware status monitor
  4. Remote power control
  5. Remote firmware update
  6. Remote KVM with image redirection
  7. Event log and reporting
  8. Easy and convenient user management

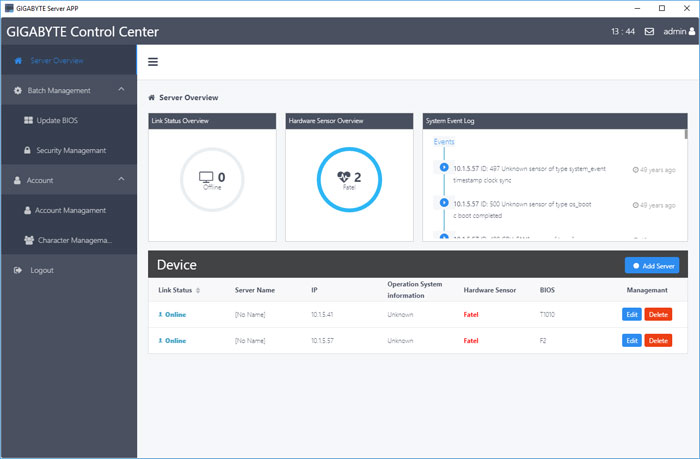

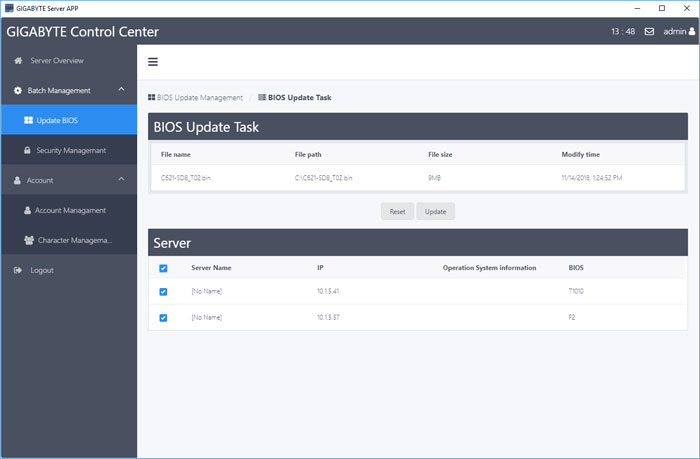

GIGABYTE Control Center

GIGABYTE Control Center is a windows-based application that helps IT managers to fully control and monitor multiple servers without hassle.

Key Features include:

  1. Hardware status monitor
  2. BIOS update
  3. Security management
  4. Easy and convenient user management

CONNECTIVITY

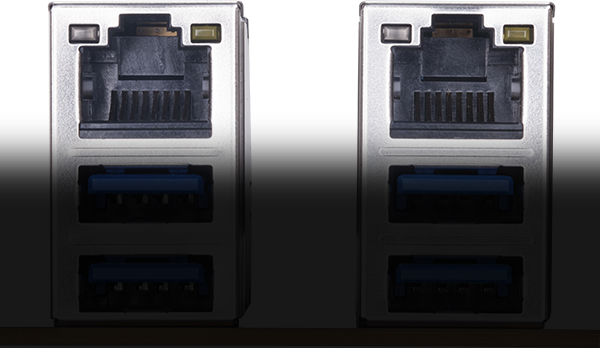

Dual Intel® Server GbE LAN

* Support Windows Server O/S
* Teaming Features
   - Fault Tolerance
   - Link Aggregation
   - Load Balancing

AUDIO
ALC 1220 120dB SNR HD Audio with Smart Headphone Amp

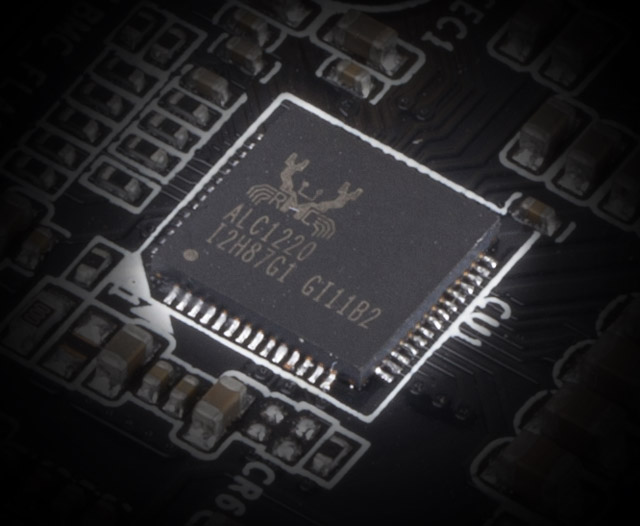

ALC 1220 120dB SNR HD Audio

The ALC1220 is a high-performance multi-channel High Definition Audio Codec with up to 120dB SNR for crystal clear audio and features such as Smart Headphone Amp, 114dB SNR recording for precise voice chats and hardware decoding of DSD128, ensuring users get the best possible audio quality from their PC.


True High-Fidelity Music
Audiophile Grade Capacitors

True High-Fidelity Music (Realtek ALC1220-VB)

Paired with Realtek's latest ALC1220 Codec, playback for surround sound audio and DSD enabled music are easier than ever.

Audiophile Grade Capacitors (WIMA , Nichicon Fine Gold)

To ensure a studio-quality experience, Nichicon Fine Gold capacitors are used to provide power to the overall system.
