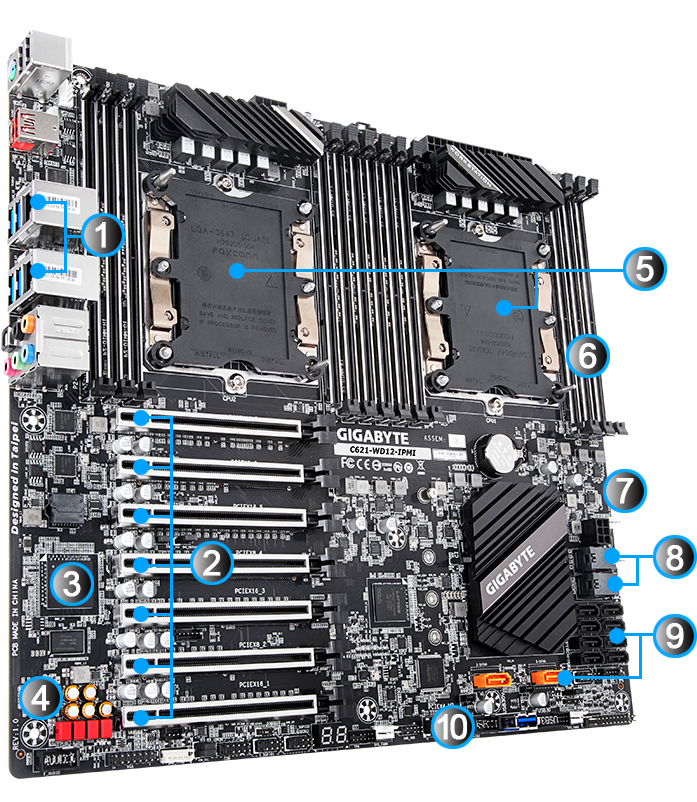

1
Dual Intel® Server GbE LAN
2

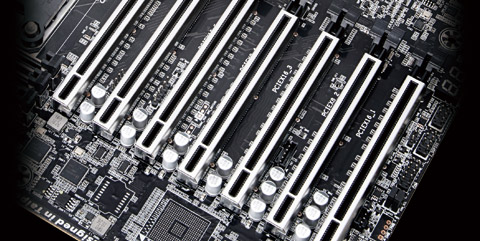

7 x PCIe x16 Slots For Multi Cards
3
AST2500 BMC
4
Realtek ALC 1220-VB 120db SNR HD Audio
5

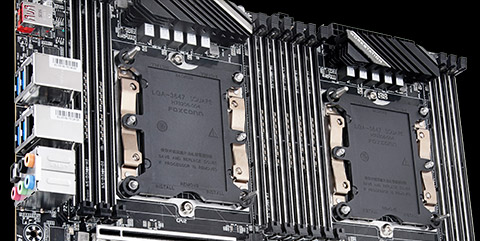

Intel® Xeon® Scalable Processors Dual LGA 3647 Socket P
6
6-Channel DDR4 RDIMM/LRDIMM 12 x DIMMs
7
EEB Form Factor
8
Dual U.2
9
10 x SATA3 Ports (2 x SATA DOM Ports)
10
1 x M.2 Connector, Up To 22110
PERFORMANCE
New Processor Architecture

Intel® Xeon® Scalable processors are designed for the performance demands of complex, data-demanding workloads such as in-memory databases, and real-time business analytics.


4-Way SLI™/4-Way CrossFire™ Multi-Graphics

Multi-graphics configurations offer better graphics performance for applications which demand the highest frame rates without compromising on resolution.

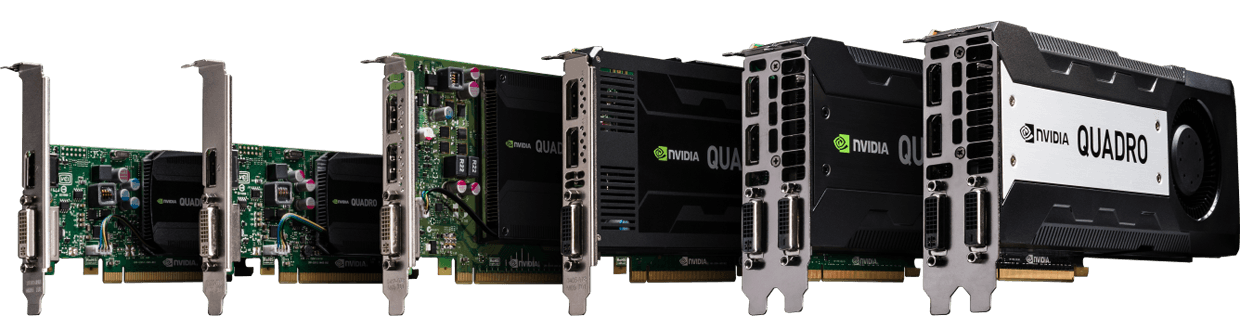

NVIDIA® QUADRO® Professional Graphics Supports

NVIDIA® QUADRO® 3D Workstation Professional Graphics Solutions are designed and built specifically for artists, designers, and engineers, NVIDIA Quadro GPUs power more than 100 professional applications across a broad range of industries. Professionals trust them to enable their best work using applications such as Adobe® Creative Cloud, Avid Media Composer, Autodesk Suites, Dassault Systemes, CATIA and SOLIDWORKS, Siemens NX, PTC Creo, and many more.

Large storage capacity: 10 SATA3 Ports

Sufficient SATA Ports for the mass storage requirement.

COMMERCIAL FEATURES
  • System Status Monitor
    Monitor PSU status by PMBus
  • System Status Monitor
    Monitor status of HDDs by SGPIO
  • Support Commercial Interface

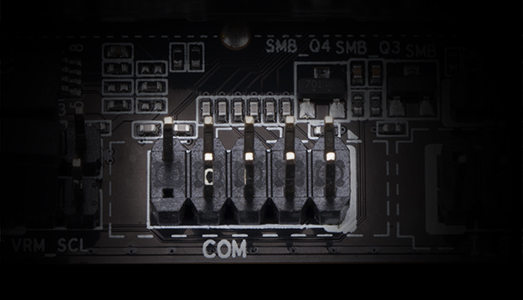

    COM Port Header
CONNECTIVITY

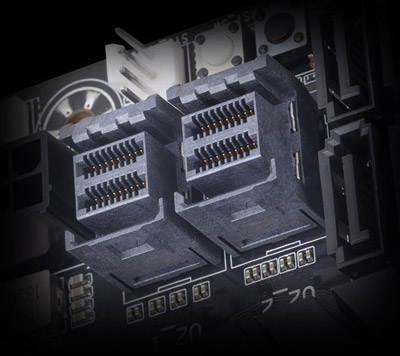

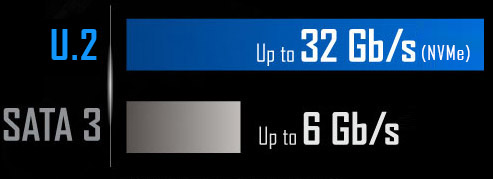

Dual U.2 Onboard (NVMe PCIe Gen3 x4)

NVMe Performance for PCIe SSDs
Using the NVMe protocol which takes advantage of the fast bandwidth of PCIe Gen3 x4 lanes (32 Gb/s), the drives are a clear advantage for users looking to boot their OS faster, load their games in a flash and access large files without waiting.

Fast Onboard Storage with NVMe PCIe Gen3 x4 110mm M.2 (Up to 32 Gb/s)

GIGABYTE's M.2 solution offers considerably faster storage performance and support for both PCIe and SATA interfaces for M.2 SSD devices.

PURE SPEED
GIGABYTE Extreme USB 3.1 Motherboards

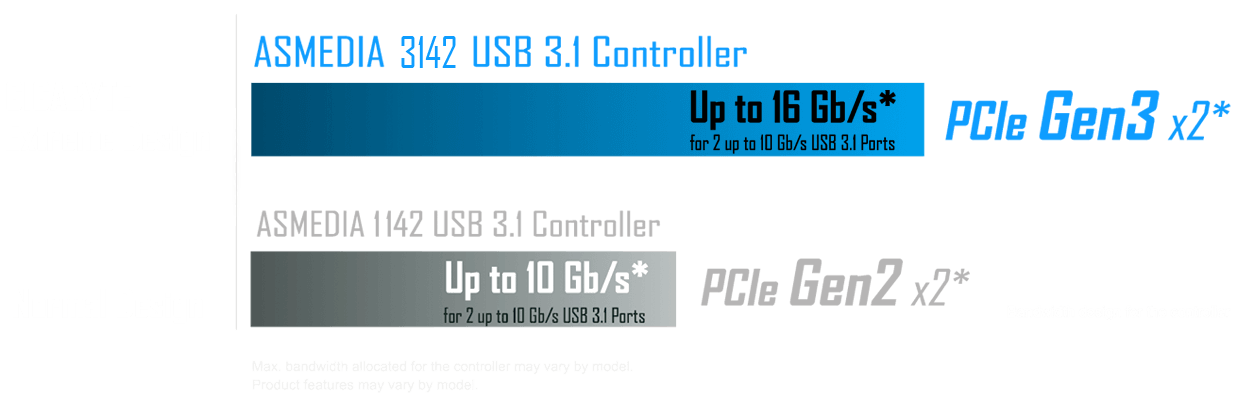

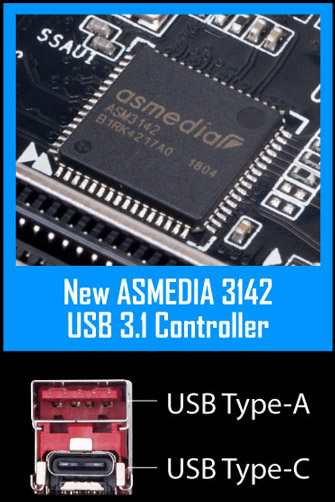

The ASMEDIA 3142 USB 3.1 controller utilizes 2 PCIe Gen3 lanes, offering a total of up to 16 Gb/s, which means you have extra bandwidth to take full control of the 10 Gb/s USB 3.1 ports. With twice the bandwidth compared to its previous generation, and backwards compatibility with USB 2.0 and 3.0, the much improved USB 3.1 protocol USB Type-A connector for better compatibility over a wider range of devices.

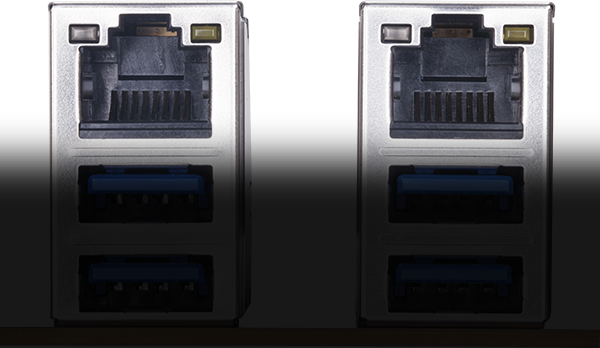

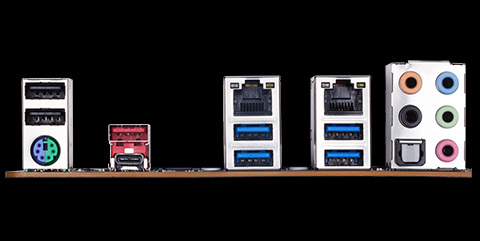

Dual Intel® Server GbE LAN

* Support Windows Server O/S
* Teaming Features
   - Fault Tolerance
   - Link Aggregation
   - Load Balancing

GIGABYTE REMOTE MANAGEMENT

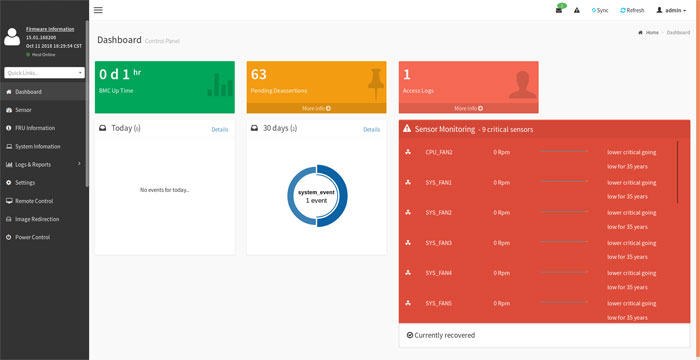

GIGABYTE Remote Management

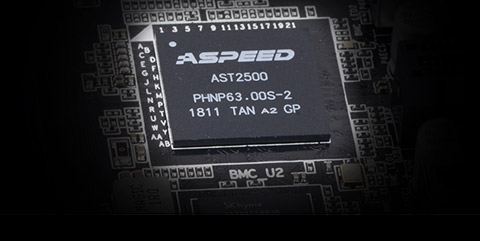

With ASPEED AST 2500 BMC, Gigabyte server boards can provide an IPMI 2.0 compliant solution for IT managers to do remote management through the web interface.

Key Features include:

  1. IPMI 2.0 implementation
  2. Full configuration via web interface
  3. Hardware status monitor
  4. Remote power control
  5. Remote firmware update
  6. Remote KVM with image redirection
  7. Event log and reporting
  8. Easy and convenient user management

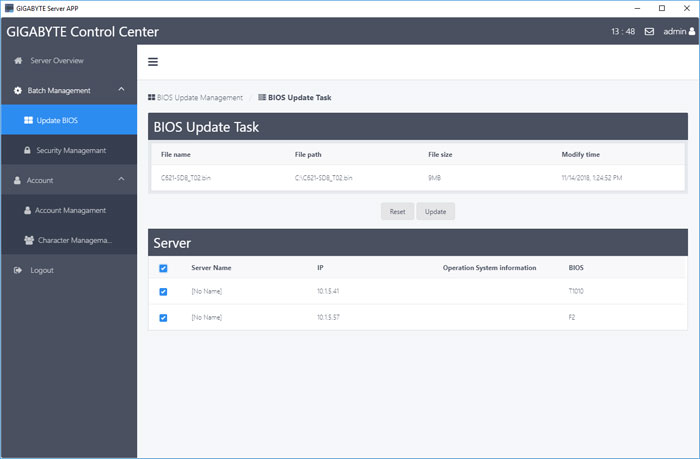

GIGABYTE Control Center

GIGABYTE Control Center is a windows-based application that helps IT managers to fully control and monitor multiple servers without hassle.

Key Features include:

  1. Hardware status monitor
  2. BIOS update
  3. Security management
  4. Easy and convenient user management

AUDIO

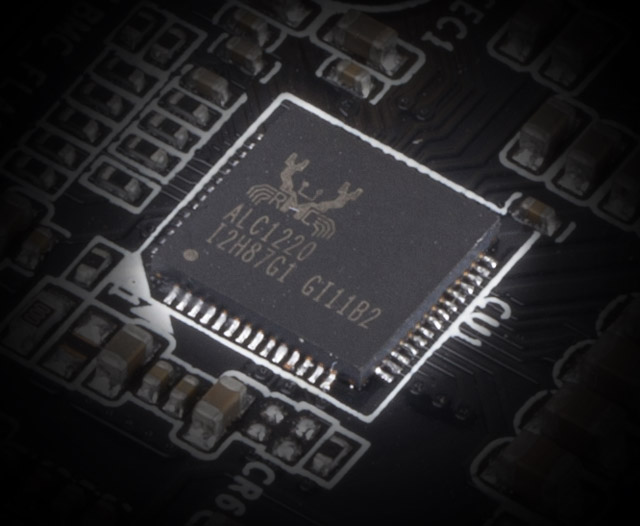

ALC 1220 120dB SNR HD Audio with Smart Headphone Amp
ALC 1220 120dB SNR HD Audio

The ALC1220 is a high-performance multi-channel High Definition Audio Codec with up to 120dB SNR for crystal clear audio and features such as Smart Headphone Amp, 114dB SNR recording for precise voice chats and hardware decoding of DSD128, ensuring users get the best possible audio quality from their PC.


True High-Fidelity Music
Audiophile Grade Capacitors

True High-Fidelity Music (Realtek ALC1220-VB)

Paired with Realtek's latest ALC1220 Codec, playback for surround sound audio and DSD enabled music are easier than ever.

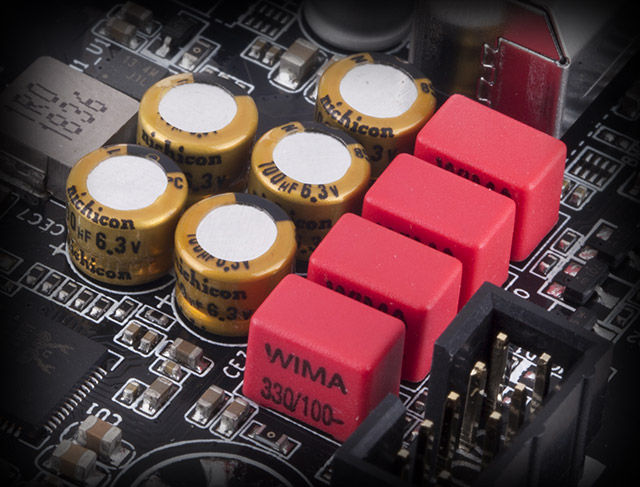

Audiophile Grade Capacitors (WIMA , Nichicon Fine Gold)

To ensure a studio-quality experience, Nichicon Fine Gold capacitors are used to provide power to the overall system.

ULTRA DURABLE
Carefully Selected Components

GIGABYTE’s passive components are meticulously selected to guarantee a super stable operating environment and allow the processors and the memory to deliver their maximum performance. With some of the longest service lifetimes in the industry, our server motherboards build on 30 years’ company-wide experience in motherboard design to attain the highest reliability levels.

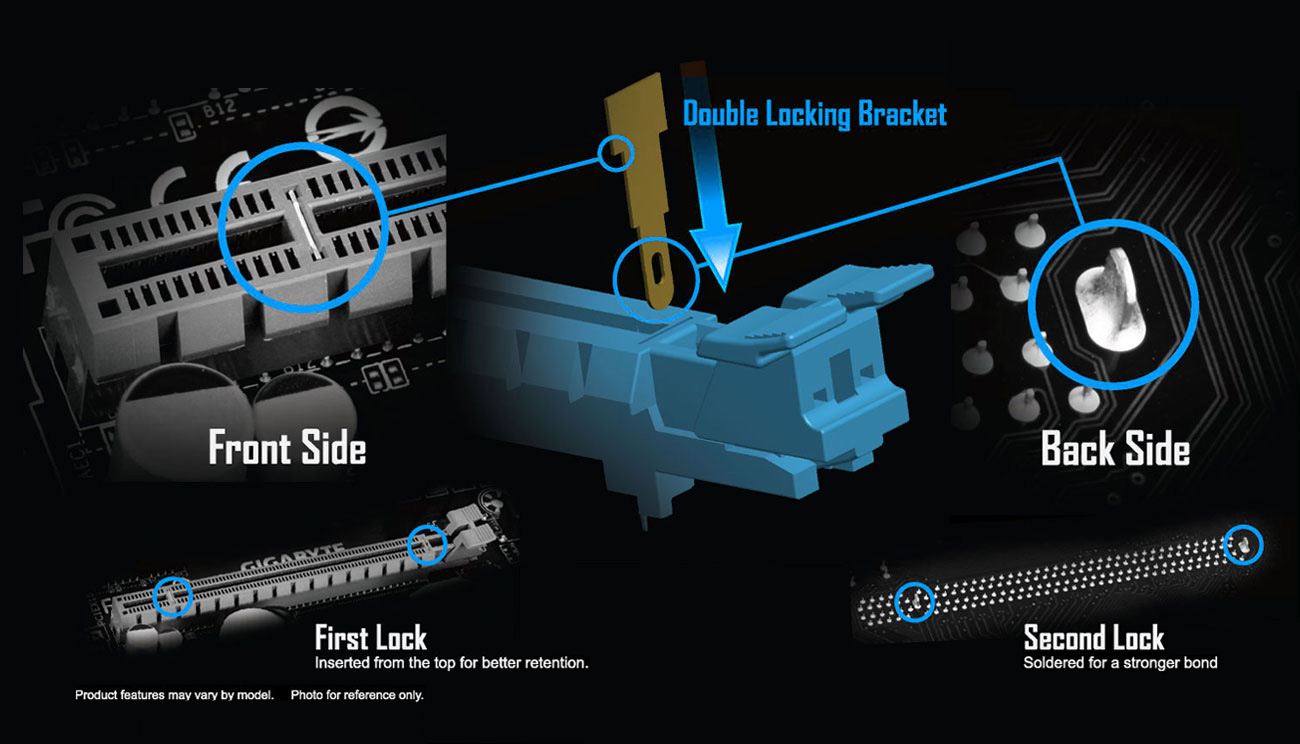

GIGABYTE Patented Double Locking Bracket

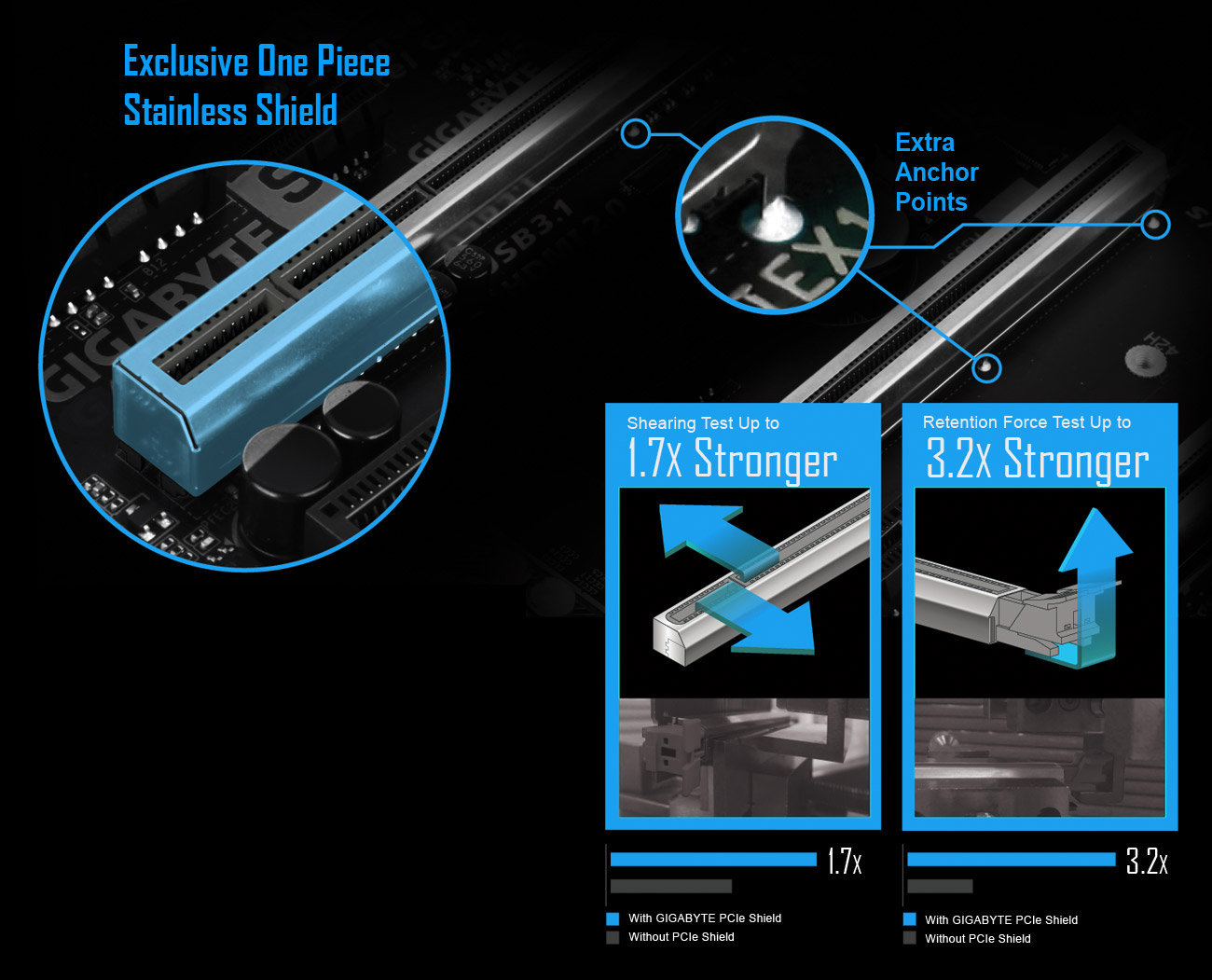

Ultra Durable™ PCIe Armor
Industry Leading Ultra Durable™ PCIe Armor

The innovative one piece stainless steel shielding design from GIGABYTE reinforces the PCIe connectors to provide the extra strength required to support heavy graphics cards.

Ultra Durable™ Memory Armor

GIGABYTE exclusive one piece stainless steel shielding design prevents against PCB distortion/twisting and plate bending, in addition to preventing any possible ESD interference.

* Product features may vary by model. Photo for reference only.
